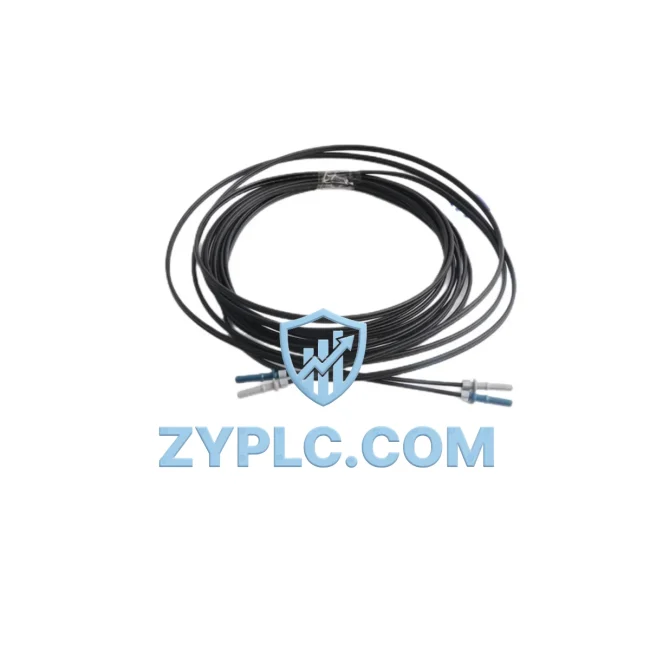

ABB HP-HP/AA-7676-91-0050 System-Ready POF Cable for AC500 Architecture

ABB HP-HP/AA-7676-91-0050 System-Ready POF Cable for AC500 Control System Architecture

In modern industrial automation, the integrity of a control system depends not only on the intelligence of its CPU or the precision of its I/O modules, but equally on the reliability of the communication infrastructure that binds every layer together. The ABB HP-HP/AA-7676-91-0050 Plastic Optical Fiber (POF) cable is a purpose-engineered communication link designed to serve as the backbone of high-speed, noise-immune data transmission within ABB AC500 series PLC architectures. With a 500 mm nominal length and HP-HP connector configuration, this cable is optimized for panel-level and rack-level integration where signal integrity, installation density, and long-term serviceability are paramount.

The AC500 platform is one of ABB’s most scalable and widely deployed industrial control systems, spanning applications from discrete manufacturing and packaging lines to power distribution, water treatment, and process automation. Within this ecosystem, the HP-HP/AA-7676-91-0050 POF cable functions as the physical communication medium between CPU modules, communication processors, and expansion I/O racks — ensuring that control signals, diagnostic data, and real-time process values are transmitted without electromagnetic interference, ground loop issues, or signal degradation that commonly affect copper-based alternatives.

Deploying this cable as part of a structured AC500 architecture means engineers can confidently design systems where the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer all operate in coordinated synchrony. The optical fiber medium eliminates the risk of electrical noise coupling from variable frequency drives, contactors, or high-current bus bars — a critical advantage in environments such as steel mills, chemical processing plants, and offshore platforms where EMI levels are severe.

Architecture Specification Table

Coordinated Control System Design

The HP-HP/AA-7676-91-0050 cable does not operate in isolation — it is a precision component within a carefully coordinated control system architecture. In a typical AC500-based automation system, the ABB PM564-ETH or PM573-ETH CPU module serves as the central processing unit, executing the control program and managing all upstream and downstream communication. The POF cable connects this CPU to expansion I/O racks populated with modules such as the ABB DC532 digital input module, ABB DC522 digital output module, and ABB AX522 analog I/O module — enabling the CPU to read field signals and issue control commands with deterministic cycle times.

At the network layer, the AC500 system may incorporate a CM572-DP PROFIBUS DP communication module or a CM589-PNIO PROFINET I/O adapter, both of which rely on stable internal optical bus communication — facilitated by cables like the HP-HP/AA-7676-91-0050 — to maintain synchronization between the CPU and the network interface. In redundant system designs, a secondary CPU such as the PM591-2ETH may be deployed alongside the primary, with POF cables forming the high-speed synchronization link that enables bumpless switchover in the event of a primary CPU fault.

The power layer of the AC500 system typically includes the ABB PS501 or PS560 power supply modules, which provide regulated 24 VDC to the CPU and I/O backplane. The TB723 or TB724 terminal base units serve as the mechanical and electrical interface between I/O modules and field wiring, while the TA526 expansion adapter enables multi-rack configurations where additional I/O capacity is required. In all of these configurations, the HP-HP/AA-7676-91-0050 POF cable is the critical link that maintains communication continuity across the expanded rack structure.

For human-machine interface integration, the AC500 platform communicates with ABB CP600 series HMI panels or third-party SCADA systems via Ethernet or serial interfaces, while the internal optical bus — supported by this POF cable — ensures that the CPU’s process data is always current and accurately reflected in the operator display. This end-to-end architecture coherence, from field sensor through I/O module, CPU, network gateway, and HMI, is what defines a well-engineered industrial control system, and the HP-HP/AA-7676-91-0050 is an essential enabler of that coherence.

Application in Layered Automation Systems

The ABB HP-HP/AA-7676-91-0050 POF cable finds application across a broad spectrum of industrial sectors where the AC500 platform is deployed as the primary control architecture.

In manufacturing and assembly automation, AC500-based systems control robotic welding cells, conveyor systems, and quality inspection stations. The POF cable ensures that high-speed I/O data from proximity sensors, vision systems, and servo drives reaches the CPU without latency or signal corruption, enabling precise cycle time control and production throughput optimization.

In power distribution and energy management, AC500 PLCs are used to control medium-voltage switchgear, transformer monitoring systems, and distributed energy resources. The galvanic isolation provided by the optical fiber medium is particularly valuable in these environments, where high-voltage transients and ground potential differences can destroy copper-based communication links.

In water and wastewater treatment, AC500 systems manage pump stations, filtration processes, and chemical dosing systems across geographically distributed facilities. The reliability of the internal optical bus — maintained by cables such as the HP-HP/AA-7676-91-0050 — is critical to ensuring continuous process operation and regulatory compliance.

In oil, gas, and petrochemical processing, where process uptime is measured in millions of dollars per hour, the redundant CPU configurations enabled by POF-linked synchronization buses provide the fault tolerance required for safety-critical applications. The 12-Month Warranty on this cable provides procurement teams with the assurance needed to qualify it as a long-term spare part in their maintenance inventory programs.

In mining and metallurgy, AC500 systems control ore crushers, conveyor drives, and smelting furnaces in environments characterized by extreme vibration, dust, and electromagnetic interference. The optical fiber medium of the HP-HP/AA-7676-91-0050 is inherently immune to all of these environmental stressors, making it the preferred communication medium for these demanding applications.

Architecture Engineering FAQ

Q1: Is the HP-HP/AA-7676-91-0050 compatible with all AC500 CPU variants, and can it be used in redundant CPU configurations?
The HP-HP/AA-7676-91-0050 POF cable is designed for use with the ABB AC500 platform and is compatible with CPU modules in the PM5xx family, including the PM564, PM573, PM583, PM591, and PM595 variants. In redundant configurations using dual PM591-2ETH or PM595 CPUs, this cable serves as the synchronization link between the primary and standby processors, enabling hot-standby redundancy with automatic bumpless switchover. Engineers should verify the specific rack and backplane configuration against the AC500 system manual to confirm cable routing and length requirements for their installation.

Q2: What are the installation and commissioning considerations for this POF cable in a multi-rack AC500 system?
During installation, the HP-HP/AA-7676-91-0050 should be routed to avoid sharp bends that exceed the minimum bend radius of the plastic optical fiber, as excessive bending can increase optical attenuation and degrade communication performance. The HP-type connectors should be inspected for cleanliness before mating, as dust or contamination on the optical face can cause intermittent communication faults. During commissioning, the AC500 programming environment (Automation Builder) provides diagnostic tools to verify optical bus communication status and identify any modules that are not responding correctly. The 500 mm length is suited for adjacent rack connections within a single control cabinet; longer cable variants should be selected for inter-cabinet applications.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration support long-term system maintenance?
The 12-Month Warranty covers manufacturing defects in the cable assembly, including optical fiber integrity, connector termination quality, and mechanical housing durability. In the context of long-term system maintenance, Contextual Integration means that this cable is supplied with full traceability to the AC500 system architecture — enabling maintenance engineers to identify the correct replacement part quickly, without the risk of installing an incompatible cable that could cause communication faults or system downtime. Maintaining a stock of HP-HP/AA-7676-91-0050 cables as critical spares is recommended for any facility operating AC500-based control systems, as optical fiber cables are wear items that may require replacement during major maintenance shutdowns or following physical damage to the control cabinet.

—
