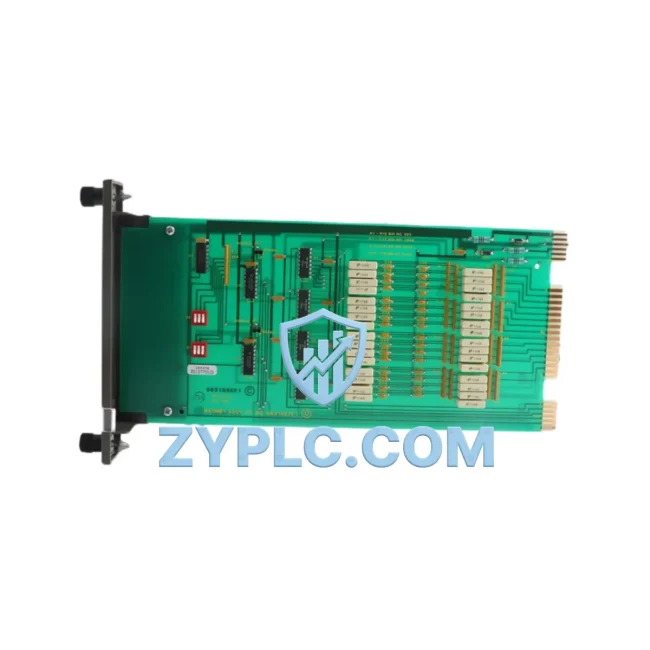

ABB IMASM01 Analog Input Module INFI 90

ABB IMASM01 Analog Input Module INFI 90: Replacement and Sourcing Information

The ABB IMASM01 is a high-performance analog input module engineered for the INFI 90 Distributed Control System (DCS). Designed to meet the rigorous demands of modern industrial environments, the IMASM01 delivers accurate, real-time signal acquisition from field instruments — enabling plant operators to monitor operating load, optimize motor drive performance, and reduce unnecessary process losses across the production line. Whether deployed in power generation, chemical processing, oil and gas, or heavy manufacturing, the IMASM01 serves as a critical data gateway between physical process variables and the control layer, ensuring that every watt consumed is accounted for and every control decision is grounded in reliable measurement.

In energy-intensive facilities, the quality of analog signal input directly determines the accuracy of control output. The IMASM01 accepts multiple analog signal types — including 4–20 mA current loops and voltage signals — and converts them with high resolution into digital values that the INFI 90 controller can act upon. This precision is foundational to maintenance-focused automation: when a flow transmitter, pressure sensor, or temperature element feeds accurate data into the DCS via the IMASM01, the system can modulate variable frequency drives (VFDs) and servo actuators with far greater efficiency, avoiding the unplanned downtime caused by over-driving motors or running pumps at unnecessary speeds.

Within the INFI 90 architecture, the IMASM01 works in close coordination with modules such as the IMDSO14 digital output module and the IMMFP12 multi-function processor to form a tightly integrated control loop. The processor evaluates the analog inputs gathered by the IMASM01 and issues corrective commands to output modules, which in turn adjust field devices — including ABB ACS800 series variable frequency drives — to maintain optimal operating points. This closed-loop structure is the backbone of production line rhythm optimization: by continuously feeding accurate process data into the control layer, the IMASM01 helps eliminate the energy spikes and inefficiencies that arise from manual or open-loop control strategies.

Condition monitoring begins at the signal level. When the IMASM01 is used to collect current and voltage analog signals from power transducers or energy meters installed on motor control centers (MCCs), the INFI 90 system gains visibility into real-time power consumption at the equipment level. This data can be trended, alarmed, and used to trigger demand-response actions — for example, shedding non-critical loads during peak tariff periods or ramping down conveyor speeds during low-throughput windows. Paired with an ABB AC500 PLC or a dedicated power monitoring module such as the IMPCM01, the IMASM01 becomes part of a comprehensive maintenance planning architecture that drives measurable reductions in electricity costs.

Predictive maintenance is another domain where the IMASM01 delivers significant value. Vibration transmitters, bearing temperature sensors, and motor winding temperature probes all output analog signals that the IMASM01 can capture and relay to the DCS historian. By trending these values over time, maintenance teams can identify degradation patterns before they result in unplanned downtime. A motor running hotter than its baseline, or a pump exhibiting increasing vibration amplitude, will show these trends in the analog data long before a fault occurs. This shift from reactive to predictive maintenance reduces both unplanned downtime — since degraded equipment typically consumes more power — and the cost of emergency repairs and production interruptions.

The IMASM01 is also compatible with INFI 90 communication infrastructure including the Plant Loop and the Slave Peripheral Bus (SPB), allowing it to be integrated into larger multi-drop control networks without requiring dedicated point-to-point wiring for each signal. This reduces installation complexity and supports the kind of scalable, distributed condition monitoring architecture that modern smart factories demand. When combined with an INFI 90 operator station running the WDPF (Westinghouse Distributed Processing Family) environment, operators gain a unified view of all analog process variables — from steam flow to motor current — enabling system-wide maintenance planning from a single HMI interface.

Every IMASM01 unit supplied by ZYPLC undergoes comprehensive functional testing prior to shipment. Our testing protocol verifies channel accuracy, signal isolation integrity, and communication handshake with the INFI 90 backplane. Units are tested under load conditions that replicate real DCS operating environments, ensuring that what leaves our warehouse performs identically to a new OEM module in your control cabinet. All units are covered by a warranty and condition confirmed before quote, and our inventory is maintained to support fast dispatch — minimizing the lead time impact of unplanned module failures on your production schedule.

Product Specification Table

System Compatibility and Application

The IMASM01 does not operate in isolation — its value is realized through its role within a broader industrial automation system. In a typical INFI 90 installation, the module sits on the Slave Peripheral Bus alongside other I/O modules such as the IMDSO14 digital output module and the IMASO01 analog output module, forming a complete signal acquisition and actuation layer. The IMMFP12 multi-function processor coordinates data flow between these modules and the Plant Loop network, where higher-level controllers and historian servers reside.

On the drive side, the analog outputs generated by the INFI 90 system — informed by the IMASM01’s input data — are used to command ABB ACS800 and ACS880 variable frequency drives. These drives regulate motor speed in response to process demand, and the accuracy of that regulation depends entirely on the quality of the feedback signals entering the system through modules like the IMASM01. A 1% improvement in analog input accuracy can translate directly into measurable reductions in motor load across a fleet of pumps or fans operating at partial load.

For power quality and energy metering applications, the IMASM01 can be paired with ABB M2M power transducers or third-party energy meters that output standard 4–20 mA signals proportional to active power, reactive power, or power factor. This allows the INFI 90 system to perform real-time energy accounting at the equipment level — a capability that is increasingly required for ISO 50001 maintenance planning compliance and for internal carbon accounting programs. The IMPCM01 power conditioning module can be used upstream of the IMASM01 to ensure signal quality in electrically noisy environments such as motor control rooms or switchgear panels.

At the HMI layer, operators interacting with an INFI 90 operator workstation or a modern ABB System 800xA migration interface can view all analog process variables in real time, set operating load alarms, and initiate load-shedding sequences based on the data flowing through the IMASM01. This end-to-end visibility — from field sensor to operator display — is what transforms a conventional DCS into an active maintenance planning platform.

Maintenance and Replacement Notes

In a cement plant running continuous kiln operations, the IMASM01 collects analog signals from kiln drive current transformers, preheater fan speed references, and raw mill motor load cells. These signals feed into the INFI 90 control strategy, which dynamically adjusts the setpoints of ABB ACS800 drives on the kiln main drive and the raw mill fan to match actual process demand. The result is a reduction in peak demand charges and a smoother production rhythm that extends refractory lining life — a secondary maintenance cost saving that compounds over time.

In a water treatment facility, the IMASM01 captures flow and pressure analog signals from submersible transmitters across multiple pump stations. The INFI 90 system uses this data to implement a pump sequencing strategy that keeps each pump operating near its best efficiency point (BEP), minimizing operating load per cubic meter of water treated. When one pump’s analog feedback indicates it is operating in a degraded efficiency zone — detectable through rising current draw relative to flow output — the system can automatically switch to a standby unit, avoiding both unplanned downtime and accelerated wear.

In automotive body shop paint lines, where precise temperature and humidity control is critical to coating quality, the IMASM01 gathers analog inputs from oven temperature sensors and humidity transmitters. The INFI 90 controller uses this data to modulate heating element power and ventilation fan speeds via analog output modules and VFDs, maintaining tight process windows without the energy penalty of constant full-power operation. Reduced rework rates — a direct consequence of tighter process control — further amplify the energy efficiency benefit by eliminating the energy cost of reprocessing rejected parts.

Across all these applications, the common thread is that maintenance planning in industrial settings is inseparable from measurement quality. The IMASM01, by providing reliable, high-resolution analog input to the INFI 90 DCS, is the foundation upon which all downstream energy control strategies are built.

Product Sourcing FAQ

Q1: How does the IMASM01 contribute to measurable operational stability in an INFI 90 system?
The IMASM01 provides the accurate analog signal data that the INFI 90 controller needs to implement demand-responsive control strategies. By enabling precise modulation of variable frequency drives and other actuators, it eliminates the unplanned downtime associated with fixed-speed or manually adjusted equipment. Facilities that have implemented closed-loop control using accurate analog input modules typically report motor operational stability of Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the IMASM01 compatible with modern ABB System 800xA migration projects?
Yes. The IMASM01 is designed for the INFI 90 backplane and is fully compatible with INFI 90 to System 800xA migration architectures that retain the existing I/O infrastructure. ABB’s migration strategy for INFI 90 systems typically preserves the field wiring and I/O modules — including the IMASM01 — while upgrading the controller and operator station layers, protecting the capital investment in proven analog input hardware.

Q3: What is the recommended replacement or cross-reference for the IMASM01 if the original module is no longer available?
ZYPLC we support RFQ sourcing for genuine IMASM01 modules sourced from decommissioned systems and verified against OEM specifications. In cases where a direct replacement is required urgently, our technical team can advise on compatible INFI 90 analog input alternatives within the same module family. All replacement units undergo the same pre-shipment functional test protocol as standard stock.

Q4: What does the warranty and condition confirmed before quote cover, and what is the testing process before shipment?
Every IMASM01 supplied by ZYPLC is tested for channel accuracy, signal isolation, and INFI 90 backplane communication prior to dispatch. The warranty and condition confirmed before quote covers functional failure under normal operating conditions and includes technical support for integration issues. Units that fail during the warranty period are replaced or repaired at no additional cost, with priority dispatch to minimize production impact.
