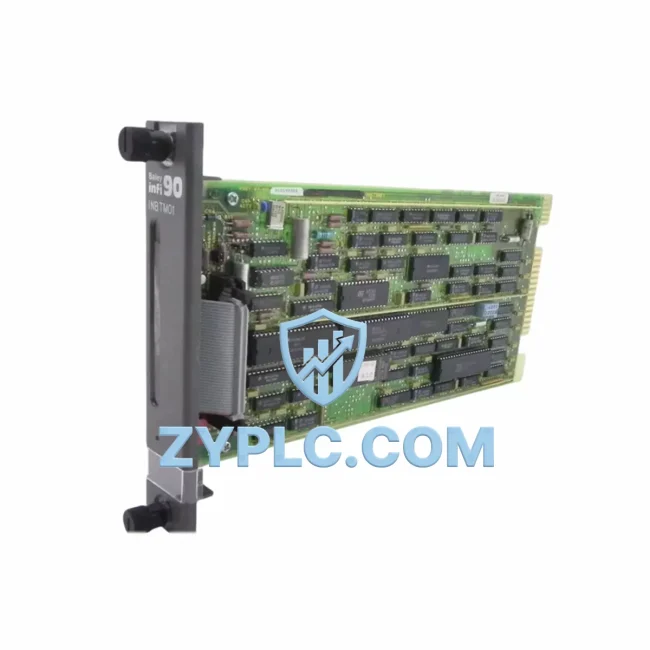

ABB INBTM01 Energy-Saving Bus Module for AC500 Automation

ABB INBTM01 Energy-Saving Bus Module for AC500 Automation

The ABB INBTM01 is a high-performance bus transfer module engineered for the AC500 PLC platform, designed to maximize communication efficiency, reduce unnecessary power draw across fieldbus segments, and deliver reliable data throughput in demanding industrial environments. As factories push toward leaner energy profiles and tighter production cycles, the INBTM01 serves as a critical link between the control layer and the field device layer — ensuring that every watt consumed in the automation architecture translates directly into productive output.

Unlike passive communication bridges, the INBTM01 actively manages bus topology transitions within the AC500 system, minimizing signal latency and reducing the overhead that typically inflates cycle times and energy consumption. When integrated with ABB’s broader AC500 ecosystem, it enables plant engineers to build automation architectures that are not only faster and more responsive, but measurably more energy-efficient across the full production shift.

Efficiency Performance Table

Energy-Aware Automation Architecture

The INBTM01 does not operate in isolation — its energy optimization value is fully realized when deployed within a well-structured AC500 automation architecture. At the CPU level, ABB PM564 and PM572 processors coordinate the overall control logic, issuing commands that flow through the INBTM01’s bus transfer layer to reach field devices with minimal latency. This tight integration reduces the number of redundant polling cycles that would otherwise consume both processing time and bus power.

On the analog input side, the ABB AI523 module collects real-time process variables — temperature, pressure, flow — and feeds them upstream through the INBTM01’s managed bus interface. This data path is critical for energy monitoring: when the AI523 detects a deviation in motor load or thermal profile, the INBTM01 ensures that corrective signals reach the drive layer without delay. Similarly, the ABB AO523 analog output module uses the same optimized bus path to issue precise setpoint adjustments to variable frequency drives, trimming motor speed to match actual process demand rather than running at fixed full-load.

For distributed I/O expansion, the ABB TU515 terminal unit and DC532 digital I/O module extend the control reach of the AC500 system across the production floor. The INBTM01 manages the bus segment that connects these remote I/O nodes, ensuring that scan cycles remain tight and that idle nodes do not generate unnecessary bus traffic. This architecture directly reduces the communication overhead that contributes to elevated energy consumption in poorly segmented fieldbus networks.

At the drive integration layer, ABB ACS580 variable frequency drives receive speed and torque references through the fieldbus path managed by the INBTM01. By maintaining a clean, low-latency communication channel between the PLC and the drive, the module enables precise motor control that eliminates the energy waste associated with speed hunting, overcurrent events, and unnecessary braking cycles. The result is a drive system that responds accurately to process demand, consuming only the energy required at each moment in the production cycle.

For network-level energy monitoring, the ABB CM579 communication module works alongside the INBTM01 to provide Ethernet-based connectivity to SCADA and energy management systems. Real-time power consumption data collected from field devices can be aggregated and analyzed at the supervisory level, enabling plant managers to identify inefficient equipment, schedule predictive maintenance, and optimize shift-level energy budgets. The DA501 data adapter further extends this capability by bridging legacy serial devices into the modern AC500 network without requiring full hardware replacement — preserving capital investment while improving overall system energy visibility.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment, the INBTM01 contributes to energy savings through three primary mechanisms: reduced bus idle time, faster fault recovery, and optimized drive control cycles. When a production line transitions between product variants, the AC500 CPU issues a reconfiguration sequence that passes through the INBTM01 to update drive parameters, I/O mappings, and sensor thresholds simultaneously. This parallel update capability reduces changeover time — and the associated energy consumed by equipment running in standby or at partial load during the transition.

Predictive maintenance is another area where the INBTM01’s communication efficiency delivers measurable energy benefits. By maintaining a stable, low-jitter data path between field sensors and the control system, the module ensures that condition monitoring data — vibration signatures, thermal trends, current draw profiles — arrives at the CPU with sufficient resolution for early fault detection. Catching a bearing failure or insulation degradation event before it causes an unplanned shutdown eliminates the energy spike associated with emergency restarts and the extended warm-up cycles that follow.

From an inventory and supply chain perspective, ZYPLC maintains ready stock of the INBTM01 and compatible AC500 modules, with outgoing shipment testing performed on every unit before dispatch. Each module undergoes functional verification under simulated bus load conditions, ensuring that the communication performance specified in the datasheet is confirmed before the unit leaves the warehouse. This testing protocol, combined with the 12-month warranty coverage, gives maintenance engineers the confidence to plan module replacements proactively rather than reactively — further reducing the unplanned downtime that drives up energy costs through inefficient restart sequences.

Energy Optimization FAQ

Q1: How does the INBTM01 contribute to measurable energy savings on the production floor?
The INBTM01 reduces bus communication overhead by managing segment transitions efficiently, which shortens PLC scan cycles and allows variable frequency drives to receive more precise, timely control signals. This precision reduces motor over-speed events and unnecessary energy consumption during load transitions.

Q2: Is the INBTM01 compatible with existing AC500 installations using older CPU modules?
Yes. The INBTM01 is designed for integration within the AC500 platform and is compatible with a range of CPU modules including the PM554, PM564, PM572, PM581, and PM591 series. For specific firmware compatibility requirements, consult the ABB AC500 system manual or contact ZYPLC technical support.

Q3: What is the recommended replacement process when substituting a failed bus module in a live production environment?
ZYPLC recommends pre-configuring the replacement INBTM01 offline using the AC500 engineering tool before installation. This minimizes the switchover window and reduces the duration of any associated production interruption. All units shipped by ZYPLC are pre-tested under bus load conditions to confirm functional readiness.

Q4: What warranty coverage applies to the INBTM01 purchased through ZYPLC?
Every INBTM01 unit sold by ZYPLC is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Units are shipped only after passing outgoing inspection and functional bus communication testing.
