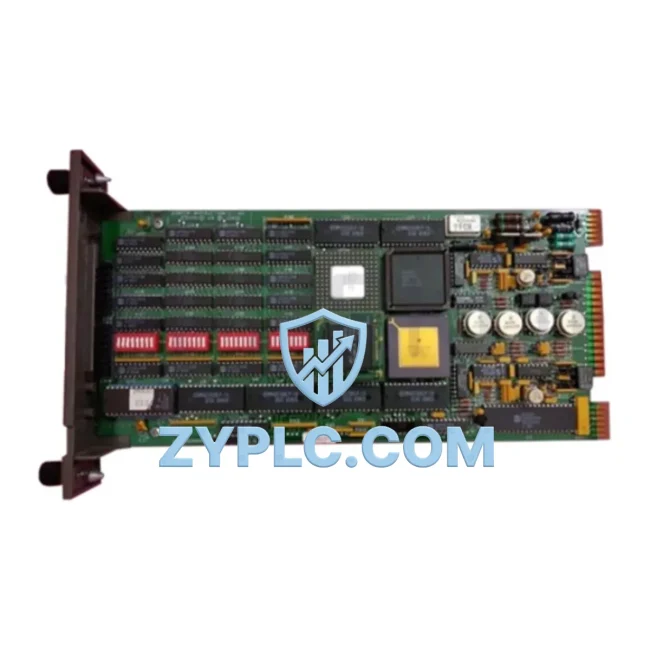

ABB INNIS01 System-Ready Network Interface for AC500 Architecture

ABB INNIS01 System-Ready Network Interface for AC500 Architecture

The ABB INNIS01 is a dedicated Network Interface Slave Module engineered for seamless integration within the ABB AC500 programmable logic controller platform. Rather than functioning as a standalone communication device, the INNIS01 is designed as a structural component of a layered industrial control architecture — bridging the fieldbus network layer with the AC500 CPU and I/O subsystems to deliver consistent, deterministic data exchange across the entire control hierarchy. In distributed manufacturing, power distribution, petrochemical processing, and water treatment environments, the INNIS01 enables the AC500 system to participate as a slave node on PROFIBUS DP networks, ensuring that the controller remains fully embedded within the plant-wide communication fabric without requiring additional gateway hardware or protocol converters.

When deployed alongside the ABB AC500 PM573, PM583, or PM595 CPU modules, the INNIS01 extends the communication reach of the control platform to higher-level SCADA systems, distributed control systems (DCS), and remote I/O clusters. The module occupies a dedicated slot on the AC500 S500 backplane, maintaining electrical isolation between the fieldbus segment and the internal CPU bus. This architecture protects the controller from network-induced transients while preserving the high-speed cycle time performance that process-critical applications demand. Engineers integrating the INNIS01 into a new or retrofit control panel benefit from its plug-and-play compatibility with the AC500 hardware family, reducing commissioning time and eliminating the need for custom firmware configuration at the network interface level.

In a complete AC500 control system, the INNIS01 works in close coordination with the TB521 and TB541 terminal base units, which provide the mechanical mounting and internal bus connection for all S500 I/O modules. Digital input modules such as the DI524 and digital output modules such as the DO524 feed real-time field signals through the backplane to the CPU, while the INNIS01 simultaneously transmits process data upstream to the PROFIBUS master — typically a supervisory PLC, a DCS controller, or a SCADA gateway. This multi-layer signal flow ensures that field-level events are captured, processed, and reported to the control room with minimal latency, supporting the fast scan cycles required in packaging lines, conveyor systems, and motor control centers.

For applications requiring redundant communication paths or high-availability control architectures, the INNIS01 can be deployed in parallel with other AC500 communication modules such as the CI590-CS31-HA for CS31 bus connectivity or the CI501-PNIO for PROFINET I/O integration. This multi-protocol approach allows system architects to design control networks where the AC500 CPU simultaneously serves as a PROFIBUS slave on one network segment and a PROFINET I/O device on another, providing the communication flexibility demanded by modern hybrid automation environments. Power supply modules such as the PS501 and PS502 provide the regulated 24 VDC rail that energizes the entire S500 I/O rack, ensuring that the INNIS01 and all associated modules operate within their specified electrical parameters throughout the system lifecycle.

From a long-term maintenance perspective, the INNIS01’s modular design philosophy aligns with ABB’s AC500 platform commitment to backward compatibility and extended product availability. Maintenance engineers can replace the INNIS01 in the field without disturbing adjacent I/O modules or reconfiguring the CPU program, provided the replacement module carries the same firmware baseline. ZYPLC maintains verified stock of the INNIS01 with full functional testing prior to shipment, and all units are covered by a 12-Month Warranty that includes technical support for installation, commissioning, and fault diagnosis. This warranty coverage, combined with ZYPLC’s rapid dispatch capability, minimizes unplanned downtime in production environments where control system availability is directly tied to operational revenue.

Architecture Specification Table

Coordinated Control System Design

A complete AC500-based control system built around the INNIS01 typically includes the following coordinated components working across multiple architecture layers:

At the control layer, the ABB AC500 PM583 or PM595 CPU module executes the application program and manages all I/O data exchange through the S500 backplane. The INNIS01 sits adjacent to the CPU on the same rack, receiving its configuration parameters from the CPU during startup and autonomously managing the PROFIBUS DP slave communication cycle thereafter. At the I/O layer, digital and analog I/O modules — including the DI524 (16-channel digital input), DO524 (16-channel digital output), and AI523 (analog input) — connect to field instruments and actuators through the TB541 terminal base, feeding process data into the CPU scan cycle that the INNIS01 then reports to the PROFIBUS master. At the network layer, the INNIS01 interfaces with a PROFIBUS DP master controller — which may be a Siemens S7-300 IM153 remote I/O head, an ABB AC500 acting as master via a CI502-PBUS module, or a DCS system with integrated PROFIBUS master capability. At the power layer, the ABB PS501 or PS502 power supply module provides the stabilized 24 VDC supply to the entire S500 rack, ensuring that the INNIS01 and all I/O modules operate within their rated electrical parameters. At the HMI layer, operator panels such as the ABB CP600 series or third-party SCADA workstations connected via the PROFIBUS master receive real-time process data that the INNIS01 transmits from the AC500 CPU. At the execution layer, variable frequency drives, motor starters, and pneumatic valve islands receive setpoints and control commands that originate from the AC500 CPU and are distributed through the PROFIBUS network that the INNIS01 connects to as a slave node.

Application in Layered Automation Systems

In manufacturing and assembly lines, the INNIS01 enables the AC500 controller to participate as a subordinate node within a plant-wide PROFIBUS network managed by a central production control system, allowing line-level data — cycle counts, fault states, conveyor speeds — to be aggregated at the supervisory level without additional protocol conversion hardware. In power distribution and substation automation, the INNIS01 allows the AC500 to report protection relay status, breaker positions, and energy metering data to a substation SCADA system over PROFIBUS, supporting IEC 61850-adjacent architectures where legacy fieldbus segments coexist with modern Ethernet-based communication layers. In petrochemical and process industries, the INNIS01 integrates the AC500 into DCS-managed PROFIBUS segments where the DCS acts as master and the AC500 handles local loop control, providing a clean separation between supervisory process management and field-level PID execution. In water and wastewater treatment, the INNIS01 supports remote pump station control architectures where multiple AC500 PLCs distributed across a treatment facility report to a central PROFIBUS master, enabling centralized monitoring of flow rates, pressure, and chemical dosing without dedicated communication gateways at each remote station. In mining and metallurgical processing, the INNIS01 withstands the electrically noisy environments typical of crusher control rooms and smelter automation panels, maintaining reliable PROFIBUS communication even in the presence of high-frequency switching transients from large motor drives and arc furnace equipment.

Architecture Engineering FAQ

Q1: Is the ABB INNIS01 compatible with all AC500 CPU generations, and does it require specific firmware versions for correct operation?
The INNIS01 is designed for the ABB AC500 S500 I/O platform and is compatible with AC500 CPU modules from the PM573 through PM595 range. Compatibility is maintained across standard AC500 firmware releases; however, it is recommended to verify the module’s firmware version against the CPU’s Automation Builder project configuration during commissioning. ZYPLC provides pre-shipment functional testing and can advise on firmware baseline compatibility for specific project requirements under the 12-Month Warranty support terms.

Q2: Can the INNIS01 be used in a redundant PROFIBUS architecture, and how does it behave during a network fault?
The INNIS01 operates as a standard PROFIBUS DP slave and does not natively support dual-redundant PROFIBUS ring topologies on its own. Redundancy at the network layer is typically implemented at the PROFIBUS master level or through the use of redundant AC500 CPU configurations combined with appropriate network topology design. In the event of a PROFIBUS master communication fault, the INNIS01 will enter a safe state as defined by the GSD file configuration, and the AC500 CPU will respond according to the application program’s fault handling logic. ZYPLC’s technical support team can assist with redundancy architecture planning as part of the 12-Month Warranty service.

Q3: What is the lead time for the INNIS01, and does ZYPLC provide long-term supply assurance for ongoing maintenance requirements?
ZYPLC maintains verified stock of the ABB INNIS01 and can dispatch tested units within standard lead times. For facilities with ongoing maintenance requirements or planned multi-site rollouts, ZYPLC offers supply planning consultation to ensure that replacement modules are available when needed, reducing the risk of extended downtime caused by component unavailability. All supplied units are covered by a 12-Month Warranty with full technical support for installation, commissioning, and fault diagnosis. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com to confirm current stock levels and arrange supply agreements.
