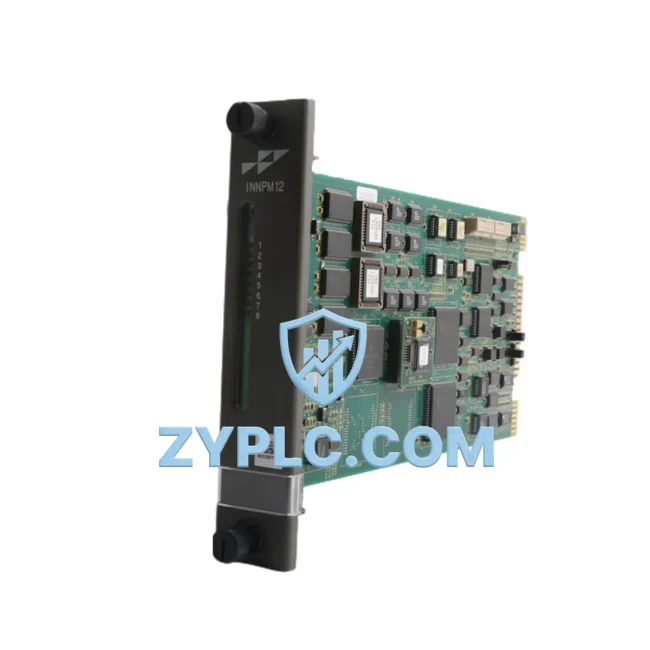

ABB INNPM12 Energy-Saving Network Processor for Advant Automation
The ABB INNPM12 is a high-performance Network Processor Module engineered for the ABB Advant series Distributed Control System (DCS). Designed to serve as the communication backbone of energy-intensive industrial environments, the INNPM12 enables real-time data exchange between field devices, controllers, and supervisory systems — directly contributing to reduced energy waste, improved equipment utilization, and optimized production line throughput. Whether deployed in power generation, chemical processing, pulp and paper, or heavy manufacturing, this module delivers the network reliability that modern energy-aware automation demands.
Efficiency Performance Table
| Parameter |
Specification |
| Module Type |
Network Processor Module (NPM) |
| Compatible Series |
ABB Advant OCS / MOD 300 DCS |
| Communication Protocol |
MasterBus 300 / RCOM / Ethernet-ready gateway |
| Power Consumption |
Low-power embedded processor architecture |
| Operating Efficiency |
Deterministic real-time network scheduling, minimizing idle cycles |
| Application Environment |
Industrial plant floors, control rooms, energy management systems |
| Energy Optimization Value |
Reduces communication latency → faster control loop response → lower energy overshoot |
| Origin |
Sweden (ABB Group) |
| Warranty |
12-Month Warranty — tested and verified before shipment |
Energy-Aware Automation Architecture
In a fully integrated Advant DCS environment, the INNPM12 acts as the central nervous system for energy data flow. It communicates upstream with the ABB AC450 Controller and downstream with field-level I/O modules such as the ABB DSDP170 Pulse Counter Board, which captures energy pulse signals from utility meters and motor drives. This closed-loop data path allows the control system to continuously monitor actual power draw versus setpoint, enabling dynamic load shedding and demand response without manual intervention.
On the drive side, the INNPM12 integrates seamlessly with ABB ACS800 series variable frequency drives (VFDs), which regulate motor speed in pump, fan, and compressor applications. By receiving real-time process feedback through the network processor, the ACS800 can adjust output frequency to match actual load demand — eliminating the fixed-speed energy waste that accounts for up to 30% of motor system losses in conventional plants. Paired with the ABB DSQC series motion controllers for servo-driven axes, the INNPM12 ensures that positioning cycles are executed at optimal velocity profiles, reducing peak current draw and thermal stress on drive components.
For power quality monitoring, the INNPM12 works alongside the ABB DMOC01 Power Monitor Module and ABB DSMB176 Bus Modem Board to aggregate energy consumption data across multiple production cells. This data is surfaced to the ABB Operate IT / Industrial IT 800xA HMI platform, where operators can visualize energy KPIs, set consumption thresholds, and trigger automated responses when energy budgets are exceeded. The result is a measurable reduction in peak demand charges and a more predictable energy cost structure.
Communication integrity is maintained through the ABB DSCS140 Communication Supervisor and redundant MasterBus 300 network topology, ensuring that energy control commands are never lost due to network faults. The INNPM12 also supports integration with ABB S800 I/O modules for distributed analog and digital signal acquisition, enabling granular energy metering at the equipment level rather than just at the plant boundary.
Power Optimization in Real Production Lines
In continuous process industries, unplanned downtime is one of the largest hidden energy costs — restarting cold equipment consumes significantly more energy than maintaining steady-state operation. The INNPM12 addresses this by providing the communication reliability that enables predictive maintenance strategies. By ensuring that condition monitoring data from vibration sensors, temperature transmitters, and motor current analyzers reaches the control system without delay or packet loss, the module supports early fault detection in rotating equipment such as pumps, compressors, and conveyor drives.
On the production line timing side, the INNPM12’s deterministic network scheduling eliminates communication jitter that can cause controller scan time overruns. In high-speed assembly or packaging lines, even millisecond-level delays in I/O response can force machines to operate at reduced speed as a safety margin. With the INNPM12 maintaining consistent sub-millisecond network latency, line speed can be pushed closer to its rated maximum — improving overall equipment effectiveness (OEE) without adding energy input.
Inventory availability is confirmed prior to every shipment. Each INNPM12 unit undergoes functional testing on ABB-compatible test benches, verifying communication initialization, module addressing, and data throughput before dispatch. Units are shipped with full 12-month warranty coverage, ensuring that any field failure within the warranty period is resolved at no additional cost — protecting both your maintenance budget and your production continuity.
Energy Optimization FAQ
Q1: How does the INNPM12 contribute to measurable energy savings?
The INNPM12 reduces energy waste indirectly by enabling faster, more accurate control loop execution. When network latency is minimized, controllers like the AC450 can respond to process deviations more quickly, preventing energy-intensive overcorrections in heating, pumping, or compression systems. Tighter control = less energy overshoot.
Q2: Is the INNPM12 compatible with modern energy management systems?
Yes. While the INNPM12 is native to the ABB Advant / MOD 300 DCS platform, it can be integrated with higher-level energy management systems via OPC gateway servers or ABB Industrial IT 800xA, allowing energy data collected through the Advant network to feed into plant-wide energy dashboards and ISO 50001 reporting tools.
Q3: Can the INNPM12 replace a failed unit without full system reconfiguration?
In most Advant installations, the INNPM12 supports hot-swap replacement with module address restoration from the controller database. This minimizes downtime during replacement — typically under 30 minutes for a trained technician — avoiding the energy cost of a full plant restart.
Q4: What does the 12-month warranty cover, and what is the testing process?
Every INNPM12 supplied by ZYPLC is tested for communication initialization, MasterBus 300 protocol handshake, and module self-diagnostics before shipment. The 12-month warranty covers functional failure under normal operating conditions. Replacement or repair is provided at no charge within the warranty period, with fast dispatch from in-stock inventory.
