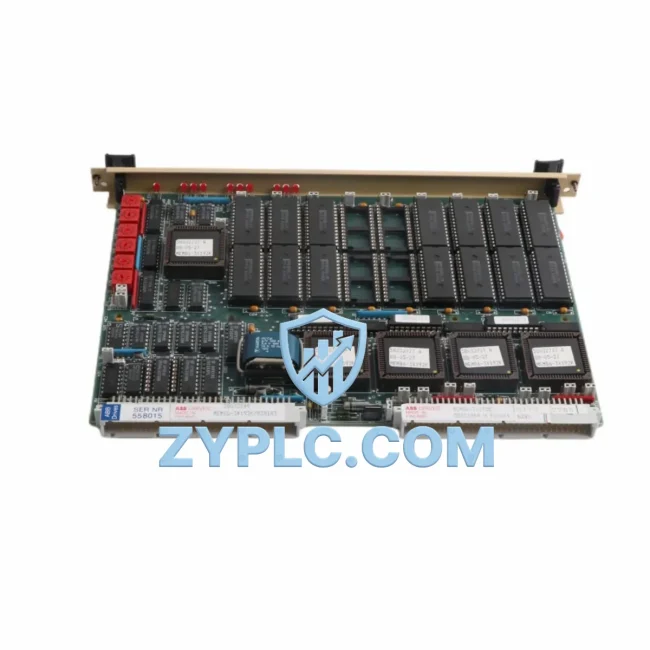

ABB MEM86-3*192 R3R1R3 System-Ready Memory Board for AC800M Architecture

ABB MEM86-3*192 R3R1R3 System-Ready Memory Board for AC800M Control Architecture

The ABB MEM86-3*192 R3R1R3 is a dedicated memory board module engineered for deployment within the ABB AC800M Distributed Control System platform. Rather than functioning as a standalone component, this module occupies a critical position within the layered control architecture — bridging the processing demands of the PM8xx controller family with the real-time data retention requirements of large-scale industrial automation systems. In process-intensive environments such as oil and gas, power generation, chemical processing, and water treatment, the integrity of controller memory directly determines system uptime, scan cycle consistency, and fault recovery capability. The MEM86-3*192 R3R1R3 addresses these demands with a structured memory expansion profile that supports extended program storage, retentive data blocks, and configuration persistence across power cycles.

Within the AC800M system hierarchy, the MEM86 memory board is installed directly onto the PM861, PM864, or PM866 processor modules, expanding the onboard memory capacity to support larger application programs, extended historian buffers, and more complex function block libraries. This is particularly relevant in architectures where a single controller node manages multiple I/O clusters across S800 I/O modules, including AI810, AO810, DI810, and DO810 field interface units. As the application footprint grows — incorporating advanced PID loops, sequence control, alarm management, and communication handling — the base memory of the processor module alone may become a limiting factor. The MEM86-3*192 R3R1R3 eliminates this constraint, enabling engineers to deploy full-scale control strategies without architectural compromise.

From a system architecture perspective, the MEM86 memory board supports the Contextual Integration model that defines modern DCS design philosophy. Rather than treating memory as an isolated resource, the AC800M platform treats expanded memory as an enabler of tighter integration between the control layer, the communication layer, and the supervisory layer. With sufficient memory headroom, the PM8xx controller can simultaneously manage Profibus DP communication to field devices, Modbus TCP exchanges with third-party subsystems, and OPC DA/UA data publishing to SCADA platforms — all without sacrificing scan cycle performance. The MEM86-3*192 R3R1R3 ensures that this multi-protocol, multi-layer communication architecture remains stable under peak load conditions.

In redundant controller configurations — a common requirement in power plant DCS, offshore platform control, and refinery automation — the MEM86 memory board must be installed symmetrically across both the primary and standby PM8xx modules. The AC800M redundancy framework, managed through the CI857 or CI858 communication interface modules, relies on consistent memory mapping between the active and standby controllers to enable bumpless switchover. Any asymmetry in memory configuration can introduce synchronization latency or prevent seamless failover. The MEM86-3*192 R3R1R3, when deployed in matched pairs, ensures that the redundancy architecture performs as designed — with switchover times measured in milliseconds rather than seconds.

At the network layer, the AC800M controller communicates with field devices through a range of communication interface modules. The CI854 Profibus DP master, CI856 HART multiplexer interface, and CI860 FF HSE linking device all depend on the controller’s ability to buffer and process large volumes of field data in real time. Expanded memory provided by the MEM86-3*192 R3R1R3 directly supports the communication buffer pools that these interface modules rely upon, reducing the risk of data overflow events during high-traffic polling cycles. This is especially important in large-scale process plants where hundreds of field instruments report simultaneously during process upsets or alarm floods.

For engineering teams responsible for long-term system maintenance, the MEM86-3*192 R3R1R3 offers a practical advantage: it is a field-replaceable unit that can be swapped without replacing the entire PM8xx processor module. This modularity reduces spare parts inventory costs and simplifies the maintenance planning process. A single MEM86 board held in the site spare parts store can serve as a backup for multiple controller nodes across the plant, provided the processor module variants are compatible. This approach aligns with the ABB AC800M lifecycle management strategy, which emphasizes modular replacement over full controller upgrades.

In packaging and discrete manufacturing environments, where the AC800M platform is deployed alongside ACS880 or ACS580 variable frequency drives for coordinated motion and process control, the memory board plays a supporting role in managing the drive parameter datasets and diagnostic logs that the controller maintains for each drive axis. As the number of coordinated drive axes increases, so does the memory demand on the controller. The MEM86-3*192 R3R1R3 provides the additional capacity needed to sustain this level of integration without degrading controller response times.

All MEM86-3*192 R3R1R3 units supplied by ZYPLC are sourced from verified industrial channels, functionally tested prior to dispatch, and covered by a 12-Month Warranty. Global shipping is available with lead times confirmed at the time of order. For system architects, procurement engineers, and maintenance planners working within ABB AC800M environments, ZYPLC provides reliable access to this critical memory expansion component with full technical support available upon request.

Architecture Specification Table

Coordinated Control System Design

The MEM86-3*192 R3R1R3 is most effectively deployed as part of a fully coordinated AC800M control system architecture. At the processor level, it pairs directly with the PM864 or PM866 controller modules, which serve as the computational core of the control node. The processor module communicates with field I/O through the S800 I/O family, including the AI810 analog input module, AO810V2 analog output module, DI810 digital input module, and DO810 digital output module — all mounted on the TB820V2 ModuleBus modem and connected via the internal S800 bus. The CI854A Profibus DP master interface module extends the controller’s reach to field devices such as intelligent transmitters, positioners, and motor control centers. For redundant network architectures, the CI857 redundant communication interface ensures that the controller maintains uninterrupted communication with the supervisory SCADA layer even during primary path failures. At the power supply layer, the SD821 or SD822 power supply modules provide the regulated 24VDC rail that sustains the entire controller rack. The MEM86-3*192 R3R1R3 memory board ties all of these components together by ensuring that the PM8xx processor has sufficient memory resources to manage the full application program, communication buffers, and retentive data blocks that this multi-layer architecture demands.

Application in Layered Automation Systems

In power generation applications, the AC800M platform with MEM86 memory expansion is deployed for turbine control, boiler management, and auxiliary system supervision. The extended memory capacity supports the large function block libraries required for coordinated turbine-generator control, including speed governing, load sharing, and protection relay interfacing. In oil and gas processing facilities, the MEM86-3*192 R3R1R3 enables the AC800M controller to manage complex separation train sequences, compressor anti-surge control, and emergency shutdown system integration — all within a single controller node. In water and wastewater treatment plants, the memory board supports the extended historian buffers needed for regulatory compliance reporting, where process data must be retained across power interruptions. In mining and metallurgical operations, the AC800M with MEM86 expansion handles the high-speed data acquisition demands of conveyor control, crusher management, and flotation cell automation. In chemical and petrochemical process plants, the memory board supports the large PID loop libraries and advanced process control (APC) function blocks that characterize modern continuous process automation. Across all of these industries, the MEM86-3*192 R3R1R3 contributes to system reliability, engineering flexibility, and long-term maintainability.

Architecture Engineering FAQ

Q1: Is the MEM86-3*192 R3R1R3 compatible with all AC800M processor variants?
The MEM86-3*192 R3R1R3 is designed for use with the PM861, PM864, and PM866 processor modules within the AC800M platform. Compatibility with earlier PM8xx variants should be verified against the ABB AC800M hardware documentation for the specific firmware revision in use. ZYPLC technical support can assist with compatibility verification prior to order placement, and all units are covered by a 12-Month Warranty.

Q2: Can the MEM86 board be installed in a live redundant system without a full controller shutdown?
Memory board installation or replacement in an AC800M redundant configuration typically requires the affected controller node to be taken offline while the standby node assumes control. The procedure involves switching the active role to the standby PM8xx module, powering down the primary node, replacing the MEM86 board, reloading the application, and verifying memory synchronization before returning the node to active service. This process preserves system continuity and is consistent with ABB’s recommended hot-standby maintenance procedures. The 12-Month Warranty covers the replacement unit throughout this process.

Q3: How does expanded memory affect AC800M controller scan cycle performance?
Expanding controller memory via the MEM86-3*192 R3R1R3 does not directly increase scan cycle time. The AC800M architecture separates memory access latency from task execution scheduling, meaning that additional memory capacity allows larger application programs to execute within the same scan cycle budget. However, engineers should review the application’s task configuration in ABB Control Builder to ensure that memory-intensive function blocks are assigned to appropriate task priorities. ZYPLC recommends consulting the AC800M Performance and Memory Guide during system commissioning to optimize task scheduling alongside memory expansion.
