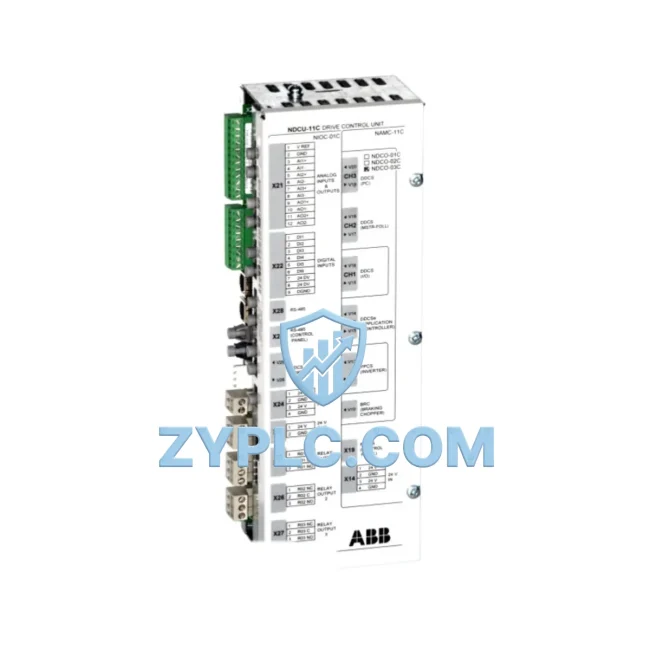

ABB NDCU-11CK 64053868B Energy-Saving Drive Control Unit

ABB NDCU-11CK 64053868B Energy-Saving Drive Control Unit for Optimized ACS Series Automation

The ABB NDCU-11CK 64053868B is a high-performance drive control unit engineered for ABB’s ACS series variable frequency drives. Designed to maximize equipment utilization and minimize idle energy consumption, this control unit sits at the heart of precision motor management in demanding industrial environments. Whether deployed in continuous process lines, discrete manufacturing cells, or energy-intensive pumping and fan systems, the NDCU-11CK delivers the closed-loop feedback and adaptive control logic that modern factories require to reduce their energy footprint without sacrificing throughput.

In production environments where every kilowatt-hour counts, the NDCU-11CK enables real-time adjustment of motor speed and torque output, eliminating the fixed-speed inefficiencies that account for a significant share of industrial electricity consumption. By integrating directly with the ACS880 and ACS580 drive platforms, it allows engineers to implement energy-optimized ramp profiles, flux optimization routines, and dynamic braking recovery — all without external controllers or additional hardware overhead.

Efficiency Performance Table

Energy-Aware Automation Architecture

The NDCU-11CK does not operate in isolation — it is the intelligence layer that coordinates energy flow across an entire drive system. In a typical ACS880 multi-drive cabinet, the control unit communicates with the ACS880-07 inverter module and the ACH580 HVAC drive to synchronize speed references and load-sharing ratios, preventing any single motor from running at unnecessary full load. This coordination is critical in multi-pump or multi-fan installations where staggered operation dramatically reduces peak demand charges.

On the I/O side, the NDCU-11CK interfaces with ABB RDIO-01 digital I/O extension modules and RAIO-01 analog I/O modules to capture real-time process signals — flow rates, pressure differentials, temperature feedback — and translate them into precise speed commands. This closed-loop architecture eliminates the energy waste associated with manual throttling or fixed setpoint operation.

For fieldbus integration, the unit supports the FPBA-01 PROFIBUS DP adapter and FMBA-01 Modbus adapter, enabling seamless data exchange with Siemens S7-series PLCs, ABB AC500 programmable controllers, and Rockwell ControlLogix platforms. This interoperability means the NDCU-11CK can participate in plant-wide energy management systems, feeding real-time power consumption data to SCADA layers and MES platforms for energy KPI tracking.

When paired with the ABB NETA-21 remote monitoring tool, the NDCU-11CK enables continuous online diagnostics — tracking drive temperature, DC bus voltage, output current harmonics, and cumulative energy consumption. This data stream supports predictive maintenance scheduling, allowing maintenance teams to intervene before thermal stress or insulation degradation causes unplanned downtime. Unplanned stops are among the most energy-intensive events in a production line, as restart cycles consume surge currents that far exceed steady-state operating loads.

The control unit also works in conjunction with ABB BSFC-01 brake chopper modules to recover regenerative energy during deceleration phases — energy that would otherwise be dissipated as heat in braking resistors. In high-inertia applications such as centrifuges, winders, and hoists, this regenerative capability can recover a meaningful percentage of cycle energy, directly reducing net consumption per production unit.

Power Optimization in Real Production Lines

Consider a bottling plant running six conveyor motors at fixed speed. Replacing fixed-speed starters with ACS580 drives controlled by NDCU-11CK units allows each motor to run at the exact speed demanded by the current production rate. During low-demand periods — shift changes, product changeovers, or scheduled micro-stops — the drives automatically reduce speed, cutting motor power consumption by the cube of the speed ratio. A 20% speed reduction translates to nearly 50% less power draw, a saving that compounds across every motor on the line.

In HVAC and utility systems, the NDCU-11CK enables pressure-optimized fan and pump control. Rather than running supply fans at full speed and throttling airflow with dampers, the control unit adjusts fan speed to maintain duct pressure setpoints dynamically. This eliminates the throttling losses that account for 20–40% of fan energy in conventionally controlled systems.

From a maintenance perspective, the NDCU-11CK’s built-in fault logging and parameter history allow engineers to correlate energy spikes with mechanical events — bearing wear, belt slip, or impeller fouling — before they escalate into failures. Early intervention not only prevents costly repairs but also restores the motor-drive system to its design efficiency point, where energy consumption is lowest relative to output.

All units supplied by ZYPLC undergo pre-shipment functional testing under load conditions, verifying control loop response, communication integrity, and thermal performance. Each NDCU-11CK 64053868B is backed by a 12-month warranty, with in-stock availability ensuring short lead times for MRO procurement and emergency replacement scenarios.

Energy Optimization FAQ

Q1: How much energy can the NDCU-11CK help save compared to a direct-on-line motor starter?
In variable-torque applications such as pumps and fans, replacing a DOL starter with an ACS-series VFD controlled by the NDCU-11CK typically reduces motor energy consumption by 30–60%, depending on the load profile. The savings are greatest in applications where the motor frequently runs below full load.

Q2: Is the NDCU-11CK compatible with my existing ACS drive cabinet?
The NDCU-11CK 64053868B is designed for ABB ACS series drives, with primary compatibility for ACS880 and ACS580 platforms. It is also applicable to certain ACS550 configurations. Please provide your existing drive model and firmware version when inquiring, and our technical team will confirm compatibility before shipment.

Q3: What is the replacement and testing process when ordering from ZYPLC?
Every NDCU-11CK unit is tested prior to shipment using ABB-standard drive test benches, verifying parameter upload/download, I/O response, and fieldbus communication. Units are shipped with original or equivalent packaging. If you are replacing a failed unit, we recommend noting the existing parameter set before removal so it can be restored to the replacement unit during commissioning.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the unit’s rated specifications. ZYPLC’s technical support team is available to assist with warranty claims and provide replacement units from stock to minimize production downtime.

—
