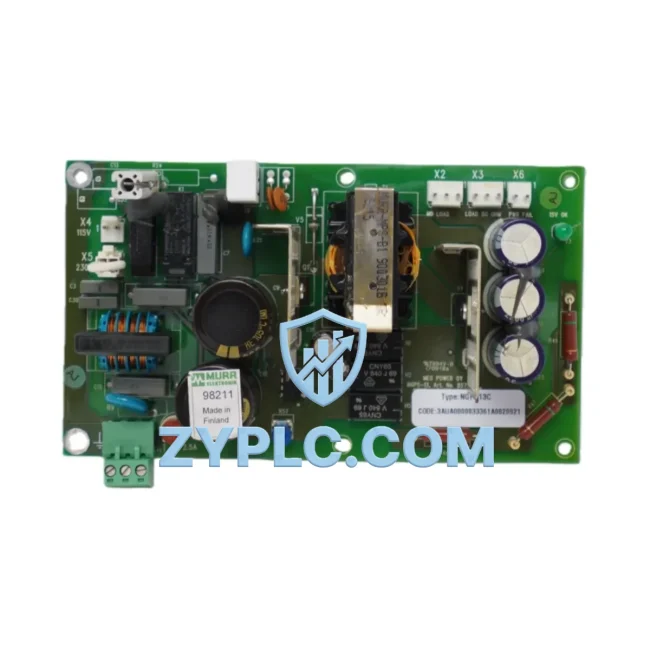

ABB NGPS13C 3AUA0000033361 Energy-Saving Power Supply Board

ABB NGPS13C 3AUA0000033361 Energy-Saving Power Supply Board for Optimized ACS800 Automation

In modern industrial environments where energy costs and equipment uptime directly impact profitability, the ABB NGPS13C (Part No. 3AUA0000033361) power supply board stands as a critical component in achieving measurable energy efficiency across drive-based automation systems. Designed specifically for the ABB ACS800 series variable frequency drives, the NGPS13C delivers stable, regulated DC power to the drive’s control circuitry, ensuring that every downstream process — from motor speed regulation to real-time fault diagnostics — operates with minimal energy waste and maximum reliability.

The NGPS13C is not simply a replacement part. It is a precision-engineered energy management node within the ACS800 drive architecture. When a power supply board operates outside its design parameters — due to aging components, thermal stress, or voltage irregularities — the entire drive system suffers: motor control becomes erratic, switching losses increase, and the drive’s internal protection systems consume additional processing overhead. Replacing a degraded board with a genuine ABB NGPS13C restores the drive to its factory efficiency baseline, directly reducing idle power draw and improving the energy conversion ratio across the motor control chain.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ABB NGPS13C operates at the heart of the ACS800 drive’s internal power hierarchy. To understand its energy impact, it is essential to view it within the broader automation architecture it supports. The ACS800 drive’s RMIO-11C control board relies on the NGPS13C for its regulated supply voltage; without a stable power source, the RMIO’s real-time motor control algorithms — including direct torque control (DTC) — cannot execute with the precision required for energy-optimal motor operation.

In a typical production line, the ACS800 drive interfaces with ABB’s AC500 PLC series for high-level process coordination. The AC500 sends speed and torque references to the drive via PROFIBUS-DP or Modbus RTU communication adapters such as the RPBA-01 PROFIBUS adapter or the RMBA-01 Modbus adapter. When the NGPS13C is functioning correctly, the drive’s response latency to PLC commands is minimized, ensuring that motor acceleration and deceleration profiles follow the energy-optimized ramp curves programmed in the AC500 controller.

On the sensing side, ABB’s CM-series power monitoring relays and third-party energy meters connected via the drive’s analog I/O interface provide real-time feedback on motor current draw and power factor. The NGPS13C’s stable output ensures that the drive’s analog input circuits — used to read these energy signals — maintain their calibration accuracy, preventing false readings that could cause the drive to operate motors at suboptimal load points.

For multi-drive installations, the ACS800’s RDCU-12C drive control unit coordinates energy sharing across parallel drive modules. The NGPS13C supplies the RDCU’s internal logic, making it a foundational component in master-follower drive configurations where energy balancing between multiple motors is critical for reducing peak demand charges. Similarly, in regenerative braking applications using the ACS800’s RDBR braking chopper unit, a healthy NGPS13C ensures that the braking energy recovery circuit activates reliably, feeding recovered energy back into the DC bus rather than dissipating it as heat.

The drive’s AINT-02C or AINT-02 inverter control boards also depend on the NGPS13C’s output for gate driver power. Degraded gate driver supply voltage leads to increased IGBT switching losses — one of the most significant sources of energy waste in variable frequency drives. By maintaining the NGPS13C in optimal condition, plant engineers ensure that the ACS800’s IGBT modules switch at their designed efficiency points, keeping total harmonic distortion (THD) within acceptable limits and protecting upstream transformers and power distribution equipment from reactive power losses.

Power Optimization in Real Production Lines

Consider a food processing facility running six ACS800-04 drives on conveyor and pump motors. Each drive operates 18 hours per day, five days per week. A single degraded NGPS13C board in one drive causes intermittent undervoltage faults on the RMIO control board, forcing the drive into a fault-restart cycle. Each restart event consumes a current spike equivalent to 3–5 seconds of full-load operation, and the associated downtime disrupts the production line’s throughput rhythm — increasing the energy cost per unit of output across all six drives, not just the faulting unit.

Replacing the degraded NGPS13C with a tested, genuine ABB unit eliminates the fault-restart cycle, restores the drive’s DTC algorithm to continuous operation, and allows the AC500 PLC’s production scheduling logic to maintain its optimized line speed profile. The result is a measurable reduction in energy consumption per production cycle, a lower peak demand profile, and reduced wear on the motor’s mechanical components — extending the interval between bearing replacements and reducing maintenance labor costs.

In pump and fan applications governed by affinity laws, even a 5% improvement in drive control stability — enabled by a properly functioning NGPS13C — translates to a disproportionately larger reduction in energy consumption, since pump power scales with the cube of speed. Plant energy managers using ABB’s DriveAP application software or third-party SCADA systems connected via the drive’s fieldbus interface can quantify these savings in real time, validating the ROI of proactive power supply board maintenance.

ZYPLC stocks the NGPS13C 3AUA0000033361 with full pre-shipment functional testing, ensuring that every board shipped meets ABB’s original performance specifications. Our 12-month warranty covers both the board’s electrical performance and its mechanical integrity, giving maintenance engineers the confidence to schedule replacements during planned downtime windows rather than emergency shutdowns.

Energy Optimization FAQ

Q1: How does replacing the NGPS13C improve drive energy efficiency?
A degraded power supply board causes voltage instability in the ACS800’s control electronics, leading to suboptimal motor control, increased switching losses, and fault-restart cycles that spike energy consumption. A new NGPS13C restores stable control power, allowing the drive’s DTC algorithm to operate at its designed efficiency point and eliminating energy-wasting fault events.

Q2: Is the NGPS13C 3AUA0000033361 compatible with all ACS800 drive variants?
The NGPS13C is designed for the ABB ACS800 series, including common variants such as the ACS800-01, ACS800-04, ACS800-07, ACS800-11, and ACS800-17. For specific frame sizes or custom configurations, we recommend verifying the drive’s hardware manual or contacting our technical team to confirm compatibility before ordering.

Q3: What testing process does ZYPLC perform before shipping the NGPS13C?
Each NGPS13C unit undergoes functional power-on testing to verify output voltage regulation, ripple performance, and protection circuit integrity. Units that fail any parameter are quarantined and not shipped. All shipped units are covered by a 12-month warranty from the date of delivery.

Q4: Can the NGPS13C be replaced without specialized tools, and how quickly can it restore production?
The NGPS13C is a board-level replacement that follows standard ABB ACS800 maintenance procedures. With the drive de-energized and locked out, a qualified technician can complete the replacement in under 30 minutes. Because ZYPLC ships from in-stock inventory, most orders are dispatched within one business day, minimizing production downtime for facilities that cannot afford extended drive outages.
