ABB NIB-02 3HNA024203-001 System-Ready Spraying Controller for IRB Series Architecture

ABB NIB-02 3HNA024203-001 System-Ready Spraying Controller for IRB Series Architecture: Control System Architecture and Upstream-Downstream Coordination

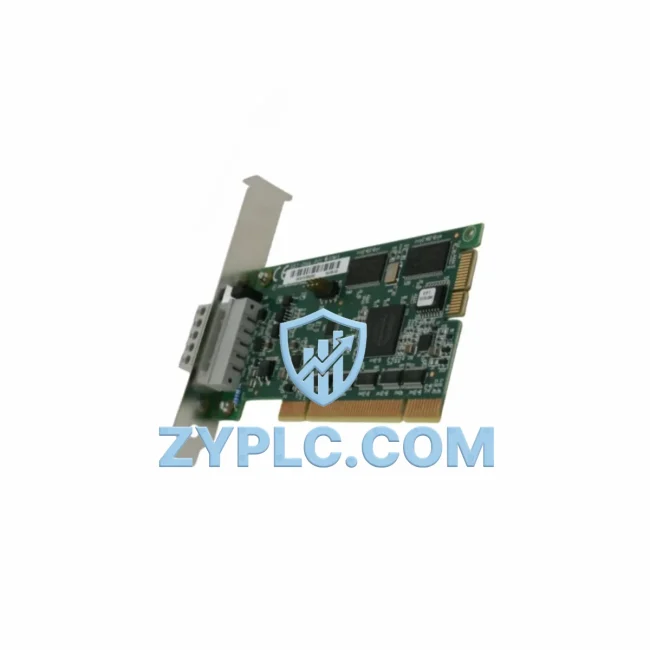

The ABB NIB-02 (3HNA024203-001/01), cross-referenced as 3HNA007026-001 and 3HNA007022-001, is a dedicated spraying controller engineered for seamless integration within ABB’s IRB robot series control architecture. Rather than functioning as a standalone unit, the NIB-02 is designed to occupy a precise role within a layered automation system — coordinating signal flow between the robot controller, the paint application hardware, and the supervisory control network. Understanding its position within the full control hierarchy is essential for engineers specifying, commissioning, or maintaining high-throughput spray finishing lines.

In modern industrial painting and coating systems, the spraying controller sits at the intersection of the motion control layer and the process execution layer. The NIB-02 receives atomization and flow commands from the IRC5 robot controller — ABB’s primary motion and process management platform for the IRB 5500, IRB 580, and IRB 52 painting robot families — and translates those commands into precise electropneumatic outputs that govern bell cup speed, high-voltage electrostatics, paint flow, and solvent flushing sequences. This tight coupling between the robot controller and the NIB-02 ensures that spray parameters are synchronized to the robot’s TCP (Tool Center Point) velocity in real time, eliminating overspray at path transitions and maintaining consistent film build across complex curved surfaces.

Architecture Specification Table

Coordinated Control System Design

The NIB-02 does not operate in isolation. Its value is realized only when it is correctly integrated within the full ABB painting robot control architecture. At the core of this architecture sits the IRC5 robot controller, which manages motion planning, process I/O, and fieldbus communication. The NIB-02 connects to the IRC5 via a DeviceNet or Interbus-S fieldbus segment, receiving structured process data objects that define spray parameters for each path segment programmed in RAPID, ABB’s robot programming language.

Within the controller cabinet, the NIB-02 shares the 24 VDC power rail with other process modules. The DSQC 661 or DSQC 662 I/O units handle discrete digital signals — conveyor triggers, booth interlock status, color change confirmation — while the NIB-02 manages the analog and high-frequency outputs specific to the spray applicator. The DSQC 604 power supply module ensures stable voltage delivery to both the I/O layer and the NIB-02 process board, making power quality a shared concern across the cabinet architecture.

On the network layer, the IRC5’s DSQC 658 DeviceNet master board coordinates polling of the NIB-02 alongside other slave devices on the paint line, including color change valve manifolds and flow meter interfaces. For installations using Interbus-S, the DSQC 351 communication board fulfills the same master role. This fieldbus architecture allows the NIB-02’s spray parameters to be updated dynamically during production without halting the robot program, supporting rapid color change cycles common in automotive OEM paint shops.

At the human-machine interface layer, operators interact with the spray process through the IRC5 FlexPendant, which displays NIB-02 status, active spray program parameters, and fault diagnostics. In larger installations, a supervisory SCADA or MES system communicates with the IRC5 via Ethernet/IP or OPC-UA, pulling production data that includes NIB-02 cycle counts and fault logs for quality traceability. The ABB RobotStudio offline programming environment allows engineers to simulate spray paths and pre-configure NIB-02 parameters before physical commissioning, significantly reducing booth downtime during changeovers.

For redundancy-critical applications, dual IRC5 controller configurations with hot-standby NIB-02 modules have been deployed in high-volume automotive lines where unplanned downtime carries significant cost. In these architectures, the NIB-02’s modular form factor allows rapid board-level replacement without rewiring the applicator harness, and the 12-Month Warranty provided by ZYPLC ensures that replacement units meet the same functional specification as the original factory-installed components.

Application in Layered Automation Systems

Automotive Manufacturing: In automotive body-in-white paint shops, the NIB-02 is a standard component within ABB’s integrated paint robot cells. It governs the electrostatic rotary atomizer parameters across primer, basecoat, and clearcoat application stages. The controller’s ability to synchronize bell cup speed and high-voltage output with robot TCP velocity ensures consistent film thickness on door panels, hoods, and roof sections — surfaces where visual defects are immediately apparent to end customers.

General Industrial Coating: Beyond automotive, the NIB-02 finds application in appliance manufacturing, agricultural equipment coating, and architectural component finishing. In these environments, the IRB 52 compact painting robot — paired with the NIB-02 and IRC5 — provides a flexible, reprogrammable alternative to fixed spray booths, allowing manufacturers to switch between product variants without mechanical retooling.

Process Control and Chemical Industries: In facilities where solvent-based coatings require explosion-proof environments, the NIB-02’s integration with the IRC5 safety architecture — including the JSHD4 safety board and zone 1/zone 2 classified enclosures — ensures that spray process control meets ATEX and IECEx requirements. The controller’s deterministic fieldbus communication eliminates timing uncertainty in solvent flush sequences, reducing the risk of coating contamination between color changes.

Maintenance and Long-Term Supply: For plant engineers managing aging IRB painting robot fleets, sourcing a tested NIB-02 with a 12-Month Warranty from ZYPLC provides a cost-effective alternative to full robot controller upgrades. The NIB-02’s compatibility across multiple IRB series generations means that a single spare unit can serve as a cross-fleet backup, reducing the number of unique spare parts that must be held in the maintenance inventory.

Architecture Engineering FAQ

Q1: Is the NIB-02 3HNA024203-001/01 compatible with both the IRC5 Single Cabinet and IRC5 Compact controller configurations?
A: Yes. The NIB-02 is designed for integration within the IRC5 controller family and is compatible with both the standard IRC5 Single Cabinet and the IRC5 Compact variants used with smaller IRB painting robots such as the IRB 52. The fieldbus interface (DeviceNet or Interbus-S) and the 24 VDC power connection are consistent across both cabinet formats. Engineers should verify the specific fieldbus master board installed in their IRC5 — either DSQC 658 for DeviceNet or DSQC 351 for Interbus-S — to confirm the correct NIB-02 firmware revision is supplied.

Q2: Can the NIB-02 be installed and commissioned without ABB factory support, and what documentation is required?
A: Qualified robotics engineers with IRC5 system experience can install and commission the NIB-02 using ABB’s standard product manual for the painting robot system (document 3HAC16590-1 or equivalent series-specific manual). The replacement procedure involves powering down the IRC5 cabinet, removing the existing NIB-02 board, installing the replacement unit, and performing a system restart with parameter verification via the FlexPendant. ZYPLC supplies each NIB-02 with a test report confirming functional verification prior to shipment, which supports the commissioning documentation package required for quality-managed production environments.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term architectural maintenance for IRB painting robot systems?
A: The 12-Month Warranty covers functional defects in the NIB-02 unit under normal operating conditions consistent with ABB’s installation specifications. ZYPLC maintains stock of NIB-02 units and related IRB painting robot components to support both planned maintenance schedules and emergency replacement requirements. For plant engineers managing multi-robot painting lines, ZYPLC’s inventory depth means that critical spare parts — including NIB-02 controllers, IRC5 I/O modules, and applicator interface boards — can be sourced from a single supplier with consistent lead times, reducing the procurement complexity associated with maintaining aging ABB painting robot architectures.
