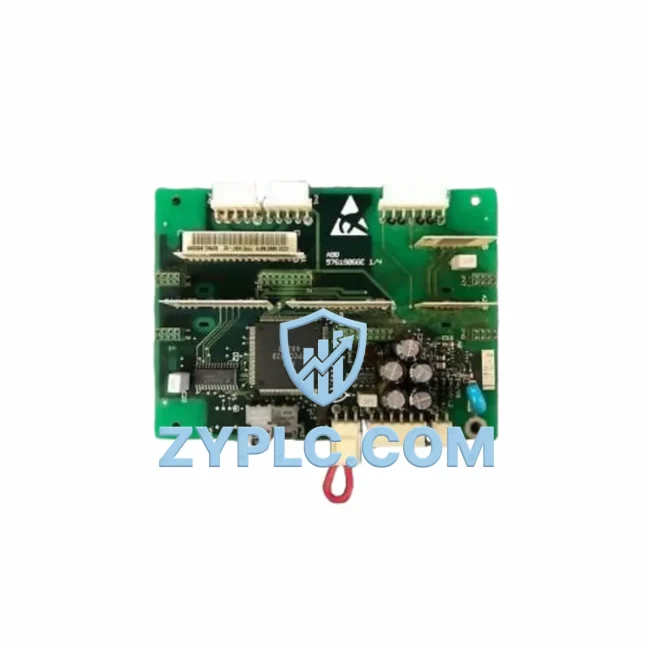

ABB NINT-52 System-Ready Drive Interface Board for ACS Series Architecture

ABB NINT-52 System-Ready Drive Interface Board for ACS Series Architecture

In modern industrial automation, the reliability and scalability of a control system depend not on any single component, but on the seamless coordination of every layer — from the central controller down to the field device. The ABB NINT-52 57619066E Drive Interface Board occupies a critical position within this architecture, serving as the communication and signal bridge between the ACS series variable frequency drive platform and the broader control system infrastructure. Understanding its role requires examining the full system stack: control layer, I/O layer, network layer, power layer, HMI layer, and execution layer — and how the NINT-52 enhances consistency, expandability, redundancy, and long-term maintainability across all of them.

The NINT-52 is a PPCC (Pulse Per Control Cycle) interface board designed specifically for ABB ACS series drives, including the ACS880 and ACS580 platforms. It enables high-speed, deterministic communication between the drive’s internal control logic and external automation controllers, ensuring that torque, speed, and process feedback signals are transmitted with minimal latency and maximum fidelity. This makes it an indispensable component in applications where precise motion coordination and process synchronization are non-negotiable — such as in continuous casting lines, paper machine drives, compressor control systems, and multi-drive crane applications.

Within the control layer, the NINT-52 interfaces directly with ABB’s drive control units, working in conjunction with components such as the RMIO-01 motor control board and the AINT-02 auxiliary interface board to form a complete drive intelligence stack. The RMIO-01 handles core motor control algorithms, while the NINT-52 manages the communication handshake with the system controller, ensuring that command signals from the PLC or DCS are accurately interpreted and executed. This division of responsibility improves system modularity and simplifies fault isolation during commissioning and maintenance.

At the network layer, the NINT-52 is commonly deployed alongside ABB fieldbus adapter modules such as the FENA-01 Ethernet adapter and the FPNO-21 PROFINET adapter. These modules extend the drive’s connectivity to plant-wide Ethernet-based control networks, enabling integration with SCADA systems, MES platforms, and remote monitoring infrastructure. The NINT-52 ensures that the drive’s internal data — including actual speed, current, fault codes, and process variables — is accurately mapped and made available to the network layer without signal degradation or protocol mismatch.

From a power architecture perspective, the NINT-52 operates within the drive’s internal low-voltage control supply domain, drawing power from the drive’s internal SMPS (switched-mode power supply) section. In redundant drive architectures, where dual power supply modules such as the NBRA-656 braking resistor assembly and parallel inverter units are deployed, the NINT-52 supports the drive’s ability to maintain communication continuity even during partial power events. This is particularly valuable in critical process industries such as oil and gas, water treatment, and mining, where unplanned downtime carries significant operational and safety consequences.

The HMI layer integration is facilitated through the CDP312R control panel, which connects to the ACS series drive and provides local parameter access, fault history review, and drive status visualization. The NINT-52 ensures that the data presented on the CDP312R accurately reflects the drive’s real-time operational state, supporting both commissioning engineers during initial setup and maintenance technicians during routine inspections. This transparency across the HMI layer reduces diagnostic time and improves first-time fix rates during service interventions.

At the execution layer, the NINT-52 coordinates with output modules and motor feedback devices to close the control loop. In multi-drive systems where the NINT-51 and OINT-01 option boards are also deployed, the NINT-52 provides the communication backbone that allows the drive system to respond to dynamic load changes, speed references, and torque limit commands in real time. This coordinated execution capability is essential in applications such as winder/unwinder systems, multi-motor conveyors, and synchronized pump stations, where inter-drive communication latency directly affects product quality and process stability.

From a long-term maintenance and inventory perspective, the NINT-52 57619066E is a well-established ABB spare part with broad compatibility across the ACS series drive family. Stocking this board as part of a planned maintenance inventory strategy reduces mean time to repair (MTTR) and supports the plant’s overall equipment effectiveness (OEE) targets. All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring that procurement teams and maintenance engineers can plan with confidence.

Architecture Specification Table

Coordinated Control System Design

The NINT-52 does not operate in isolation. Its value is realized through its integration with a coordinated set of ABB drive system components. In a typical ACS880 multi-drive cabinet installation, the NINT-52 works alongside the RMIO-01 motor control board, which executes the direct torque control (DTC) algorithm and manages the inverter gate signals. The AINT-02 auxiliary interface board provides additional I/O capacity for digital and analog signals, while the OINT-01 option board extends the drive’s connectivity to legacy serial communication networks.

For Ethernet-based plant networks, the FENA-01 and FPNO-21 fieldbus adapters translate the drive’s internal data into EtherNet/IP and PROFINET protocols respectively, enabling seamless integration with Siemens, Rockwell, and ABB PLC platforms. The CDP312R control panel provides local HMI access, while the NBRA-656 braking resistor assembly manages regenerative energy during deceleration cycles. In redundant power architectures, dual SMPS modules and the NINT-52’s robust communication design ensure that drive control continuity is maintained even under adverse power conditions. The NINT-51, a closely related interface board variant, is often deployed in parallel drive configurations to provide additional communication channels and support load-sharing architectures.

Application in Layered Automation Systems

The ABB NINT-52 finds application across a wide range of industrial sectors. In manufacturing and automotive assembly, it supports multi-axis conveyor and transfer line drives where precise speed synchronization is required. In the power generation and utilities sector, it is deployed in pump and fan drive systems where energy efficiency and process stability are primary concerns. In petrochemical and refinery applications, the NINT-52 supports compressor and agitator drives operating in hazardous area control panels, where communication reliability directly affects process safety.

In water and wastewater treatment plants, the NINT-52 enables remote monitoring and control of pump station drives via SCADA integration, reducing the need for on-site intervention. In mining and minerals processing, it supports crusher, conveyor, and hoist drive systems where high torque demands and variable load profiles require robust drive communication. In metals and metallurgy, the NINT-52 is used in rolling mill and continuous casting drive systems where inter-drive synchronization tolerances are measured in milliseconds. In packaging and food processing lines, it supports high-speed servo-like drive applications where product quality depends on precise speed and position control.

Architecture Engineering FAQ

Q1: Is the NINT-52 57619066E compatible with both the ACS880 and ACS580 drive platforms?
The NINT-52 is primarily designed for the ACS880 and ACS800 series drive platforms, where it functions as the PPCC interface board within the drive’s internal control architecture. Compatibility with the ACS580 should be verified against the specific drive firmware version and hardware revision. ZYPLC’s technical team can assist with compatibility confirmation prior to procurement.

Q2: Can the NINT-52 be replaced in the field without full drive recommissioning?
In most ACS series installations, the NINT-52 can be replaced as a board-level spare without requiring full drive recommissioning, provided that the replacement board is of the same hardware revision and the drive parameters are backed up prior to the replacement procedure. The CDP312R control panel or the DriveStudio PC tool can be used to restore parameters after board replacement, minimizing downtime.

Q3: What does the 12-Month Warranty cover for the NINT-52 supplied by ZYPLC?
All NINT-52 57619066E units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers board-level replacement and technical support for installation and commissioning issues. ZYPLC maintains stock of this and related ABB drive interface boards to support rapid replacement and minimize plant downtime.
