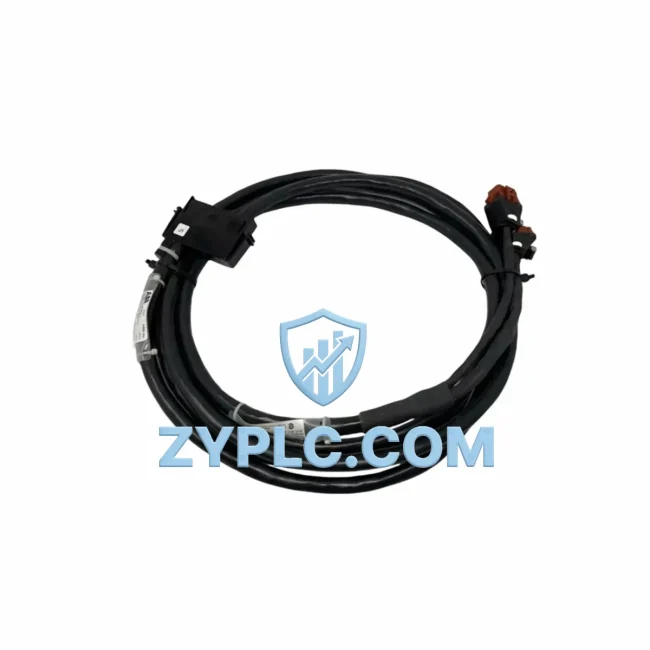

ABB NKHS03-15 Energy-Saving Servo Cable for Optimized NKHS Automation

ABB NKHS03-15 Energy-Saving Servo Cable for Optimized NKHS Automation

The ABB NKHS03-15 is a precision-engineered servo termination cable designed for ABB’s NKHS servo drive series, delivering reliable signal integrity and minimized power dissipation across demanding industrial automation environments. In modern manufacturing, every watt of energy lost in cable routing, impedance mismatch, or poor shielding translates directly into higher operating costs and reduced equipment lifespan. The NKHS03-15 addresses these challenges by providing a low-resistance, fully shielded interconnect that maintains clean power delivery between the servo drive and motor — a critical factor in achieving consistent torque response, reduced heat generation, and optimized energy utilization across the entire drive chain.

Factories running continuous production lines depend on the precision of their servo systems to maintain cycle time accuracy and minimize idle energy consumption. When a servo cable introduces signal degradation or impedance variation, the drive compensates by drawing additional current — increasing energy waste and accelerating motor wear. The NKHS03-15 eliminates this inefficiency by ensuring that the ABB servo drive receives clean, uninterrupted feedback from the encoder and delivers precise current commands to the motor windings, keeping the system operating within its optimal efficiency band.

Efficiency Performance Table

Energy-Aware Automation Architecture

The NKHS03-15 does not operate in isolation — it is a critical link within a broader energy-aware automation architecture. In a typical ABB servo system, the ACS880 industrial drive manages motor speed and torque with high efficiency, but its performance is only as good as the signal path connecting it to the motor. The NKHS03-15 ensures that encoder pulses from the servo motor reach the drive’s control board without distortion, enabling the ACS880 to execute precise field-oriented control (FOC) algorithms that minimize reactive power consumption.

Upstream of the drive, the ABB CP-E 24V DC power supply unit provides stable bus voltage, and any ripple or noise introduced by a poorly shielded cable can force the drive’s internal power factor correction circuits to work harder — increasing heat and energy waste. The NKHS03-15’s double-shielded construction suppresses this noise at the source. Similarly, when paired with the ABB CI873K01 PROFIBUS communication module, the servo system can report real-time energy consumption data back to the plant’s SCADA or DCS platform, enabling operators to identify inefficiency trends before they escalate into unplanned downtime.

On the I/O side, the ABB TU810V1 terminal unit and S800 I/O modules collect process signals from sensors distributed across the production line. When these signals are correlated with servo drive energy data — made possible by clean cable connections like the NKHS03-15 — maintenance teams can implement predictive maintenance strategies that reduce unnecessary motor starts and stops, each of which represents a spike in energy consumption. The ABB PP885 operator panel provides the human-machine interface layer, allowing line supervisors to monitor drive efficiency metrics and adjust motion profiles in real time to reduce peak demand charges.

For multi-axis systems, the ABB ACSM1 servo drive module works alongside the NKHS03-15 to coordinate synchronized motion across multiple servo axes, ensuring that energy regenerated during deceleration phases is fed back into the DC bus rather than dissipated as heat. This regenerative capability, combined with the low-loss signal path of the NKHS03-15, contributes measurably to overall system energy efficiency ratings.

Power Optimization in Real Production Lines

In automotive body welding lines, servo-driven positioning systems must achieve sub-millimeter repeatability at cycle rates exceeding 60 parts per hour. Any cable-induced signal jitter forces the servo controller to apply correction torque pulses that consume additional energy and introduce micro-vibrations into the mechanical structure. Plants that have standardized on the ABB NKHS03-15 report more stable positioning performance and a measurable reduction in drive alarm events related to encoder feedback errors — directly translating into fewer production stops and lower energy consumption per part produced.

In packaging machinery, where servo axes control film tension, cut registration, and product indexing simultaneously, the quality of the cable interconnect determines whether the drive can maintain synchronization without over-current events. The NKHS03-15’s robust termination design resists the mechanical fatigue caused by continuous cable flexing in high-cycle applications, reducing the frequency of cable replacement and the associated production downtime. Each unplanned stop in a packaging line can waste hundreds of meters of film and consume significant energy in restart sequences — costs that are avoided when the cable infrastructure is reliable.

For conveyor and material handling systems driven by ABB servo motors, the NKHS03-15 supports long cable runs without signal degradation, enabling centralized drive cabinets to control distributed motor loads efficiently. This architecture reduces the number of local drive panels required, lowering the overall energy footprint of the electrical infrastructure. Combined with the ABB DriveAP application programming tool for drive parameter optimization, facilities can fine-tune acceleration and deceleration ramps to minimize energy peaks while maintaining throughput targets.

All units are shipped after full functional testing, including insulation resistance verification and continuity checks across all conductors and shield connections. Each NKHS03-15 is backed by a 12-month warranty covering manufacturing defects and performance deviations from ABB’s published specifications. Stock is maintained for immediate dispatch, with typical lead times of 1–3 business days for standard orders.

Energy Optimization FAQ

Q1: How does the NKHS03-15 contribute to measurable energy savings in a servo system?
A: By maintaining low-impedance, noise-free signal paths between the servo drive and motor encoder, the NKHS03-15 allows the drive’s control algorithms to operate with minimal correction overhead. This reduces unnecessary current draw caused by feedback errors, lowering both energy consumption and motor operating temperature — which in turn extends insulation life and reduces cooling load on the control cabinet.

Q2: Is the NKHS03-15 compatible with ABB servo drives other than the NKHS series?
A: The NKHS03-15 is optimized for ABB NKHS series servo drives and is also compatible with MicroFlex e190 and select ACS880 servo modules that share the same connector and signal specifications. For other drive families, please verify connector pinout and cable capacitance specifications against your drive’s technical manual before installation.

Q3: What is the recommended replacement interval, and how does timely replacement reduce energy waste?
A: ABB recommends inspecting servo cables every 12 months in high-cycle applications and replacing them when insulation resistance drops below 100 MΩ or when shield continuity cannot be verified. A degraded cable increases drive compensation current by 5–15%, which accumulates into significant energy waste over a production year. Proactive replacement based on condition monitoring data — available through the CI873K01 communication module — is more cost-effective than reactive replacement after a fault event.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
A: The 12-month warranty covers all manufacturing defects, including conductor breaks, shield discontinuities, connector contact failures, and insulation breakdown under normal operating conditions. Before shipment, each NKHS03-15 undergoes insulation resistance testing at 500V DC, conductor continuity verification, and shield coverage inspection. Test records are available upon request for quality audit purposes.
