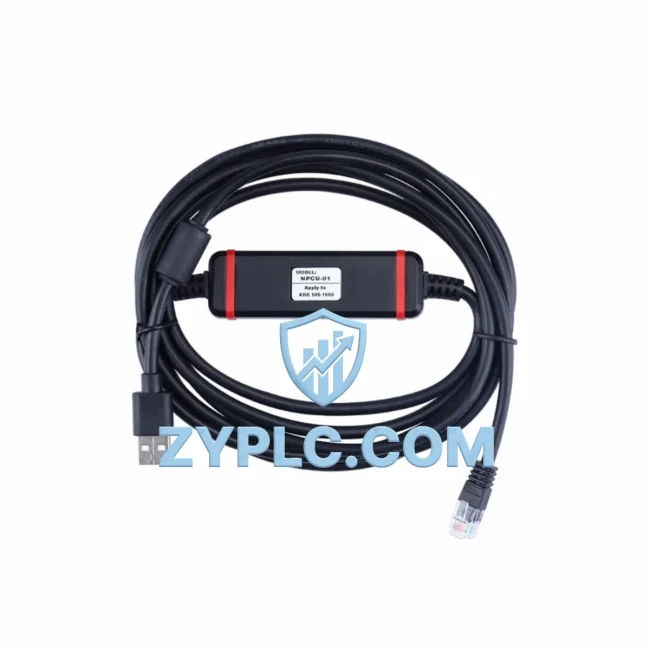

ABB NPCU-01 Energy-Saving Communication Module AC500

ABB NPCU-01 Energy-Saving Communication Module AC500: Precision Energy Control for Optimized Production Lines

The ABB NPCU-01 is a high-performance communication module engineered for the AC500 PLC platform, designed to bridge the gap between field-level devices and supervisory control systems in energy-intensive industrial environments. As factories face mounting pressure to reduce operational energy costs and maximize equipment utilization, the NPCU-01 delivers the real-time data exchange backbone that makes intelligent energy management possible. Whether integrated into a discrete manufacturing cell or a continuous process line, this module enables the kind of closed-loop feedback that transforms reactive maintenance into predictive, efficiency-driven operations.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-aware automation architecture, the ABB NPCU-01 serves as the communication spine connecting the AC500 CPU — such as the ABB PM591-ETH or PM595 — to field-level devices that directly influence energy consumption. When paired with ABB ACS880 variable frequency drives, the NPCU-01 enables the PLC to dynamically adjust motor speed references based on real-time process demand, eliminating the fixed-speed operation that wastes energy during partial-load conditions. This integration is particularly effective in pump and fan applications where affinity laws mean even a 20% speed reduction can cut energy consumption by nearly 50%.

On the I/O side, the NPCU-01 works in concert with ABB AC500 digital and analog I/O modules (such as the DC532 and AI523 series) to collect sensor data from current transformers, pressure transducers, and flow meters distributed across the production floor. This data feeds directly into energy consumption calculations within the PLC program, allowing the controller to identify inefficient operating states — such as a conveyor running at full speed with no product load — and issue corrective commands without operator intervention.

For facilities using ABB CP600 HMI panels, the NPCU-01’s communication layer makes it straightforward to visualize energy KPIs at the machine level. Operators can monitor real-time power draw, compare it against production output, and identify energy anomalies before they escalate into costly downtime. When integrated with ABB Ability™ Energy Manager or compatible SCADA platforms via the AC500’s Ethernet CPU, the NPCU-01 becomes part of a plant-wide energy monitoring mesh that supports ISO 50001 compliance initiatives.

The module also plays a critical role in servo-driven applications. When the AC500 PLC coordinates motion sequences through ABB MicroFlex e190 servo drives or compatible third-party servo amplifiers, the NPCU-01 ensures that torque and velocity commands are transmitted with the cycle-time precision needed to minimize regenerative energy losses and reduce mechanical stress on drivetrain components. Tight communication timing directly translates to smoother acceleration profiles, lower peak current draw, and extended motor bearing life.

In distributed control architectures, the NPCU-01 can interface with ABB S800 I/O remote stations over PROFIBUS DP, extending the AC500’s reach to remote motor control centers without the wiring overhead of point-to-point connections. This topology reduces installation costs, simplifies cable management, and makes it easier to add energy sub-metering points at individual machine cells — a prerequisite for granular energy accountability in lean manufacturing environments.

Power Optimization in Real Production Lines

The practical energy impact of the ABB NPCU-01 becomes most visible in production lines where multiple motor-driven axes operate in coordinated sequences. In automotive body shop welding lines, for example, the NPCU-01 enables the AC500 PLC to synchronize robot transfer axes, conveyor indexing drives, and clamping actuators so that no drive runs unnecessarily during inter-cycle dwell periods. By issuing standby commands to idle drives through the fieldbus network, the system can reduce standby power consumption by 15–30% compared to uncoordinated fixed-speed operation.

In food and beverage processing, where hygiene requirements demand frequent wash-down cycles, the NPCU-01 supports the AC500 in managing pump and agitator drives with precision timing. Rather than running agitators at constant speed throughout a batch cycle, the PLC can modulate drive output based on viscosity feedback, reducing both energy consumption and mechanical wear. The result is a measurable reduction in kWh per unit of product — a metric that directly improves the facility’s energy intensity ratio.

Predictive maintenance is another area where the NPCU-01 delivers tangible ROI. By continuously streaming drive status data — including motor current, thermal load, and fault history — from ABB ACS580 drives back to the AC500 CPU, the system builds a real-time picture of equipment health. Maintenance teams can schedule interventions during planned downtime windows rather than responding to unexpected failures, reducing both unplanned downtime costs and the energy waste associated with restarting cold production lines. All units supplied are pre-tested under load conditions and covered by a 12-month warranty, ensuring that replacement modules perform to specification from day one.

Inventory availability is maintained to support rapid deployment. Whether you are commissioning a new line or replacing a failed module in an existing AC500 system, stock is held ready for same-week dispatch. Each unit undergoes functional testing prior to shipment, verifying communication integrity, power supply compatibility, and firmware version alignment with current AC500 CPU releases.

Energy Optimization FAQ

Q1: How does the ABB NPCU-01 contribute to measurable energy savings on the production floor?
The NPCU-01 enables the AC500 PLC to communicate in real time with variable frequency drives, servo amplifiers, and energy monitoring devices. This closed-loop communication allows the controller to issue speed and torque adjustments based on actual process demand rather than fixed setpoints, directly reducing energy consumption during partial-load and idle conditions. Facilities integrating the NPCU-01 into drive networks typically report 10–30% reductions in motor-related energy costs depending on application profile.

Q2: Which ABB AC500 CPU models are compatible with the NPCU-01?
The NPCU-01 is designed for use within the ABB AC500 modular PLC family and is compatible with a range of CPU modules including the PM571, PM581, PM591, and PM595 series. It slots into the AC500 communication module bay and is configured via the Automation Builder engineering environment. For specific firmware compatibility requirements, refer to the ABB AC500 system manual or contact our technical team prior to ordering.

Q3: Can the NPCU-01 replace an existing communication module in a running production system?
Yes. The NPCU-01 is designed as a hot-swap-compatible field replacement for supported AC500 communication slots. Before replacement, it is recommended to export the current PLC project configuration and verify that the replacement module’s firmware version matches the existing system requirements. All NPCU-01 units supplied by ZYPLC are tested prior to shipment and include a 12-month warranty, minimizing the risk associated with module replacement in live production environments.

Q4: What is the testing and warranty process for the ABB NPCU-01?
Every NPCU-01 unit is functionally tested before dispatch, including communication protocol verification, power supply compatibility checks, and firmware integrity validation. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement support to minimize production downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty registration and support inquiries.
