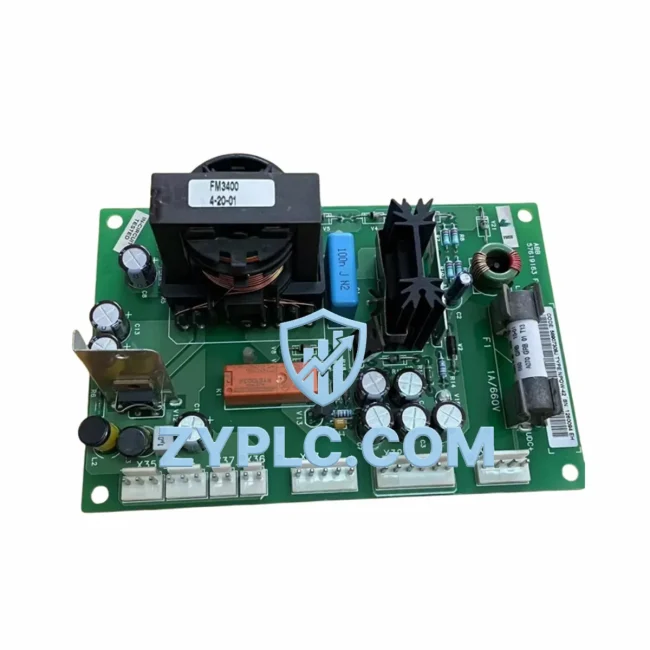

ABB NPOW-41C System-Ready Power Supply for AC800M Architecture

ABB NPOW-41C System-Ready Power Supply for AC800M Architecture: Control Layer Power Integrity and Contextual Integration

In any high-availability distributed control system, the power supply layer is not a peripheral concern — it is the architectural foundation upon which every other module depends. The ABB NPOW-41C is a dedicated power supply module engineered for deployment within ABB’s AC800M controller platform and the broader Symphony Plus / Freelance DCS architecture. Rather than functioning as a standalone component, the NPOW-41C is designed to operate as an integral element of a layered automation system, delivering regulated, stable DC power to controller backplanes, I/O expansion racks, and communication modules across multi-rack configurations.

Understanding the NPOW-41C requires understanding the architecture it serves. In a typical AC800M-based control system, the PM891 or PM864A process controller module occupies the central position in the control layer, executing real-time logic, managing scan cycles, and coordinating data exchange across the system bus. The NPOW-41C supplies the regulated power that keeps these controllers operational under variable load conditions, ensuring that voltage fluctuations at the AC input side do not propagate into the sensitive DC logic circuits of the controller backplane. This isolation between the power domain and the logic domain is a fundamental requirement in process industries where even momentary control interruptions can trigger costly shutdowns or safety events.

At the I/O layer, the NPOW-41C supports the power requirements of analog and digital I/O modules such as the AI895 analog input module and the DO880 digital output module. These modules interface directly with field instruments — transmitters, actuators, solenoid valves, and motor starters — and require a clean, stable power source to maintain signal accuracy and switching reliability. The NPOW-41C’s regulated output ensures that I/O modules operate within their specified electrical parameters, reducing the risk of signal drift, false triggering, or communication errors that can compromise process data integrity.

At the network and communication layer, modules such as the CI873AK01 PROFINET controller module and the CI868 IEC 61850 communication interface module depend on consistent power delivery to maintain real-time fieldbus communication. In architectures where the AC800M controller manages both process control and substation automation simultaneously, the NPOW-41C’s ability to sustain stable power across mixed communication loads — PROFIBUS, PROFINET, Modbus, and IEC 61850 — is critical to maintaining network synchronization and avoiding communication timeouts that could trigger controller failover events.

For systems designed with redundancy, the NPOW-41C supports parallel power supply configurations. In conjunction with the DP840 redundant power supply module, the NPOW-41C can be deployed in a 1+1 redundant power architecture, where the secondary supply automatically assumes full load in the event of a primary supply failure. This hot-standby configuration eliminates single points of failure at the power layer and is a standard design requirement in SIL-rated safety systems, continuous process plants, and critical infrastructure applications where unplanned downtime is not acceptable.

The TB850 termination board and associated marshalling panels connect the NPOW-41C’s output to the backplane distribution network, ensuring that power is routed cleanly to each module slot without voltage drop across long cable runs. Proper termination and cable sizing at this layer directly affects the NPOW-41C’s ability to maintain output regulation under peak load conditions, particularly in large I/O configurations where multiple expansion racks are powered from a single supply chain.

At the human-machine interface layer, the PP886 operator panel or third-party HMI systems connected via OPC-UA or PROFINET rely on the stability of the underlying control system to maintain real-time data visualization. A power supply failure at the controller level would immediately interrupt HMI data feeds, making the NPOW-41C’s reliability directly visible to operators. By maintaining continuous, regulated power to the PM891 or PM864A controller, the NPOW-41C ensures that HMI screens remain live and that alarm management systems continue to function without interruption.

From a maintenance and lifecycle perspective, the NPOW-41C is designed for hot-swap replacement in systems that support online module exchange. This capability allows maintenance teams to replace a degraded power supply during scheduled maintenance windows without requiring a full system shutdown, significantly reducing maintenance downtime and extending the operational life of the overall control system. Combined with the 12-Month Warranty provided by ZYPLC, end users can deploy the NPOW-41C with confidence in both product quality and post-sale support continuity.

Architecture Specification Table

Coordinated Control System Design

The NPOW-41C does not operate in isolation. Its value is realized only when it is correctly integrated into a coordinated control system design. In a standard AC800M multi-rack configuration, the NPOW-41C powers the main controller backplane housing the PM891 process controller, while downstream I/O expansion racks — populated with AI895 analog input modules, DO880 digital output modules, and DI885 digital input modules — receive power through dedicated supply chains that may include additional NPOW-41C units or compatible ABB power modules.

The CI873AK01 PROFINET controller module, mounted in the same backplane as the PM891, manages real-time communication with remote I/O stations and field devices. The NPOW-41C’s stable power output is essential for maintaining the deterministic timing required by PROFINET IRT (Isochronous Real-Time) communication, where jitter in the power supply can introduce latency variations that affect cycle time consistency. Similarly, the CI868 IEC 61850 module, used in substation automation and power distribution applications, requires a clean power environment to maintain GOOSE message timing and MMS data exchange reliability.

In redundant controller architectures, a secondary PM864A controller module operates in hot-standby mode, continuously synchronized with the primary PM891. The NPOW-41C, deployed in a 1+1 configuration with the DP840 redundant power supply, ensures that both the primary and standby controllers remain powered simultaneously, enabling bumpless transfer in the event of a primary controller fault. The TB850 termination board facilitates clean signal and power routing between the redundant supply modules and the backplane distribution network.

Application in Layered Automation Systems

The NPOW-41C is deployed across a wide range of process industries where the AC800M platform is the preferred control architecture. In oil and gas upstream and midstream facilities, the NPOW-41C powers controller backplanes managing wellhead control, pipeline pressure regulation, and compressor station automation. In power generation and transmission, it supports substation automation controllers running IEC 61850 protocols alongside SCADA integration. In water and wastewater treatment plants, the NPOW-41C provides reliable power to controllers managing pump sequencing, chemical dosing, and filtration process control. In mining and mineral processing, it sustains controller operation in high-vibration, high-dust environments where power supply reliability directly affects ore processing continuity. In pharmaceutical and food manufacturing, the NPOW-41C supports GMP-compliant control architectures where validated system configurations must remain stable across extended production campaigns without unplanned interruptions.

Architecture Engineering FAQ

Q1: Is the NPOW-41C compatible with both the PM891 and PM864A controller modules in the same AC800M architecture?
Yes. The NPOW-41C is designed to power the AC800M backplane regardless of which controller module variant is installed. Both the PM891 and PM864A are compatible with the NPOW series power supply architecture, and the NPOW-41C can support mixed-controller configurations in multi-rack systems where different controller generations are deployed across expansion racks.

Q2: Can the NPOW-41C be replaced online without shutting down the control system?
In systems configured with 1+1 redundant power supply architecture using the DP840 or a second NPOW-41C unit, the failed or degraded supply can be removed and replaced while the redundant unit maintains full power to the backplane. This hot-swap capability is a standard feature of the AC800M power architecture and is supported without requiring a controller restart or process interruption, provided the redundant supply is healthy and the backplane load is within single-supply capacity.

Q3: What warranty and post-sale support does ZYPLC provide for the NPOW-41C?
ZYPLC provides a 12-Month Warranty on all NPOW-41C units supplied from certified stock. Each unit undergoes functional verification prior to shipment. Post-sale technical support is available for system integration questions, architecture compatibility verification, and installation guidance. For urgent requirements or large-quantity procurement, contact ZYPLC directly at +86 19859288691 or [email protected].
