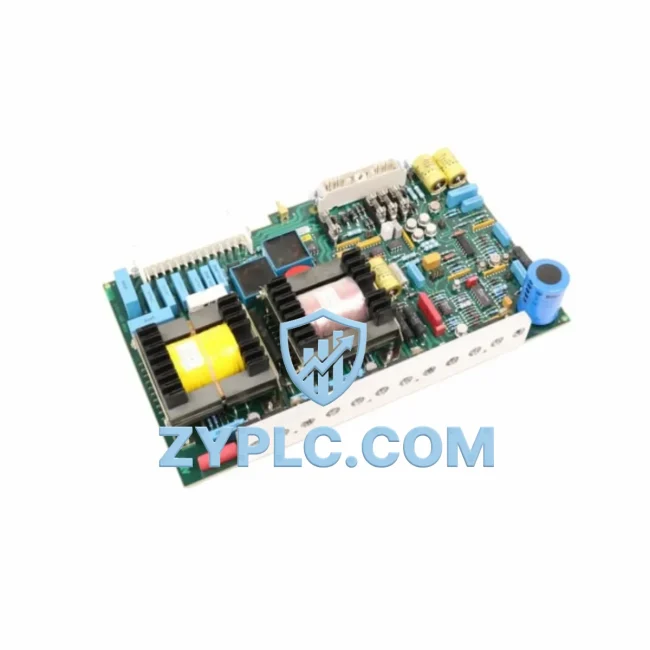

In modern distributed control system (DCS) deployments, power integrity is not a peripheral concern — it is the structural foundation upon which every control layer depends. The ABB PFSK102 YM322001-EG is a dedicated power supply module engineered for the AC800M controller platform and the broader Advant OCS architecture, delivering regulated, stable DC power to the controller backplane and connected I/O modules. Its role within the system hierarchy is not simply to energize components — it is to ensure that every upstream and downstream element operates within its designed electrical envelope, from the CPU module to the field terminal assemblies.

The PFSK102 YM322001-EG is designed to integrate seamlessly into the AC800M rack system, supplying power to the PM861, PM864, and PM865 processor modules, as well as the S800 I/O family including AI810, AO810, DI810, and DO810 modules. Its regulated output eliminates voltage fluctuation that could otherwise compromise signal fidelity across analog input channels or introduce timing errors in digital output sequences. In high-availability architectures, this module is typically deployed in a redundant power configuration alongside a second PFSK102 unit, ensuring that a single power source failure does not interrupt process control continuity.

From a system architecture perspective, the PFSK102 YM322001-EG occupies the power layer — the lowest and most critical tier of the automation hierarchy. Above it, the control layer (CPU and communication processors) depends on its output for deterministic scan cycle execution. The I/O layer relies on it for consistent excitation of field signal conditioning circuits. The network layer — including CI854 PROFIBUS DP communication interfaces and CI857 Industrial Ethernet modules — requires stable power to maintain fieldbus synchronization and prevent packet loss. Even the human-machine interface layer, where ABB Panel 800 or third-party SCADA terminals connect, benefits indirectly from the power module’s stability through reduced controller resets and alarm floods.

Architecture Specification Table

Coordinated Control System Design

The PFSK102 YM322001-EG does not operate in isolation. Its value is realized through its coordination with every other module in the AC800M control cabinet. In a typical process automation installation, the power module feeds the backplane bus that connects the PM864 processor module — the computational core responsible for executing IEC 61131-3 control logic — with the S800 I/O modules that interface directly with field instruments. The AI810 analog input module receives 4–20 mA signals from pressure transmitters and flow meters; the AO810 analog output module drives control valves and variable frequency drives. Both depend on the PFSK102’s regulated output to maintain signal accuracy within ±0.1% of full scale.

On the communication side, the CI854 PROFIBUS DP interface module connects the AC800M controller to remote I/O stations and intelligent field devices such as ABB drives and positioners. The CI857 Industrial Ethernet module enables OPC DA/UA connectivity to SCADA systems and MES platforms. Both communication modules require uninterrupted power to maintain fieldbus master/slave synchronization — a requirement that the PFSK102’s redundant configuration directly addresses. In installations where the TB820 ModuleBus modem is used to extend the S800 I/O bus over fiber optic links, the power module’s stability becomes even more critical, as any voltage transient can disrupt the optical modem’s timing circuits.

For cabinet-level integration, the PFSK102 YM322001-EG is typically installed alongside a 24 VDC SITOP or equivalent DIN rail power supply that feeds the module’s input. Terminal blocks such as the ABB DUCT series or equivalent marshalling assemblies route field wiring to the I/O modules, while the PFSK102 ensures that the backplane voltage remains within specification regardless of field load variations. In redundant controller architectures, a second PFSK102 unit is installed in the same rack, with automatic switchover logic managed by the AC800M firmware — ensuring zero-interruption power continuity during planned maintenance or unexpected module failure.

Application in Layered Automation Systems

The PFSK102 YM322001-EG is deployed across a wide range of industrial sectors where the AC800M platform is the control backbone. In power generation and transmission facilities, it supports turbine governor control systems where power interruption is not tolerable. In oil and gas processing plants, it powers the controller racks that manage separator pressure control, compressor anti-surge logic, and emergency shutdown sequences. The module’s wide operating temperature range and humidity tolerance make it suitable for installation in both climate-controlled central control rooms and field-mounted junction cabinets in harsher environments.

In chemical and petrochemical process plants, the PFSK102 supports continuous process control loops where the AC800M executes PID algorithms at scan rates of 10–100 ms. Any power instability at the backplane level would introduce scan jitter, potentially causing regulatory deviations in temperature, pressure, or flow control loops. The module’s regulated output eliminates this risk. In water and wastewater treatment facilities, it powers the controller racks managing pump sequencing, dosing control, and SCADA telemetry — applications where long-term reliability and low maintenance overhead are paramount.

In mining and minerals processing, the PFSK102 is found in grinding mill control systems, flotation cell automation, and conveyor drive coordination panels. In pulp and paper manufacturing, it supports the AC800M controllers managing digester pressure, bleaching chemical dosing, and paper machine drive coordination. Across all these applications, the 12-Month Warranty provides procurement teams and plant engineers with the assurance needed to justify spare parts stocking and long-term maintenance planning.

Architecture Engineering FAQ

Q1: Can the PFSK102 YM322001-EG be used in a redundant power configuration with an existing AC800M rack?
Yes. The AC800M rack supports dual power module slots, allowing two PFSK102 units to operate in parallel. The controller firmware manages automatic load sharing and failover without requiring any manual intervention or controller restart. This configuration is recommended for all SIL-rated and high-availability process control applications.

Q2: Is the PFSK102 YM322001-EG compatible with both the AC800M and the legacy Advant OCS architecture?
The PFSK102 YM322001-EG is primarily validated for the AC800M controller platform. Compatibility with legacy Advant OCS racks depends on the specific rack revision and backplane bus standard. It is recommended to verify the rack part number and backplane connector specification before installation. Our technical team can assist with compatibility confirmation prior to order placement.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions as specified in the ABB product datasheet. It supports maintenance planning by providing a defined replacement window that aligns with annual plant turnaround schedules. In the event of a warranty claim, replacement units are dispatched with priority to minimize control system downtime. Extended support and spare parts stocking services are available upon request.
