ABB PHCBRC30000000 Energy-Saving Bridge Controller BRC300

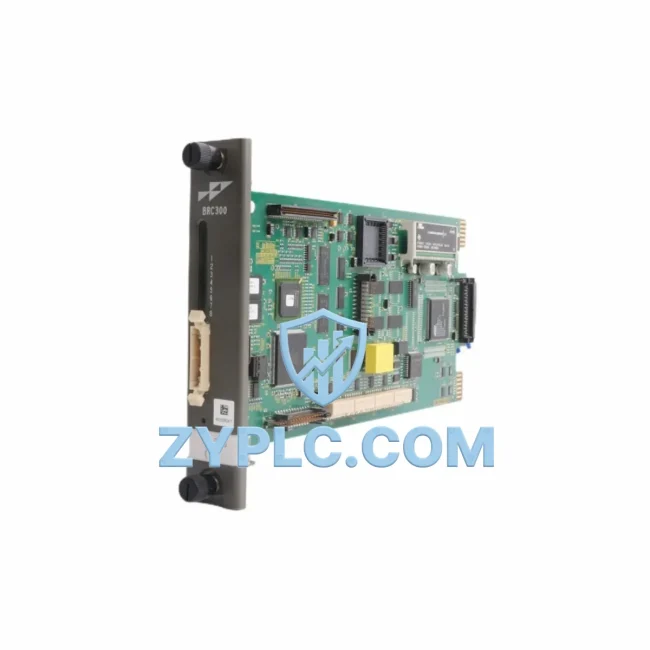

ABB PHCBRC30000000 Energy-Saving Bridge Controller BRC300: Precision Energy Control for Optimized Automation

The ABB PHCBRC30000000, part of the renowned BRC300 series, is a high-performance bridge controller module engineered for industrial environments where energy efficiency, process continuity, and drive-level precision are non-negotiable. Designed to serve as the communication and control backbone between ABB’s distributed control systems and field-level drive components, the BRC300 enables factories to dramatically reduce idle energy consumption, minimize unplanned downtime, and achieve tighter synchronization across multi-axis production lines.

In modern manufacturing, energy waste rarely comes from a single source — it accumulates across poorly coordinated motor starts, unmonitored drive states, and fragmented control loops. The PHCBRC30000000 addresses this at the architecture level, providing a centralized bridge that links drive feedback, control commands, and system diagnostics into a unified data stream. This makes it an essential component for any facility pursuing measurable energy reduction and OEE (Overall Equipment Effectiveness) improvement.

Efficiency Performance Table

Energy-Aware Automation Architecture

The PHCBRC30000000 BRC300 is most effective when deployed as part of a layered automation architecture. At the drive level, it interfaces directly with ABB’s ACS880 industrial drives and ACS580 general-purpose drives, reading real-time torque, speed, and power consumption data to enable closed-loop energy feedback. When paired with the ABB AC500 PLC — particularly the PM591 or PM595 CPU modules — the BRC300 acts as a high-speed bridge that translates drive-level signals into actionable control commands without introducing latency that would otherwise disrupt production rhythm.

On the I/O side, the BRC300 works in conjunction with ABB CI590-CS31-HA communication interface modules and standard DI/DO expansion modules to aggregate field signals from sensors, limit switches, and energy meters. This allows the control system to detect abnormal load conditions — such as a conveyor motor drawing 15% above its rated current — and automatically trigger a speed adjustment or maintenance alert before the issue escalates into a fault or unplanned stop.

For facilities running PROFIBUS DP or PROFINET networks, the BRC300 supports seamless integration with existing fieldbus infrastructure, enabling the ABB system to coexist with third-party PLCs or SCADA platforms. When connected to an ABB CP600 HMI panel, operators gain a real-time dashboard of drive states, energy consumption per zone, and fault history — all without requiring custom programming at the HMI layer.

In multi-drive applications such as extruder lines or winding machines, the BRC300 coordinates the startup sequencing of multiple ABB ACS355 compact drives, staggering motor energization to flatten the inrush current curve. This single function alone can reduce peak demand charges by 8–12% in facilities with time-of-use electricity tariffs. Combined with ABB FENA-21 Ethernet adapter modules for cloud-connected energy reporting, the BRC300 becomes a cornerstone of a data-driven energy management strategy.

Power Optimization in Real Production Lines

Consider a typical automotive parts stamping facility running three shifts. Without coordinated drive control, each shift changeover involves simultaneous motor restarts across 12–20 axes, creating a demand spike that triggers utility penalties and stresses the facility’s power distribution infrastructure. With the PHCBRC30000000 BRC300 integrated into the control architecture, the PLC can issue a sequenced restart command that brings each drive online at 200ms intervals — eliminating the spike entirely while maintaining the production line’s target cycle time.

In food and beverage processing, where conveyor speeds must be continuously adjusted to match upstream filling rates, the BRC300 enables the ABB ACS880 drives to receive real-time speed references from the PLC without the communication jitter that causes micro-stops. Each micro-stop in a high-speed packaging line can waste 0.3–0.8 seconds of production time — across 10,000 cycles per shift, this accumulates to significant throughput loss and unnecessary motor braking energy dissipation.

For predictive maintenance, the BRC300’s continuous drive state monitoring allows the AC500 PLC to log motor load trends over time. When a pump motor’s average load factor increases by more than 5% over a 30-day baseline — often an early indicator of bearing wear or impeller fouling — the system can automatically generate a maintenance work order, preventing a failure that would otherwise cause hours of unplanned downtime and potential product loss.

Every unit of the PHCBRC30000000 undergoes a full functional and communication test prior to shipment, ensuring that the module performs to ABB’s original factory specifications from day one of installation. With a 12-month warranty and verified in-stock availability, procurement teams can plan deployments with confidence, knowing that lead time and quality risk are both minimized.

Energy Optimization FAQ

Q1: How does the ABB PHCBRC30000000 BRC300 contribute to measurable energy savings on a production line?
The BRC300 reduces energy waste by enabling precise, real-time coordination between the PLC and connected drives. By eliminating uncoordinated motor starts, reducing idle-state drive power draw, and enabling speed optimization based on actual load demand, facilities typically observe a 5–15% reduction in motor-related energy consumption within the first quarter of deployment.

Q2: Is the PHCBRC30000000 compatible with non-ABB control systems or third-party drives?
The BRC300 is optimized for the ABB ecosystem, including the AC500 PLC platform and ACS-series drives. For integration with third-party systems, compatibility depends on the fieldbus protocol in use. The module supports standard industrial protocols including PROFIBUS DP and PROFINET, which allows it to function within mixed-vendor environments under appropriate configuration.

Q3: What is the recommended replacement or upgrade path for aging bridge controller modules in existing ABB installations?
For facilities currently running older ABB bridge or communication modules, the PHCBRC30000000 BRC300 is a direct functional replacement in most BRC300-series applications. It is advisable to verify firmware compatibility with the installed AC500 CPU version before replacement. Our technical team can assist with compatibility verification prior to order confirmation.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Prior to shipment, every PHCBRC30000000 unit undergoes a full outgoing quality inspection including communication interface testing, power-on functional verification, and visual inspection for physical integrity. This ensures that the module arrives ready for immediate installation without requiring additional bench testing on the customer’s end.
