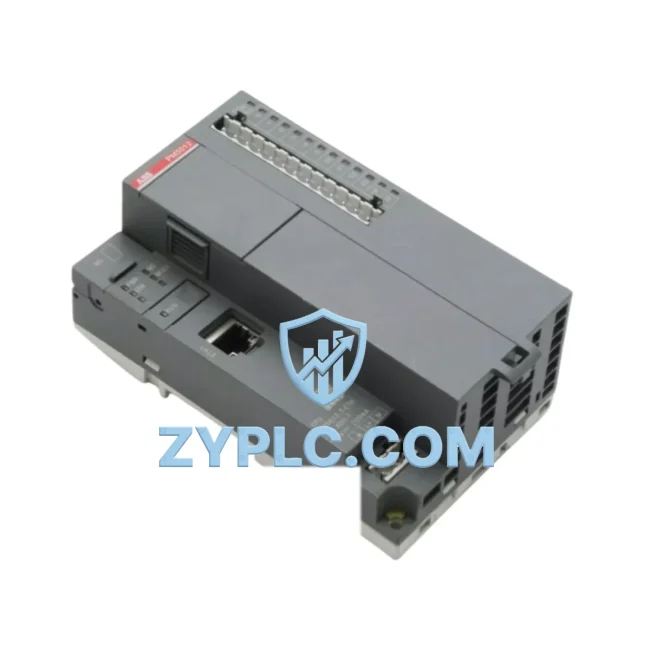

ABB PM5012-T-ETH 1SAP122600R0072 Energy-Saving Power Meter

ABB PM5012-T-ETH 1SAP122600R0072 Energy-Saving Power Meter for Optimized PM5000 Automation

The ABB PM5012-T-ETH (part number 1SAP122600R0072) is a high-precision, Ethernet-enabled power meter from ABB’s PM5000 series, purpose-built for industrial facilities that demand real-time energy visibility and measurable reductions in operational power consumption. Designed to integrate seamlessly into ABB AC500 PLC-based control architectures, this module delivers granular energy data at the point of consumption — enabling plant engineers to identify inefficiencies, eliminate idle-load waste, and optimize motor-driven processes across the production floor.

In modern manufacturing environments, unmonitored energy consumption is one of the largest sources of avoidable cost. The PM5012-T-ETH addresses this directly by providing continuous measurement of active power (kW), reactive power (kVAR), apparent power (kVA), power factor, voltage, current, and energy totals — all accessible in real time via its integrated Ethernet port. This connectivity allows the meter to feed live data into SCADA systems, MES platforms, and ABB’s own Automation Builder engineering environment, closing the loop between energy measurement and control action.

When deployed alongside an ABB AC500 PLC — such as the PM5650 or PM5630 CPU modules — the PM5012-T-ETH becomes an active participant in the control system rather than a passive recorder. The PLC can use energy data from the meter to trigger demand-response logic, adjust drive setpoints, or flag anomalies for predictive maintenance workflows. This tight integration between measurement and execution is what separates energy-aware automation from simple metering.

Efficiency Performance Table

Energy-Aware Automation Architecture

The PM5012-T-ETH is most effective when positioned within a layered automation architecture that connects energy data to control decisions. At the field level, current transformers and voltage taps feed raw electrical signals into the meter, which processes and transmits structured energy data upstream via Modbus TCP or EtherNet/IP. The ABB AC500 PLC — running on a PM5650 or PM5630 CPU — receives this data and executes control logic that can modulate connected loads in real time.

For motor-driven applications, the PM5012-T-ETH works in close coordination with ABB variable frequency drives such as the ACS880 industrial drive and the ACS580 general-purpose drive. When the PLC detects that a motor is drawing excess power relative to its process demand — a common occurrence during low-load periods or after product changeovers — it can command the drive to reduce output frequency, directly cutting energy consumption without interrupting production. The ACS380 compact drive is similarly compatible for smaller pump and fan applications where sub-metering at the drive level is impractical.

At the I/O layer, ABB CI502-PNIO PROFINET I/O modules and TU515 terminal units extend the reach of the AC500 system to distributed field devices, allowing the PM5012-T-ETH’s energy data to be correlated with process signals from sensors, actuators, and safety relays across the plant. This correlation is essential for identifying which specific operations or equipment states are responsible for energy spikes.

For operator visibility, ABB CP635 HMI panels can display live energy dashboards derived from PM5012-T-ETH data, giving line supervisors immediate feedback on power consumption trends without requiring access to the engineering workstation. When consumption deviates from baseline, the HMI can alert operators and log the event for later analysis — supporting both real-time response and long-term energy auditing.

Communication continuity is maintained through ABB’s CM589-PNIO PROFINET communication module, which ensures that energy data flows reliably between the PM5012-T-ETH, the AC500 PLC, and upstream systems even in electrically noisy industrial environments. For facilities using EtherNet/IP as their primary network protocol, the CM591-ETH module provides equivalent connectivity.

Power Optimization in Real Production Lines

In a typical discrete manufacturing environment, the PM5012-T-ETH is installed at the sub-panel level to monitor energy consumption for a specific production cell — for example, a CNC machining center, an injection molding press, or a conveyor and sortation system. By establishing a baseline energy profile for each cell during normal production, the system can automatically detect deviations that indicate equipment degradation, tooling wear, or process drift — all of which manifest as changes in power draw before they cause visible quality defects or unplanned downtime.

Consider a scenario where a pump motor in a cooling circuit begins to cavitate due to a partially blocked inlet filter. The motor’s power consumption rises as it works harder to maintain flow, but the process temperature — the variable typically monitored for alarm — may not yet show a detectable change. The PM5012-T-ETH captures this power increase immediately, and the AC500 PLC can trigger a maintenance alert before the motor overheats or the cooling circuit fails. This predictive maintenance capability directly reduces unplanned downtime and extends equipment service life.

For production line takt time optimization, energy data from the PM5012-T-ETH can be used to identify idle-running equipment — machines that remain energized and drawing power during changeovers, breaks, or upstream stoppages. By integrating this data with the PLC’s production scheduling logic, the system can automatically de-energize non-critical loads during planned idle periods, recovering energy that would otherwise be wasted. In high-volume facilities running multiple shifts, these savings accumulate to significant reductions in monthly energy costs.

Inventory availability for the PM5012-T-ETH 1SAP122600R0072 is maintained to support both planned project deployments and urgent replacement requirements. Each unit undergoes outgoing shipment testing to verify communication functionality, measurement accuracy, and hardware integrity before dispatch. A 12-month warranty covers all units against manufacturing defects, providing procurement teams with the confidence needed to specify this meter in new installations and retrofit projects alike.

Energy Optimization FAQ

Q1: What measurable energy savings can the PM5012-T-ETH deliver in a typical industrial installation?
The PM5012-T-ETH itself is a measurement device — its direct contribution is providing the data needed to make informed energy reduction decisions. In practice, facilities that act on sub-metering data typically achieve 10–30% reductions in monitored load energy consumption by identifying idle loads, optimizing drive setpoints, and eliminating power factor penalties. The meter’s Class 0.5S accuracy ensures that savings calculations are reliable enough to support energy performance contracts and ISO 50001 audits.

Q2: Is the PM5012-T-ETH compatible with non-ABB PLC systems and SCADA platforms?
Yes. While the PM5012-T-ETH is optimized for integration with ABB AC500 PLC systems, its Modbus TCP and EtherNet/IP communication interfaces are open standards supported by virtually all major industrial automation platforms, including Siemens S7, Rockwell ControlLogix, and Schneider Electric Modicon. It can also be integrated directly into SCADA systems such as Ignition, WinCC, and FactoryTalk without a PLC intermediary.

Q3: Can the PM5012-T-ETH replace an existing ABB PM5010 or PM5012 meter without hardware modifications?
The PM5012-T-ETH is designed as a form-fit-function upgrade within the PM5000 series. It shares the same backplane connector and mounting footprint as other PM5000 series modules, making it a direct replacement for PM5010 and standard PM5012 variants in existing AC500 installations. The addition of the Ethernet interface (the “-T-ETH” suffix) means that wiring for the communication port will need to be added if the replaced unit used only serial communication.

Q4: What is the warranty coverage and pre-shipment testing process for the PM5012-T-ETH 1SAP122600R0072?
Every PM5012-T-ETH 1SAP122600R0072 unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects from the date of shipment. Prior to dispatch, each unit is tested for Ethernet communication functionality, measurement channel integrity, and correct firmware operation. Units that do not pass outgoing inspection are not shipped. Warranty claims are processed promptly, with replacement units dispatched to minimize project delays.

—
