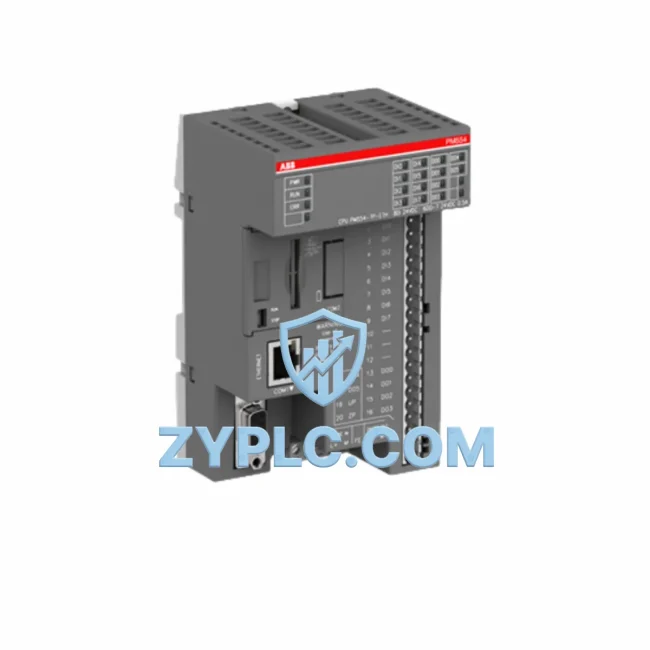

ABB PM554-TP-ETH Energy-Saving PLC CPU for Optimized AC500 Automation
In modern industrial environments where energy costs and equipment uptime directly impact profitability, the ABB PM554-TP-ETH PLC CPU module stands as a precision instrument for energy-aware automation. Designed as part of ABB’s proven AC500 programmable logic controller platform, the PM554-TP-ETH integrates seamlessly into demanding production environments — from discrete manufacturing and process control to building automation and energy management systems. With its onboard Ethernet port, compact form factor, and optimized instruction execution, this CPU module enables engineers to build leaner, faster, and more energy-efficient control architectures without compromising reliability or scalability.
Efficiency Performance Table
| Parameter |
Specification |
| SKU / Model |
PM554-TP-ETH |
| Brand / Series |
ABB / AC500 |
| Product Type |
PLC CPU Module |
| Program Memory |
512 KB |
| Communication Interface |
Ethernet (10/100 Mbps), RS-485 |
| Supported Protocols |
Modbus TCP, CS31, FBP |
| Operating Voltage |
24 VDC |
| Power Consumption |
≤ 4.5 W (typical operating) |
| Operating Temperature |
-25°C to +60°C |
| Execution Efficiency |
High-speed Boolean processing, optimized scan cycle |
| Compatible Systems |
ABB AC500 I/O modules, AC500-eCo, AC500-S Safety |
| Application Environment |
Discrete manufacturing, process control, energy management |
| Energy Saving Value |
Reduced scan overhead, low standby draw, efficient task scheduling |
| Origin |
Germany (DE) |
| Warranty |
12-Month Warranty — tested and verified before shipment |
Energy-Aware Automation Architecture
The PM554-TP-ETH is engineered to serve as the intelligent core of an energy-optimized control system. Its Ethernet interface enables direct integration with SCADA platforms and energy monitoring software, allowing real-time visibility into power consumption at the machine and line level. When paired with the ABB PM564-TP-ETH — a higher-memory CPU in the same AC500 family — engineers can distribute processing loads across redundant or segmented control zones, reducing unnecessary CPU cycles and associated power draw.
On the I/O side, the PM554-TP-ETH works natively with ABB’s DA501 digital input/output modules and AO523 analog output modules, enabling precise signal conditioning for motor speed references, valve positioning, and load shedding commands. Accurate analog output reduces hunting behavior in drive systems, which directly translates to lower energy waste in variable-load applications.
For drive-level energy control, the PM554-TP-ETH communicates via Modbus TCP or fieldbus adapters with ABB’s ACS580 general-purpose variable speed drive and the ACS880 industrial drive series. These drives, when commanded by a well-tuned PLC program running on the PM554-TP-ETH, can implement energy-saving ramp profiles, sleep modes during low-demand periods, and regenerative braking feedback — all coordinated through the CPU’s task scheduler.
The CM579-PNIO PROFINET communication module extends the PM554-TP-ETH’s connectivity to PROFINET-based networks, enabling integration with third-party servo drives, distributed I/O racks, and smart sensors. Similarly, the CI501-PNIO coupler module allows the AC500 system to interface with PROFINET I/O devices without additional gateways, reducing network latency and improving deterministic control — both of which contribute to tighter production cycle times and lower energy per unit produced.
For operator interaction and energy KPI visualization, the PM554-TP-ETH can be connected to ABB’s CP600 series HMI panels. These panels display real-time energy consumption trends, alarm states, and production efficiency metrics, empowering line operators to make immediate adjustments that prevent energy waste. The CD522 counter/frequency module further enhances the system by capturing high-speed pulse signals from flow meters or encoder-based energy measurement devices, feeding accurate consumption data back into the PLC program for closed-loop energy optimization.
Power Optimization in Real Production Lines
In a typical discrete manufacturing environment, unoptimized PLC programs contribute to energy waste through excessive output toggling, inefficient motor start sequences, and poorly timed conveyor synchronization. The PM554-TP-ETH addresses these issues at the control layer. Its fast Boolean execution and structured task prioritization allow engineers to implement energy-aware logic — such as staggered motor starts to avoid peak demand spikes, dynamic speed references based on downstream buffer levels, and automatic standby modes during scheduled breaks.
In process industries, the PM554-TP-ETH’s analog I/O compatibility enables PID-based control of pumps, compressors, and HVAC systems. By maintaining process variables within tight bands, the CPU minimizes the over-run and under-run cycles that waste energy and accelerate mechanical wear. Predictive maintenance logic can also be embedded directly in the PLC program — monitoring motor run hours, cycle counts, and thermal trends via connected sensors — triggering maintenance alerts before failures occur and avoiding the energy-intensive restart sequences that follow unplanned downtime.
From a supply chain perspective, all PM554-TP-ETH units available through ZYPLC are sourced from verified channels, held in climate-controlled inventory, and subjected to functional testing prior to shipment. Each unit ships with a 12-month warranty, covering defects in materials and workmanship under normal operating conditions. This warranty, combined with fast global dispatch, ensures that production lines experience minimal disruption when a replacement CPU is required.
Energy Optimization FAQ
Q1: How does the PM554-TP-ETH contribute to measurable energy savings on a production line?
The PM554-TP-ETH enables energy savings through precise motor control coordination, optimized scan cycles that reduce unnecessary output switching, and Ethernet-based integration with energy monitoring systems. When combined with ABB ACS580 or ACS880 variable speed drives, the CPU can implement demand-responsive speed profiles that reduce energy consumption during low-load periods by 20–40% compared to fixed-speed operation.
Q2: Is the PM554-TP-ETH compatible with existing AC500 I/O modules and communication networks?
Yes. The PM554-TP-ETH is fully compatible with the ABB AC500 I/O range, including DA501 digital modules, AO523 analog output modules, and CD522 counter modules. It supports Modbus TCP natively over its Ethernet port and can be extended to PROFINET networks using the CM579-PNIO or CI501-PNIO communication modules, making it suitable for both new installations and retrofits of existing AC500 systems.
Q3: What is the recommended replacement or upgrade path for older AC500 CPU modules?
The PM554-TP-ETH is a direct functional replacement for earlier AC500 CPUs without Ethernet, such as the PM554-T. For applications requiring greater memory or additional communication ports, the PM564-TP-ETH offers an expanded feature set within the same hardware form factor. All replacements should be validated against the existing I/O configuration and program memory requirements before deployment.
Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every PM554-TP-ETH unit supplied by ZYPLC undergoes functional verification testing prior to dispatch, including power-on checks, communication port validation, and memory integrity verification. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims are processed directly through ZYPLC’s technical support team, with replacement units dispatched to minimize production downtime.
