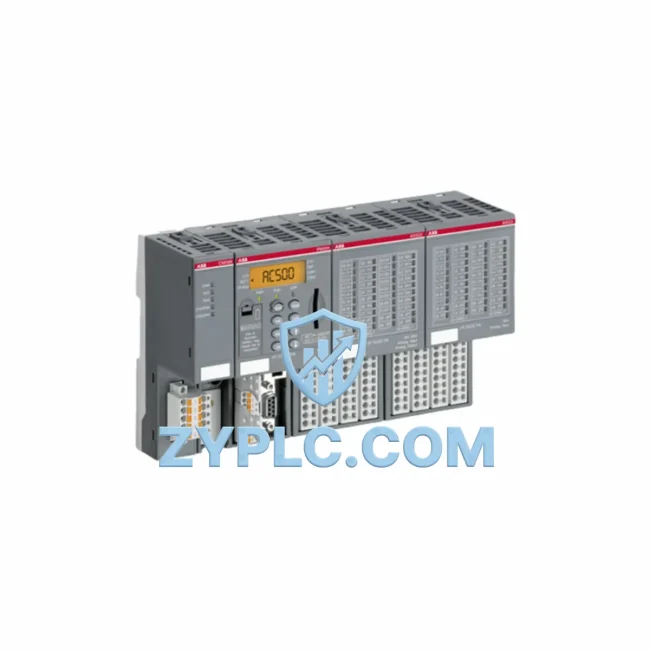

ABB PM5650-2ETH Energy-Saving PLC Processor for Optimized AC500 Automation
In modern industrial environments where energy costs directly impact profitability, the ABB PM5650-2ETH stands as a high-performance CPU module engineered for the AC500 PLC platform — delivering precise control, real-time data processing, and measurable energy efficiency across demanding production lines. With dual Ethernet ports enabling simultaneous communication across multiple network segments, this processor module eliminates bottlenecks in data exchange between field devices, SCADA systems, and energy management platforms, ensuring that every kilowatt consumed is accounted for and optimized.
The PM5650-2ETH operates at the core of energy-aware automation architectures. Its high-speed processing capability allows engineers to implement complex energy monitoring algorithms directly within the PLC logic, reducing reliance on external computing hardware and lowering overall system power draw. When integrated with ABB’s CM579-PNIO PROFINET communication module, the PM5650-2ETH gains seamless access to distributed I/O nodes and intelligent field devices, enabling real-time feedback loops that adjust drive speeds, valve positions, and motor loads in response to live energy consumption data.
Efficiency Performance Table
| Parameter |
Specification |
| Product SKU |
PM5650-2ETH |
| Platform |
ABB AC500 |
| Communication Ports |
2 × Ethernet (10/100 Mbps) |
| Processing Performance |
High-speed multi-tasking CPU |
| Operating Voltage |
24 V DC |
| Operating Temperature |
-25°C to +60°C |
| Compatible Systems |
AC500, AC500-S, AC500-eCo series |
| Application Environment |
Industrial automation, energy management, process control |
| Energy Optimization Value |
Real-time load monitoring, adaptive control, reduced idle consumption |
| Warranty |
12-Month Warranty (ZYPLC) |
| Origin |
Germany |
| Availability |
In Stock — Ships within 1–3 business days |
Energy-Aware Automation Architecture
Deploying the PM5650-2ETH within a complete AC500 automation system unlocks a layered approach to energy optimization. At the I/O level, analog input modules such as the AI561 collect real-time current and voltage signals from motors, conveyors, and compressors, feeding this data directly into the PM5650-2ETH for processing. The processor evaluates load profiles against predefined efficiency thresholds and issues corrective commands to output modules like the AO561, which in turn adjusts setpoints on downstream drive systems.
For motor control and variable speed regulation, the PM5650-2ETH pairs naturally with ABB’s ACS580 general-purpose drives and the ACS880 industrial drive series. Through the CM578-CN CANopen communication module or the CM577-ETH Ethernet adapter, the processor maintains continuous dialogue with these drives — dynamically scaling motor speed to match actual production demand rather than running at fixed full-load capacity. This alone can reduce motor energy consumption by 20–40% in variable-load applications such as pumping stations, ventilation systems, and conveyor lines.
At the network and data layer, the CI590-CS31-HA remote I/O coupler extends the PM5650-2ETH’s reach across large plant floors without additional cabling infrastructure, while the CI592-CS31 CS31 bus coupler enables legacy device integration — ensuring that older sensors and actuators contribute to the energy monitoring ecosystem rather than being replaced prematurely. The DC551-CS31 digital I/O module handles high-density switching tasks, reducing scan cycle overhead and freeing CPU resources for energy calculation routines.
For operator visibility, pairing the PM5650-2ETH with an CP635 or CP651 HMI panel provides plant operators with live dashboards displaying energy KPIs, equipment utilization rates, and alarm states — enabling informed decisions that prevent energy waste before it accumulates. The TU516 terminal unit simplifies module installation and replacement, supporting hot-swap capability that minimizes downtime during maintenance windows and keeps production efficiency metrics on target.
Power Optimization in Real Production Lines
In a typical discrete manufacturing environment, the PM5650-2ETH contributes to energy savings across multiple production stages. During machine idle periods, the processor executes standby logic that powers down non-critical actuators and reduces drive frequency on auxiliary motors — a function that can cut idle-state energy consumption by up to 30% compared to conventional fixed-speed control systems.
For predictive maintenance, the PM5650-2ETH continuously logs motor current signatures, cycle times, and thermal data. Deviations from baseline profiles trigger early warnings before mechanical failures occur, preventing unplanned downtime that disrupts production rhythm and causes energy-intensive restart sequences. Maintenance teams receive actionable alerts through the SCADA interface, allowing scheduled interventions that preserve both equipment lifespan and energy efficiency.
In high-cycle applications such as injection molding, stamping, or robotic assembly, the PM5650-2ETH’s fast task execution ensures that motion profiles are executed with minimal overshoot and settling time — directly reducing the energy wasted in acceleration and deceleration phases. Combined with servo drive feedback from ABB’s servo systems, the processor closes the control loop at millisecond intervals, maintaining optimal torque delivery without excess power draw.
Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication port verification, program execution validation, and power consumption measurement. Stock is maintained for rapid dispatch, with most orders fulfilled within 1–3 business days. A 12-month warranty covers all hardware defects, giving procurement and engineering teams confidence in long-term system reliability.
Energy Optimization FAQ
Q1: How does the PM5650-2ETH contribute to measurable energy savings on the production line?
The PM5650-2ETH enables real-time load monitoring and adaptive control logic that adjusts motor speeds, actuator states, and process setpoints based on actual demand. By eliminating fixed-speed operation and reducing idle-state consumption, facilities typically achieve 15–35% reductions in energy use for controlled equipment within the AC500 system.
Q2: Is the PM5650-2ETH compatible with existing ABB AC500 installations?
Yes. The PM5650-2ETH is fully compatible with the AC500 and AC500-S hardware families. It supports standard AC500 I/O modules, communication couplers, and programming tools including Automation Builder, allowing seamless integration into existing installations without hardware redesign.
Q3: Can this module replace an older AC500 CPU in an energy upgrade project?
In most cases, yes. The PM5650-2ETH is designed as a drop-in upgrade for lower-performance AC500 CPUs. Its enhanced processing speed supports more complex energy management programs, and its dual Ethernet ports enable direct connection to energy monitoring systems without additional communication hardware.
Q4: What does the 12-month warranty from ZYPLC cover, and what is the testing process?
All PM5650-2ETH units sold by ZYPLC are tested prior to shipment for communication functionality, program execution, and power integrity. The 12-month warranty covers manufacturing defects and hardware failures under normal operating conditions. Replacement or repair is arranged promptly to minimize production impact.
