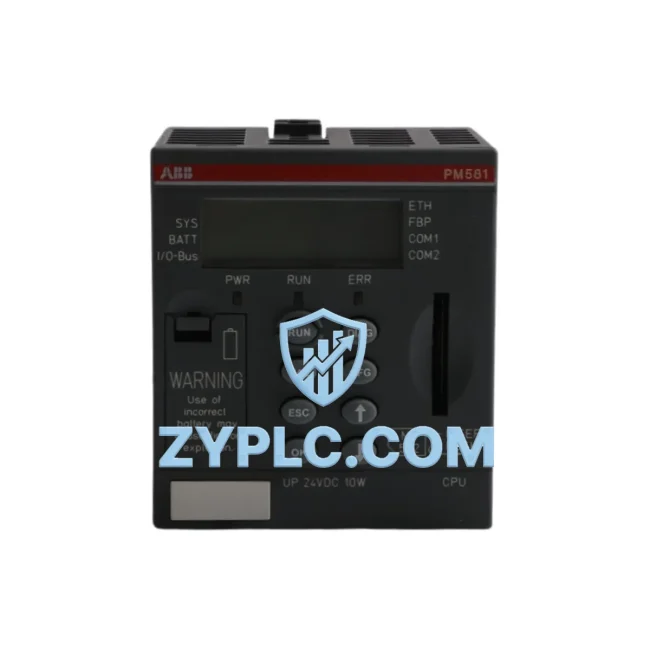

ABB PM581-ETH 1SAP140100R0170 System-Ready CPU for AC500 Architecture

ABB PM581-ETH 1SAP140100R0170 System-Ready CPU for AC500 Architecture: Control System Architecture and Upstream-Downstream Coordination

The ABB PM581-ETH (1SAP140100R0170) is a high-performance CPU module engineered for deployment within the ABB AC500 programmable logic controller platform. Designed to serve as the computational core of distributed and centralized automation architectures, this module delivers deterministic scan-cycle execution, integrated Ethernet communication, and seamless contextual integration across all layers of an industrial control system. Whether deployed in discrete manufacturing, process control, or critical infrastructure environments, the PM581-ETH provides the processing backbone that ensures system-wide coherence, scalability, and long-term maintainability — all backed by a 12-Month Warranty.

In modern industrial automation, no CPU module operates in isolation. The PM581-ETH is architected to function as the central coordinator across the control layer, I/O layer, network layer, power layer, HMI layer, and actuator layer. Its role is not simply to execute ladder logic or function block programs — it is to maintain signal integrity, enforce timing discipline, and provide the contextual integration that binds every subsystem into a unified, responsive control architecture.

Architecture Specification Table

Coordinated Control System Design

The PM581-ETH achieves its full potential when integrated within a complete AC500 control architecture. At the power layer, the module relies on a dedicated DC532 or DC551 power supply module to deliver stable 24 V DC across the backplane, ensuring that voltage fluctuations at the field level do not propagate into the CPU’s execution cycle. The backplane itself — typically a TB521 or TB541 — provides the physical and electrical bus that connects the CPU to all expansion I/O modules without introducing communication latency.

At the I/O layer, the PM581-ETH coordinates with digital input modules such as the DI524 and digital output modules such as the DO524, as well as analog I/O modules including the AI523 and AO523, to acquire field signals and issue control commands with millisecond-level precision. These modules mount directly onto the AC500 backplane and communicate with the CPU via the internal CS31 bus, eliminating the need for external field bus wiring between the CPU and local I/O.

For distributed I/O architectures, the PM581-ETH leverages its integrated Ethernet port to communicate with remote I/O stations via Modbus TCP, enabling plant-wide signal aggregation without the need for a dedicated communication coprocessor. In installations where CANopen or PROFIBUS-DP connectivity is required, the CM572-DP or CM577-ETHCAT communication modules can be added to the same backplane, extending the CPU’s network reach while maintaining a single programming environment under ABB Automation Builder.

At the HMI layer, the PM581-ETH interfaces directly with ABB CP600 series operator panels or third-party SCADA systems via Ethernet, supporting real-time data visualization, alarm management, and remote parameter adjustment without interrupting the CPU’s scan cycle. This contextual integration between the CPU and the HMI layer is critical in process industries where operators must respond to dynamic process conditions within seconds.

For applications requiring high availability, the PM581-ETH can be deployed in redundant CPU configurations using ABB’s AC500-S safety-rated variants or paired with watchdog relay modules to implement fail-safe shutdown logic. The module’s deterministic execution and robust memory architecture make it a reliable foundation for redundant control designs in power generation, water treatment, and petrochemical processing environments.

Application in Layered Automation Systems

In discrete manufacturing environments — such as automotive assembly lines, packaging machinery, and material handling conveyors — the PM581-ETH serves as the master controller coordinating servo drives, pneumatic actuators, vision systems, and safety interlocks within a single IEC 61131-3 program. Its fast scan cycle and Ethernet connectivity allow it to synchronize motion sequences across multiple axes while simultaneously reporting production KPIs to MES systems.

In electrical power distribution substations and grid automation applications, the PM581-ETH provides the logic processing required for protection relay coordination, load shedding automation, and transformer monitoring. Its wide operating temperature range and DIN rail mounting make it suitable for installation in outdoor switchgear cabinets where environmental conditions are demanding.

In petrochemical and refinery process control systems, the PM581-ETH integrates with pressure transmitters, flow meters, and control valves via analog I/O modules, executing PID control loops and safety interlock logic in compliance with IEC 61511 functional safety requirements. Its Modbus TCP interface enables seamless data exchange with distributed control systems (DCS) and historian servers.

Water and wastewater treatment facilities benefit from the PM581-ETH’s ability to manage pump sequencing, chemical dosing, and filtration cycles across geographically distributed pump stations, using Ethernet-based remote I/O to minimize field cabling costs. Mining and metallurgical operations deploy the module in conveyor control, crusher automation, and smelter process management, where its robust design withstands high-vibration and high-dust environments.

In all these applications, the PM581-ETH’s 12-Month Warranty and global spare parts availability ensure that maintenance teams can plan predictive replacement cycles without risking unplanned production downtime. Its compatibility with the full AC500 ecosystem means that system expansions — whether adding new I/O modules, communication gateways, or HMI panels — can be completed without replacing the CPU or reprogramming the control architecture from scratch.

Architecture Engineering FAQ

Q1: Is the PM581-ETH (1SAP140100R0170) compatible with all AC500 backplane variants, and can it be mixed with older AC500 I/O modules?
The PM581-ETH is designed for use with the AC500 V2 backplane family, including the TB511, TB521, and TB541 variants. It maintains backward compatibility with most AC500 V1 I/O modules, though firmware alignment via ABB Automation Builder is recommended before commissioning mixed-generation architectures. Always verify the firmware revision of existing I/O modules against the CPU’s supported module list prior to system integration.

Q2: How does the PM581-ETH support redundant or fault-tolerant control architectures, and what additional components are required?
While the PM581-ETH itself is a standard (non-safety-rated) CPU, it can be incorporated into fault-tolerant architectures by pairing it with external watchdog relays, redundant power supply modules, and Ethernet switch redundancy using RSTP or ring topology. For SIL-rated safety applications, ABB recommends transitioning to the AC500-S safety CPU variants. The PM581-ETH’s Modbus TCP interface also supports hot-standby communication with supervisory systems that can initiate controlled switchover in the event of CPU fault detection.

Q3: What does the 12-Month Warranty cover for the PM581-ETH, and how does ZYPLC support long-term maintenance and spare parts availability?
The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions identified during the warranty period. ZYPLC maintains dedicated inventory of PM581-ETH and related AC500 components to support rapid replacement in the event of field failures. Our technical team provides pre-sales architecture consultation, commissioning support, and post-sales maintenance guidance to ensure that your control system remains operational throughout its full lifecycle. Contact us at plc.sales@zyplc.com or +86 19859288691 for spare parts availability and system compatibility verification.
