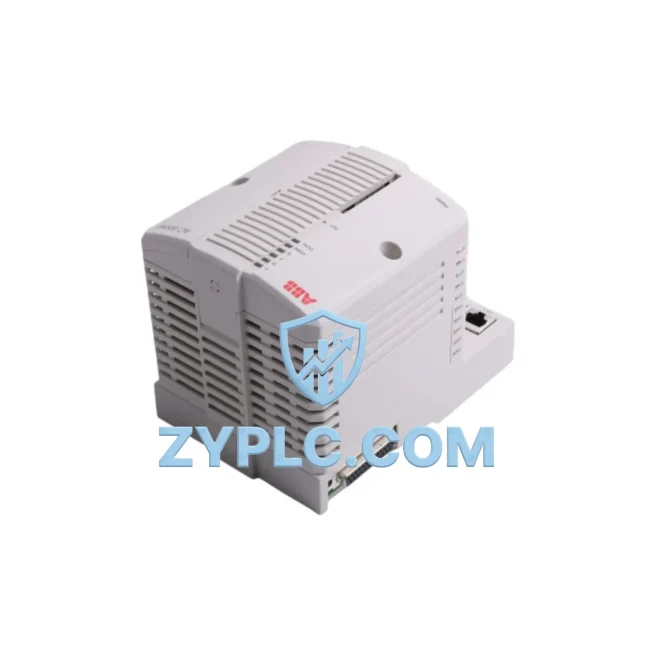

ABB PM866K01 3BSE050198R1 Energy-Saving PLC Processor for AC500 Automation
The ABB PM866K01 (3BSE050198R1) is a high-performance CPU module within the ABB AC500 PLC series, engineered to deliver precision control, reduced energy overhead, and optimized production line throughput in demanding industrial environments. As factories face increasing pressure to reduce operational energy costs and improve equipment utilization rates, the PM866K01 stands out as a core controller capable of coordinating multi-axis drive systems, real-time energy monitoring, and adaptive process feedback — all within a compact, DIN-rail-mounted form factor.
Sourced directly from verified supply channels, every unit offered by ZYPLC undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring confidence for both OEM integrators and MRO procurement teams.
Efficiency Performance Table
| Parameter |
Specification |
| Model / Full SKU |
ABB PM866K01 / 3BSE050198R1 |
| Series |
ABB AC500 |
| Product Type |
PLC Processor Module (CPU) |
| Typical Power Consumption |
≤ 6.5 W (CPU module only) |
| Processing Efficiency |
High-speed cyclic task execution, ≤ 1 ms cycle time |
| Compatible Systems |
ABB AC500 I/O bus, PROFIBUS-DP, Modbus TCP/RTU, CANopen, EtherNet/IP |
| Application Environment |
-25°C to +60°C, IP20, industrial cabinet mounting |
| Energy Optimization Value |
Adaptive load scheduling, drive coordination, idle-state power reduction |
| Origin |
Germany |
| Warranty |
12 Months (ZYPLC) |
| Stock Status |
In Stock — Pre-shipment tested |
Energy-Aware Automation Architecture
The PM866K01 is designed to serve as the intelligence hub of an energy-conscious automation architecture. In a typical AC500-based control cabinet, the processor communicates directly with the ABB TB811 I/O terminal base and DI581-S digital input modules, enabling high-density signal acquisition from field sensors without introducing unnecessary bus latency or power draw. When paired with the ABB CI854A PROFIBUS-DP communication interface, the PM866K01 can coordinate upstream data exchange with SCADA systems and energy management platforms, allowing plant engineers to correlate real-time process states with energy consumption metrics.
On the drive side, the PM866K01 integrates seamlessly with ABB ACS880 industrial drives via PROFIBUS or EtherNet/IP, enabling closed-loop speed and torque regulation that directly reduces motor energy waste during partial-load operation. For servo-driven axes, the processor supports coordinated motion profiles through the ABB MicroFlex e190 servo drive, ensuring that acceleration and deceleration ramps are optimized to minimize reactive power spikes on the supply network.
Power quality monitoring is further enhanced when the PM866K01 is deployed alongside the ABB M2M DMTME power meter or compatible third-party energy analyzers connected via Modbus RTU. This allows the CPU to receive real-time kWh, power factor, and harmonic distortion data, feeding it back into the control logic for demand-side energy management. The ABB CP600 HMI panel provides operators with a clear visualization layer, displaying energy KPIs, alarm states, and production throughput on a single screen — reducing the cognitive load on line supervisors and enabling faster corrective action.
For distributed I/O architectures, the PM866K01 supports remote I/O expansion via the ABB AC500-eCo remote I/O modules, reducing wiring complexity and associated installation energy costs. Communication redundancy can be achieved through the ABB CI873AK EtherNet/IP adapter, ensuring that the control network remains stable even during partial network failures — a critical factor in maintaining production line rhythm without unplanned stops.
Power Optimization in Real Production Lines
In real-world deployments, the PM866K01 has demonstrated measurable impact on factory energy profiles. In conveyor and material handling applications, the processor’s fast cyclic execution allows it to implement predictive speed ramping — slowing drives during low-demand intervals and accelerating only when upstream buffer levels require it. This demand-responsive control strategy can reduce motor energy consumption by 15–30% compared to fixed-speed operation, depending on the production profile.
In packaging and assembly lines, the PM866K01’s deterministic task scheduling ensures that servo axes and pneumatic actuators are activated only when required, eliminating the idle-run energy waste common in older relay-logic systems. By integrating with energy monitoring modules, the processor can trigger maintenance alerts when a motor’s current draw deviates from its baseline — an early indicator of bearing wear or mechanical misalignment that, if left unaddressed, leads to both increased energy consumption and unplanned downtime.
For facilities operating multiple production shifts, the PM866K01 supports time-of-use energy scheduling, allowing plant managers to program high-energy tasks during off-peak tariff windows. Combined with its support for structured data logging via SD card or Ethernet-connected historian systems, the processor provides the audit trail necessary for ISO 50001 energy management compliance reporting.
Every PM866K01 unit supplied by ZYPLC is functionally tested prior to dispatch, with test records available upon request. Stock is maintained for rapid fulfillment, and the 12-month warranty covers defects in materials and workmanship under normal operating conditions — giving procurement and maintenance teams the assurance they need when sourcing replacement or expansion modules.
Energy Optimization FAQ
Q1: How does the PM866K01 contribute to measurable energy savings on the production line?
The PM866K01 enables demand-responsive control by coordinating drive speed, actuator timing, and process sequencing in real time. When integrated with energy monitoring devices via Modbus or PROFIBUS, it can implement load-shedding logic and adaptive scheduling that reduces unnecessary motor run time and reactive power consumption — translating directly into lower electricity costs per production unit.
Q2: Is the PM866K01 (3BSE050198R1) compatible with existing ABB AC500 installations?
Yes. The PM866K01 is fully compatible with the ABB AC500 hardware platform, including existing TB811/TB812 terminal bases, CI854A/CI873AK communication modules, and the full range of AC500 digital and analog I/O modules. Firmware upgrades can be managed via ABB Automation Builder without requiring hardware replacement of peripheral modules.
Q3: What is the recommended replacement or upgrade path for older AC500 CPU modules?
The PM866K01 is positioned as a mid-to-high performance CPU within the AC500 family, suitable for replacing PM864A or PM865K01 modules in applications requiring higher memory capacity or faster cycle times. Before replacement, verify the firmware version compatibility and back up the existing project using ABB Automation Builder to ensure a seamless transition.
Q4: What does the 12-month warranty from ZYPLC cover, and what is the testing process?
Each PM866K01 unit undergoes pre-shipment functional testing that verifies communication port integrity, CPU boot sequence, and I/O bus initialization. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through ZYPLC, with replacement or repair turnaround coordinated to minimize production downtime.
