ABB RDCU-12C System-Ready Drive Control Unit for ACS880 Architecture

ABB RDCU-12C System-Ready Drive Control Unit for ACS880 Architecture

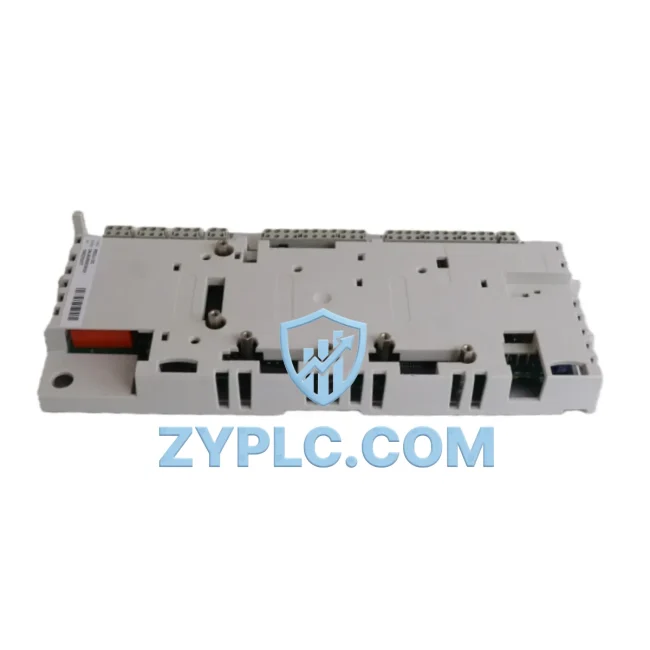

The ABB RDCU-12C is a dedicated drive control unit engineered for seamless integration within the ACS880 industrial drive platform. In modern layered automation environments, the RDCU-12C does not operate in isolation — it functions as a critical node within a coordinated control architecture that spans the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. Its role is to ensure that the drive system responds accurately and consistently to commands issued from higher-level controllers, while simultaneously feeding real-time status data back upstream for supervisory monitoring and fault diagnostics. This contextual integration capability is what distinguishes the RDCU-12C as a system-ready component rather than a standalone device.

Sourced directly from ABB’s industrial automation division and backed by a 12-Month Warranty, the RDCU-12C is available for immediate dispatch to manufacturing plants, power utilities, petrochemical facilities, water treatment stations, mining operations, metallurgical plants, and packaging lines worldwide.

Architecture Specification Table

Coordinated Control System Design

The RDCU-12C achieves its highest value when deployed as part of a fully coordinated ACS880 drive system. At the control layer, it receives torque, speed, and flux reference signals from an ABB AC500 PLC or a third-party DCS via the RDCO-02 PROFIBUS adapter or the RDCO-04 PROFINET adapter, translating high-level process commands into precise motor control outputs in real time. The AINT-02 interface board connects the RDCU-12C to the drive’s IGBT power stage, ensuring that gate drive signals are synchronized with the control unit’s PWM output at microsecond precision.

At the I/O layer, the RDCU-12C interfaces with the RAIO-01 analog I/O extension module and the RDIO-01 digital I/O extension module, expanding the drive’s signal acquisition capability without requiring additional PLC I/O cards. This reduces wiring complexity in multi-drive cabinet installations and improves signal integrity across long cable runs. The RBIO-01 backplane module provides the physical interconnect between the RDCU-12C and these I/O extensions, maintaining a clean modular architecture that simplifies both commissioning and future expansion.

At the network layer, the RDCU-12C supports DDCS fiber optic communication to the NDBU-95 branching unit, enabling a star or ring topology for multi-drive systems where up to 12 ACS880 drives share a single control network segment. This architecture is particularly effective in crane, hoist, and conveyor applications where coordinated motion control across multiple axes is required. The fiber optic medium eliminates ground loop interference and provides galvanic isolation between drives, which is critical in high-voltage cabinet environments.

At the power layer, the RDCU-12C operates in conjunction with the APBU-44C branching unit and the ACSM1 supply unit in regenerative drive configurations, supporting energy recovery back to the supply network during braking cycles. This is a key feature in applications such as mine hoists, downhill conveyors, and centrifuge systems where regenerative energy represents a significant portion of the total energy budget.

At the HMI layer, the RDCU-12C is fully compatible with the ABB ACS-AP-I control panel and the Drive Composer Pro PC tool, allowing engineers to perform parameter configuration, trend logging, and fault analysis without disconnecting the drive from the process. Remote panel mounting via the DPMP-01 panel mounting kit enables operator access from the cabinet door, improving usability in confined installation spaces.

At the execution layer, the RDCU-12C drives ABB induction motors, permanent magnet motors, and synchronous reluctance motors using Direct Torque Control (DTC) — ABB’s proprietary motor control algorithm that delivers torque response times below 1 millisecond without the need for an encoder in most applications. When high-precision positioning is required, the RTAC-01 pulse encoder interface module can be added to the RDCU-12C to provide closed-loop speed and position feedback.

Application in Layered Automation Systems

Manufacturing & Packaging Lines: In high-speed packaging and assembly lines, the RDCU-12C enables precise speed synchronization between multiple conveyor drives, ensuring product spacing and throughput consistency. Its fast torque response under DTC eliminates speed droop during load transients, which is critical for maintaining label registration accuracy in printing and labeling machines.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the RDCU-12C provides energy-efficient variable speed control that reduces auxiliary power consumption by 20–40% compared to fixed-speed operation. Its PROFINET connectivity allows seamless integration with ABB System 800xA DCS for centralized monitoring and alarm management.

Petrochemical & Process Industries: In refineries and chemical plants, the RDCU-12C supports SIL-rated safety functions via the FSO-12 functional safety option module, enabling Safe Torque Off (STO) and Safe Speed Monitoring (SSM) without external safety relays. This simplifies the safety architecture and reduces the component count in SIL 2 and SIL 3 certified drive systems.

Water & Wastewater Treatment: In pump station and aeration basin applications, the RDCU-12C’s built-in PID controller and sleep/wake function enable autonomous pump control without continuous PLC intervention, reducing communication load on the SCADA network and improving system reliability during network outages.

Mining & Metallurgy: In mine winder and ball mill applications, the RDCU-12C’s redundant control architecture — achieved by pairing two RDCU-12C units in a master/follower configuration via DDCS — provides hot-standby redundancy that eliminates single-point-of-failure risk in critical production equipment. Switchover time between master and follower is less than 20 milliseconds, ensuring process continuity without operator intervention.

Architecture Engineering FAQ

Q1: Is the RDCU-12C compatible with both ACS880-01 single drives and ACS880-07 cabinet drives?
Yes. The RDCU-12C is the standard control unit for the entire ACS880 product family, including the ACS880-01 wall-mount drive, the ACS880-04 inverter module, and the ACS880-07 cabinet drive. It uses the same firmware baseline across all variants, which means parameter sets, application programs, and Drive Composer configurations are fully portable between drive types. This simplifies spare parts management and reduces the risk of configuration errors during drive replacement.

Q2: Can the RDCU-12C be replaced in the field without full drive recommissioning?
Yes, provided the parameter backup has been saved to the ACS-AP-I control panel or to a Drive Composer project file prior to replacement. The RDCU-12C stores all drive parameters in its internal flash memory. After installing a replacement unit, the parameter set can be restored via the control panel’s parameter backup/restore function in under 10 minutes, minimizing production downtime. Our 12-Month Warranty covers the replacement unit from the date of dispatch.

Q3: What fieldbus protocols does the RDCU-12C support for PLC and DCS integration?
The RDCU-12C supports all major industrial fieldbus protocols through ABB’s RDCO series fieldbus adapter modules: PROFIBUS DP (RDCO-02), DeviceNet (RDCO-03), PROFINET IO (RDCO-04), EtherNet/IP (RDCO-04), and Modbus RTU/TCP via the FMBA-01 adapter. The DDCS fiber optic interface provides native connectivity to ABB AC500 PLCs and ABB System 800xA DCS without requiring an additional adapter. This broad protocol support ensures Contextual Integration with virtually any existing plant control infrastructure.
