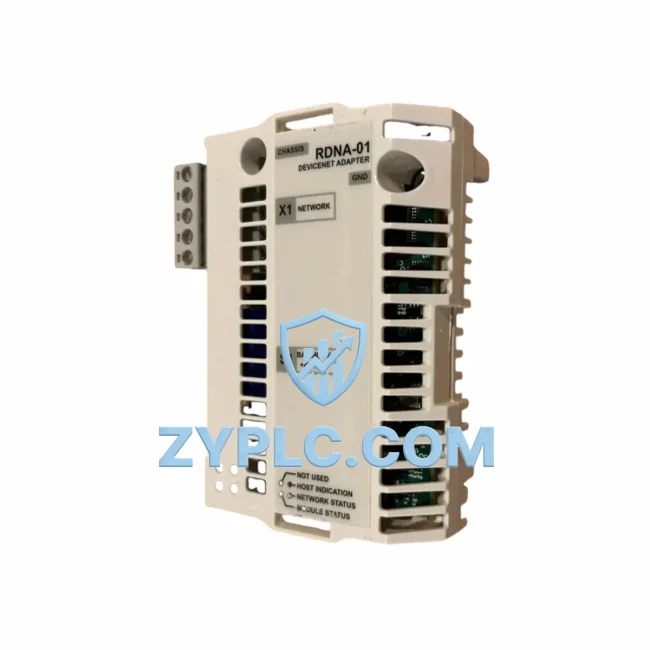

ABB RDNA-01 System-Ready DeviceNet Adapter for ACS Architecture

ABB RDNA-01 System-Ready DeviceNet Adapter for ACS Drive Architecture

The ABB RDNA-01 is a dedicated DeviceNet fieldbus adapter module engineered for seamless integration into ABB ACS series variable frequency drive systems. Within a layered industrial automation architecture, the RDNA-01 occupies a critical position at the intersection of the control layer and the drive execution layer, enabling deterministic, high-speed communication between the PLC master and the drive inverter. Rather than functioning as a standalone accessory, the RDNA-01 is a structural component that defines how the drive responds to process commands, how diagnostic data flows upstream, and how the entire control system maintains synchronization across distributed nodes.

In modern industrial control architectures, the communication adapter is not merely a protocol converter — it is the integration point that determines system coherence. The RDNA-01 connects the ABB ACS drive (such as the ACS550, ACS800, or ACS880 series) to a DeviceNet network managed by a PLC or DCS controller. When paired with a DeviceNet scanner module installed in the PLC rack — such as an Allen-Bradley 1756-DNB ControlLogix DeviceNet Bridge or a Siemens CP 342-5 — the RDNA-01 enables the drive to appear as a fully addressable node on the network, supporting both cyclic I/O data exchange and explicit messaging for parameter read/write operations.

The signal flow within this architecture begins at the supervisory control layer, where the SCADA or DCS system issues setpoint commands — speed reference, torque limit, direction control — through the PLC. The PLC’s DeviceNet scanner transmits these commands cyclically over the DeviceNet trunk cable to the RDNA-01, which translates them into the drive’s internal parameter bus (DDCS or FCAN depending on the ACS platform). The drive’s control board processes the command and adjusts the PWM output to the motor accordingly. Simultaneously, the RDNA-01 returns real-time feedback — output frequency, motor current, fault codes, drive status word — back to the PLC for closed-loop process control and alarm management.

From a system redundancy perspective, the RDNA-01 supports configurable fault response behavior. Engineers can define whether the drive should hold last speed, ramp to stop, or coast to stop upon loss of DeviceNet communication, ensuring that a network interruption does not result in uncontrolled process behavior. This is particularly important in applications such as pump stations, compressor control, and conveyor systems where abrupt drive trips can cause downstream process upsets or equipment damage.

The RDNA-01 is designed for installation directly into the option slot of compatible ABB ACS drives, requiring no external power supply or additional mounting hardware. Its compact form factor and tool-free installation reduce commissioning time significantly. During system startup, the adapter is configured via the drive’s control panel or through DriveStudio / Drive Composer software, where the DeviceNet node address and baud rate (125 kbps, 250 kbps, or 500 kbps) are set to match the network configuration. The adapter stores its configuration in non-volatile memory, ensuring that settings are retained through power cycles without requiring re-commissioning.

In multi-drive architectures — such as those found in material handling systems, water treatment pump banks, or HVAC air handling units — multiple RDNA-01 adapters can be deployed across a single DeviceNet segment, each drive assigned a unique node address. The PLC scanner manages polled I/O connections to each drive node, enabling coordinated speed control, load sharing, and synchronized start/stop sequencing across the entire drive group. This architecture eliminates the need for dedicated analog speed reference wiring to each drive, reducing panel wiring complexity and improving signal integrity over long cable runs.

For applications requiring integration with safety systems, the RDNA-01 can coexist with ABB’s FSIO-21 or FENA-21 safety option modules installed in the same drive, allowing the DeviceNet communication channel to handle process control while the safety module manages STO (Safe Torque Off) and SS1 (Safe Stop 1) functions independently. This separation of control and safety communication channels is consistent with IEC 62061 and ISO 13849 functional safety requirements.

Long-term maintenance of systems equipped with the RDNA-01 is simplified by the adapter’s comprehensive diagnostic capabilities. The module provides LED status indicators for network power, module status, and network status, allowing field technicians to quickly identify communication faults, node address conflicts, or bus-off conditions without requiring a laptop or diagnostic tool. Drive fault history and communication error counters are accessible via the drive’s parameter interface, supporting root cause analysis during planned maintenance shutdowns.

All RDNA-01 units supplied by ZYPLC are covered by a 12-Month Warranty, with pre-shipment functional testing performed on each unit to verify DeviceNet communication establishment, parameter read/write capability, and I/O data exchange integrity. Stock availability is maintained to support both planned project procurement and urgent replacement requirements, with same-day dispatch available for in-stock units.

Architecture Specification Table

Coordinated Control System Design

The RDNA-01 achieves its full value when considered within the context of a complete ABB drive-based control system. At the PLC level, a controller such as the ABB AC500 PM591 or an Allen-Bradley ControlLogix L71 manages the DeviceNet network through a dedicated scanner module. The scanner’s polled connection to each RDNA-01-equipped drive delivers speed references and receives status feedback at scan rates as fast as 10 ms, enabling tight closed-loop process control.

Power distribution to the drive system is typically managed through an ABB ACS880 common DC bus architecture or individual ACS550 drives fed from an MCC (Motor Control Center) with ABB SACE Tmax circuit breakers providing upstream protection. The RDNA-01 ensures that the drive’s operational state — running, faulted, ready — is always visible to the PLC, enabling the control system to interlock power distribution decisions with drive status.

At the I/O layer, ABB’s S800 I/O modules or Wago 750-series DeviceNet I/O nodes may share the same DeviceNet segment as the RDNA-01-equipped drives, providing a unified fieldbus backbone for both drive control and discrete/analog I/O acquisition. This reduces the number of separate fieldbus networks required in the control cabinet, simplifying network topology and reducing the number of PLC communication modules needed.

For HMI integration, an ABB CP600 operator panel or Siemens TP1200 Comfort Panel connected to the PLC via PROFINET or Ethernet/IP can display drive parameters — speed, current, power, fault status — sourced from the RDNA-01’s cyclic I/O data, providing operators with real-time drive visibility without requiring a separate drive-to-HMI communication link.

In redundant control architectures, the RDNA-01 can be deployed in systems where the PLC itself is configured in a hot-standby redundancy pair (e.g., ABB AC500 S900 redundancy or Rockwell ControlLogix redundancy), with the DeviceNet network providing a single communication path to the drive. For applications requiring higher availability, engineers may supplement the RDNA-01 with an ABB FENA-21 Ethernet/IP adapter installed in a second option slot, providing a redundant communication path over a separate network medium.

Terminal block assemblies — such as Phoenix Contact PTFIX distribution blocks or ABB’s own SACE terminal modules — are used within the control cabinet to organize the DeviceNet trunk and drop cable connections, ensuring clean signal routing and simplifying future maintenance access. Proper cable shielding and termination resistors at both ends of the DeviceNet trunk are essential for reliable communication, particularly in electrically noisy environments such as steel mills, mining conveyors, or large HVAC systems.

Application in Layered Automation Systems

The RDNA-01 is deployed across a wide range of industrial sectors where ABB ACS drives are the preferred variable speed solution. In water and wastewater treatment facilities, multiple RDNA-01-equipped ACS550 drives control pump stations across a SCADA-managed DeviceNet network, enabling remote speed adjustment, flow control, and predictive maintenance data collection from a central control room. The adapter’s configurable fault response ensures that pump drives ramp to a safe stop rather than tripping abruptly upon communication loss, protecting both the process and the mechanical equipment.

In the mining and minerals processing industry, ACS800 drives equipped with RDNA-01 adapters control conveyor belt drives, crusher motors, and slurry pump systems within a DCS-managed control architecture. The high-noise electrical environment of mining installations demands robust DeviceNet cable installation practices, and the RDNA-01’s CAN-based physical layer provides inherent differential signaling noise immunity that is well-suited to these conditions.

In the oil and gas sector, ACS880 drives with RDNA-01 adapters are integrated into compressor control systems and wellhead pump control panels, where the DeviceNet network connects the drive to a safety-rated PLC managing both process control and emergency shutdown (ESD) functions. The adapter’s explicit messaging capability allows the PLC to read and write drive parameters remotely, supporting remote commissioning and parameter backup without requiring physical access to the drive.

In packaging and material handling applications, coordinated multi-drive systems use RDNA-01 adapters to synchronize conveyor speeds, enabling product accumulation, gapping, and merging functions to be managed entirely through PLC logic without analog speed reference wiring. This architecture significantly reduces panel wiring labor and improves system flexibility when production line configurations change.

Architecture Engineering FAQ

Q1: Is the RDNA-01 compatible with both ACS550 and ACS800 drive platforms, and are there any configuration differences between them?
The RDNA-01 is compatible with multiple ABB ACS drive platforms that feature the standard option slot interface, including the ACS550, ACS800, and certain ACS880 configurations. The physical installation procedure is identical across platforms — the module slides into the option slot and is secured without tools. Configuration differences exist at the parameter level: on the ACS550, DeviceNet communication parameters are accessed under parameter group 51 (EXT COMM MODULE), while on the ACS800, the equivalent parameters are found in group 10 (COMMAND SEL) and group 51. Engineers should consult the RDNA-01 User’s Manual (3AFE68573271) and the specific drive’s firmware manual to confirm parameter mapping before commissioning.

Q2: How does the RDNA-01 behave during a DeviceNet communication fault, and how is the fault response configured?
The RDNA-01 monitors the DeviceNet connection state continuously. Upon detection of a communication fault — such as bus-off, connection timeout, or loss of network power — the adapter sets a communication fault bit in the drive’s status word and triggers the drive’s configurable fault response. The response behavior (coast stop, ramp stop, hold last speed, or fault trip) is configured via the drive’s parameter interface, typically under the communication fault response parameter in the EXT COMM MODULE group. This configuration should be validated during factory acceptance testing (FAT) to confirm that the drive responds correctly to simulated communication loss before the system is commissioned on site.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on RDNA-01 units supplied by ZYPLC?
All RDNA-01 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify DeviceNet communication establishment and I/O data exchange integrity before dispatch. In the event of a warranty claim, customers should contact ZYPLC at [email protected] or +86 19859288691 with the unit serial number, purchase order reference, and a description of the fault symptom. ZYPLC will arrange return authorization and replacement dispatch to minimize system downtime.
