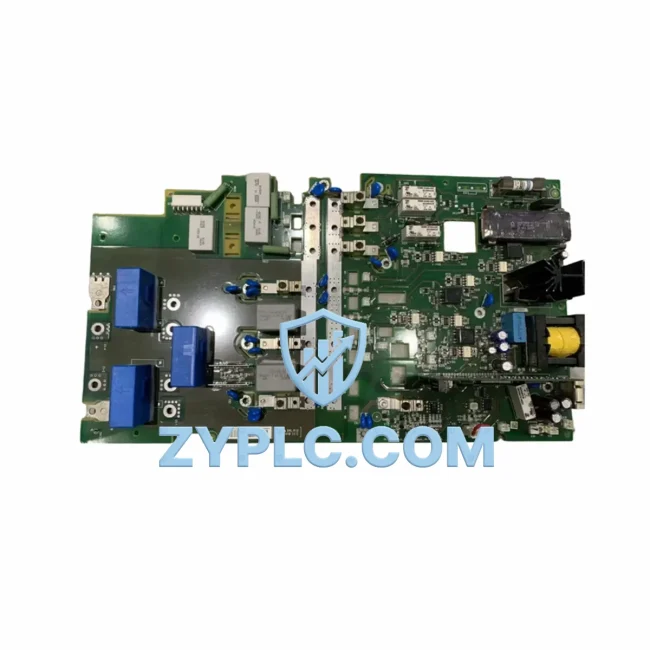

ABB RINT-5513C System-Ready MC Interface Board for ACS800 Architecture

ABB RINT-5513C System-Ready MC Interface Board for ACS800 Architecture

In modern industrial automation, the reliability of a drive control system depends not on any single component, but on the coherence of the entire control architecture. The ABB RINT-5513C MC Interface Board is engineered to serve as a critical communication and signal-routing node within ABB’s ACS800 drive platform, ensuring seamless data exchange between the motor control unit, I/O expansion layers, fieldbus adapters, and supervisory control systems. Rather than functioning as a standalone accessory, the RINT-5513C is designed from the ground up for contextual integration — its value is fully realized only when deployed within a properly configured ACS800 control architecture.

The RINT-5513C occupies the interface layer between the drive’s main control board and external communication or I/O modules. It provides the electrical and logical bridge that allows the ACS800 drive to coordinate with upstream PLC controllers, downstream actuators, and parallel drive units in multi-drive cabinet configurations. Engineers working on process automation lines, variable-speed pump stations, compressor control panels, or coordinated conveyor systems will find the RINT-5513C indispensable for maintaining signal integrity and system synchronization across all control layers.

Architecture Specification Table

Coordinated Control System Design

The RINT-5513C does not operate in isolation. Its role becomes architecturally significant when viewed alongside the full suite of ABB ACS800 control and interface components. In a typical multi-drive system, the RMIO-01C motor control I/O board handles analog and digital signal processing at the drive level, while the RDCU-12C drive control unit manages high-level parameter execution and communication arbitration. The RINT-5513C sits between these layers, ensuring that interface signals are correctly routed and electrically conditioned before reaching the control core.

For systems requiring expanded I/O capacity, the RINT-5521C and RINT-5514C interface boards serve as companion modules within the same RINT family, allowing engineers to scale the interface layer without redesigning the control cabinet. When fieldbus connectivity is required — for example, in PROFIBUS DP or Modbus RTU networks — the RPBA-01 PROFIBUS adapter or NINT-43C network interface module can be integrated alongside the RINT-5513C to extend the drive’s communication reach to the plant-level SCADA or DCS system.

Power supply integrity is equally critical. The AGPS-11C gate driver power supply board ensures that the IGBT firing circuits receive stable, isolated power, preventing noise-induced faults that could disrupt the interface board’s signal processing. In redundant drive configurations, a secondary ACS800 drive unit — such as the ACS800-01 or ACS800-04 — can be configured in hot-standby mode, with the RINT-5513C facilitating the handshake signals required for bumpless transfer between primary and backup drive units.

At the human-machine interface layer, ABB Panel PC or third-party HMI terminals connected via the drive’s serial port or fieldbus adapter provide operators with real-time visibility into drive status, fault codes, and process variables — all of which depend on the RINT-5513C maintaining clean, uninterrupted signal paths throughout the control hierarchy. Terminal blocks, shielded signal cables, and proper grounding of the interface board’s connector housing are essential installation practices that protect signal quality in electrically noisy industrial environments.

Application in Layered Automation Systems

The RINT-5513C finds application across a wide range of process and discrete manufacturing environments. In power generation and utilities, ACS800 drives equipped with RINT-series interface boards control boiler feed pumps, cooling tower fans, and induced draft fans — applications where precise speed regulation and fault-tolerant communication are non-negotiable. The interface board’s role in maintaining DDCS fiber-optic link integrity ensures that the drive responds correctly to load-sharing commands from the plant DCS without communication dropouts.

In petrochemical and refinery applications, the RINT-5513C supports compressor and pump drives operating in hazardous-area-adjacent control panels. The board’s compatibility with the ACS800’s SIL-rated safety function modules allows it to participate in safety-instrumented system architectures, where the drive must respond to emergency stop commands within defined reaction times. Engineers in these environments rely on the RINT-5513C’s proven compatibility with the ACS800 platform to avoid costly integration testing during plant turnarounds.

For water and wastewater treatment facilities, multi-pump variable-speed systems use the RINT-5513C to coordinate lead-lag pump sequencing through the ACS800’s built-in application macros. The interface board ensures that I/O signals from pressure transmitters and flow meters are correctly interpreted by the drive’s control logic, enabling energy-efficient pump operation across varying demand conditions. In mining and minerals processing, conveyor drives and crusher motor controllers benefit from the RINT-5513C’s robust signal routing in high-vibration, high-dust environments where connector reliability is paramount.

Packaging and material handling lines represent another key application domain. In coordinated multi-axis conveyor systems, the RINT-5513C enables the ACS800 drive to participate in electronic line-shaft synchronization schemes, where multiple drives must maintain precise speed ratios under varying load conditions. The interface board’s low-latency signal path is critical for maintaining product registration accuracy on high-speed packaging lines.

Architecture Engineering FAQ

Q1: Is the RINT-5513C compatible with all ACS800 drive variants, and can it be used in retrofit projects?
The RINT-5513C is designed for the ABB ACS800 series and is compatible with the standard RINT interface slot found across ACS800-01, ACS800-04, ACS800-07, and ACS800-11 drive variants. For retrofit projects, engineers should verify the drive’s firmware version and existing interface board configuration before installation. In most cases, the RINT-5513C can replace a faulty or obsolete interface board without requiring parameter re-initialization, provided the replacement board is of the same hardware revision. Our technical team can assist with compatibility verification prior to shipment.

Q2: How does the RINT-5513C support system redundancy and long-term maintenance planning?
Maintaining a spare RINT-5513C in the plant’s critical spares inventory is a recognized best practice for ACS800-based systems. Because the board is a field-replaceable unit, a trained technician can swap it during a planned maintenance window without specialized tools or drive reconfiguration. For redundant drive architectures, having a pre-tested spare board on hand reduces mean time to repair (MTTR) significantly. All units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, providing assurance for both immediate deployment and inventory holding strategies.

Q3: What installation and commissioning steps are required when integrating the RINT-5513C into an existing ACS800 control cabinet?
Installation requires powering down the drive and following ABB’s lockout/tagout procedure before accessing the control board compartment. The RINT-5513C is inserted into the designated interface slot on the ACS800 control board assembly and secured with the retaining screw. After power-up, the drive’s parameter group for I/O and communication configuration should be reviewed to confirm that the interface board is recognized. Fiber-optic connections, if applicable, should be inspected for cleanliness and proper seating. Commissioning should include a functional test of all I/O signals routed through the board, followed by a communication link test with the connected PLC or fieldbus master. ZYPLC provides pre-shipment testing documentation for all interface boards to support rapid site commissioning.
