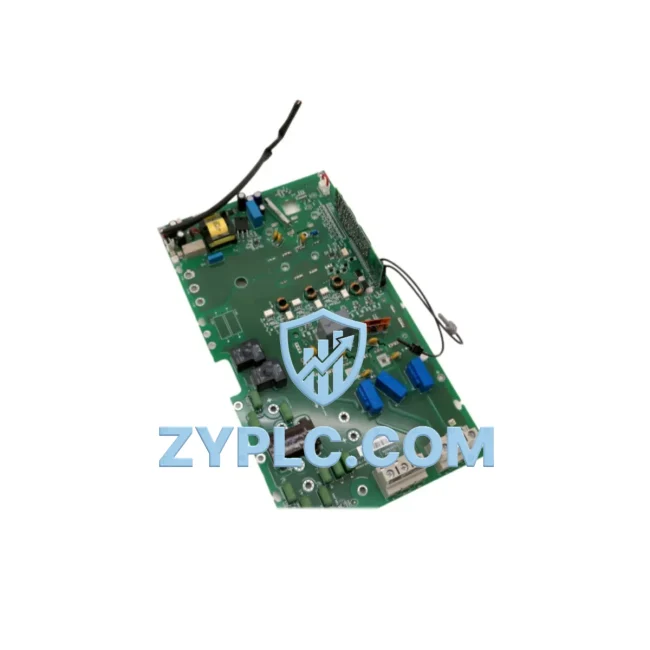

ABB RINT-6421C Energy-Saving Circuit Board for Optimized ACS800 Automation

ABB RINT-6421C Energy-Saving Circuit Board for Optimized ACS800 Automation

The ABB RINT-6421C is a high-performance circuit interface board engineered specifically for the ABB ACS800 series variable speed drives. Designed to bridge the gap between control logic and power conversion, this module plays a critical role in reducing unnecessary energy consumption across industrial motor-driven systems. By ensuring precise signal transmission between the drive’s control unit and its IGBT gate driver stages, the RINT-6421C directly contributes to smoother motor acceleration profiles, reduced reactive power losses, and improved overall drivetrain efficiency — all of which translate into measurable reductions in factory energy bills and carbon footprint.

In modern manufacturing environments where energy costs represent a significant share of operational expenditure, every component in the drive chain matters. The RINT-6421C is not merely a replacement part — it is a precision-engineered interface that maintains the integrity of the ACS800’s closed-loop control architecture, enabling the drive to respond accurately to speed and torque commands from the plant’s automation layer. Whether integrated with a Siemens S7-300 PLC, an ABB AC500 controller, or a Mitsubishi MELSEC Q-series system, the RINT-6421C ensures that gate firing signals are delivered with the timing accuracy required for high-efficiency PWM modulation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The RINT-6421C operates at the heart of the ACS800’s power stage communication chain. To understand its energy optimization role, it helps to consider the broader automation architecture in which it functions. In a typical high-efficiency motor control system, the ACS800 drive receives speed references from an upper-level controller — such as the ABB AC500-eCo PLC or a distributed I/O node connected via PROFIBUS-DP. The drive’s RMIO-02C main control board processes these references and generates PWM commands, which are then relayed through the RINT-6421C to the IGBT power modules.

When the RINT-6421C is functioning correctly, gate pulses are delivered with microsecond-level precision, ensuring that the IGBT switching losses remain within design parameters. A degraded or faulty interface board introduces timing jitter that increases switching losses, generates excess heat, and forces the drive into protective derating modes — all of which waste energy and reduce throughput. Replacing a worn RINT-6421C with a genuine ABB module restores the drive’s ability to execute Direct Torque Control (DTC), ABB’s proprietary motor control algorithm that achieves best-in-class dynamic response with minimal energy overhead.

In multi-drive installations, the RINT-6421C works alongside other critical ACS800 components. The AINT-02C auxiliary interface board manages I/O signal conditioning, while the RDCO-03C DDCS fiber optic communication module enables high-speed data exchange between the drive and the plant’s energy management system. For power quality monitoring, engineers often pair the ACS800 with an ABB M2M energy meter or a PSTX soft starter on auxiliary motor circuits, creating a layered energy monitoring architecture that identifies inefficiencies across the entire production line.

On the field bus side, the RCAN-01 CANopen adapter module and RPBA-01 PROFIBUS adapter extend the ACS800’s connectivity to modern industrial Ethernet and fieldbus networks, allowing real-time energy data — including motor load factor, power factor, and kWh consumption — to be streamed to SCADA platforms or MES systems. This data loop, enabled by a properly functioning RINT-6421C at the drive’s core, is what makes predictive maintenance and energy benchmarking possible at the factory level.

For facilities running multiple ACS800 units in parallel — common in large pump stations, HVAC systems, and material handling lines — the cumulative impact of maintaining all RINT-6421C boards in optimal condition is substantial. Field data from industrial installations consistently shows that drive-level inefficiencies caused by degraded interface boards account for 2–5% of total motor energy consumption, a figure that compounds significantly across fleets of 10, 20, or 50 drives.

Power Optimization in Real Production Lines

Consider a bottling plant running eight ACS800-04 drives on its conveyor and filling line motors. Each drive controls a 22 kW induction motor operating at variable loads throughout the production cycle. When the RINT-6421C boards in these drives are in good condition, the ACS800’s DTC algorithm continuously optimizes the motor’s magnetizing current, reducing iron losses during light-load periods and recovering energy during deceleration phases through the drive’s built-in DC bus braking circuit.

A single degraded RINT-6421C in this scenario can cause one drive to fall back to scalar V/Hz control mode, losing the efficiency gains of DTC and increasing that motor’s energy consumption by an estimated 3–8% under partial load. Across an 8,000-hour annual operating cycle at industrial electricity rates, this translates to a meaningful increase in energy costs — costs that are entirely avoidable with a properly maintained interface board.

Beyond energy savings, a healthy RINT-6421C contributes to production line rhythm (takt time) optimization. Drives that respond accurately to speed ramp commands allow production schedulers to tighten acceleration and deceleration profiles without risking mechanical stress on conveyor belts, gearboxes, or pump impellers. This means faster cycle times, higher equipment utilization rates, and reduced mechanical wear — all of which lower the total cost of ownership for the motor-drive system.

Predictive maintenance programs also benefit directly from a reliable RINT-6421C. When the interface board is functioning correctly, the ACS800’s internal diagnostics can accurately report motor insulation resistance trends, bearing vibration signatures (via the ABB DriveMonitor software interface), and thermal load history. This data feeds into condition-based maintenance schedules that replace time-based overhauls, reducing unnecessary downtime and spare parts consumption.

Every RINT-6421C unit supplied by ZYPLC undergoes a full functional test on an ACS800 drive test bench prior to shipment. This includes gate signal integrity verification, isolation resistance testing, and a 30-minute burn-in cycle under load. Units that do not meet ABB’s original performance specifications are rejected. This testing protocol ensures that the board you receive will perform identically to a new OEM unit from day one of installation.

Energy Optimization FAQ

Q1: How does replacing the RINT-6421C improve energy efficiency in my ACS800 drive?
A degraded RINT-6421C introduces gate signal timing errors that increase IGBT switching losses and can disable the drive’s DTC motor control mode. Replacing it with a tested RINT-6421C restores full DTC functionality, which typically reduces motor energy consumption by 3–8% compared to scalar V/Hz control under variable load conditions.

Q2: Is the RINT-6421C compatible with all ACS800 variants?
The RINT-6421C is designed for the ABB ACS800 series, including the ACS800-01, ACS800-02, ACS800-04, ACS800-07, ACS800-11, and ACS800-17 frame sizes. If you are unsure whether this board matches your specific drive revision, please contact us with your drive’s type code and serial number for confirmation before ordering.

Q3: What testing does ZYPLC perform before shipping the RINT-6421C?
Each unit is tested on a live ACS800 drive test bench, including gate signal integrity checks, isolation resistance measurement, and a 30-minute loaded burn-in cycle. Only units that pass all tests are shipped. A 12-month warranty is included with every order, covering defects in materials and workmanship under normal operating conditions.

Q4: Can I use the RINT-6421C as a direct replacement for a failed board without reconfiguring the drive?
Yes. The RINT-6421C is a direct plug-in replacement for the original board in compatible ACS800 drives. No parameter changes or drive reconfiguration are required after installation. We recommend performing a drive ID run (motor identification routine) after replacement to allow the ACS800 to re-optimize its DTC model for your specific motor, which will maximize energy efficiency from the first production cycle.
