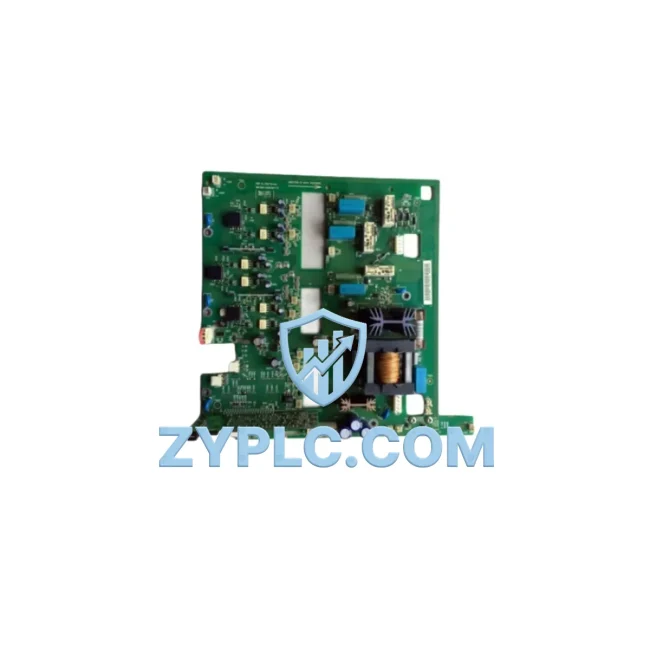

ABB RINT-6611C System-Ready Gate Driver for ACS800 Architecture

ABB RINT-6611C System-Ready Gate Driver for ACS800 Architecture: Control Layer Synchronization and Drive System Coherence

The ABB RINT-6611C is a precision-engineered gate driver board designed to operate as a core switching control element within the ACS800 medium-voltage and industrial drive platform. In modern layered automation architectures, the gate driver board occupies a critical position between the control layer and the power conversion layer — translating digital switching commands from the drive’s main control board (such as the RMIO-11C or RDCU-12C) into precisely timed IGBT gate signals that govern inverter output waveform quality, switching loss, and thermal stability. The RINT-6611C is not a standalone component; it is a system-synchronized module whose performance is inseparable from the broader ACS800 drive architecture in which it operates.

In a complete ACS800 drive system, the RINT-6611C interfaces directly with the IGBT power module stack, receiving fiber-optic switching signals from the drive’s pulse distribution board and returning real-time fault feedback — including short-circuit detection, desaturation events, and gate undervoltage conditions — back to the main control unit. This bidirectional signal flow ensures that the control layer maintains full visibility of power stage health, enabling the drive to execute protective shutdowns within microseconds of a fault event. The result is a drive system that maintains both operational continuity and equipment protection across demanding industrial duty cycles.

From a system architecture perspective, the RINT-6611C contributes to drive coherence across multiple layers. At the control layer, it receives modulation commands from the RMIO-11C main control board and executes them with gate timing precision that directly affects output voltage THD and motor torque ripple. At the power conversion layer, it drives the gate terminals of the IGBT modules with the correct voltage levels and slew rates required for low-loss switching. At the protection layer, it monitors gate-emitter voltage during turn-on and turn-off transitions, detecting fault conditions before they propagate to the DC bus or motor windings. This multi-layer integration makes the RINT-6611C a functional anchor in the ACS800 drive’s internal architecture.

For system engineers specifying replacement or spare components, the RINT-6611C must be matched to the correct ACS800 drive frame size and IGBT configuration. In multi-drive installations — such as those using the ACS800-104 common DC bus topology or the ACS800-07 regenerative drive variant — multiple RINT-6611C boards may be deployed in parallel phase legs, each synchronized to the same carrier frequency reference distributed by the pulse distribution board. In these configurations, gate timing consistency across all RINT-6611C boards is essential to prevent circulating currents and uneven thermal loading across the IGBT stack.

The RINT-6611C also plays a role in drive redundancy and maintenance planning. In critical process applications — such as those found in oil and gas compression, cement mill drives, or paper machine sections — spare RINT-6611C boards are maintained on-site as part of a structured preventive maintenance inventory. The board’s modular design allows field replacement without disturbing the IGBT power module or the drive’s main control assembly, reducing mean time to repair (MTTR) and minimizing unplanned downtime. When combined with the RDCU-12C drive control unit, the AINT-02C analog I/O extension, and the DDCS fiber-optic communication link, the ACS800 platform forms a fully integrated drive system capable of supporting both standalone and multi-drive architectures.

In networked drive environments, the ACS800 platform communicates with higher-level control systems — including ABB AC500 PLCs, ABB 800xA DCS, or third-party PROFIBUS/PROFINET masters — through fieldbus adapter modules such as the RPBA-01 PROFIBUS adapter or the RETA-01 Ethernet adapter. The RINT-6611C’s role in this architecture is to ensure that the drive’s power stage faithfully executes the speed and torque references delivered through these communication channels, maintaining system-level control loop integrity from the supervisory layer down to the motor shaft.

Long-term reliability of the RINT-6611C depends on correct installation, adequate cooling airflow within the drive cabinet, and periodic inspection of fiber-optic connectors and gate resistor integrity. In high-cycle applications — such as crane hoists, rolling mill drives, or variable-speed pump stations — the gate driver board is subject to thermal cycling stress that can affect solder joint integrity over time. Proactive replacement of RINT-6611C boards at scheduled maintenance intervals, rather than waiting for fault-triggered failures, is a recognized best practice in ACS800 fleet management programs.

ZYPLC maintains verified stock of the ABB RINT-6611C with full traceability documentation, supporting procurement teams that require component authenticity confirmation for critical infrastructure projects. All units are covered by a 12-Month Warranty and are available for expedited global shipment to support both planned maintenance schedules and emergency replacement requirements.

Architecture Specification Table

Coordinated Control System Design

The RINT-6611C operates within a coordinated assembly of ACS800 drive components that together define the system’s control bandwidth, fault response time, and operational reliability. The RMIO-11C main control board generates the PWM modulation pattern and distributes switching commands via fiber-optic links to the RINT-6611C gate driver boards assigned to each inverter phase leg. The RDCU-12C drive control unit manages the outer speed and torque control loops, passing setpoints to the RMIO-11C for real-time execution. The AINT-02C analog I/O extension board provides process feedback signals — such as speed encoder inputs and analog current references — that close the control loop between the drive and the driven machine.

At the power supply layer, the APOW-01C auxiliary power supply board provides the regulated DC voltages required by the drive’s control electronics, including the gate driver supply rails used by the RINT-6611C. Loss of auxiliary power is immediately detected by the gate driver board, triggering a controlled shutdown of all IGBT switching to prevent uncontrolled motor coasting or DC bus overvoltage. In redundant drive configurations, a backup auxiliary power source — often derived from the DC bus through a dedicated converter — ensures that gate driver power is maintained during main supply interruptions.

For multi-drive systems using the ACS800-104 common DC bus topology, the ARBI-xx brake chopper module and associated braking resistor assembly work in coordination with the RINT-6611C to manage regenerative energy during motor deceleration. The gate driver board’s precise switching control of the inverter IGBTs determines the quality of the regenerative current waveform returned to the DC bus, directly affecting the efficiency of energy recovery and the thermal loading of the braking resistor. In four-quadrant regenerative drives using the ACS800-07 platform, the RINT-6611C boards in both the rectifier and inverter sections must operate with synchronized carrier frequencies to minimize harmonic injection into the supply network.

At the human-machine interface layer, ABB CP600 or CP400 series HMI panels — connected to the ACS800 drive via PROFIBUS or Ethernet — provide operators with real-time visibility of drive status, fault history, and process variables. The accuracy of the data displayed on these HMI panels depends on the integrity of the gate driver feedback signals processed by the RINT-6611C, which reports switching fault events to the main control board for logging and alarm generation. In distributed control architectures using the ABB 800xA DCS platform, drive fault data from the RINT-6611C is aggregated at the process control level, enabling predictive maintenance workflows based on gate driver fault frequency trends.

Application in Layered Automation Systems

The ABB RINT-6611C gate driver board is deployed across a wide range of industrial automation sectors where the ACS800 drive platform is the preferred solution for high-performance variable-speed motor control. In pulp and paper manufacturing, ACS800 drives equipped with RINT-6611C gate driver boards control the main machine sections — including wire section rolls, press section felts, and dryer section cylinders — where precise torque control and synchronization between drive sections are essential to paper web tension management. The gate driver board’s fast fault response capability is particularly valuable in these applications, where an uncontrolled drive trip can cause web breaks and significant production losses.

In oil and gas compression and pumping applications, ACS800 drives with RINT-6611C boards control high-power centrifugal compressors and multistage pump trains in offshore platforms and onshore processing facilities. These installations demand the highest levels of drive reliability, as unplanned shutdowns can trigger process safety system activations and result in significant production revenue losses. The RINT-6611C’s desaturation protection and gate undervoltage detection functions provide the fault discrimination speed required to protect the IGBT power modules in these high-consequence applications.

In metals and mining — including ore grinding mills, conveyor drives, and hoisting systems — the ACS800 platform with RINT-6611C gate driver boards handles the high-inertia load profiles and frequent start-stop cycles characteristic of these applications. The gate driver board’s ability to maintain consistent switching performance across wide ambient temperature ranges supports reliable operation in the harsh environmental conditions typical of underground mining and open-pit operations. In water and wastewater treatment plants, ACS800 drives control large centrifugal pumps and blowers, where the RINT-6611C contributes to energy-efficient variable-flow operation and supports the soft-start and soft-stop functions that protect pump mechanical seals and pipeline infrastructure.

Architecture Engineering FAQ

Q1: Is the RINT-6611C compatible with all ACS800 drive frame sizes, and how do I confirm the correct variant for my application?
The RINT-6611C is designed for specific ACS800 frame sizes and IGBT configurations. Compatibility is determined by the drive’s frame size designation (R2 through R8 and above), the IGBT module type installed in the power stage, and the pulse distribution board variant used in that frame. Before ordering, confirm the drive’s type code from the nameplate and cross-reference with ABB’s ACS800 spare parts documentation or contact ZYPLC with the full drive type code for compatibility verification. Substituting an incompatible gate driver board can result in IGBT gate timing errors, increased switching losses, or immediate fault trips on drive energization.

Q2: What installation and commissioning steps are required when replacing the RINT-6611C in an operating ACS800 drive?
Replacement of the RINT-6611C requires the drive to be fully de-energized, with the DC bus discharged to safe voltage levels (typically below 50V DC) before any work begins. After physical installation, the fiber-optic connections between the RINT-6611C and the pulse distribution board must be re-seated and inspected for contamination or mechanical damage. Following power-up, the drive should be run through its standard commissioning sequence — including an IGBT test routine if available in the drive’s parameter menu — to verify correct gate signal transmission and fault feedback operation before returning the drive to production service. No parameter changes are typically required for a like-for-like RINT-6611C replacement.

Q3: What does the 12-Month Warranty cover for the RINT-6611C, and what support is available for long-term spare parts planning?
The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions for a period of twelve months from the date of shipment. Warranty claims are supported by ZYPLC’s technical team, who can assist with fault diagnosis, return merchandise authorization (RMA) processing, and expedited replacement shipment to minimize drive downtime. For long-term spare parts planning, ZYPLC offers inventory reservation services for critical ACS800 components — including the RINT-6611C — allowing maintenance teams to secure verified stock against future maintenance requirements without committing to immediate delivery. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com to discuss spare parts planning and volume procurement options.
