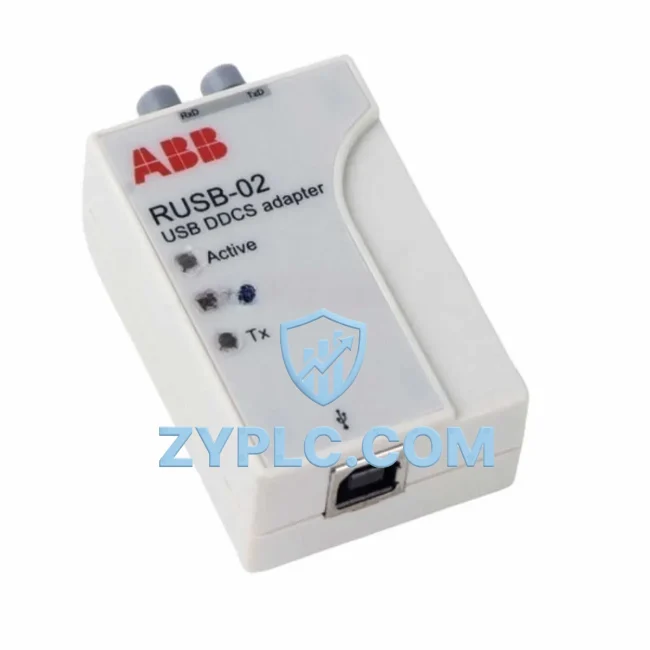

The ABB RUSB-02 (3AUA0000040000) is a dedicated USB-to-drive communication adapter engineered for seamless integration within the ACS580 general-purpose variable frequency drive platform. In modern industrial control system architecture, the ability to establish reliable, low-latency communication between a PC-based engineering workstation and a drive unit is not merely a convenience — it is a foundational requirement for system commissioning, parameter configuration, fault diagnostics, and long-term maintenance efficiency. The RUSB-02 fulfills this role with precision, acting as the critical communication bridge between the control layer and the drive execution layer in a fully coordinated automation hierarchy.

Within a layered automation system, the RUSB-02 connects directly to the ACS580 drive’s control panel port, enabling engineers to use ABB’s Drive Composer PC tool for real-time parameter access, signal monitoring, and firmware management. This capability is indispensable during the initial commissioning phase of any drive-integrated control architecture, where accurate parameter alignment between the PLC control layer, the drive execution layer, and the field I/O layer determines the long-term stability and performance of the entire system. The adapter supports USB 2.0 communication and is compatible with Windows-based engineering environments, making it a universally accessible tool across multi-vendor engineering teams.

From a system architecture perspective, the RUSB-02 is not an isolated accessory — it is a contextual integration component that enables the ACS580 drive to participate fully in a coordinated control system design. Whether the drive is operating as a standalone speed controller, a torque-regulated actuator in a closed-loop process, or a networked node within a PROFIBUS, Modbus RTU, or EtherNet/IP communication architecture, the RUSB-02 provides the direct-access commissioning channel that ensures every parameter is correctly configured before the system goes live. This reduces commissioning time, minimizes the risk of parameter errors, and supports the systematic verification of drive behavior against the control system’s functional specification.

The RUSB-02 is designed to work within the broader ABB ACS580 ecosystem, which includes components such as the ACS580-01 standard drive unit, the ACS-AP-I control panel, the FENA-21 EtherNet/IP and PROFINET adapter module, the FDNA-01 DeviceNet adapter, the FMBA-01 Modbus RTU adapter, and the ACSM1 motion control drive series for high-performance applications. In a typical control cabinet installation, the ACS580 drive is mounted alongside ABB’s ACH580 HVAC drive variant, sharing the same parameter structure and commissioning methodology, which means the RUSB-02 can serve as a unified commissioning tool across multiple drive types within the same facility. This cross-compatibility significantly reduces the number of specialized tools required in a maintenance engineer’s toolkit, improving operational efficiency and reducing inventory overhead.

In redundant drive architectures — common in critical process industries such as petrochemical refining, water treatment, and power generation — the RUSB-02 enables rapid parameter cloning between primary and standby drive units. By connecting to each drive individually and using Drive Composer’s parameter backup and restore functions, engineers can ensure that redundant drives are configured identically, eliminating the risk of behavioral discrepancies during automatic failover events. This capability is particularly valuable in systems where the ACS580 drives are controlled by ABB AC500 PLCs or Siemens S7-300/S7-400 series controllers via PROFIBUS DP, where drive parameter consistency is a prerequisite for deterministic control behavior.

For facilities operating mixed automation environments — combining ABB drives with Schneider Electric Altivar series drives, Siemens SINAMICS G120 drives, or Rockwell Automation PowerFlex 525 drives — the RUSB-02 provides a dedicated, brand-specific commissioning channel that ensures ABB drive parameters are managed through the correct software environment. This prevents cross-tool configuration errors and maintains the integrity of the drive’s internal parameter database, which is critical for systems operating under IEC 61511 functional safety requirements or ISO 13849 machinery safety standards.

The RUSB-02 is supplied with a 12-Month Warranty, covering manufacturing defects and communication interface failures under normal operating conditions. This warranty period aligns with standard industrial maintenance cycles, ensuring that engineering teams have full manufacturer support throughout the initial deployment and stabilization phase of any new automation project. Combined with ZYPLC’s in-stock availability and rapid dispatch capability, the RUSB-02 represents a low-risk, high-reliability procurement choice for system integrators, OEM machine builders, and plant maintenance teams operating under tight project timelines.

Architecture Specification Table

Coordinated Control System Design

The RUSB-02 operates at the intersection of the engineering workstation layer and the drive execution layer, making it an essential tool for coordinated control system design. In a typical ACS580-based automation cell, the drive receives speed or torque references from an ABB AC500 PLC or a Siemens S7-1200 controller via a FENA-21 EtherNet/IP adapter or an FMBA-01 Modbus RTU module. Before the system can operate reliably, each drive must be individually commissioned — motor data entered, control mode selected, ramp times configured, and protection thresholds set. The RUSB-02 is the tool that makes this individual commissioning possible without requiring a physical ACS-AP-I control panel to be permanently installed on each drive.

In multi-drive installations — such as a conveyor system with five ACS580-01 drives controlling individual belt sections, coordinated by a central ABB AC500 PLC with PM573 CPU module — the RUSB-02 allows a single engineer to move sequentially between drives, connecting via USB, verifying parameters, and logging configuration data for the project’s as-built documentation. This workflow is significantly faster than panel-based commissioning and produces a complete digital record of each drive’s configuration, which is invaluable for future maintenance and troubleshooting activities.

The adapter also supports integration with ABB’s ACSM1 motion control drives in applications requiring precise positioning or synchronization, where parameter accuracy is even more critical than in standard speed control applications. In these architectures, the RUSB-02 enables fine-tuning of speed controller gains, encoder feedback parameters, and safety function configurations — tasks that require direct PC-to-drive communication rather than panel-based parameter entry.

Application in Layered Automation Systems

Manufacturing & Packaging Lines: In high-speed packaging lines where ACS580 drives control infeed conveyors, filling stations, and labeling units, the RUSB-02 enables rapid drive commissioning during line setup and quick parameter adjustments during product changeovers. The ability to connect directly to each drive via USB — without interrupting the network communication between the PLC and the drive — ensures that commissioning activities do not disrupt adjacent production processes.

Water & Wastewater Treatment: In pump station automation systems where ACS580 drives control submersible pumps, booster pumps, and blower units, the RUSB-02 supports the precise configuration of PID control parameters, sleep/wake functions, and dry-run protection settings. These parameters are critical for energy efficiency and equipment longevity in continuous-duty pump applications, and the RUSB-02 ensures they can be set and verified with full software visibility.

Power Generation & Utilities: In auxiliary drive systems within power plants — controlling cooling fans, feedwater pumps, and fuel handling conveyors — the RUSB-02 enables maintenance engineers to perform drive health checks and parameter audits during planned outage windows. The adapter’s compatibility with Drive Composer’s data logging function allows engineers to capture drive operating data for trend analysis and predictive maintenance planning.

Mining & Metallurgy: In ore processing and material handling systems where ACS580 drives operate under high-load, high-cycle conditions, the RUSB-02 supports the configuration of load curve monitoring, thermal protection, and automatic restart functions — all of which are essential for maximizing drive availability in harsh operating environments.

Architecture Engineering FAQ

Q1: Is the RUSB-02 compatible with all ACS580 drive variants, including the ACS580-07 cabinet-built drive?
The RUSB-02 is compatible with all ACS580 variants that feature the standard drive control panel port, including the ACS580-01 wall-mounted drive and the ACS580-07 cabinet-built drive. For cabinet-built drives where the control panel port may be located inside the cabinet enclosure, a panel extension cable may be required to bring the port to an accessible location. The adapter connects to the same port used by the ACS-AP-I and ACS-AP-W control panels, ensuring full parameter access via Drive Composer.

Q2: Can the RUSB-02 be used to clone parameters between two ACS580 drives for redundant system configurations?
Yes. Using ABB Drive Composer Pro, the RUSB-02 enables full parameter backup from one ACS580 drive and restoration to a second drive, making it an effective tool for configuring redundant drive pairs in critical process applications. This workflow ensures that both primary and standby drives are configured identically, which is a prerequisite for reliable automatic failover in redundant pump or fan systems. The 12-Month Warranty covers the adapter throughout the commissioning and initial operation phases of the project.

Q3: Does the RUSB-02 support long-term maintenance activities, or is it only used during initial commissioning?
The RUSB-02 is a permanent maintenance tool, not a one-time commissioning accessory. Throughout the operational life of an ACS580 drive system, the adapter is used for periodic parameter audits, firmware updates, fault history retrieval, and drive replacement procedures. When a drive is replaced due to failure or end-of-life, the RUSB-02 enables the maintenance team to restore the previous drive’s parameter set to the replacement unit within minutes, minimizing production downtime. Its Contextual Integration capability — connecting the drive directly to the plant’s engineering software environment — makes it an indispensable component of any long-term drive maintenance strategy.
