ABB SAFT125CHC System-Ready Chopper Control for SAFT Series Architecture

ABB SAFT125CHC System-Ready Chopper Control for SAFT Series Architecture

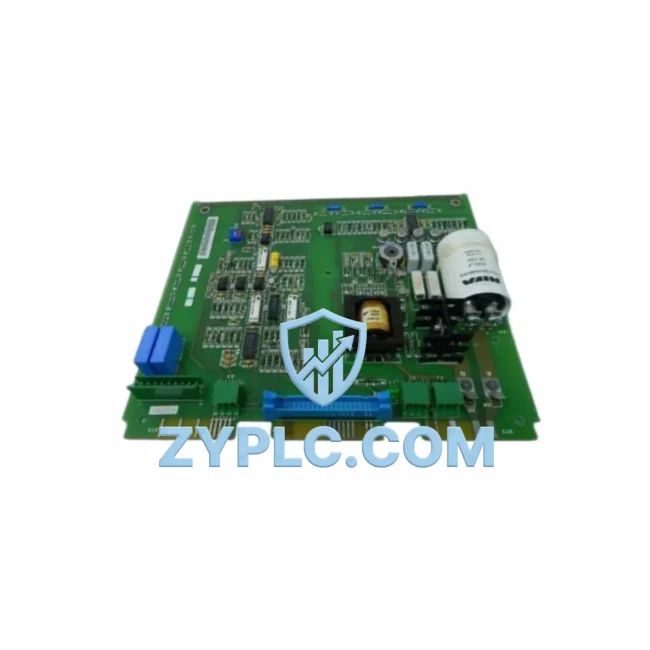

The ABB SAFT125CHC Chopper Control Board is a precision-engineered component designed to operate at the heart of ABB’s SAFT Series drive architecture. Rather than functioning as a standalone module, the SAFT125CHC is conceived as an integral node within a layered automation hierarchy — coordinating braking energy management, DC bus regulation, and signal integrity across the full control stack. In modern industrial drive systems, the chopper control board occupies a critical position between the power conversion layer and the supervisory control layer, ensuring that regenerative braking energy is safely dissipated or redirected without disrupting the stability of the broader system.

Understanding the SAFT125CHC requires understanding the architecture it serves. ABB’s SAFT Series drives are deployed across demanding industrial environments — from steel rolling mills and mining hoists to paper machine drives and large-scale pump stations — where consistent DC bus voltage, reliable braking response, and uninterrupted communication between control layers are non-negotiable. The SAFT125CHC fulfills its role by managing the chopper transistor switching cycle, protecting the drive from overvoltage conditions during deceleration, and maintaining the electrical stability that downstream I/O modules, communication gateways, and HMI systems depend upon.

Architecture Specification Table

Coordinated Control System Design

The SAFT125CHC does not operate in isolation. Its value is realized only when it is correctly integrated within the full SAFT Series drive assembly, where it works in concert with a range of companion boards and system components. At the control layer, the SAFT125CHC interfaces with the SAFT121CHC main control board, which provides the supervisory logic, parameter management, and communication arbitration for the entire drive. The SAFT121CHC issues gate control signals that the SAFT125CHC translates into precise chopper switching sequences, ensuring that braking energy is managed in synchrony with the drive’s operational state.

At the power layer, the SAFT125CHC works alongside the SAFT122POW power supply board, which provides the regulated DC voltages required for both the control electronics and the chopper gate drive circuitry. Voltage stability at this layer is essential — any fluctuation in the internal power supply directly affects the switching accuracy of the chopper transistor and, by extension, the DC bus voltage regulation that protects the entire drive system. The SAFT123INT interface board further bridges the control and I/O layers, routing analog and digital signals between field instruments, the main control board, and the chopper control circuit.

At the I/O layer, terminal modules and signal conditioning boards — such as the SAFT130IOB I/O expansion board — extend the drive’s ability to receive feedback from braking resistors, temperature sensors, and external interlock circuits. This feedback loop is critical for the SAFT125CHC to modulate chopper duty cycle in response to real-time thermal and electrical conditions. At the network layer, communication gateways such as the NPBA-12 PROFIBUS Adapter or the NETA-21 Remote Monitoring Tool enable the drive system to report chopper status, fault codes, and energy metrics to the plant-level SCADA or DCS, ensuring that operators maintain full visibility of braking system performance without physical intervention.

At the human-machine interface layer, ABB’s CP600 series HMI panels or third-party SCADA workstations connected via Modbus TCP or PROFIBUS DP provide operators with real-time drive status, including chopper activation frequency and DC bus voltage trends. At the execution layer, the braking resistor assembly — sized and selected in accordance with the SAFT Series application engineering guidelines — dissipates the regenerative energy managed by the SAFT125CHC, completing the energy flow path from motor deceleration through chopper switching to thermal dissipation.

Application in Layered Automation Systems

The SAFT125CHC finds application across a broad spectrum of industrial sectors where controlled deceleration, DC bus stability, and drive system reliability are critical operational requirements.

In steel and metals manufacturing, rolling mill drives and coiler/uncoiler systems generate significant regenerative energy during deceleration cycles. The SAFT125CHC ensures that this energy is safely managed, preventing DC bus overvoltage trips that would otherwise cause unplanned production stoppages and potential damage to the drive’s power semiconductors.

In mining and mineral processing, hoist drives, conveyor systems, and crusher drives operate under variable load conditions that frequently require dynamic braking. The SAFT125CHC’s chopper control function provides the precise, repeatable braking response that mine operators require to maintain safe deceleration profiles and protect mechanical equipment from shock loading.

In oil, gas, and petrochemical facilities, pump and compressor drives must maintain stable operation across wide speed ranges. The SAFT125CHC contributes to drive system stability by preventing DC bus voltage excursions during process upsets or emergency shutdowns, supporting the functional safety requirements of these critical applications.

In water and wastewater treatment plants, variable-speed pump drives controlled by SAFT Series systems benefit from the SAFT125CHC’s ability to manage braking energy during pump speed reductions, reducing mechanical stress on pump shafts and extending equipment service life.

In pulp and paper production, where continuous web tension control demands precise speed regulation and rapid deceleration response, the SAFT125CHC ensures that the drive system can respond to tension control commands without DC bus instability, maintaining product quality and reducing web break incidents.

Across all these applications, the SAFT125CHC is supported by ABB’s global spare parts network and ZYPLC’s verified inventory supply chain, ensuring that replacement boards are available with short lead times to minimize unplanned downtime. All units supplied by ZYPLC are covered by a 12-Month Warranty and are tested for functional integrity prior to dispatch.

Architecture Engineering FAQ

Q1: Is the SAFT125CHC compatible with all variants of the ABB SAFT Series drive platform, and how do I confirm compatibility before ordering?
The SAFT125CHC is designed for use within the ABB SAFT Series drive family, which encompasses a range of power ratings and configuration variants. Compatibility depends on the specific drive model, firmware revision, and the configuration of the main control board (typically the SAFT121CHC or equivalent). Before ordering, we recommend providing your drive’s full nameplate data — including model number, power rating, and serial number — to our technical team at plc.sales@zyplc.com. Our engineers will cross-reference this information against ABB’s SAFT Series hardware compatibility matrix to confirm that the SAFT125CHC is the correct replacement for your application. All units are supplied with a 12-Month Warranty and are verified against known-good reference units prior to shipment.

Q2: What installation and commissioning steps are required when replacing the SAFT125CHC in an existing drive system?
Replacement of the SAFT125CHC should be performed by a qualified drive service engineer following ABB’s SAFT Series maintenance documentation. The procedure typically involves de-energizing the drive and verifying that the DC bus has fully discharged before accessing the control board assembly. The SAFT125CHC is installed in its designated slot within the drive’s control board rack, with connectors mated in the sequence specified in the ABB service manual. After installation, the drive should be powered up in a controlled manner, with the chopper function verified by monitoring DC bus voltage response during a controlled deceleration test. Parameter settings related to chopper activation threshold and duty cycle limits should be reviewed and adjusted if necessary to match the application’s braking resistor specification. Our technical support team is available to assist with commissioning guidance as part of the 12-Month Warranty service.

Q3: How does ZYPLC ensure the long-term availability of the SAFT125CHC, and what support is provided after the warranty period?
ZYPLC maintains a dedicated inventory of ABB SAFT Series control boards, including the SAFT125CHC, sourced through verified supply channels to ensure authenticity and functional reliability. Our inventory management system monitors stock levels and lead times to ensure that critical spare parts remain available even as ABB’s SAFT Series drives age beyond their standard product lifecycle. After the 12-Month Warranty period, ZYPLC offers extended support options including board-level testing, functional verification, and access to our technical engineering team for application-specific guidance. For long-term maintenance planning, we recommend that plant engineers maintain a minimum of one spare SAFT125CHC per installed drive system to eliminate single-point-of-failure risk in critical production environments. Contact us at +86 19859288691 or plc.sales@zyplc.com to discuss your spare parts strategy.
