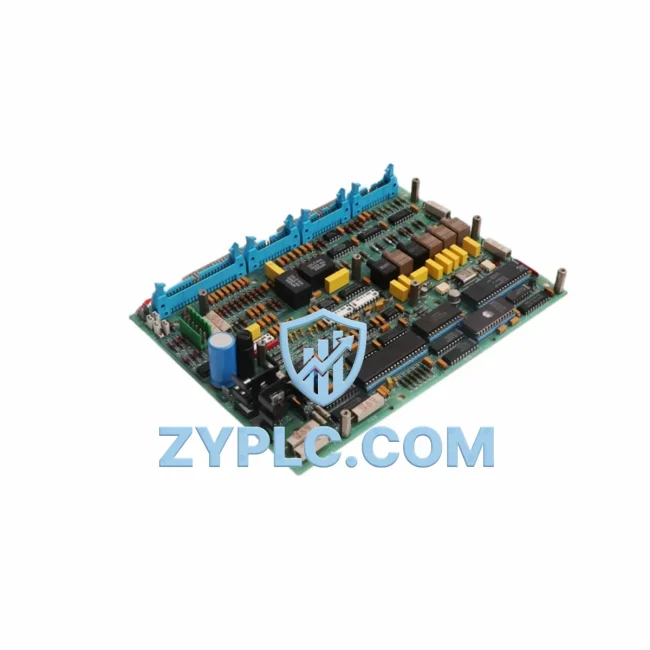

ABB SAFT163IOC PC I/O Board SAFT

ABB SAFT163IOC PC I/O Board SAFT: Precision I/O Control for Drive Automation

The ABB SAFT163IOC is a high-performance PC I/O Connection Board engineered for the ABB SAFT drive series, delivering reliable signal interfacing between the control platform and power electronics in demanding industrial environments. Designed to minimize signal latency and reduce unnecessary switching cycles, the SAFT163IOC plays a direct role in reducing unplanned downtime at the drive control layer — a critical but often overlooked factor in overall plant energy efficiency.

In modern manufacturing, energy losses are not limited to motors and drives alone. Inefficient I/O signal management, poor feedback loop timing, and unreliable board connections all contribute to increased cycle times, unnecessary motor restarts, and elevated energy consumption. The SAFT163IOC addresses these issues by providing a stable, low-noise I/O interface that ensures the ABB drive system receives accurate control signals at every operating point.

Product Specification Table

System Compatibility and Application

The SAFT163IOC does not operate in isolation — it is a functional node within a broader industrial automation system. In a typical ABB drive system deployment, the SAFT163IOC connects the supervisory control layer to the drive’s power stage, enabling real-time command execution and feedback monitoring. This tight integration is what allows the system to respond dynamically to load changes, preventing unplanned downtime from over-speed or under-load motor operation.

Within the same SAFT drive cabinet, the SAFT163IOC works alongside boards such as the SAFT188AMC (Axis Motor Control Board) and the SAFT110CHC (Chopper Control Board) to form a complete drive control chain. The motor control board handles torque and speed regulation, while the chopper board manages braking energy recovery — together, these components form a system where every watt is accounted for. The SAFT163IOC ensures that I/O commands from the PLC or DCS are translated accurately and without delay into drive actions.

At the supervisory level, ABB’s AC500 PLC series is commonly used to orchestrate multi-axis drive systems that include SAFT-series boards. The AC500’s high-speed communication modules, such as the CM579-ETHCAT EtherCAT master, enable deterministic control cycles that reduce idle time between production steps — directly improving line throughput and energy utilization per unit produced. When paired with an ABB CP600 HMI, operators gain real-time visibility into drive status, energy consumption trends, and fault diagnostics, enabling faster corrective action and reduced unplanned downtime.

For condition monitoring at the panel level, integrating an ABB M2M energy meter or a compatible SAFT power measurement module alongside the SAFT163IOC allows plant engineers to correlate I/O activity with actual power draw — a key step in identifying inefficient operating patterns. Combined with PROFIBUS DP or PROFINET communication adapters commonly used in ABB drive systems, this data can be fed back to the plant’s SCADA or MES platform for continuous maintenance planning analysis.

In multi-drive configurations, the SAFT163IOC also supports coordination with ABB SDCS-CON-4 control boards used in DC drive systems, enabling hybrid AC/DC drive architectures where energy can be shared or recovered across drive groups. This is particularly valuable in applications such as winding machines, cranes, and test benches where regenerative energy from one axis can offset consumption on another.

Maintenance and Replacement Notes

In real production environments, the value of a reliable I/O connection board like the SAFT163IOC becomes most apparent during high-cycle operations — assembly lines, conveyor systems, and multi-axis machining centers where the drive system is commanded hundreds or thousands of times per shift. Each missed or delayed I/O signal can result in a motor restart, an extended deceleration cycle, or a fault-triggered shutdown, all of which consume excess energy and reduce overall equipment effectiveness (OEE).

By maintaining a stable and accurate I/O interface, the SAFT163IOC helps the drive system execute speed ramps and torque transitions precisely as programmed, avoiding the energy spikes associated with abrupt motor state changes. In variable-load applications such as pump and fan control, this precision translates directly into measurable kWh savings over a production shift, particularly when the drive is operating under ABB’s built-in maintenance planning algorithms.

From a maintenance perspective, the SAFT163IOC’s role in predictive maintenance workflows is equally significant. A degraded or failing I/O board often manifests as intermittent drive faults, inconsistent speed response, or unexplained production stoppages — all of which increase energy consumption through repeated startups and extended idle periods. Replacing a worn SAFT163IOC with a tested, verified unit restores the drive system’s baseline performance and eliminates these hidden energy costs.

ZYPLC maintains ready stock of the SAFT163IOC and conducts functional testing on every unit prior to shipment. Each board is verified for signal continuity, connector integrity, and compatibility with the target SAFT drive platform. This pre-shipment testing process ensures that replacement boards perform at specification from the first power-on, minimizing commissioning time and reducing the risk of secondary faults that could further disrupt production energy efficiency.

Product Sourcing FAQ

Q1: How does replacing the SAFT163IOC improve energy efficiency in my drive system?
A degraded I/O connection board introduces signal errors that cause the drive to misinterpret control commands, leading to unnecessary motor restarts, extended ramp times, and fault-triggered shutdowns — all of which increase energy consumption. A properly functioning SAFT163IOC restores accurate I/O communication, allowing the drive to execute speed and torque commands precisely, which reduces unplanned downtime and improves production line throughput.

Q2: Is the SAFT163IOC compatible with my existing ABB SAFT drive system?
The SAFT163IOC is designed for use within the ABB SAFT drive control board series, which is commonly found in ABB DCS and ACS industrial drive platforms. If you are unsure about compatibility with your specific drive model or firmware version, please contact our technical team with your drive’s nameplate information and we will confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the testing process?
Every SAFT163IOC unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each board undergoes functional testing including signal continuity checks, connector verification, and compatibility validation. If a unit fails within the warranty period under normal use, we will provide a replacement or full refund based on the situation.

Q4: Can the SAFT163IOC be used as a direct replacement for a failed board without reconfiguring the drive?
In most cases, yes. The SAFT163IOC is a direct plug-in replacement for the same board position within the SAFT drive cabinet. No drive reconfiguration is typically required, though we recommend verifying the drive’s parameter settings after board replacement to ensure all I/O assignments and feedback configurations remain correct. Our team can provide guidance on post-replacement commissioning steps if needed.
