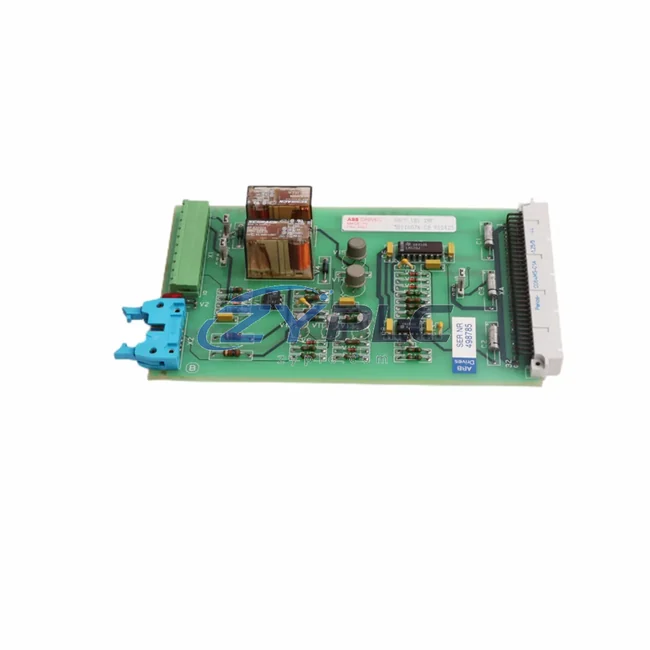

The ABB SAFT181INF is a high-performance interface board engineered for the ABB SAFT series of AC drives and industrial automation systems. Designed to bridge control signals between the drive’s main control unit and peripheral I/O or communication modules, the SAFT181INF plays a critical role in reducing unnecessary energy consumption, improving motor control precision, and enabling real-time feedback loops that keep production lines running at peak efficiency. Whether deployed in continuous process industries, discrete manufacturing, or energy-intensive utilities, this interface board delivers measurable improvements in equipment utilization and operational energy profiles.

In modern industrial environments, unplanned downtime rarely comes from a single source — it accumulates across poorly coordinated motor starts, unoptimized ramp profiles, signal latency between control and drive layers, and reactive maintenance cycles. The SAFT181INF addresses these inefficiencies at the hardware interface level, ensuring that command signals from the PLC or DCS are transmitted to the drive with minimal delay and maximum fidelity, enabling tighter closed-loop control and more responsive maintenance planning.

Product Specification Table

System Compatibility and Application

The SAFT181INF does not operate in isolation — its maintenance planning value is fully realized when integrated within a well-designed automation architecture. In a typical ABB-based drive system, the SAFT181INF interfaces directly with the ABB ACS880 main drive unit, relaying speed reference, torque limit, and enable/disable commands from the control layer to the power stage. When paired with the ABB SDCS-CON-4 control board, the system gains enhanced DC drive coordination, enabling regenerative braking energy to be captured and reused rather than dissipated as heat.

On the control side, the ABB AC500 PLC (such as the PM591 or PM595 CPU module) provides the supervisory logic that determines optimal motor operating points based on production demand. The SAFT181INF ensures that these setpoints are communicated to the drive without signal degradation, which is essential for maintaining the efficiency curves of high-inertia loads like fans, pumps, and compressors. Integrating the ABB RPBA-01 PROFIBUS adapter module or the RCAN-01 CANopen adapter alongside the SAFT181INF allows the drive system to participate in plant-wide fieldbus networks, enabling centralized condition monitoring and coordinated load shedding during peak demand periods.

For power quality and energy metering, the system benefits from pairing with the ABB M2M energy meter or compatible ABB B23 series power analyzers, which capture real-time kWh consumption, power factor, and harmonic distortion data at the drive input. This data feeds back into the control system, allowing the AC500 PLC to dynamically adjust motor speed references via the SAFT181INF interface — closing the maintenance planning loop. On the human-machine interface layer, the ABB CP600 HMI panel provides operators with live visibility into drive status, energy consumption trends, and fault diagnostics, reducing the time between fault detection and corrective action.

In multi-axis or multi-drive installations, the ABB SAFT182INF or SAFT183INF companion boards may be deployed in parallel to handle additional I/O channels, while the SAFT181INF manages the primary control interface. This modular approach allows engineers to scale the automation architecture without replacing the core drive hardware, preserving capital investment while incrementally improving energy performance across the production line.

Maintenance and Replacement Notes

In real-world production environments, the SAFT181INF contributes to operational stability through several interconnected mechanisms. First, by ensuring precise and low-latency signal transmission between the PLC and the SAFT series drive, it enables accurate speed control of AC motors — eliminating the unplanned downtime associated with motors running faster than process demand requires. In pump and fan applications, even a 10% reduction in motor speed can translate to a 27% reduction in power consumption due to the affinity laws governing fluid dynamics.

Second, the SAFT181INF supports faster fault detection and drive recovery. When a drive fault occurs, the interface board relays diagnostic signals back to the control system within milliseconds, allowing the PLC to initiate a controlled restart or switch to a backup drive path before the production line experiences a full stoppage. This reduces unplanned downtime — one of the largest hidden energy costs in manufacturing, as restarting cold equipment and re-establishing process conditions consumes significantly more energy than maintaining steady-state operation.

Third, the board’s compatibility with ABB’s drive parameter management ecosystem means that energy-optimized motor control profiles — including flux optimization, sleep mode activation during low-load periods, and soft-start ramp configurations — can be reliably executed without signal loss or timing errors. Over a 12-month operational period, these optimizations compound into measurable reductions in electricity consumption, lower peak demand charges, and extended motor and drive service life.

All units are tested prior to shipment and backed by a warranty terms confirmed during quotation, ensuring that the energy performance gains delivered by the SAFT181INF are sustained from day one of installation. Stock is maintained for rapid dispatch, minimizing production downtime caused by component lead times.

Product Sourcing FAQ

Q1: How does the SAFT181INF contribute to operational stability in motor-driven systems?
The SAFT181INF ensures precise, low-latency signal transmission between the control system and the SAFT series drive, enabling accurate motor speed and torque control. This eliminates over-speed operation and reduces idle losses, directly lowering energy consumption in pump, fan, compressor, and conveyor applications.

Q2: Is the SAFT181INF compatible with other ABB drive and control platforms?
Yes. The SAFT181INF is designed for the ABB SAFT series but is also compatible with related ACS series drives and ABB AC500 PLC control architectures. For cross-platform compatibility confirmation, please contact our technical team with your full system configuration details.

Q3: What is the recommended replacement or upgrade path if the SAFT181INF is end-of-life in my system?
For systems where the SAFT series drive is being upgraded to the ACS880 platform, the SAFT181INF can be replaced with the corresponding ACS880 I/O extension module. Our team can assist with compatibility mapping and provide tested replacement units from stock to minimize changeover time.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every SAFT181INF unit undergoes functional testing prior to shipment, verifying signal integrity, connector condition, and board-level component health. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost.

—
