ABB SAFT185TBC Energy-Saving Converter Control Board ACS

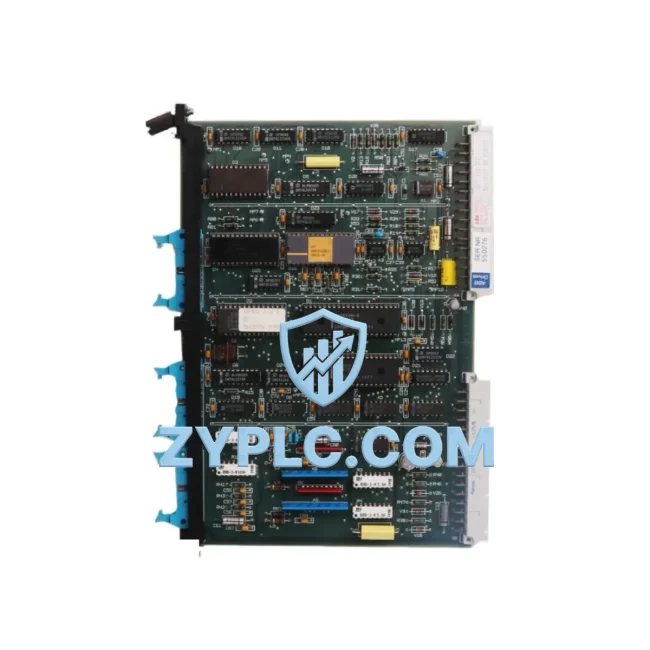

ABB SAFT185TBC Energy-Saving Converter Control Board for ACS Series Automation

The ABB SAFT185TBC is a high-performance converter control board engineered for the ACS600 and ACS800 series variable frequency drives. Designed to meet the demanding requirements of modern industrial automation, this control board plays a central role in optimizing motor energy consumption, improving production line throughput, and reducing unplanned downtime across a wide range of manufacturing environments.

In energy-intensive facilities — from paper mills and cement plants to water treatment stations and steel processing lines — the SAFT185TBC delivers precise closed-loop control over motor speed and torque, directly translating into measurable reductions in kilowatt-hour consumption. By replacing a failed or degraded control board with a tested SAFT185TBC unit, plant engineers can restore drive efficiency to OEM specification without the capital cost of a full drive replacement.

Efficiency Performance Table

Energy-Aware Automation Architecture

The SAFT185TBC does not operate in isolation — its energy optimization value is fully realized when integrated within a well-designed automation architecture. In a typical ACS800-based drive system, the SAFT185TBC works in concert with the ABB AINT-02C inverter interface board, which manages the gate firing signals to the IGBT power modules, and the APOW-01C power supply board, which provides stable 24 VDC logic power to the control layer. Together, these boards form the core of the drive’s control intelligence.

On the field network side, the SAFT185TBC communicates upstream to a Siemens S7-300 PLC or an ABB AC500 PLC via PROFIBUS-DP, enabling real-time speed reference updates and energy monitoring feedback loops. For facilities running Modbus RTU networks, the drive can be paired with an RMBA-01 Modbus adapter module to integrate seamlessly into existing SCADA or DCS architectures without rewiring.

Energy monitoring at the drive level is further enhanced when the ACS800 system is paired with a Carlo Gavazzi EM24 power analyzer or an ABB B23 energy meter installed at the motor feeder panel. These instruments capture real-time kWh data, power factor, and harmonic distortion values, giving maintenance teams the visibility needed to identify inefficient operating points and schedule corrective action before energy waste compounds into equipment wear.

For motion-critical applications such as winding machines or precision conveyors, the SAFT185TBC-equipped ACS800 can be coordinated with an ABB MicroFlex e150 servo drive and a BSM series servo motor to create a hybrid drive topology — variable-speed induction motor control for bulk material handling, and servo-precision control for positioning axes — all managed from a single ABB Panel Builder 800 HMI terminal.

I/O expansion for multi-zone energy monitoring is typically handled through an ABB CI854 PROFIBUS interface module or a distributed Beckhoff EK1100 EtherCAT coupler with analog input terminals, allowing the control system to aggregate current, voltage, and temperature signals from multiple motor circuits into a unified energy dashboard.

Power Optimization in Real Production Lines

In a real production environment, a degraded or failed SAFT185TBC manifests as erratic motor speed, loss of torque control, increased current draw, and ultimately unplanned drive trips. Each unplanned stop on a continuous process line — whether a paper machine, a cement kiln feed conveyor, or a municipal pump station — carries a direct energy penalty: motors restart under full load, consuming 6–8× rated current during acceleration, and process buffers must be refilled, extending the energy-intensive ramp-up phase.

Replacing the SAFT185TBC with a tested, OEM-specification unit restores the ACS800’s Direct Torque Control algorithm to full precision. DTC dynamically adjusts the inverter switching pattern to maintain optimal flux and torque at every operating point, which means the motor draws only the energy the load actually demands — not the excess that a degraded control board forces it to consume through hunting, oscillation, or over-magnetization.

Facilities that have standardized on ACS600 or ACS800 drives for pump and fan applications report energy savings of 20–50% compared to fixed-speed operation, with the control board’s health being a critical factor in sustaining those savings over the drive’s service life. A worn SAFT185TBC can silently erode those gains by introducing control latency and torque ripple that forces the drive to operate at higher average flux levels than necessary.

From a predictive maintenance perspective, stocking a spare SAFT185TBC reduces mean time to repair (MTTR) from days — the typical lead time for a new board from the OEM — to hours. This directly improves Overall Equipment Effectiveness (OEE) by minimizing the availability loss component. Combined with periodic drive diagnostics via the ABB DriveWindow Light 2 software tool, maintenance teams can trend control board performance parameters and schedule replacement during planned shutdowns rather than reacting to emergency failures.

All SAFT185TBC units supplied by ZYPLC are fully tested under load conditions prior to shipment, with functional verification of the DTC control loop, communication interfaces, and I/O channels. Each unit ships with a 12-month warranty, backed by in-stock inventory for immediate dispatch and rapid delivery to minimize production impact.

Energy Optimization FAQ

Q1: How much energy can I save by replacing a faulty SAFT185TBC instead of the entire ACS800 drive?
A: Replacing only the control board restores the drive’s DTC efficiency at a fraction of the cost of a full drive replacement. A healthy SAFT185TBC eliminates the torque ripple and over-magnetization caused by a degraded board, which can recover 5–15% of energy consumption that was being wasted through inefficient motor control — on top of avoiding the energy spike associated with a full system restart after an unplanned trip.

Q2: Is the SAFT185TBC compatible with both ACS600 and ACS800 drives?
A: Yes. The SAFT185TBC is designed for use across the ACS600 and ACS800 drive families. Before installation, verify the drive’s firmware version and hardware revision using ABB DriveWindow or the drive’s keypad to confirm full compatibility with your specific unit’s control software.

Q3: What is the testing and quality assurance process for ZYPLC-supplied boards?
A: Every SAFT185TBC unit undergoes functional testing prior to shipment, including verification of the control logic, communication ports, and analog/digital I/O channels. Units are tested under simulated drive operating conditions to confirm DTC loop integrity. A 12-month warranty is provided on all units, covering defects in materials and workmanship under normal operating conditions.

Q4: Can I use the SAFT185TBC as a direct drop-in replacement without drive reconfiguration?
A: In most cases, yes — the SAFT185TBC is a direct replacement that retains the existing drive parameters stored in the APOW board’s memory. However, it is recommended to back up drive parameters using ABB DriveWindow before swapping the board, and to perform a motor identification run after installation to ensure the DTC algorithm is optimally tuned to your specific motor’s characteristics.
