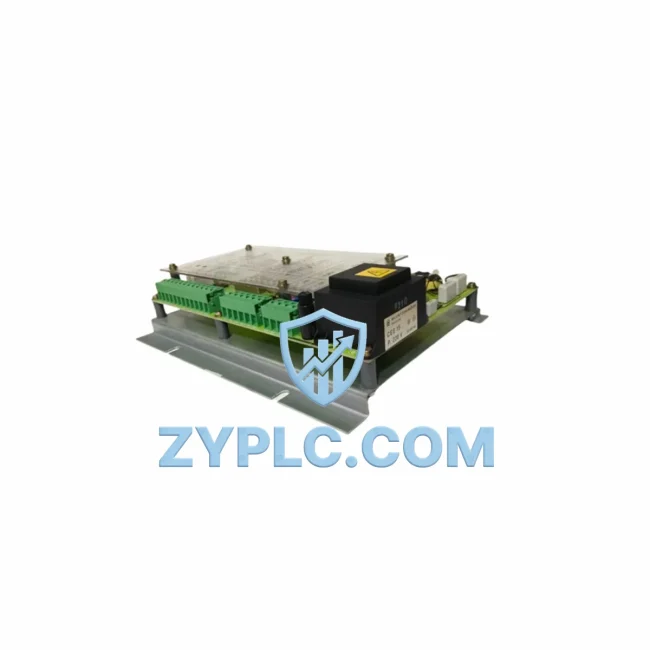

ABB SCYC56901 System-Ready Drive Board for SDCS Architecture

ABB SCYC56901 System-Ready Drive Board for SDCS Architecture: Control Layer Coordination and Drive System Integrity

The ABB SCYC56901 is a precision-engineered drive board designed for deployment within the SDCS (Scalable DC Drive Control System) series, specifically supporting the DCS800 family of DC drives. In modern industrial automation, a drive board is far more than a standalone component — it is the functional core of the control layer, responsible for translating high-level command signals into precise motor excitation, current regulation, and feedback processing. The SCYC56901 fulfills this role with the reliability and signal fidelity that demanding process environments require.

Understanding the SCYC56901’s value requires viewing it within the full architecture of a layered automation system. At the control layer, a CPU module — such as the ABB AC500 PM573 or PM591 — issues setpoint commands via PROFIBUS DP or Modbus RTU to the DCS800 drive controller. The SCYC56901 board resides within the drive’s internal control chassis, receiving these commands and executing closed-loop current and speed regulation. Its onboard signal processing ensures that armature current feedback, tachometer input, and field excitation references are handled with minimal latency, preserving system responsiveness across load transients.

At the I/O layer, the SCYC56901 interfaces with analog input modules — such as the ABB TU515 or TU516 terminal units — that aggregate process signals from field sensors, encoders, and current transducers. These signals are conditioned and routed to the drive board, where they inform real-time control decisions. The board’s analog input resolution and noise immunity are critical in environments where signal integrity is challenged by high-current switching, variable-frequency interference, or long cable runs.

The network layer in SDCS-based architectures typically relies on PROFIBUS DP for deterministic communication between the PLC master and the drive. The SCYC56901 supports this communication topology through its compatibility with the SDCS-COM-8 communication option board, enabling seamless parameter exchange, fault diagnostics, and remote setpoint adjustment without interrupting drive operation. In redundant network configurations, the drive board’s communication stack supports watchdog supervision, ensuring that a network interruption triggers a controlled deceleration rather than an uncontrolled trip.

Power layer coordination is equally important. The SCYC56901 operates within a DC drive system that draws from a controlled rectifier stage, typically fed by an isolation transformer and thyristor bridge. The board’s firing pulse generation circuitry must remain synchronized with the AC supply frequency, and its gate drive outputs must maintain precise phase angle control to regulate DC bus voltage under varying load conditions. Compatibility with ABB’s SDCS-POW-4 power supply board ensures that the control and power sections operate as an integrated unit, with shared fault detection and coordinated shutdown logic.

At the human-machine interface layer, operators interact with the DCS800 system through ABB’s DriveWindow or Panel Builder-based HMI solutions. The SCYC56901’s parameter set — accessible via the drive’s CDP312R control panel or through DriveWindow Light software — allows engineers to configure current limits, ramp rates, field weakening curves, and protection thresholds without requiring hardware modifications. This software-defined configurability reduces commissioning time and supports rapid adaptation to changing process requirements.

In the execution layer, the SCYC56901 directly governs the performance of DC motors in applications ranging from paper machine section drives and rolling mill stands to mine hoist systems and large pump drives. Its current regulation bandwidth and field excitation control accuracy determine the quality of torque response, speed holding, and regenerative braking performance. In multi-drive line shaft applications, where multiple DCS800 units must maintain precise speed ratios, the SCYC56901’s control consistency is essential for preventing inter-drive speed drift and mechanical stress.

Architecture Specification Table

Coordinated Control System Design

The SCYC56901 achieves its full potential when integrated within a coherent system architecture. In a typical DCS800-based DC drive system, the following components work in coordinated layers:

The ABB AC500 PM573 PLC serves as the system master, issuing speed and torque setpoints to the drive via PROFIBUS DP. The SDCS-COM-8 communication board bridges the drive’s internal control bus to the fieldbus network, enabling the SCYC56901 to receive and acknowledge commands in real time. The SDCS-POW-4 power supply board provides regulated 24 VDC to the control electronics, including the SCYC56901, ensuring stable operation independent of AC supply fluctuations.

At the I/O level, ABB TU515 terminal units and AI523 analog input modules aggregate field signals — including process speed references, load current feedback, and temperature monitoring — and deliver them to the PLC, which in turn adjusts drive setpoints dynamically. The CDP312R control panel provides local parameter access and fault display, allowing maintenance engineers to interrogate the SCYC56901’s operating state without a laptop connection.

In redundant architectures, a secondary DCS800 drive unit with its own SCYC56901 board can be configured in hot-standby mode, with automatic changeover logic implemented in the AC500 PLC. The SDCS-FEX-2 field excitation board works alongside the SCYC56901 to maintain motor field current during standby transitions, preventing field collapse and ensuring rapid re-engagement. Terminal blocks from ABB’s ENTRELEC SNK series provide the wiring infrastructure that connects drive outputs to motor armature and field circuits, maintaining signal integrity across the full current range.

Application in Layered Automation Systems

The SCYC56901 is deployed across a wide range of heavy industrial applications where DC drive technology remains the preferred solution for its torque linearity, regenerative capability, and compatibility with legacy motor infrastructure.

In steel rolling mills, the board governs the armature current of large DC motors driving roughing and finishing stands, where precise torque control at low speeds is critical for material quality. In paper and pulp manufacturing, multi-section line drives use SCYC56901-equipped DCS800 units to maintain section speed ratios within tight tolerances, preventing web breaks and ensuring consistent sheet formation. In mine hoist systems, the board’s field weakening control enables high-speed operation in the upper speed range while maintaining full torque capability at low speeds for controlled load lowering.

In water treatment facilities, DCS800 drives with SCYC56901 boards control large pump motors, with the drive’s regenerative capability allowing energy recovery during pump deceleration. In petrochemical process plants, the board’s robust noise immunity and stable analog processing support reliable operation in environments with significant electromagnetic interference from high-voltage switching equipment. In packaging and converting lines, the SCYC56901’s fast current loop response enables precise tension control in winding and unwinding applications, where load inertia changes continuously as roll diameter varies.

Architecture Engineering FAQ

Q1: Is the SCYC56901 compatible with all DCS800 frame sizes, and what system configuration is required for integration?
The SCYC56901 is designed for the SDCS control platform used across the DCS800 range. Compatibility depends on the specific DCS800 frame size and firmware version. Engineers should verify the drive’s hardware revision against ABB’s SDCS compatibility matrix before installation. The board slots into the drive’s control chassis and requires the SDCS-POW-4 power supply and, for fieldbus communication, the SDCS-COM-8 option board. No external wiring changes are required if replacing a like-for-like board in an existing installation.

Q2: How does the SCYC56901 support long-term maintenance and spare parts planning in a multi-drive architecture?
Maintaining a stock of SCYC56901 boards as critical spares is a standard practice in facilities operating multiple DCS800 drives. The board’s parameter set is stored in the drive’s non-volatile memory, meaning a replacement board can be installed and the drive restored to service by downloading the saved parameter file via DriveWindow — without requiring a full recommissioning. ZYPLC maintains verified stock of SCYC56901 boards with a 12-Month Warranty, supporting planned maintenance cycles and emergency replacement scenarios.

Q3: What commissioning steps are required when installing a SCYC56901 in a new or modified control architecture?
After physical installation, the commissioning sequence involves verifying control supply voltage from the SDCS-POW-4, confirming communication link establishment via the SDCS-COM-8 (if fitted), and running the drive’s autotune routine to calibrate current controller gains for the connected motor. Speed feedback source selection — tachometer or encoder — must be configured in the drive parameters, and current limit settings should be verified against motor nameplate data. ABB’s DCS800 Firmware Manual provides the full parameter reference for SCYC56901-based systems.
