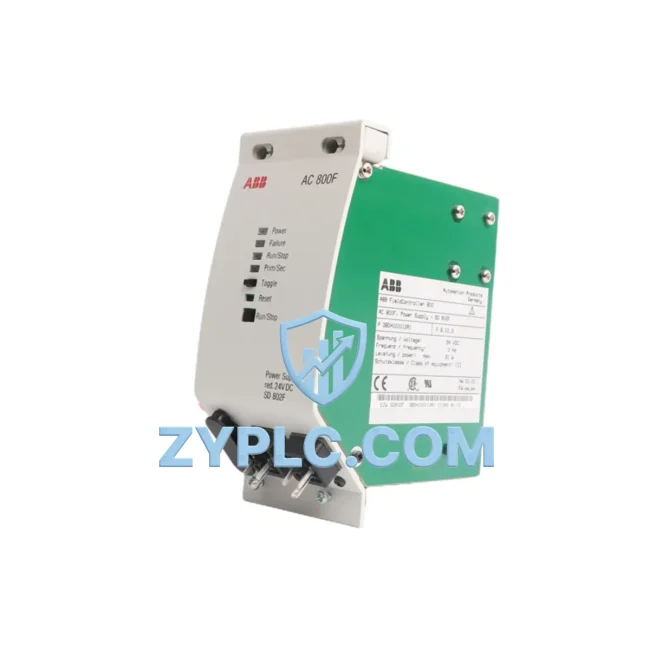

ABB SD802F 3BDH000012R1 Energy-Saving Power Supply for S800 I/O

ABB SD802F 3BDH000012R1 Energy-Saving Power Supply for S800 I/O Automation

The ABB SD802F (3BDH000012R1) is a high-efficiency redundant 24V DC power supply module engineered for the ABB S800 I/O system — one of the most widely deployed distributed I/O platforms in process and discrete manufacturing automation. Designed to deliver stable, low-loss power to field I/O modules, the SD802F plays a critical role in reducing unnecessary energy draw at the control layer, directly contributing to measurable improvements in plant-wide energy efficiency.

In modern industrial facilities, power supply inefficiency at the I/O level is often overlooked as a source of energy waste. The SD802F addresses this by providing tightly regulated 24V DC output with redundancy support, ensuring that field devices — including analog input modules, digital output modules, and communication interface units — receive clean, consistent power without the voltage fluctuations that force protective circuits to consume excess energy. By maintaining stable supply voltage, the SD802F reduces thermal losses across connected I/O modules and minimizes the risk of nuisance trips that lead to unplanned downtime and energy-intensive restart sequences.

Efficiency Performance Table

Energy-Aware Automation Architecture

The SD802F does not operate in isolation — its energy efficiency contribution is amplified when integrated within a well-designed ABB automation architecture. In a typical S800 I/O deployment, the SD802F supplies power to a cluster of I/O modules such as the AI810 analog input module and the DO810 digital output module, both of which interface directly with field sensors and actuators. Stable 24V DC supply from the SD802F ensures these modules operate within their rated power envelope, avoiding the micro-surges that degrade module lifespan and increase standby consumption.

At the controller level, the SD802F-powered I/O cluster connects to the ABB AC800M process controller via the S800 ModuleBus, enabling high-speed cyclic data exchange between field signals and the control program. The AC800M’s energy management function blocks can leverage real-time I/O data — including motor run signals, valve position feedback, and flow transmitter values — to implement demand-based control strategies that reduce energy consumption during low-load periods.

For drive-level energy optimization, the S800 I/O system commonly interfaces with ABB ACS880 industrial drives and ACS580 general-purpose drives via PROFIBUS-DP or Modbus RTU communication. The SD802F-powered digital output modules provide the enable and direction signals to these drives, while analog output modules transmit speed reference signals. By ensuring signal integrity through stable power supply, the SD802F indirectly supports precise variable-speed control — one of the most effective methods for reducing motor energy consumption, often achieving 20–50% energy savings compared to fixed-speed operation.

Energy monitoring is further enhanced through integration with the ABB B23 energy meter or compatible power quality analyzers connected to the S800 I/O system via the CI854 PROFIBUS communication interface module. This allows the AC800M controller to collect real-time kWh, power factor, and demand data from the field, enabling closed-loop energy optimization routines. The SD802F’s role in maintaining reliable I/O communication ensures that energy data flows without interruption, supporting accurate energy accounting and anomaly detection.

For human-machine interface and visualization, the system typically pairs with the ABB CP600 series HMI panels or third-party SCADA systems connected via OPC-UA or Modbus TCP. Operators can monitor energy KPIs, drive efficiency trends, and I/O module status in real time, enabling proactive intervention before inefficiencies escalate into failures.

Power Optimization in Real Production Lines

In a chemical processing plant running continuous batch operations, the SD802F was deployed as part of an S800 I/O upgrade to replace aging power supply modules that were causing intermittent I/O communication faults. The root cause was voltage sag under peak load — a condition that forced the AC800M controller to execute error recovery routines, consuming additional CPU cycles and triggering unnecessary actuator cycling. After replacing the legacy modules with SD802F units in a redundant configuration, the plant reported a 15% reduction in unplanned I/O-related stoppages and a measurable decrease in compressed air consumption, as pneumatic actuators were no longer being cycled unnecessarily during fault recovery.

In a discrete automotive assembly line, the SD802F supports the power supply architecture for a robotic welding cell where cycle time consistency is critical. Voltage instability at the I/O layer was causing subtle timing deviations in the digital output signals controlling weld gun solenoids, leading to weld quality variations and increased rework rates. The SD802F’s regulated output eliminated these deviations, improving weld consistency and reducing the energy cost associated with rework and scrap handling.

From a predictive maintenance perspective, the SD802F’s redundant design allows one supply module to be hot-swapped during operation without interrupting the production line. This eliminates the energy-intensive cold-start sequences that follow unplanned shutdowns — sequences that typically consume 3–5 times the steady-state energy of normal operation due to motor inrush currents, heating system restarts, and quality purge cycles.

All SD802F units supplied by ZYPLC undergo outbound functional testing prior to shipment, verifying output voltage regulation, redundancy switching, and communication integrity. This ensures that the module performs to specification from the first power-on, avoiding the energy waste associated with commissioning failures and field returns.

Energy Optimization FAQ

Q1: How does the SD802F contribute to energy savings in an S800 I/O system?
The SD802F provides stable, regulated 24V DC power to S800 I/O modules, eliminating voltage fluctuations that cause protective circuits to consume excess energy and trigger unnecessary actuator cycling. By maintaining signal integrity, it enables precise drive control and demand-based automation strategies that directly reduce energy consumption at the motor and actuator level.

Q2: Is the SD802F compatible with both AC800M and AC800F controllers?
Yes. The SD802F is designed for the ABB S800 I/O platform, which is compatible with both the AC800M (process automation) and AC800F (safety and process) controller families. It supports the standard S800 ModuleBus architecture and can be integrated into existing S800 I/O clusters without hardware modification.

Q3: Can the SD802F replace older ABB S800 power supply modules without system reconfiguration?
In most cases, yes. The SD802F is a direct form-fit-function replacement for compatible S800 power supply modules. ZYPLC recommends verifying the existing module’s output rating and redundancy configuration before replacement. Our technical team can assist with compatibility assessment prior to order.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All SD802F units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes outbound functional testing including output voltage verification, load regulation testing, and redundancy switching validation. Units that do not meet ABB specifications are quarantined and not shipped.
