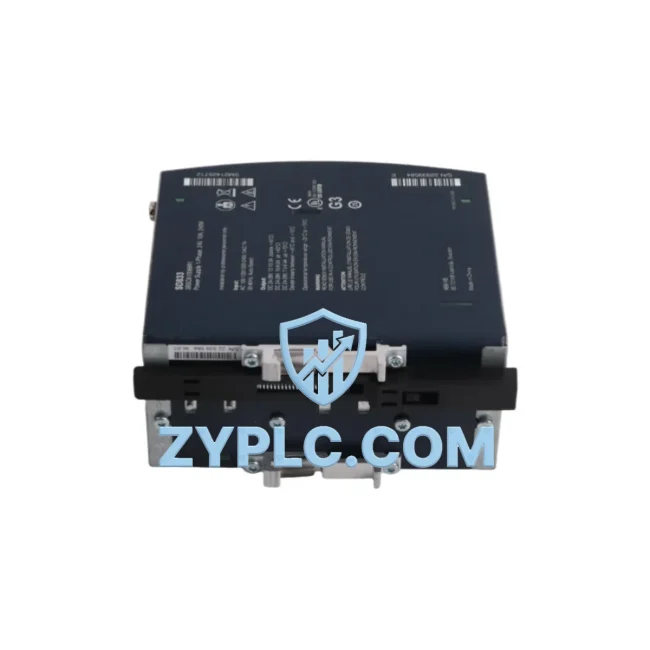

ABB SD833 3BSE037227R1 System-Ready Power Supply for AC800M Architecture

ABB SD833 3BSE037227R1 System-Ready Power Supply for AC800M Control Architecture

The ABB SD833 (3BSE037227R1) is a dedicated DC power supply module engineered for deployment within the ABB AC800M Distributed Control System platform. As a foundational component of the AC800M power layer, the SD833 delivers regulated, stable DC power to the controller backplane, I/O modules, and communication interfaces that form the backbone of modern process automation architectures. Its design philosophy centers on system consistency, long-term operational reliability, and seamless Contextual Integration across multi-layer control environments — from field instrumentation to supervisory SCADA systems.

In large-scale industrial installations — including power generation, oil & gas processing, chemical manufacturing, water treatment, and metallurgical operations — power supply integrity is not a peripheral concern but a core architectural requirement. The SD833 addresses this by providing a clean, regulated power rail that supports the full AC800M controller family, including the PM861A, PM864A, and PM891 processor modules, while maintaining compatibility with the S800 I/O series and the ModuleBus communication infrastructure. Its role in the system is to ensure that upstream control decisions are never compromised by downstream power instability.

Architecture Specification Table

Coordinated Control System Design

The SD833 does not operate in isolation — it is the electrical foundation upon which the entire AC800M control node depends. In a typical AC800M cabinet configuration, the SD833 powers the controller backplane that houses the PM864A or PM891 CPU module, which executes the control logic and manages real-time process data. Alongside the CPU, the backplane supports communication interface modules such as the CI840A (PROFIBUS DP master) and CI854A (PROFIBUS DP slave/master), enabling the controller to communicate with distributed field devices, variable frequency drives, and remote I/O stations.

On the I/O side, the SD833-powered controller interfaces with S800 I/O modules — including AI810 analog input, AO810V2 analog output, DI810 digital input, and DO810 digital output modules — mounted on TB820V2 ModuleBus Modem units. These I/O modules collect signals from field transmitters, control valves, motor starters, and safety interlocks, feeding real-time data back to the PM-series CPU for closed-loop process control. The integrity of this signal chain depends entirely on the stable power delivery that the SD833 provides.

For redundancy-critical applications — such as turbine control, reactor management, or pipeline SCADA — the SD833 is typically deployed in a dual-redundant power configuration alongside a second SD833 unit, ensuring that a single power supply failure does not interrupt control system operation. This redundant architecture is further supported by the AC800M’s built-in CPU redundancy capability when using paired PM891 modules, creating a fully fault-tolerant control node. The TP830 termination panel and TB807 bus terminator complete the physical layer, ensuring clean signal termination and minimizing electrical noise on the ModuleBus.

At the human-machine interface layer, the AC800M system integrates with ABB’s 800xA Distributed Control System software platform, where operators monitor process variables, acknowledge alarms, and issue setpoint changes. The SD833’s role in maintaining uninterrupted power to the controller ensures that the 800xA system always has a live, responsive control node to communicate with — a requirement that becomes critical during process upsets or emergency shutdowns.

Application in Layered Automation Systems

In power generation facilities — including thermal, hydroelectric, and combined-cycle plants — the AC800M platform with SD833 power modules manages boiler combustion control, turbine speed regulation, generator excitation, and grid synchronization. The SD833’s wide-input voltage range makes it suitable for both AC-fed and battery-backed DC bus installations common in substation automation environments.

In oil & gas and petrochemical processing, the SD833 supports AC800M controllers deployed in hazardous-area control rooms managing separator pressure, compressor surge control, heat exchanger temperature loops, and emergency shutdown (ESD) logic. Its compatibility with PROFIBUS DP and Modbus TCP communication gateways allows seamless integration with field-mounted HART transmitters and smart valve positioners.

In water and wastewater treatment plants, the SD833-powered AC800M system manages pump sequencing, chemical dosing, filtration backwash cycles, and effluent quality monitoring. The module’s reliability in continuous 24/7 operation environments — with minimal maintenance intervention — makes it a preferred choice for municipal utility operators seeking long service intervals and low total cost of ownership.

In metallurgical and mining operations, including smelting, rolling mills, and ore processing plants, the SD833 supports high-availability control architectures where process interruptions translate directly into significant production losses. Its robust electrical design tolerates the high-EMI environments typical of heavy industrial facilities, maintaining stable power delivery even in the presence of large motor drives and arc furnace interference.

Architecture Engineering FAQ

Q1: Is the SD833 (3BSE037227R1) compatible with both PM861A and PM891 processor modules in the AC800M platform?
Yes. The SD833 is designed as the standard power supply module for the AC800M backplane family and is compatible with all current AC800M CPU variants, including the PM861A, PM864A, and PM891. It provides the regulated 24 VDC rail required by the backplane bus, regardless of which processor module is installed. For redundant CPU configurations using paired PM891 modules, two SD833 units are recommended to maintain power redundancy at the supply level.

Q2: Can the SD833 be installed in an existing AC800M cabinet alongside legacy S800 I/O modules without requiring a full system upgrade?
Yes. The SD833 is backward-compatible with the existing AC800M backplane and S800 I/O infrastructure. It can replace an aging or failed power supply module without requiring firmware updates, backplane replacement, or reconfiguration of the connected I/O modules. This makes it an ideal drop-in replacement for maintenance and lifecycle management scenarios, minimizing system downtime during module exchange. All units supplied by ZYPLC are fully tested prior to shipment and covered by a 12-Month Warranty.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance planning for the SD833?
The 12-Month Warranty covers manufacturing defects, functional failures under normal operating conditions, and any issues identified during incoming inspection at the customer’s facility. ZYPLC maintains stock of SD833 units to support both immediate replacement needs and planned preventive maintenance programs. For customers managing large AC800M installations, ZYPLC can provide multi-unit supply agreements to ensure spare parts availability across the full system lifecycle. Contact our technical team at plc.sales@zyplc.com or +86 19859288691 for architecture-specific sourcing support.
