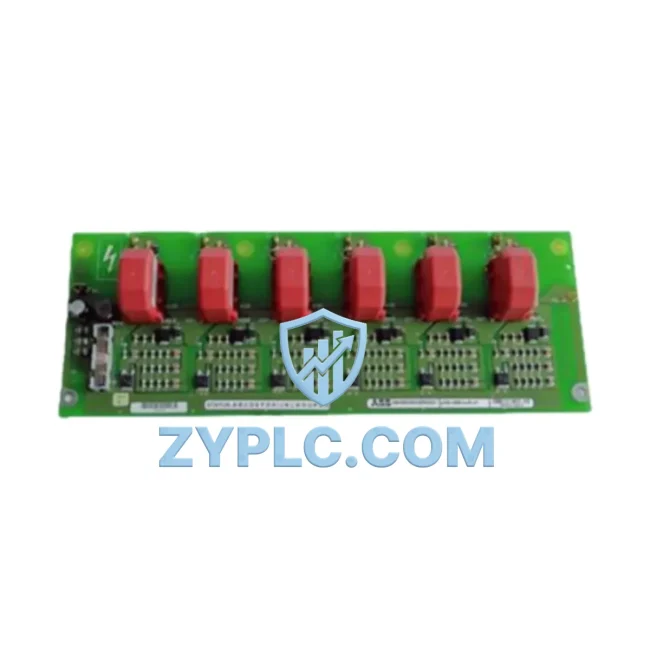

The ABB SDCS-BAB-F02 (3ADT316400R0502) is a precision-engineered adaptions board designed for seamless integration within ABB’s SDCS DC drive control architecture. In modern industrial automation environments, drive systems do not operate in isolation — they function as coordinated nodes within a layered control hierarchy that spans from field-level actuators to supervisory SCADA platforms. The SDCS-BAB-F02 is purpose-built to fulfill a critical bridging role within this hierarchy, ensuring signal fidelity, electrical compatibility, and long-term system coherence across the full drive control stack.

Engineered to ABB’s exacting standards for industrial-grade DC drive systems, this adaptions board supports Contextual Integration across the SDCS platform ecosystem, enabling engineers to deploy, expand, and maintain drive architectures with confidence. Backed by a 12-Month Warranty, the SDCS-BAB-F02 is a reliable choice for both new installations and retrofit projects in demanding industrial environments.

Architecture Specification Table

Coordinated Control System Design

The SDCS-BAB-F02 adaptions board achieves its full value when understood within the context of a complete SDCS-based DC drive control system. At the control layer, the board interfaces directly with the SDCS-CON-2 or SDCS-CON-4 main control boards, which serve as the computational core of the drive system, executing speed and torque regulation algorithms. The SDCS-BAB-F02 extends the signal adaptation capability of these control boards, ensuring that analog and digital I/O signals are correctly conditioned and routed to downstream power electronics.

At the I/O layer, the adaptions board works in concert with the SDCS-IOB-3 I/O extension board, which provides additional analog input channels for encoder feedback, tachometer signals, and process reference values. This combination allows engineers to configure complex multi-drive systems where precise speed synchronization is required — such as in paper machine drives, winding lines, or rolling mill applications.

For network-layer integration, the SDCS-BAB-F02 supports communication adapter modules including the SDCS-COM-1 (PROFIBUS-DP) and SDCS-COM-8 (DeviceNet/CANopen), enabling the drive to participate in plant-wide fieldbus networks. This allows supervisory PLC systems — such as ABB’s AC500 PLC series — to issue speed references, read drive status, and execute coordinated start/stop sequences across multiple drive axes from a single control node.

At the power layer, the SDCS-BAB-F02 operates within drive cabinets powered by the SDCS-POW-4 auxiliary power supply board, which provides the regulated 24 VDC logic supply required by all SDCS control electronics. Proper power sequencing between the SDCS-POW-4 and the adaptions board is essential for reliable drive startup and fault-free operation during power cycling events.

For human-machine interface integration, the SDCS platform supports connection to ABB’s CDP312R control panel, which provides local parameter access, drive diagnostics, and fault history display. When the SDCS-BAB-F02 is correctly configured, all drive parameters — including those related to the adaptions board’s signal routing — are accessible through the CDP312R panel without requiring a laptop or engineering workstation on the plant floor.

At the execution layer, the SDCS-BAB-F02 ultimately governs the signal chain that drives the thyristor firing circuits within the DCS550 or DCS800 DC drive converter units. These converters translate the control board’s digital commands into precisely timed gate pulses, controlling armature current and motor torque with millisecond-level precision. The adaptions board’s role in maintaining signal integrity across this chain is fundamental to achieving the dynamic performance specifications required in high-demand industrial processes.

For redundancy-critical applications, the SDCS architecture supports master-follower drive configurations where a secondary SDCS drive — equipped with its own SDCS-BAB-F02 and SDCS-CON-4 — can assume control in the event of a primary drive fault. This redundancy design is particularly relevant in continuous process industries such as petrochemical refining, pulp and paper, and steel rolling, where unplanned drive downtime carries significant production and safety consequences.

Application in Layered Automation Systems

Manufacturing & Metal Processing: In rolling mill and wire drawing applications, the SDCS-BAB-F02 enables precise tension and speed control across multi-stand drive lines. The board’s signal adaptation capability ensures that encoder feedback from each motor axis is accurately processed by the SDCS-CON-4 control board, maintaining the tight speed ratios required for consistent product dimensions and surface quality.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and coal conveyor drives — the SDCS-BAB-F02 supports reliable DC drive operation in environments characterized by electrical noise, vibration, and wide ambient temperature swings. Its robust design and Contextual Integration capability make it suitable for long-term deployment in utility-grade control systems.

Petrochemical & Process Industries: Refinery and chemical plant applications demand drive systems that can operate continuously for extended periods without maintenance intervention. The SDCS-BAB-F02, as part of a fully configured SDCS drive system, supports predictive maintenance strategies by providing accurate drive status data to supervisory SCADA systems via PROFIBUS-DP or Modbus RTU communication adapters.

Water & Wastewater Treatment: Municipal water treatment facilities use DC drives for pump and mixer control in applications where variable flow rates must be maintained across wide load ranges. The SDCS-BAB-F02’s compatibility with the SDCS-COM-1 fieldbus adapter enables seamless integration with plant-wide SCADA systems, supporting remote monitoring and control of drive parameters from a central operations room.

Mining & Minerals Processing: In conveyor, hoist, and crusher drive applications, the SDCS-BAB-F02 supports high-torque DC drive configurations where reliable signal adaptation between the control board and power electronics is critical for safe and efficient operation. The 12-Month Warranty provides procurement teams with confidence in long-term parts availability and support continuity.

Architecture Engineering FAQ

Q1: Is the SDCS-BAB-F02 compatible with both SDCS-CON-2 and SDCS-CON-4 control boards?
Yes. The SDCS-BAB-F02 (3ADT316400R0502) is designed for use within the SDCS drive platform and is compatible with both the SDCS-CON-2 and SDCS-CON-4 main control boards. When selecting the appropriate control board for your application, consider that the SDCS-CON-4 offers enhanced processing capability and additional I/O options suitable for complex multi-drive or high-performance applications. Always verify compatibility against the specific firmware version and drive type (DCS550 or DCS800) used in your installation.

Q2: Can the SDCS-BAB-F02 be used in a redundant drive architecture, and what additional components are required?
Yes. The SDCS platform supports master-follower redundancy configurations where a secondary drive — equipped with its own SDCS-BAB-F02, SDCS-CON-4, and SDCS-POW-4 — can take over control in the event of a primary drive fault. Implementing this architecture requires careful configuration of the SDCS-COM communication adapter for inter-drive synchronization, as well as appropriate switchover logic at the PLC or DCS level. Our engineering team can provide application-specific guidance on redundancy design for your process requirements.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions for a period of 12 months from the date of shipment. For maintenance planning purposes, we recommend maintaining a strategic spare of the SDCS-BAB-F02 in your site inventory to minimize drive downtime in the event of a board failure. Our global logistics network supports fast replacement shipping to minimize production impact, and our technical support team is available to assist with installation verification and commissioning of replacement boards.
