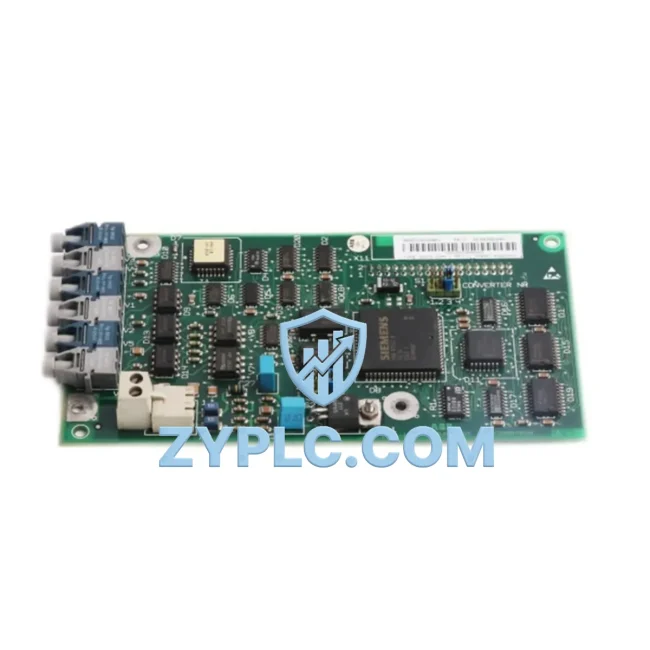

ABB SDCS-COM-1 3BSE005028R1 System-Ready Drive Link for SDCS Architecture

ABB SDCS-COM-1 3BSE005028R1 System-Ready Drive Link for SDCS Control Architecture

The ABB SDCS-COM-1 (3BSE005028R1) is a dedicated Drive Link communication board engineered for deployment within ABB’s SDCS DC drive platform. Rather than functioning as a standalone component, this module occupies a critical position in the layered control architecture — bridging the drive execution layer with the supervisory control layer, enabling deterministic, high-integrity signal exchange across the full automation hierarchy. In modern industrial control environments, where system consistency, redundancy, and long-term maintainability are non-negotiable, the SDCS-COM-1 delivers the communication backbone that keeps the entire drive system synchronized and responsive.

Understanding the SDCS-COM-1’s role requires viewing it within the broader context of a coordinated control system. At the control layer, a programmable logic controller or distributed control system — such as an ABB AC500 PLC or ABB Symphony Plus DCS — issues speed, torque, and direction commands. These commands travel through the communication network, where the SDCS-COM-1 acts as the protocol translator and signal conditioner, ensuring that the SDCS DC drive receives accurate, time-stamped instructions without latency or data corruption. At the I/O layer, analog and digital signals from field instruments — encoders, tachometers, current transducers — feed into the drive’s I/O modules, while the SDCS-COM-1 ensures that feedback data is correctly routed back to the supervisory system for closed-loop regulation. This bidirectional signal integrity is what makes the SDCS-COM-1 indispensable in precision drive applications.

From a network layer perspective, the SDCS-COM-1 supports ABB’s proprietary Drive Link protocol, enabling seamless integration with ABB’s drive communication ecosystem. This protocol compatibility ensures that the SDCS-COM-1 can coexist with other communication-capable modules in the same control cabinet, including fieldbus adapters and gateway modules that bridge to PROFIBUS, Modbus, or PROFINET networks. The result is a flexible, scalable communication architecture that can be expanded as process requirements evolve — without requiring a complete system redesign.

At the power layer, the SDCS-COM-1 operates within the SDCS drive’s internal power distribution framework, drawing regulated DC supply from the drive’s internal bus. This eliminates the need for external power conditioning and simplifies cabinet wiring, reducing the risk of ground loops or EMI interference that could compromise communication integrity. The board’s compact form factor and direct plug-in installation on the SDCS drive’s option slot further reduce installation complexity and cabinet footprint.

For human-machine interface integration, the SDCS-COM-1 enables real-time drive status data — including speed feedback, current draw, fault codes, and operational mode — to be transmitted to SCADA systems, operator panels, or HMI terminals. This transparency supports proactive maintenance strategies, allowing engineering teams to identify developing faults before they escalate into unplanned downtime. In conjunction with ABB’s drive diagnostic tools, the SDCS-COM-1 facilitates remote commissioning and parameter adjustment, reducing the need for on-site intervention during system tuning or post-maintenance verification.

Architecture Specification Table

Coordinated Control System Design

The SDCS-COM-1 achieves its full value when integrated within a complete SDCS-based drive system. At the drive core, the SDCS-CON-2 control board provides the closed-loop regulation algorithms — speed control, current control, and field weakening — while the SDCS-COM-1 handles all external communication tasks, keeping the control board focused on real-time drive regulation without communication overhead. The SDCS-POW-1 power interface board manages the thyristor firing signals and power bridge interface, while the SDCS-IOB-3 I/O expansion board extends the drive’s analog and digital I/O capacity for complex process applications.

In multi-drive installations, the SDCS-COM-1 enables coordinated drive control across multiple SDCS units, supporting master-follower configurations where a single supervisory controller manages speed ratios, torque sharing, or position synchronization across several drives simultaneously. This is particularly valuable in winding, unwinding, and draw roll applications in paper, textile, and metal processing lines, where precise speed coordination between drives is essential for product quality and process stability.

For cabinet-level integration, the SDCS-COM-1 coexists with ABB NINT-41 or NINT-43 fieldbus adapter modules, which provide the gateway between the SDCS drive’s internal communication bus and plant-wide fieldbus networks. Terminal modules, surge protection components, and shielded cable assemblies complete the cabinet wiring, ensuring that the communication signals carried by the SDCS-COM-1 remain clean and interference-free across the full cable run from the control cabinet to the supervisory system. Relay output modules and analog signal conditioners at the I/O layer further extend the drive system’s interface capability, enabling integration with legacy instrumentation and third-party control systems.

Application in Layered Automation Systems

The SDCS-COM-1 finds application across a wide range of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, variable-speed applications. In steel and metals processing, SDCS-based drive systems equipped with the SDCS-COM-1 control rolling mill main drives, coiler drives, and tension reel systems, where precise speed and torque control — combined with reliable supervisory communication — is essential for product dimensional accuracy and surface quality. The SDCS-COM-1’s Drive Link communication capability ensures that the mill automation system receives real-time drive feedback, enabling adaptive control strategies that respond to changing material properties and process conditions.

In the mining and minerals sector, SDCS drives with SDCS-COM-1 communication boards control conveyor drives, hoist drives, and crusher drives in environments characterized by heavy electrical noise, vibration, and temperature extremes. The board’s robust design and ABB’s proven SDCS platform reliability make it a trusted choice for applications where drive failure carries significant safety and production consequences. In water and wastewater treatment facilities, SDCS-based pump and blower drives equipped with the SDCS-COM-1 integrate with SCADA systems to enable remote monitoring, automated process control, and predictive maintenance scheduling — reducing operational costs and extending equipment service life.

In the power generation and utilities sector, SDCS drives with SDCS-COM-1 boards control excitation systems, auxiliary drives, and cooling system drives in power plants, where system reliability and communication integrity are paramount. The 12-Month Warranty provided with every SDCS-COM-1 unit from ZYPLC ensures that plant engineers can deploy replacement boards with confidence, knowing that each unit has been tested and verified against ABB’s original performance specifications before shipment.

Architecture Engineering FAQ

Q1: Is the SDCS-COM-1 (3BSE005028R1) compatible with all variants of the SDCS DC drive series?
The SDCS-COM-1 is designed for use with ABB’s SDCS DC drive platform, specifically in conjunction with the SDCS-CON-2 control board. Compatibility should be verified against the specific SDCS drive variant and firmware version in your installation. ZYPLC’s technical team can assist with compatibility verification prior to order placement, ensuring that the replacement board integrates correctly with your existing SDCS system architecture without requiring firmware updates or hardware modifications.

Q2: How does the SDCS-COM-1 support system redundancy and fault tolerance in critical drive applications?
While the SDCS-COM-1 itself operates as a single communication board within the SDCS drive, system-level redundancy can be achieved through architectural design — including redundant supervisory controllers, redundant communication paths, and hot-standby drive configurations. The SDCS-COM-1’s reliable Drive Link communication protocol minimizes communication-related fault events, and its plug-in installation design enables rapid board replacement during maintenance windows, minimizing mean time to repair (MTTR) in the event of a board failure. Maintaining a spare SDCS-COM-1 in inventory is a recommended practice for critical drive applications.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration support long-term system maintenance?
Every SDCS-COM-1 (3BSE005028R1) supplied by ZYPLC carries a 12-Month Warranty covering manufacturing defects and functional performance against ABB’s original specifications. Each board undergoes functional testing prior to shipment, including communication interface verification and electrical parameter checks. Contextual Integration refers to ZYPLC’s approach of supplying components with full awareness of the system architecture in which they will be deployed — ensuring that the supplied board is the correct variant, revision, and configuration for your specific SDCS drive system. This reduces the risk of compatibility issues and accelerates commissioning, supporting long-term system maintainability and minimizing total cost of ownership.
