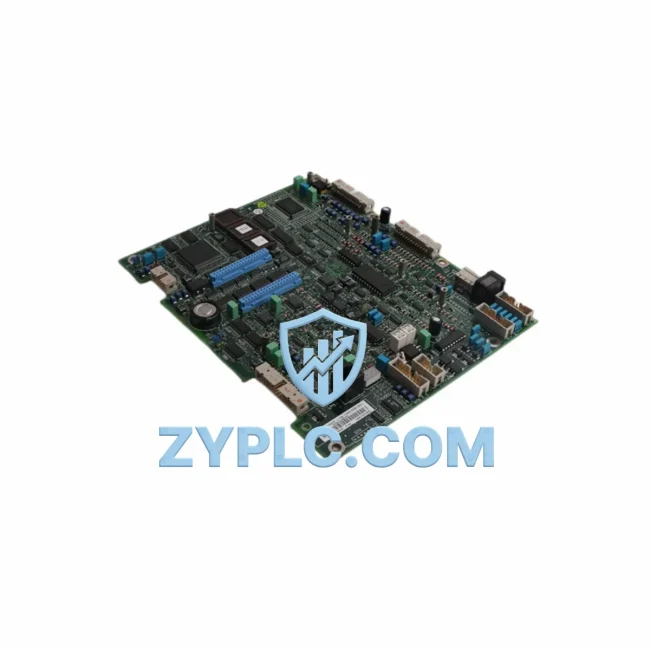

ABB SDCS-CON-1 3BSE006196R1 Energy-Saving DC Drive Control Board

ABB SDCS-CON-1 3BSE006196R1 Energy-Saving DC Drive Control Board for Optimized DCS Automation

The ABB SDCS-CON-1 (3BSE006196R1) is a high-performance DC drive control board engineered for precision motor control and energy-efficient operation within ABB’s DCS600 and DCS800 drive series. Designed for demanding industrial environments, this control module serves as the intelligence layer between the power electronics and the automation system, enabling factories to achieve measurable reductions in energy consumption, minimize unplanned downtime, and optimize production line throughput.

In modern manufacturing facilities where energy costs represent a significant share of operational expenditure, the SDCS-CON-1 delivers closed-loop DC motor control with high dynamic response. By precisely regulating armature current and field excitation, it eliminates the energy waste associated with uncontrolled motor starts, over-speed operation, and inefficient braking cycles. The result is a leaner energy profile across the entire drive system — from the incoming supply through to the motor shaft.

Efficiency Performance Table

Energy-Aware Automation Architecture

The SDCS-CON-1 does not operate in isolation — it is the control nucleus of a broader energy-aware drive architecture. In a typical DCS800 installation, the control board interfaces directly with the SDCS-POW-1 power supply board, which provides regulated logic voltage and ensures stable operation even during line voltage fluctuations. The SDCS-IOB-3 I/O expansion board extends the analog and digital signal capacity, allowing the SDCS-CON-1 to receive real-time feedback from torque sensors, encoder modules, and process instruments simultaneously.

For plants running PROFIBUS DP networks, the SDCS-COM-8 fieldbus adapter integrates the drive seamlessly into the plant-wide control backbone, enabling the ABB AC500 PLC or AC800M DCS controller to issue speed and torque setpoints with millisecond-level latency. This tight integration between the PLC layer and the drive layer is what allows production lines to execute precise speed ramps — eliminating the energy spikes that occur during abrupt motor transitions.

In paper and pulp applications, the SDCS-CON-1 is frequently paired with the SDCS-FEX-2 field excitation board to manage separately excited DC motors with high field-weakening accuracy. This combination allows the motor to operate at optimal flux levels across the full speed range, reducing iron losses during light-load periods and recovering energy during deceleration phases. When integrated with the ACS880 AC drive on auxiliary systems — such as fans, pumps, and compressors — the overall plant energy footprint can be reduced substantially.

For energy monitoring and power quality analysis, the SDCS-CON-1 architecture is complemented by ABB’s M2M DMTME series power meters and B23 energy meters, which provide per-circuit kWh tracking and harmonic distortion data. This data feeds into the plant’s energy management system, enabling engineers to identify inefficient operating windows, correlate energy peaks with production events, and schedule high-load operations during off-peak tariff periods.

The SDCS-CON-1 also supports integration with the Panel Builder 600 HMI platform, giving operators a real-time view of drive status, current limits, speed references, and fault history — all critical inputs for predictive maintenance scheduling and energy audit reporting.

Power Optimization in Real Production Lines

In steel rolling mills, the SDCS-CON-1 governs the main drive motors that control rolling speed and tension across multiple stands. By maintaining precise armature current control, it prevents the over-current events that cause thermal stress on motor windings and increase cooling energy demand. Facilities that have migrated from older thyristor controllers to SDCS-CON-1-based systems report reductions in motor-related energy waste of 8–15%, primarily through elimination of reactive current components and improved power factor at partial loads.

In winding and unwinding applications — common in film, foil, and textile manufacturing — the SDCS-CON-1’s tension control algorithms ensure that web tension remains constant regardless of roll diameter changes. This eliminates the need for mechanical brakes and clutches, which are significant sources of energy dissipation and maintenance cost. The regenerative braking capability of the DCS800 drive, managed by the SDCS-CON-1, returns kinetic energy to the DC bus during deceleration, further reducing net energy consumption per production cycle.

For crane and hoist applications, the SDCS-CON-1 enables four-quadrant operation — motoring and regenerating in both directions — which is essential for energy recovery during lowering operations. In high-cycle crane environments, this regenerative capability can offset a meaningful portion of the lifting energy, directly reducing electricity costs and carbon intensity per lift cycle.

From a maintenance perspective, the SDCS-CON-1’s onboard diagnostics continuously monitor drive health parameters including current ripple, field current stability, and thermal margins. Anomalies are flagged before they escalate into failures, allowing maintenance teams to schedule interventions during planned downtime windows rather than responding to unplanned breakdowns. This predictive maintenance posture reduces mean time to repair, extends motor service life, and keeps production line OEE (Overall Equipment Effectiveness) at target levels.

Every SDCS-CON-1 unit supplied by ZYPLC undergoes a full functional test protocol prior to shipment, including power-on verification, I/O signal integrity checks, and communication port validation. Units are shipped with a 12-month warranty, and our inventory is maintained to support rapid dispatch for urgent replacement requirements.

Energy Optimization FAQ

Q1: How does the SDCS-CON-1 3BSE006196R1 contribute to energy savings in DC drive systems?
The SDCS-CON-1 implements closed-loop current and speed control that eliminates uncontrolled motor starts, reduces reactive power draw, and enables regenerative braking. These functions collectively reduce energy waste across the full operating cycle of the DC drive, with the greatest gains realized in high-inertia and high-cycle applications such as winders, cranes, and rolling mills.

Q2: Is the SDCS-CON-1 compatible with both DCS600 and DCS800 series drives?
Yes. The SDCS-CON-1 (3BSE006196R1) is designed for use within the ABB DCS600 and DCS800 DC drive platforms. It is compatible with associated expansion boards including SDCS-IOB-1, SDCS-IOB-3, SDCS-POW-1, SDCS-FEX-2, and communication adapters such as SDCS-COM-1 and SDCS-COM-8. Always verify the firmware revision and hardware variant against your drive’s documentation before installation.

Q3: Can this board replace a faulty SDCS-CON-1 in an existing installation without full drive replacement?
In most cases, yes. The SDCS-CON-1 is a modular control board designed for field replacement. Provided the power electronics and motor are in serviceable condition, replacing the control board is a cost-effective alternative to full drive replacement. ZYPLC recommends verifying the hardware revision and parameter backup before swapping the board to ensure seamless recommissioning.

Q4: What does the 12-month warranty cover, and what is the testing process?
All SDCS-CON-1 units supplied by ZYPLC are tested prior to shipment using a structured functional verification process that includes power supply integrity, analog and digital I/O signal checks, and communication port validation. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Units that fail within the warranty period are repaired or replaced at no charge. Contact our team at [email protected] for warranty claims and RMA processing.
