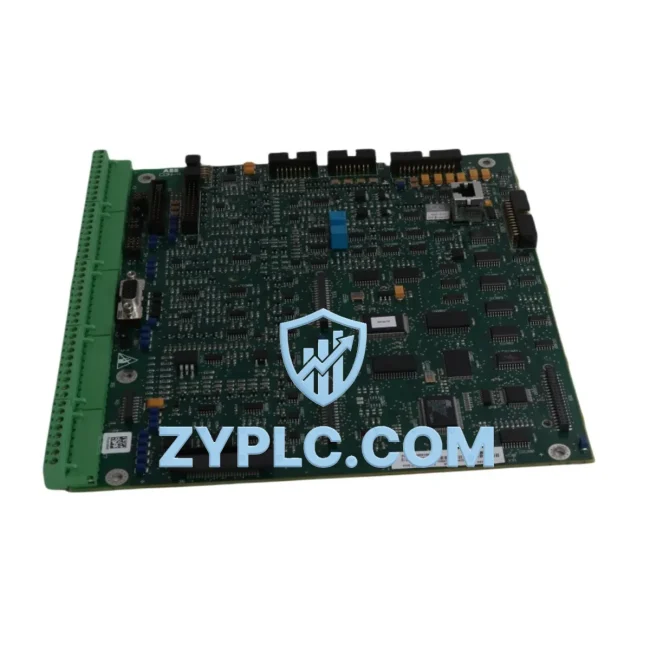

ABB SDCS-CON-2B-COAT System-Ready Control Board for DCS Drive Architecture

ABB SDCS-CON-2B-COAT System-Ready Control Board for DCS Drive Architecture

The ABB SDCS-CON-2B-COAT is a conformal-coated DC drive control board engineered for deployment within ABB’s DCS series drive architecture. Designed to serve as the central intelligence layer of a DC motor control system, this board coordinates signal processing, closed-loop regulation, and communication interfacing across the full control hierarchy — from field-level I/O to supervisory SCADA systems. Its conformal coating makes it particularly suited for harsh industrial environments where humidity, dust, and chemical exposure are operational realities.

In modern layered automation systems, the control board does not operate in isolation. It sits at the intersection of the power conversion layer, the feedback signal layer, and the supervisory command layer. The SDCS-CON-2B-COAT integrates directly with the ABB DCS550 and DCS800 drive platforms, receiving speed and torque references from the upper control layer while simultaneously managing armature current regulation, field excitation control, and encoder feedback processing. This tight integration ensures that the drive responds predictably to dynamic load changes — a critical requirement in applications such as winding machines, extruders, and rolling mills.

From an architecture standpoint, the SDCS-CON-2B-COAT interfaces with the SDCS-POW-1 power supply board, which provides the regulated DC voltages required for the control electronics. The SDCS-IOB-3 I/O expansion board extends the analog and digital I/O capacity of the system, enabling connection to field instruments, limit switches, and process sensors without additional signal conditioning hardware. For applications requiring fieldbus connectivity, the RDCO-03 DDCS communication option module enables fiber-optic communication with ABB’s AC800M or AC500 PLC platforms, supporting deterministic data exchange at the control layer.

Redundancy and fault tolerance are central to the SDCS-CON-2B-COAT’s role in critical process environments. In power generation and heavy industry applications, drive redundancy is often achieved by maintaining a hot-standby drive unit with a pre-configured SDCS-CON-2B-COAT installed and parameterized. The conformal coating on this variant extends board life in environments where standard boards would degrade within months, reducing unplanned downtime and extending mean time between failures (MTBF). Maintenance teams can swap the control board independently of the power section, minimizing repair time and avoiding full drive replacement costs.

At the human-machine interface layer, the SDCS-CON-2B-COAT supports parameter access and diagnostics through the ABB CDP312R control panel, which connects directly to the drive’s panel port. For remote monitoring and parameter management, integration with ABB’s DriveWindow Light software over a USB-to-DDCS adapter allows engineers to upload, download, and compare parameter sets across multiple drives — a significant advantage during commissioning of multi-drive systems or after a board replacement event.

The board’s architecture supports both speed and torque control modes, with configurable ramp functions, PID regulation, and motor thermal protection. These features are essential in applications such as paper machine section drives, where precise speed synchronization between multiple drive axes determines product quality. In such systems, the SDCS-CON-2B-COAT works in concert with the SDCS-FEX-2 field excitation board to maintain optimal flux levels across varying load conditions, ensuring smooth torque delivery and minimizing mechanical stress on the motor and driven equipment.

For system integrators and OEM panel builders, the SDCS-CON-2B-COAT offers a well-documented parameter structure compatible with existing DCS400 and DCS550 configurations, reducing engineering time when upgrading legacy systems. The board’s firmware supports macro-based configuration, allowing rapid deployment of standard application templates for common drive functions such as pump control, conveyor drives, and hoist applications. This reduces commissioning time and ensures consistency across installations.

Long-term supply chain reliability is a key consideration for maintenance planners in industries with extended asset lifecycles. ZYPLC maintains verified stock of the SDCS-CON-2B-COAT with full functional testing prior to shipment, supported by a 12-Month Warranty covering manufacturing defects and operational failures under normal use conditions. Each unit is inspected for coating integrity, connector condition, and firmware version compatibility before dispatch.

Architecture Specification Table

Coordinated Control System Design

The SDCS-CON-2B-COAT functions as the command and regulation core within a coordinated DC drive system. Its upstream interface connects to the plant’s PLC or DCS — typically an ABB AC800M controller or AC500 PLC — via the RDCO-03 DDCS fiber-optic communication module. This link carries speed references, torque limits, and control word commands in real time, enabling the supervisory system to manage drive behavior dynamically in response to process conditions.

At the power layer, the SDCS-POW-1 board supplies the stabilized DC voltages that the SDCS-CON-2B-COAT requires for its logic circuits and gate drive outputs. The SDCS-FEX-2 field excitation board operates under the direction of the control board, adjusting field current to maintain the correct flux level for the operating speed range. Together, these three boards form the functional core of the DCS550 or DCS800 drive unit.

I/O expansion is handled by the SDCS-IOB-3 board, which adds analog input channels for process feedback signals such as line speed references from upstream drives, tension feedback from load cells, or temperature signals from motor thermal sensors. Digital I/O expansion supports interlocking with safety relays, motor contactors, and external fault circuits — all of which are standard requirements in industrial control cabinet design.

For multi-drive systems, the SDCS-CON-2B-COAT supports master-follower configurations where one drive acts as the speed master and follower drives receive synchronized references via the DDCS link. This architecture is common in paper machines, wire drawing lines, and textile processing equipment where multiple motor axes must maintain precise speed ratios. The CDP312R control panel provides local parameter access and fault diagnostics during commissioning and maintenance, reducing dependence on laptop-based tools in field environments.

Application in Layered Automation Systems

In steel rolling mills and metal processing lines, the SDCS-CON-2B-COAT is deployed in multi-stand drive systems where each rolling stand requires independent speed and torque control with tight inter-drive synchronization. The board’s torque control mode enables tension regulation between stands, preventing strip breakage and ensuring dimensional consistency in the finished product.

In the pulp and paper industry, the board is used in section drives for paper machines, where speed synchronization accuracy directly affects paper quality and reel consistency. The conformal coating of the COAT variant is particularly valuable in these environments, where steam and chemical vapors are present in the machine room atmosphere.

Water treatment and pumping stations use the SDCS-CON-2B-COAT in variable-speed pump drives where energy efficiency and flow control precision are primary requirements. The board’s PID regulation capability allows direct closed-loop control of pump speed based on pressure or flow feedback, eliminating the need for external process controllers in simpler installations.

In mining and mineral processing, the board is applied in conveyor drives, crusher drives, and hoist systems where high torque at low speed and reliable fault detection are essential for operational safety. The 12-Month Warranty and ZYPLC’s verified stock program ensure that replacement boards are available with short lead times, minimizing production losses during unplanned maintenance events.

Architecture Engineering FAQ

Q1: Is the SDCS-CON-2B-COAT directly interchangeable with the standard SDCS-CON-2B without coating?
A: Yes, the SDCS-CON-2B-COAT is functionally identical to the SDCS-CON-2B and is pin-compatible with the same drive chassis. The COAT designation refers solely to the conformal coating applied to the PCB for environmental protection. No firmware or parameter changes are required when substituting one variant for the other within the same DCS550 or DCS800 drive unit.

Q2: What communication options are available for integrating the SDCS-CON-2B-COAT into a PLC-based control architecture?
A: The primary communication path is via the RDCO-03 DDCS fiber-optic module, which connects the drive to ABB’s AC800M or AC500 PLC platforms using the DDCS protocol. For installations requiring fieldbus integration with third-party PLCs, ABB fieldbus adapter modules supporting PROFIBUS-DP, Modbus RTU, or DeviceNet can be installed in the drive’s option slot, with the SDCS-CON-2B-COAT managing the data exchange between the fieldbus interface and the drive’s internal control functions.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims through ZYPLC?
A: The 12-Month Warranty covers manufacturing defects and operational failures occurring under normal operating conditions within twelve months of the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental limits. To initiate a warranty claim, contact ZYPLC at [email protected] or +86 19859288691 with the order reference and a description of the fault. ZYPLC will arrange return shipping and provide a replacement or repaired unit upon fault verification.
