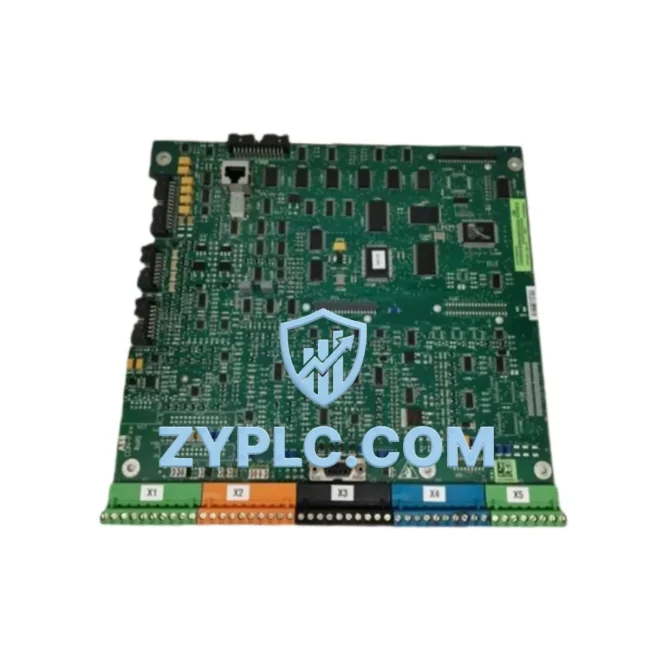

ABB SDCS-CON-F01 Energy-Saving Control Board DCS800

ABB SDCS-CON-F01 Energy-Saving Control Board DCS800: Precision Motor Control for Optimized Production Lines

The ABB SDCS-CON-F01 (part number 3ADT316500R1501) is a high-performance control board engineered specifically for the ABB DCS800 series DC drive platform. Designed to deliver precise armature current regulation, field excitation control, and real-time feedback processing, this board sits at the heart of energy-efficient motor drive systems across heavy industrial environments — from steel rolling mills and paper machines to mining conveyors and marine propulsion systems. By maintaining tight control over motor torque and speed, the SDCS-CON-F01 directly reduces unnecessary energy draw, eliminates reactive power losses, and extends the operational lifespan of connected DC motors.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully integrated DCS800 drive system, the SDCS-CON-F01 does not operate in isolation — it functions as the intelligence layer that coordinates signals across the entire drive cabinet and plant automation network. The board interfaces directly with the SDCS-POW-4 power supply board, which provides the regulated internal voltages required for stable control logic operation. Firing pulses for the thyristor bridge are synchronized through the SDCS-PIN-51 pulse transformer board, ensuring precise phase control that minimizes harmonic injection back into the supply network.

For I/O expansion and real-world signal acquisition, the SDCS-CON-F01 communicates with the SDCS-IOB-3 I/O extension board, enabling connection of analog tachometers, encoder feedback, temperature sensors, and process interlocks. Field excitation is managed in coordination with the SDCS-FEX-2 field excitation board, which the CON-F01 regulates to maintain optimal flux levels — a critical factor in achieving maximum motor efficiency across variable load conditions. Over-excitation is one of the most common sources of hidden energy waste in DC motor systems, and the SDCS-CON-F01’s closed-loop field control directly addresses this.

At the supervisory level, the SDCS-CON-F01 connects to plant DCS or SCADA systems via the DDCS fiber optic communication network, supporting master-follower configurations and multi-drive coordination. For drives integrated into ABB’s broader automation ecosystem, the board is fully compatible with DriveWindow PC software for parameter management, drive diagnostics, and energy consumption trending. In plants running ABB’s AC500 PLC or 800xA distributed control system, the DCS800 with SDCS-CON-F01 can be fully integrated into the plant-wide energy management loop, enabling real-time power monitoring and load optimization across multiple drive axes simultaneously.

For applications requiring harmonic mitigation, the SDCS-CON-F01’s firing angle control can be tuned in conjunction with line reactors or ABB RVAR reactive power compensation units to maintain power factor above 0.95 even under dynamic load conditions — a measurable reduction in utility demand charges for high-power industrial facilities.

Power Optimization in Real Production Lines

Consider a steel wire drawing line running multiple DC motors in a cascade configuration. Without precise control board coordination, speed mismatches between drawing stages create mechanical tension — forcing motors to draw excess current to compensate. The SDCS-CON-F01, operating within each DCS800 drive unit, maintains tight speed synchronization through its real-time current and speed regulation loops. The result is a measurable reduction in inter-stage tension losses, lower average current draw across the line, and a direct reduction in kWh consumption per ton of wire produced.

In paper machine applications, the SDCS-CON-F01 enables section-by-section draw control across the wet end, press section, and dryer section. By maintaining precise torque ratios between sections, the board prevents sheet breaks — each of which represents not only lost production time but also the energy cost of restarting and re-threading the machine. Predictive maintenance is further supported through the board’s ability to log drive fault codes and current waveform anomalies, which can be trended over time via DriveWindow to identify bearing wear, brush degradation, or commutator issues before they cause unplanned downtime.

For mining hoist and conveyor applications, the SDCS-CON-F01 enables regenerative braking — converting the kinetic energy of a descending load back into electrical energy that is fed back to the DC bus or supply network. In a typical underground mine hoist cycle, regenerative braking can recover 15–30% of the energy consumed during the hoisting phase, directly reducing net energy cost per tonne hoisted. This capability is fully managed by the SDCS-CON-F01’s four-quadrant control logic, requiring no additional hardware beyond the standard DCS800 drive configuration.

All units supplied by ZYPLC are pull-tested, functionally verified on a live DCS800 test rig, and shipped with a 12-month warranty. Stock is maintained for immediate dispatch, minimizing production line downtime during emergency replacement scenarios.

Energy Optimization FAQ

Q1: How does the SDCS-CON-F01 contribute to measurable energy savings in DC motor systems?
The SDCS-CON-F01 optimizes both armature current control and field excitation regulation. By preventing over-excitation and maintaining the optimal flux-to-torque ratio at all load points, it reduces iron losses and copper losses in the motor. In multi-drive systems, its speed synchronization capability eliminates mechanical tension losses between process stages. Combined with regenerative braking support, facilities typically report 10–25% reductions in drive-related energy consumption after replacing a faulty or degraded control board.

Q2: Is the SDCS-CON-F01 compatible with all DCS800 drive frame sizes?
Yes. The SDCS-CON-F01 (3ADT316500R1501) is the standard control board used across the DCS800 series from the smallest frame sizes up to the largest high-current configurations. It interfaces with the SDCS-POW-4, SDCS-IOB-3, SDCS-PIN-51, and SDCS-FEX-2 boards regardless of drive frame size. Always verify the firmware version compatibility with your existing drive configuration before installation — ZYPLC’s technical team can assist with version matching.

Q3: What is the recommended replacement procedure and how long does it take?
Replacement of the SDCS-CON-F01 is a board-swap procedure that typically takes 30–60 minutes for a trained drive technician. The drive parameters are stored in the board’s memory, so parameter backup via DriveWindow prior to replacement is strongly recommended. After installation, a commissioning check covering current regulator tuning, speed feedback verification, and field excitation calibration should be performed. ZYPLC provides pre-tested boards that are ready for installation, minimizing recommissioning time.

Q4: What does the 12-month warranty cover and what is the testing process?
Every SDCS-CON-F01 supplied by ZYPLC undergoes functional testing on a live DCS800 drive test bench, verifying current regulation response, field excitation output, communication interface integrity, and fault detection logic. The 12-month warranty covers component failure under normal operating conditions. Boards damaged by external causes such as supply voltage surges, incorrect installation, or physical damage are assessed case by case. Warranty claims are processed within 5 business days, with replacement boards dispatched from stock to minimize your production downtime.
