ABB SDCS-FEX-2A 3ADT311500R1 System-Ready Excitation for SDCS Architecture

ABB SDCS-FEX-2A 3ADT311500R1 System-Ready Excitation for SDCS Architecture: Control System Architecture and Upstream-Downstream Coordination

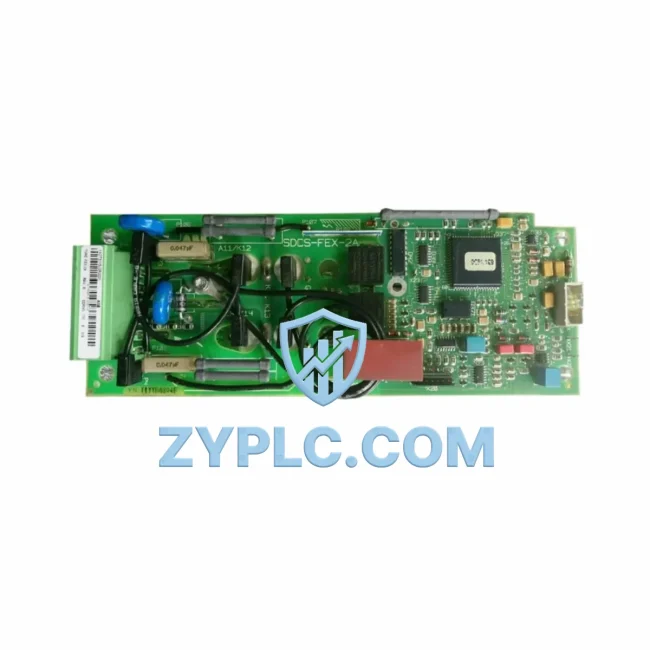

The ABB SDCS-FEX-2A (part number 3ADT311500R1) is a dedicated field excitation module engineered for seamless integration within ABB’s SDCS and DCS800 DC drive control architecture. Rather than functioning as a standalone component, the SDCS-FEX-2A occupies a critical position in the layered automation hierarchy — bridging the control layer, power conversion layer, and field excitation layer to deliver precise, stable, and coordinated DC motor control across demanding industrial environments.

In modern industrial automation, the reliability of a DC drive system depends not only on the performance of individual modules but on the coherence of the entire control architecture. The SDCS-FEX-2A is designed with this systems-level philosophy at its core, enabling engineers to build excitation circuits that are fully synchronized with the main converter, the supervisory controller, and the field bus communication network. Its role in maintaining field current stability directly impacts motor torque response, speed regulation accuracy, and overall drive system availability — making it an indispensable element in high-continuity production environments.

Architecture Specification Table

Coordinated Control System Design

The SDCS-FEX-2A achieves its full potential when deployed as part of a coordinated ABB DCS800 or SDCS-based drive system. At the control layer, the SDCS-CON-2 control board serves as the central intelligence unit, issuing field current reference signals to the SDCS-FEX-2A based on speed feedback, torque demand, and process setpoints received from the supervisory PLC or DCS. This tight coupling between the control board and the excitation module ensures that field weakening, field forcing, and steady-state excitation are executed with millisecond-level precision.

On the power supply side, the SDCS-POW-4 power supply board provides the auxiliary voltages required by the control electronics within the drive cabinet, ensuring that both the SDCS-CON-2 and SDCS-FEX-2A receive clean, regulated power independent of the main converter bus. This separation of control power from armature power is a fundamental principle of robust DC drive architecture, and the SDCS-FEX-2A is designed to operate reliably within this framework.

For I/O integration, the SDCS-IOB-3 I/O extension board expands the analog and digital signal capacity of the drive system, allowing field engineers to connect speed encoders, temperature sensors, and external interlocks directly into the drive’s control loop. The SDCS-FEX-2A responds to these signals through the SDCS-CON-2, adjusting field current in real time to maintain optimal motor performance under varying load conditions.

Communication with the plant-level SCADA or DCS is typically handled through a NPBA-12 PROFIBUS Adapter or NMBА-01 Modbus Adapter, which translates drive status data — including field current feedback from the SDCS-FEX-2A — into standard fieldbus telegrams readable by Siemens S7, Rockwell ControlLogix, or ABB AC500 PLCs acting as supervisory controllers. This Contextual Integration capability ensures that the excitation module’s operating state is always visible at the system level, enabling predictive maintenance and remote diagnostics.

In redundant drive architectures, a standby DCS800-S04 converter module may be configured in parallel with the primary drive, with the SDCS-FEX-2A shared or duplicated to maintain field excitation continuity during converter switchover. This design is particularly common in critical applications such as paper machine drives, mine hoists, and rolling mill main drives, where any interruption in field excitation would result in uncontrolled motor deceleration and process disruption.

At the human-machine interface layer, an ABB CP600 HMI panel or equivalent operator terminal provides real-time visualization of field current, armature voltage, motor speed, and drive fault status. Operators can monitor the SDCS-FEX-2A’s contribution to overall drive performance and initiate field forcing or field reduction sequences directly from the HMI, without requiring manual intervention at the drive cabinet.

Terminal connectivity within the drive cabinet is managed through Phoenix Contact or Weidmüller DIN rail terminal blocks, which provide reliable, vibration-resistant connections for the field winding cables, feedback signals, and auxiliary power feeds associated with the SDCS-FEX-2A installation. Proper terminal selection and torque specification are essential for maintaining connection integrity in high-vibration industrial environments.

Application in Layered Automation Systems

Steel and Metals Processing: In rolling mill and wire drawing applications, the SDCS-FEX-2A supports precise field current control during speed range extension through field weakening. The module’s fast response to control board commands enables smooth transitions between constant torque and constant power operating regions, which is critical for maintaining product quality and preventing mechanical stress on the drive train.

Mining and Hoisting: Mine hoist drives demand the highest levels of reliability and safety. The SDCS-FEX-2A’s integration with the SDCS-CON-2 control board allows the drive system to implement field forcing during rapid acceleration and regenerative braking sequences, ensuring that the motor develops maximum torque when required while maintaining safe deceleration profiles during emergency stops.

Pulp and Paper Manufacturing: Paper machine section drives require extremely tight speed coordination across multiple drive axes. The SDCS-FEX-2A contributes to this coordination by maintaining stable field excitation across all operating speeds, reducing the risk of speed deviations that could cause web breaks or quality defects. Its compatibility with the DCS800 platform makes it suitable for both new installations and retrofit projects on legacy paper machine drives.

Chemical and Petrochemical Plants: In process industries where continuous operation is paramount, the SDCS-FEX-2A’s robust design and compatibility with redundant drive architectures make it a preferred choice for critical pump and compressor drives. The module’s ability to maintain field excitation during converter maintenance or fault recovery minimizes process downtime and reduces the risk of unplanned shutdowns.

Water and Wastewater Treatment: Large pump drives in water treatment facilities benefit from the SDCS-FEX-2A’s stable excitation control, which supports smooth motor starting and stopping sequences that minimize hydraulic transients in the pipeline system. Integration with plant-level SCADA through PROFIBUS or Modbus adapters enables remote monitoring and control of the drive system from the central control room.

Architecture Engineering FAQ

Q1: Is the SDCS-FEX-2A compatible with both the original SDCS series and the newer DCS800 platform?
Yes. The SDCS-FEX-2A (3ADT311500R1) is designed for use within the ABB SDCS drive family and is also compatible with DCS800 systems that utilize the SDCS control board architecture. When retrofitting or upgrading an existing SDCS installation to DCS800, the SDCS-FEX-2A can typically be retained, reducing upgrade costs and preserving existing wiring. Always verify compatibility with the specific DCS800 firmware version and SDCS-CON board revision before installation.

Q2: What are the key installation and commissioning considerations for the SDCS-FEX-2A in a new drive system?
During commissioning, the field current reference scaling parameters must be configured in the SDCS-CON-2 control board to match the motor’s rated field current and field resistance. The SDCS-FEX-2A’s output should be verified against the motor nameplate data using a calibrated clamp meter before the drive is run under load. Cable routing for field winding connections should be separated from armature power cables to minimize electromagnetic interference. All terminal connections should be torqued to the manufacturer’s specification and re-checked after the first 24 hours of operation. Our technical team can provide commissioning support documentation as part of the 12-Month Warranty service package.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, ZYPLC provides replacement or repair of the defective module, with expedited dispatch to minimize drive downtime. For long-term maintenance, we recommend maintaining a spare SDCS-FEX-2A in the site’s critical spares inventory, particularly for drives in continuous 24/7 operation. Our team can assist with spare parts planning, cross-reference verification, and technical documentation to support your maintenance program throughout the module’s service life.
