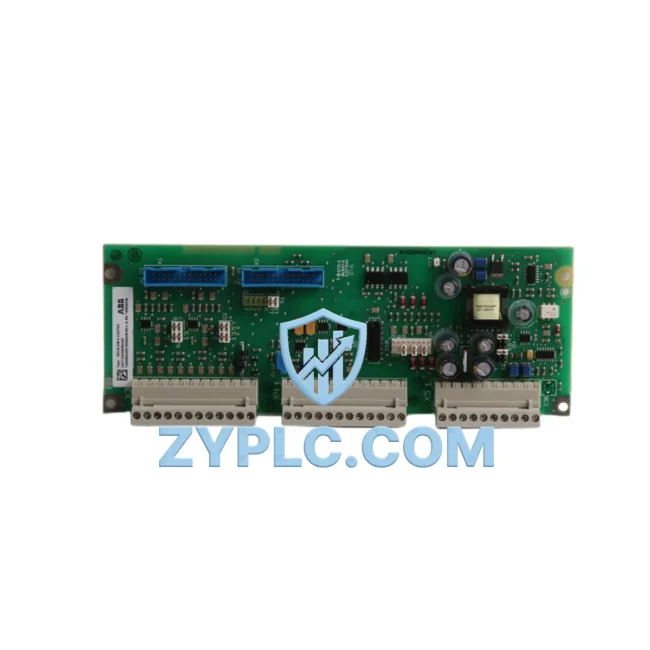

ABB SDCS-IOB-3-COAT 3ADT220090R0020 System-Ready I/O Board for SDCS Architecture

ABB SDCS-IOB-3-COAT 3ADT220090R0020: System-Ready I/O Board for SDCS Control Architecture

The ABB SDCS-IOB-3-COAT (Part No. 3ADT220090R0020) is a conformal-coated I/O expansion board engineered for seamless integration within ABB’s SDCS DC drive control architecture. Rather than functioning as a standalone component, this board is designed to operate as a critical node within a layered automation system — bridging the control layer, I/O layer, and execution layer to deliver consistent signal management, enhanced drive responsiveness, and long-term operational reliability across demanding industrial environments.

In modern DC drive systems, the integrity of the I/O layer directly determines the quality of control loop performance. The SDCS-IOB-3-COAT provides the additional analog and digital I/O capacity required when the base SDCS-CON-4 control board reaches its native channel limits. By expanding the I/O architecture without introducing a secondary control platform, engineers maintain a unified signal topology — reducing latency, simplifying commissioning, and preserving the coherence of the overall drive system design.

Architecture Specification Table

Coordinated Control System Design

The SDCS-IOB-3-COAT achieves its full value when evaluated within the context of a complete ABB DC drive system. At the control layer, the SDCS-CON-4 serves as the primary control board, executing speed and torque regulation algorithms. The SDCS-IOB-3-COAT plugs directly into this control unit, extending its I/O capacity without requiring an external signal conditioning rack or additional PLC I/O modules.

At the power layer, the drive’s thyristor bridge — typically housed within a DCS550 or DCS800 converter cabinet — receives firing commands derived from the control board’s output. The accuracy of these firing signals depends on clean, well-resolved analog feedback, which the SDCS-IOB-3-COAT helps maintain by providing dedicated analog input channels for tachometer, encoder, or process feedback signals.

For applications requiring fieldbus connectivity, the SDCS-COM-8 PROFIBUS adapter or SDCS-COM-81 PROFINET module integrates at the network layer, enabling the drive system to participate in plant-wide SCADA or DCS communication. The SDCS-IOB-3-COAT’s I/O channels can be mapped to fieldbus process data objects, allowing supervisory systems to monitor and command individual drive parameters in real time.

In multi-drive or master-follower configurations — common in paper mills, steel rolling lines, and winding systems — the SDCS-DSL-4 drive-to-drive link enables synchronization between multiple DCS800 units. The SDCS-IOB-3-COAT supports this architecture by providing the additional I/O channels needed for cross-drive interlock signals, speed reference distribution, and torque limit coordination.

At the human-machine interface layer, an ABB CP600 or compatible HMI panel connects via the drive’s serial or Ethernet port, providing operators with real-time visibility into drive status, fault history, and process variables. The expanded I/O provided by the SDCS-IOB-3-COAT ensures that all relevant process signals — including external interlocks, limit switches, and analog process values — are available for display and logging at the HMI level.

For cabinet-level wiring, SDCS-PIN-51 or SDCS-PIN-48 terminal interface boards are commonly used alongside the SDCS-IOB-3-COAT to provide screw-terminal access to the board’s I/O channels, simplifying field wiring and reducing the risk of connector damage during maintenance. The conformal coating on the SDCS-IOB-3-COAT is particularly valuable in environments where the control cabinet may be exposed to condensation or chemical vapors — such as in pulp and paper, chemical processing, or coastal installations.

In redundant drive architectures, a standby SDCS-CON-4 and SDCS-IOB-3-COAT assembly can be pre-configured and held in inventory, enabling rapid board-swap recovery without requiring full drive recommissioning. This approach is consistent with best practices for critical process drives where unplanned downtime carries significant production cost.

Application in Layered Automation Systems

The SDCS-IOB-3-COAT is deployed across a wide range of heavy industrial applications where DC drive technology remains the preferred solution for high-torque, variable-speed control:

Steel and Metals Processing: In rolling mills and wire drawing lines, DC drives controlled by the SDCS platform deliver the precise torque and speed regulation required for consistent product dimensions. The SDCS-IOB-3-COAT provides the additional analog I/O channels needed to interface with tension measurement systems, dancer roll position sensors, and coiler speed references — all within a single, unified drive control architecture.

Pulp and Paper: Paper machine drives require exceptional speed synchronization across multiple drive sections. The SDCS-IOB-3-COAT supports this by expanding the I/O capacity of each section drive, enabling fine-grained draw control and reducing the risk of web breaks caused by speed mismatches between drive sections.

Mining and Mineral Processing: Conveyor drives, hoist systems, and crusher drives in mining applications benefit from the SDCS platform’s robust control architecture. The conformal coating on the SDCS-IOB-3-COAT provides additional protection against the dust and humidity common in underground and open-pit mining environments.

Water and Wastewater Treatment: Pump and blower drives in water treatment facilities operate continuously, often in humid or chemically aggressive environments. The SDCS-IOB-3-COAT’s conformal coating and extended I/O capability make it well-suited for these applications, supporting integration with plant SCADA systems via the drive’s fieldbus interface.

Chemical and Petrochemical: Extruder drives, agitator drives, and compressor drives in process industries require precise speed control and reliable I/O for interlock and safety systems. The SDCS-IOB-3-COAT provides the I/O expansion needed to interface with process instrumentation and safety relay systems within the drive control cabinet.

Architecture Engineering FAQ

Q1: Is the SDCS-IOB-3-COAT compatible with both DCS550 and DCS800 drive platforms?
The SDCS-IOB-3-COAT is designed for use with the SDCS control board family, which is the control platform for ABB’s DCS550 and DCS800 DC drive series. Compatibility depends on the specific firmware version of the SDCS-CON-4 control board installed in the drive. It is recommended to verify the control board firmware version and consult the ABB SDCS-IOB-3 hardware manual (3ADW000379) before installation to confirm compatibility with your specific drive configuration.

Q2: What does the 12-Month Warranty cover, and how is a warranty claim initiated?
The 12-Month Warranty covers manufacturing defects and functional failures occurring under normal operating conditions as specified in the product documentation. It does not cover damage resulting from incorrect installation, operation outside specified electrical or environmental parameters, or physical damage. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the product part number, purchase date, and a description of the fault. Replacement or repair will be arranged based on fault assessment.

Q3: Can the SDCS-IOB-3-COAT be installed and configured without ABB DriveWindow software?
Basic installation of the SDCS-IOB-3-COAT involves physical insertion into the SDCS control unit and connection of field wiring to the I/O terminals. However, full configuration — including I/O channel assignment, scaling, and fieldbus mapping — requires ABB DriveWindow or DriveWindow Light software connected to the drive’s serial port. Parameter group 14 (Analog Inputs), group 15 (Analog Outputs), and groups 10–13 (Digital I/O) must be configured to reflect the expanded I/O provided by the board. ZYPLC can provide pre-commissioning support and parameter documentation to assist with system integration.
