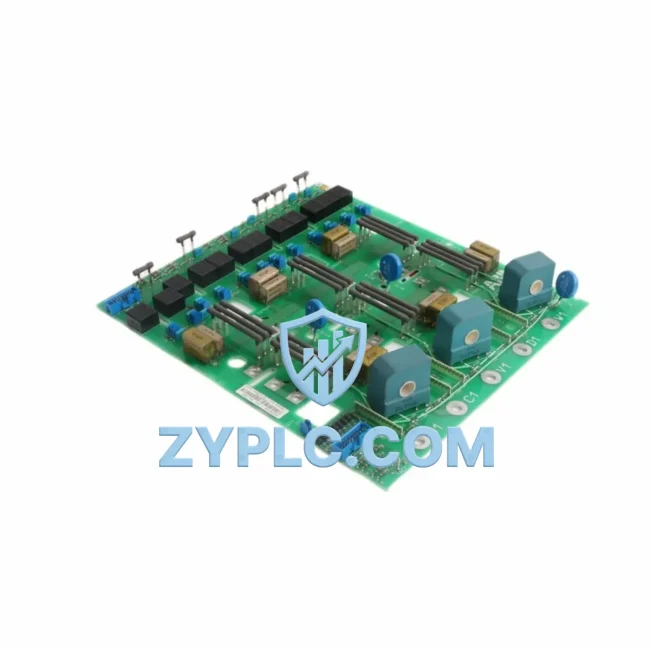

ABB SDCS-PIN-11 3ADT306100R1 Energy-Saving DCS Drive Board

ABB SDCS-PIN-11 3ADT306100R1 Energy-Saving Power Interface Board for Optimized DCS Automation

The ABB SDCS-PIN-11 (Part No. 3ADT306100R1) is a high-performance power interface board engineered for ABB’s DCS series DC drive systems. Designed to serve as the critical bridge between the control logic and the power conversion stage, this module plays a pivotal role in reducing unnecessary energy consumption, stabilizing motor output, and enabling precise drive regulation across demanding industrial production environments. Whether deployed in continuous process lines, heavy-duty motor control centers, or precision manufacturing cells, the SDCS-PIN-11 delivers the signal integrity and power conditioning accuracy that modern energy-aware automation demands.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a well-optimized industrial drive system, every layer of the control architecture contributes to overall energy efficiency. The SDCS-PIN-11 sits at the heart of the ABB DCS drive’s power stage, managing the interface between the SDCS-CON-2B control board and the thyristor firing circuits. When this interface operates with precision, the entire drive system benefits — from reduced harmonic distortion on the supply side to tighter speed regulation at the motor shaft.

In a typical DCS600 installation, the SDCS-PIN-11 works in close coordination with the SDCS-CON-4 control unit, which handles the closed-loop speed and current regulation algorithms. The control board sends firing angle commands derived from real-time feedback — including armature current measured via the SDCS-CUR-1 current measurement board — and the SDCS-PIN-11 translates those commands into precise gate pulses for the thyristor bridge. Any degradation in this interface directly increases switching losses and introduces current ripple, both of which elevate energy consumption and accelerate motor insulation wear.

For facilities running multiple DC drive axes, the SDCS-PIN-11 is often paired with the SDCS-FEX-2 field excitation module, which regulates the motor field current independently of the armature circuit. Proper field weakening — enabled by accurate power interface signaling — allows the motor to operate at higher speeds with reduced field current, directly cutting magnetization losses during light-load production cycles. This is particularly valuable in winding, unwinding, and tension-control applications where load profiles vary continuously.

On the monitoring side, integration with ABB’s SDCS-IOB-3 I/O extension board allows plant engineers to capture real-time drive status signals — including thermal warnings, overcurrent flags, and DC bus voltage levels — and route them to a supervisory Panel 800 HMI or a SCADA system via PROFIBUS-DP or Modbus RTU communication adapters. This closed-loop visibility enables predictive maintenance scheduling, preventing unplanned downtime that would otherwise result in energy-intensive cold restarts and production rhythm disruption.

For facilities transitioning from legacy DCS500 installations to DCS600 platforms, the SDCS-PIN-11 provides a compatible upgrade path that preserves existing motor and transformer infrastructure while delivering improved gate drive accuracy. Complementary components such as the SDCS-POW-1 power supply board and the SDCS-DSL-4 serial link board complete the drive’s internal communication and power distribution architecture, ensuring that energy flows efficiently from the AC supply through the rectifier stage to the DC motor without unnecessary conversion losses.

Power Optimization in Real Production Lines

In paper mills, steel rolling lines, and large-scale material handling systems, DC drive systems based on the ABB DCS platform are often responsible for controlling the highest-power motors on the floor — sometimes exceeding several hundred kilowatts per axis. In these environments, even a marginal improvement in drive efficiency translates directly into measurable reductions in monthly energy expenditure.

The SDCS-PIN-11 contributes to this efficiency in several concrete ways. First, by maintaining clean and precisely timed gate pulses to the thyristor bridge, it minimizes commutation overlap — a phenomenon that, when poorly controlled, increases reactive power draw and reduces the effective power factor of the drive system. A degraded or counterfeit power interface board can introduce timing jitter that forces the drive to operate with a suboptimal firing angle, increasing both heat generation and energy waste.

Second, the board’s role in armature current feedback conditioning directly affects the drive’s ability to maintain constant torque during load transients. In production lines where conveyor speeds must track upstream process rates — such as in coating lines or extrusion systems — poor current regulation leads to speed hunting, which not only wastes energy through repeated acceleration and deceleration cycles but also increases mechanical stress on couplings, gearboxes, and motor bearings, shortening their service life and raising maintenance costs.

Third, because the SDCS-PIN-11 is a factory-tested, OEM-specification component, it eliminates the risk of premature failure associated with non-genuine replacements. Each unit supplied by ZYPLC undergoes a comprehensive pre-shipment functional test simulating real drive operating conditions, including load cycling and thermal stress verification. This testing protocol ensures that the board performs to ABB’s original design specifications from the moment it is installed, avoiding the hidden energy costs of intermittent faults and partial failures that can persist undetected for weeks in a running production environment.

For maintenance teams managing large fleets of DCS drives, having verified spare SDCS-PIN-11 boards in inventory is a key element of a proactive maintenance strategy. Rapid board swap capability reduces mean time to repair (MTTR) from hours to minutes, keeping production lines running at their designed throughput and energy efficiency targets rather than limping along at reduced capacity while awaiting parts.

Energy Optimization FAQ

Q1: How does replacing a faulty SDCS-PIN-11 reduce energy consumption in a DCS drive system?
A degraded SDCS-PIN-11 introduces timing errors in the thyristor gate signals, causing the drive to operate with a non-optimal firing angle. This increases reactive power draw, raises DC bus ripple, and forces the motor to draw more current than necessary to maintain the required torque. Replacing the board with a tested OEM unit restores precise firing angle control, reducing both active and reactive power consumption and improving the overall power factor of the drive installation.

Q2: Is the SDCS-PIN-11 (3ADT306100R1) compatible with all DCS series drives?
The SDCS-PIN-11 is specifically designed for ABB DCS400, DCS500, and DCS600 series DC drive platforms. Compatibility depends on the specific drive variant and firmware revision. We recommend verifying the drive’s hardware configuration document before installation. Our technical team can assist with compatibility confirmation based on your drive’s nameplate data and existing board configuration.

Q3: What does the pre-shipment testing process cover, and how does it ensure reliable operation?
Every SDCS-PIN-11 unit shipped by ZYPLC undergoes a full functional test that includes gate signal output verification, power supply rail checks, isolation resistance measurement, and simulated load cycling. This process validates that the board meets ABB’s original performance specifications and will operate reliably under industrial duty conditions from the first power-on, eliminating the risk of infant mortality failures that can disrupt production and waste energy through unplanned restarts.

Q4: What warranty coverage is provided, and what does it include?
All SDCS-PIN-11 units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement to minimize production downtime. Our inventory is maintained in-stock to support same-day or next-day dispatch for urgent replacement requirements.
