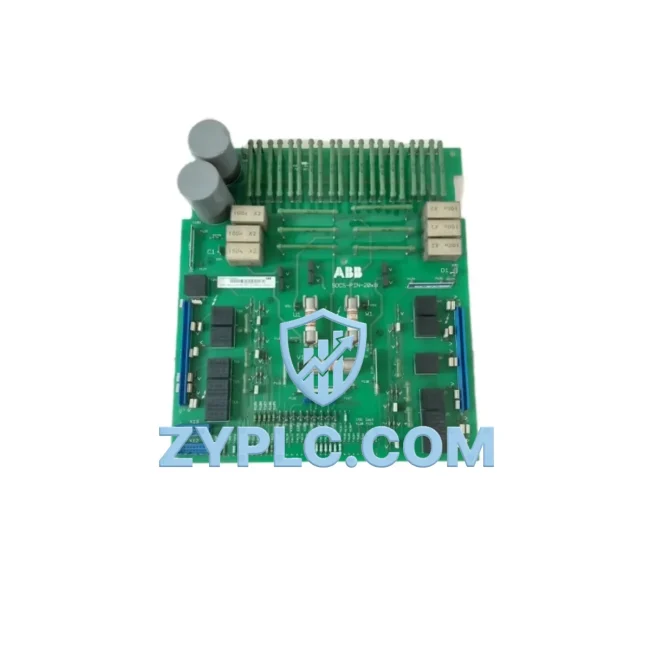

The ABB SDCS-PIN-205B (part number 3ADT312500R0001) is a precision-engineered power interface board designed as a core component within the ABB DCS800 DC drive control architecture. Rather than functioning as a standalone module, the SDCS-PIN-205B operates as an integral node within a layered automation system — bridging the power conversion layer and the digital control layer to ensure stable, coordinated drive operation across demanding industrial environments. Its role within the SDCS (Scalable DC Drive Control System) platform makes it indispensable for engineers designing or maintaining high-availability DC motor control systems in manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process industries.

In a complete DCS800 drive system, the SDCS-PIN-205B interfaces directly with the main control board — typically the SDCS-CON-4 or SDCS-CON-2 — receiving firing pulse commands and translating them into precise thyristor gate signals. This tight coupling between the control layer and the power semiconductor layer is what enables the DCS800 platform to achieve the sub-millisecond response times required in tension-controlled winding lines, reversing rolling mills, and high-inertia hoisting applications. The board’s signal conditioning circuitry filters and isolates feedback signals from the armature and field circuits, protecting the digital control core from electrical noise generated in high-current switching environments.

From a system architecture perspective, the SDCS-PIN-205B sits at the intersection of the power layer and the I/O layer. Above it, the SDCS-CON-4 control board manages the closed-loop speed and current regulation algorithms, communicating via the internal SDCS backplane bus. Below it, the thyristor bridge — whether a 4Q fully controlled bridge or a 2Q half-controlled configuration — receives the gate pulses that determine armature voltage and therefore motor speed and torque. Alongside the SDCS-PIN-205B, the SDCS-FEX-2 field excitation board manages the motor field winding, while the SDCS-DSL-4 digital serial link board enables high-speed communication between the drive and the plant-level PROFIBUS DP or Modbus RTU network. Together, these modules form a tightly integrated control platform that supports both standalone drive operation and coordinated multi-drive line configurations.

At the network and supervisory layer, the DCS800 platform — with the SDCS-PIN-205B properly installed and calibrated — integrates seamlessly with ABB’s AC800M DCS controllers via the AF100 fieldbus or with third-party SCADA systems via PROFIBUS DP adapters such as the RPBA-01. This allows plant operators to monitor armature current feedback, firing angle, drive status, and fault diagnostics from a centralized control room HMI, such as the ABB CP600 or CP430 operator panels. The SDCS-PIN-205B’s onboard measurement circuits provide the real-time current and voltage feedback signals that feed into the DCS800’s adaptive control algorithms, enabling precise load sharing in multi-motor drive trains and smooth speed ramping in process lines where product quality depends on consistent web tension or material flow rate.

For system redundancy and long-term maintainability, the SDCS-PIN-205B is designed for hot-swap replacement within the SDCS modular chassis, minimizing unplanned downtime during corrective maintenance. Its standardized connector interface ensures backward compatibility across multiple generations of the DCS800 platform, allowing maintenance engineers to carry a single spare board that covers a wide range of drive ratings. This modularity is particularly valuable in facilities operating large fleets of DC drives — such as paper mills, steel rolling lines, or offshore platform power management systems — where minimizing spare parts inventory while maximizing equipment availability is a critical operational objective. The board’s conformal coating provides additional protection against humidity, dust, and corrosive atmospheres, extending service life in harsh industrial enclosures.

Engineering teams commissioning new DCS800 installations or retrofitting legacy DC drive systems will find that the SDCS-PIN-205B’s calibration procedure integrates directly with the DriveWindow Light 2 commissioning software, enabling automated parameter upload, firing angle verification, and current loop tuning without manual potentiometer adjustment. This reduces commissioning time significantly compared to older analog drive platforms and ensures that all drive parameters are documented and reproducible — a key requirement for ISO 9001-compliant manufacturing facilities and IEC 61511-regulated process safety systems.

Architecture Specification Table

Coordinated Control System Design

The SDCS-PIN-205B achieves its full performance potential only when correctly integrated within the broader DCS800 control architecture. At the control layer, the SDCS-CON-4 main control board executes the speed and current regulation algorithms, issuing firing angle commands to the SDCS-PIN-205B via the internal backplane. The SDCS-FEX-2 field excitation board works in parallel, regulating the motor field current to maintain optimal flux across the full speed range — a critical function in field-weakening applications such as winder drives and spindle drives. For drives requiring high-speed serial communication with the plant network, the SDCS-DSL-4 digital serial link board provides the PROFIBUS DP or Modbus RTU gateway function, enabling the DCS800 to participate in coordinated multi-drive control schemes managed by an ABB AC800M distributed control system.

At the I/O layer, the SDCS-IOB-3 I/O extension board expands the drive’s analog and digital I/O capacity, supporting additional process feedback signals such as encoder speed reference, external current limit inputs, and drive enable/fault relay outputs. For applications requiring precise speed synchronization between multiple drives — such as multi-stand rolling mills or coordinated conveyor systems — the SDCS-DSL-4 enables peer-to-peer communication between drives at cycle times below 1 ms, ensuring tight speed and torque coupling without relying on the plant-level PLC scan cycle. The power supply for the SDCS control electronics is provided by the SDCS-POW-4 power supply board, which generates the regulated 24 VDC and ±15 VDC rails required by the control and interface boards, including the SDCS-PIN-205B itself.

At the human-machine interface layer, the ABB CP430 or CP600 operator panels connect to the DCS800 via the drive’s serial port or fieldbus adapter, providing real-time display of armature current, motor speed, firing angle, and active fault codes. This visibility is essential during commissioning and for ongoing predictive maintenance programs. For legacy installations where the DCS800 replaces an older Siemens SIMOREG or Eurotherm 590 DC drive, the SDCS-PIN-205B’s standardized interface simplifies the retrofit process, as the control wiring and feedback transducer connections can often be reused with minimal modification.

Application in Layered Automation Systems

In steel and aluminum rolling mills, the SDCS-PIN-205B enables the DCS800 to deliver the precise torque control required for tension regulation between rolling stands. The board’s fast thyristor firing response — coordinated with the SDCS-CON-4’s current loop — ensures that armature current tracks the torque reference within microseconds, preventing strip breakage and maintaining consistent material thickness across the full production speed range.

In paper and board manufacturing, the SDCS-PIN-205B supports multi-drive winder and unwinder configurations where web tension must be maintained within tight tolerances across speed changes and reel changes. The board’s current feedback accuracy directly determines the quality of the tension control loop, making it a critical component in high-value paper grades where surface defects caused by tension variation result in significant product waste.

In petrochemical and refinery applications, the DCS800 with SDCS-PIN-205B drives large DC motors on compressors, extruders, and agitators in hazardous area installations. The board’s galvanic isolation and conformal coating ensure reliable operation in environments with elevated ambient temperatures, chemical vapors, and vibration — conditions that would degrade unprotected electronics within months.

In mining and mineral processing, the SDCS-PIN-205B supports high-inertia hoist and conveyor drives where controlled acceleration and deceleration are essential for both process efficiency and mechanical equipment protection. The board’s integration with the DCS800’s ramp function generator and the SDCS-CON-4’s speed controller ensures smooth torque transitions even under varying load conditions.

In water and wastewater treatment, the DCS800 platform with SDCS-PIN-205B drives DC motors on large pump and blower applications, where energy efficiency and long motor life are prioritized. The board’s precise firing angle control minimizes harmonic distortion in the armature current, reducing motor heating and extending winding insulation life in continuous-duty applications.

Architecture Engineering FAQ

Q1: Is the SDCS-PIN-205B compatible with both the DCS800-S04 and DCS800-S07 drive frame sizes?
Yes. The SDCS-PIN-205B (3ADT312500R0001) is designed for use across multiple DCS800 frame sizes within the SDCS modular control platform. The board interfaces with the SDCS-CON-4 or SDCS-CON-2 control board via the standardized SDCS backplane connector, which is consistent across DCS800-S04 through DCS800-S07 frames. Always verify the specific drive configuration and firmware version with the DCS800 hardware manual (3ADW000379) before installation to confirm compatibility with your exact drive rating and bridge configuration.

Q2: Can the SDCS-PIN-205B be replaced without full drive recommissioning?
In most cases, yes. Because the DCS800’s operating parameters are stored in the SDCS-CON-4 control board’s non-volatile memory — not in the SDCS-PIN-205B itself — replacing the power interface board does not require a full parameter recommissioning cycle. After board replacement, a firing angle verification procedure using DriveWindow Light 2 is recommended to confirm that the new board’s gate drive timing is correctly aligned with the thyristor bridge. This procedure typically takes less than 30 minutes for an experienced drive engineer and does not require motor uncoupling or load testing. The 12-Month Warranty covers the replacement board for the full warranty period from the date of supply.

Q3: What is the lead time and warranty coverage for the SDCS-PIN-205B 3ADT312500R0001?
The SDCS-PIN-205B 3ADT312500R0001 is held in stock and is available for immediate dispatch with standard international shipping to most industrial regions. All units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each board undergoes functional testing prior to dispatch to verify gate drive output integrity and feedback signal accuracy. For urgent plant breakdown situations, expedited shipping options are available — contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 to confirm stock availability and arrange priority dispatch.
