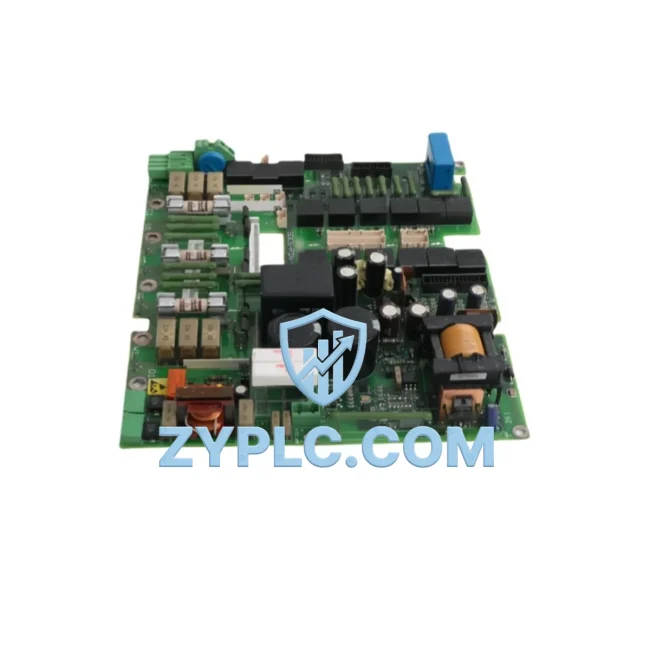

ABB SDCS-PIN-4 3ADT314100R1001 Energy-Saving Interface Board

ABB SDCS-PIN-4 3ADT314100R1001 Energy-Saving Interface Board for Optimized DCS800 Automation

The ABB SDCS-PIN-4 (3ADT314100R1001) is a precision-engineered interface board designed for ABB DCS800 series DC drives, serving as a critical link between the drive’s control logic and its power conversion stage. In modern industrial facilities where energy accountability is no longer optional, this board plays a direct role in how efficiently a DC motor drive responds to load changes, executes speed references, and communicates with upstream control systems. By maintaining signal integrity between the control board and the power interface layer, the SDCS-PIN-4 ensures that the DCS800 drive operates at its rated efficiency envelope — reducing unnecessary switching losses and preventing the energy waste that comes from degraded or mismatched interface components.

Facilities running continuous production lines — from paper mills and metal rolling to plastics extrusion and crane systems — depend on the DCS800 platform for its robust torque control and wide speed range. When the interface board degrades, the entire drive’s energy optimization capability is compromised: speed regulation becomes erratic, current feedback loops lose accuracy, and the drive may draw excess power to compensate for signal noise. Replacing a worn SDCS-PIN-4 with a tested, genuine unit restores the drive’s ability to track energy-efficient operating points precisely.

Efficiency Performance Table

Energy-Aware Automation Architecture

The SDCS-PIN-4 does not operate in isolation — it is one node in a tightly integrated drive and control architecture. In a typical DCS800-based DC drive system, the SDCS-CON-4 control board handles the closed-loop speed and current regulation algorithms, while the SDCS-POW-4 power supply board provides the internal DC rails that keep the control electronics alive during mains fluctuations. The SDCS-PIN-4 sits between these layers, routing analog feedback signals — armature current, field current, tachometer input — with the precision that closed-loop energy optimization demands.

On the field excitation side, the SDCS-FEX-2 field excitation board works in tandem with the SDCS-PIN-4 to regulate field current in separately excited DC motors. Proper field weakening — a key technique for extending the speed range of DC motors above base speed without increasing armature voltage — depends entirely on accurate field current feedback, which the SDCS-PIN-4 helps route cleanly. A degraded interface board introduces noise into this feedback path, causing the drive to over-excite the motor field and waste energy as heat in the motor windings.

For I/O expansion and process integration, the SDCS-IOB-3 I/O extension board connects to the DCS800 system to provide additional digital and analog channels for process sensors, limit switches, and energy metering inputs. When combined with an energy monitoring device such as an ABB B23 energy meter or a CM-EFS energy monitoring relay, the system can log real-time kWh consumption per production cycle, giving plant engineers the data they need to identify inefficient operating windows and schedule predictive maintenance before a component failure causes unplanned downtime.

At the supervisory level, an ABB AC500 PLC or a Siemens S7-1200 / S7-300 PLC typically manages the DCS800 drive via PROFIBUS-DP or Modbus RTU, sending speed setpoints and reading back drive status words. The SDCS-PIN-4’s role in maintaining clean signal paths directly affects the quality of the process data that reaches the PLC — noisy or delayed feedback can cause the PLC’s PID loops to hunt, increasing energy consumption as the drive oscillates around the setpoint rather than settling efficiently. An ABB NPBA-12 PROFIBUS adapter or NMBP-01 Modbus adapter fitted to the DCS800 enables seamless fieldbus integration, and the SDCS-PIN-4 must be in good condition for these communication modules to exchange data reliably.

For HMI visualization, operators monitoring a DCS800-driven process through an ABB CP600 panel or a Siemens KTP700 Basic HMI rely on accurate drive feedback to make real-time decisions about load distribution and energy allocation across the production line. A faulty interface board that corrupts speed or current feedback will display misleading values on the HMI, leading operators to make manual corrections that increase energy consumption unnecessarily.

Power Optimization in Real Production Lines

Consider a steel wire drawing line where multiple DCS800 drives control the tension and speed of successive drawing blocks. Each drive must maintain precise speed ratios to prevent wire breakage and minimize material waste. The SDCS-PIN-4 in each drive unit ensures that the armature current feedback — the primary signal used to calculate motor torque — is transmitted without distortion. When this board is functioning correctly, the DCS800’s internal current controller can respond to load changes within milliseconds, preventing the overcurrent spikes that not only waste energy but also stress motor insulation and shorten motor life.

In a paper machine application, the DCS800 drives controlling the press section and dryer section must maintain tight speed synchronization to prevent sheet breaks. The SDCS-PIN-4 enables the drive to execute speed reference changes from the master PLC with minimal lag, keeping the line running at its optimal production rate. A line running at 98% of target speed due to drive instability caused by a degraded interface board wastes both energy and production capacity — the motors draw nearly the same power but produce less output per kWh consumed.

From a maintenance cost perspective, replacing a SDCS-PIN-4 proactively — rather than waiting for a drive fault that shuts down the line — eliminates the cost of emergency production stops, which in heavy industry can run to thousands of dollars per hour. Our units are fully tested under load conditions before shipment, with all analog signal channels verified for accuracy. Stock availability is confirmed at the time of order, and units are dispatched promptly to minimize your downtime window. Every SDCS-PIN-4 supplied by ZYPLC carries a 12-month warranty, covering both component defects and functional performance.

Energy Optimization FAQ

Q1: How does replacing the SDCS-PIN-4 improve energy efficiency in a DCS800 drive?
A degraded SDCS-PIN-4 introduces noise and signal delay into the drive’s current and speed feedback paths. This causes the drive’s control algorithms to overcorrect, resulting in higher average current draw and increased heat dissipation. A new, tested SDCS-PIN-4 restores clean feedback signals, allowing the DCS800 to regulate motor current precisely at the minimum level needed for the load — directly reducing energy consumption per production cycle.

Q2: Is the SDCS-PIN-4 (3ADT314100R1001) compatible with all DCS800 variants?
The SDCS-PIN-4 is designed for the ABB DCS800 DC drive series and is compatible with the standard DCS800 hardware platform that uses the SDCS-CON-4 control board. If your DCS800 unit uses an earlier control board generation (such as SDCS-CON-2), please confirm the hardware revision of your drive before ordering. Our technical team can assist with compatibility verification based on your drive’s nameplate data.

Q3: What is the testing and inspection process before shipment?
Each SDCS-PIN-4 unit undergoes functional testing that verifies all analog input/output signal channels, power supply rail integrity, and connector condition. Units that do not meet ABB’s original performance specifications are rejected. A test report is available upon request. All units are packed in anti-static packaging with physical protection to prevent transit damage.

Q4: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers functional failure of the SDCS-PIN-4 under normal operating conditions — including signal channel failure, component defects, and board-level faults that prevent the DCS800 drive from operating correctly. Warranty claims are handled directly by ZYPLC. Contact our team with your order reference and a description of the fault; we will arrange a replacement or repair with priority handling to minimize your production downtime.
