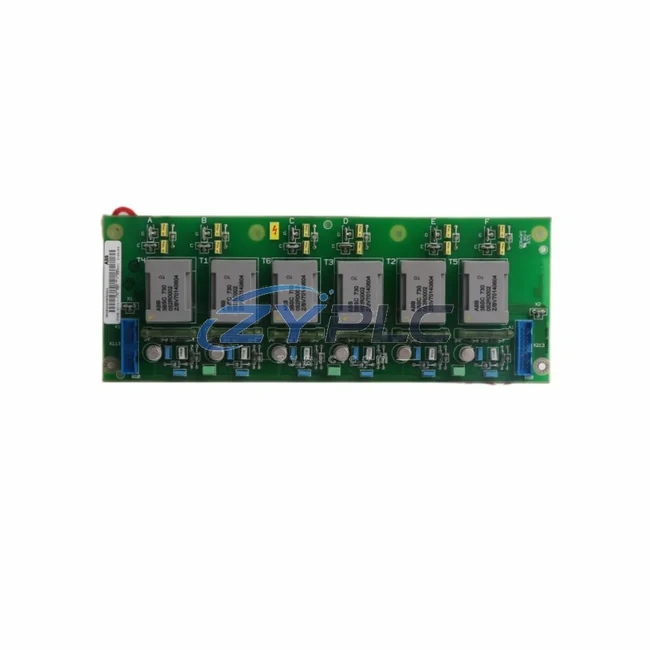

The ABB SDCS-PIN-48 (3BSE004939R0002) is a precision-engineered pulse transformer board designed for ABB’s SDCS series DC drive platforms, including the DCS400, DCS500, and DCS600 families. In modern industrial production environments where energy efficiency and drive reliability are paramount, this board plays a critical role in gate pulse isolation and thyristor firing accuracy — directly influencing how efficiently a DC motor converts electrical energy into mechanical output. By ensuring clean, correctly timed firing pulses, the SDCS-PIN-48 minimizes switching losses, reduces harmonic distortion, and supports stable motor torque delivery across variable load conditions.
For facilities running continuous production lines — such as paper mills, steel rolling, extruder lines, or winding machines — even marginal improvements in drive firing precision translate into measurable reductions in energy consumption per production cycle. The SDCS-PIN-48 is not a peripheral component; it is a core element of the drive’s power conversion chain, and its condition directly affects the energy efficiency of the entire motor control loop.
Product Specification Table
| Parameter |
Specification / Value |
| Part Number |
SDCS-PIN-48 / 3BSE004939R0002 |
| Compatible Drive Series |
ABB DCS400, DCS500, DCS600 |
| Board Function |
Gate Pulse Isolation & Thyristor Firing |
| Operating Efficiency Impact |
Reduces switching losses via precise pulse timing |
| Power Consumption (Board) |
Low-power signal-level board; negligible self-consumption |
| Compatible Control Boards |
SDCS-CON-4, SDCS-CON-2, SDCS-POW-4 |
| Application Environment |
Industrial DC motor drives, continuous process lines |
| Compatibility |
ABB SDCS series modular drive architecture |
| Maintenance Value |
Stable thyristor firing → reduced harmonic losses → lower kWh per cycle |
| Condition |
New / Tested Surplus |
| Warranty |
warranty terms confirmed during quotation |
| Stock Status |
RFQ Available — shipment arranged after confirmation |
System Compatibility and Application
The SDCS-PIN-48 operates within a tightly integrated drive architecture. On the control side, the SDCS-CON-4 control board generates the firing angle commands based on speed and current feedback loops. These commands are passed to the SDCS-PIN-48, which isolates and amplifies the gate pulses before delivering them to the thyristor bridge in the SDCS-POW-4 power board. This three-board interaction — control, pulse isolation, and power conversion — forms the core of the DCS500’s energy conversion efficiency.
In a broader system context, the drive’s performance is further shaped by upstream and downstream components. The SDCS-FEX-2 field excitation board regulates motor field current, which directly affects motor flux and, consequently, the efficiency of torque production at any given speed. An improperly excited motor wastes energy as heat; the SDCS-FEX-2 working in tandem with a correctly firing SDCS-PIN-48 ensures the motor operates at its optimal flux point.
For condition monitoring at the system level, many facilities integrate the DCS500 drive with ABB’s ACS880 series AC drives or pair it with CM-series power monitoring relays to track real-time kW consumption, power factor, and harmonic content. The NDNA-02 PROFIBUS adapter or NMBP-01 Modbus Plus adapter enables the DCS500 to communicate drive status, energy data, and fault diagnostics to a central SCADA or DCS platform — allowing plant engineers to correlate firing board health with energy KPIs.
On the I/O and supervisory side, ABB’s AC500 PLC series (such as the PM573 or PM591 CPU modules) is commonly deployed to orchestrate multi-drive production lines, issuing speed references and monitoring drive feedback via fieldbus. The CP600 HMI panels provide operators with real-time visibility into drive operating points, energy consumption trends, and alarm states — enabling faster response to efficiency deviations before they escalate into unplanned downtime.
For facilities with regenerative braking requirements — common in hoisting, winding, or test bench applications — the DCS500 with a healthy SDCS-PIN-48 can return braking energy to the supply network, further reducing net energy consumption per production cycle. This regenerative capability depends entirely on precise, symmetrical thyristor firing, which the SDCS-PIN-48 directly enables.
Maintenance and Replacement Notes
In a typical paper mill or metal processing line running a DCS500-driven main drive, a degraded or failed pulse transformer board manifests as asymmetric thyristor firing — producing torque ripple, increased motor heating, and elevated harmonic current draw. Over a production shift, this translates into measurable excess energy consumption and accelerated motor insulation wear. Replacing a faulty SDCS-PIN-48 with a tested unit restores firing symmetry, reduces current distortion, and brings the drive back to its rated efficiency curve.
Beyond operational stability, a correctly functioning SDCS-PIN-48 reduces the thermal stress on the thyristor bridge, extending the service life of the SDCS-POW-4 power board and reducing the frequency of forced cooling cycles. In facilities where the DCS500 drives operate 24/7, this reduction in thermal cycling directly lowers maintenance costs and extends mean time between failures (MTBF).
For predictive maintenance programs, the firing board’s health can be inferred from drive diagnostic data available via the fieldbus interface. Irregular current waveforms, increased ripple in the DC bus, or asymmetric phase currents are early indicators of pulse transformer degradation — detectable before a full drive fault occurs. Keeping a tested SDCS-PIN-48 in inventory as a critical spare is a standard practice in facilities where drive downtime costs exceed the component’s replacement value within hours.
Our inventory of SDCS-PIN-48 boards is sourced from controlled environments, individually tested for pulse output integrity and isolation resistance, and shipped with full functional verification documentation. Each unit is covered by a warranty terms confirmed during quotation, ensuring your production line remains protected against drive-related energy inefficiencies and unplanned stoppages.
Product Sourcing FAQ
Q1: How does the SDCS-PIN-48 contribute to operational stability in a DCS500 drive system?
The SDCS-PIN-48 ensures precise, symmetrical gate pulses to the thyristor bridge. Accurate firing angles minimize reactive power draw, reduce harmonic losses, and allow the motor to operate at its designed efficiency point — directly lowering kWh consumption per unit of mechanical output.
Q2: Is the SDCS-PIN-48 3BSE004939R0002 compatible with all DCS500 variants?
Yes. The SDCS-PIN-48 with part number 3BSE004939R0002 is compatible across the DCS400, DCS500, and DCS600 drive families that use the SDCS modular board architecture. Always verify your drive’s hardware revision against ABB’s compatibility matrix before installation.
Q3: What is the recommended replacement procedure and testing process?
Replacement should be performed with the drive de-energized and locked out. After installation, the drive should undergo a no-load firing test to verify pulse symmetry across all six thyristor channels before returning to full production load. Our shipped units are pre-tested and include functional test records.
Q4: What does the warranty terms confirmed during quotation cover?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. It includes technical support for installation and commissioning queries. Units that fail within the warranty period are replaced or refunded subject to inspection. Contact our team at plc.sales@zyplc.com for warranty claims.
