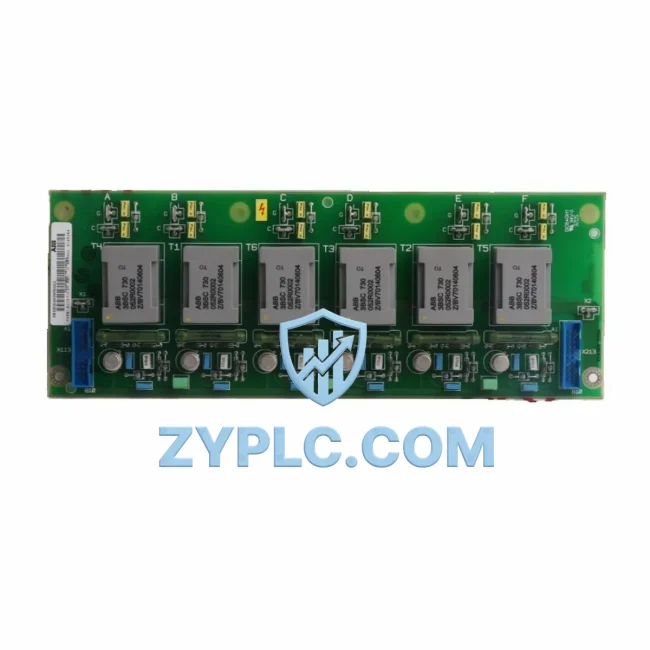

The ABB SDCS-PIN-48 (part number 3BSE004939R2) is a precision pulse transformer board engineered as a core firing-circuit component within ABB’s SDCS DC drive platform. Rather than functioning as a standalone module, the SDCS-PIN-48 occupies a critical position in the gate-pulse signal chain — translating control-level firing commands from the SDCS-CON-4 control board into isolated, high-fidelity gate pulses that drive the thyristor bridge with the accuracy and timing integrity that industrial DC drive systems demand. Understanding this board’s role requires viewing it through the lens of the complete SDCS drive architecture, where every layer — from the control processor to the power semiconductors — must operate in precise coordination.

In a fully configured SDCS drive system, the signal flow begins at the SDCS-CON-4 control board, which executes the speed and current regulation algorithms and generates the firing angle references. These references are passed to the SDCS-PIN-48, which conditions and isolates the gate pulses before they reach the thyristor stack. The isolation function is not merely electrical safety — it is a system-architecture requirement that prevents ground loops and common-mode interference from corrupting the firing timing, which in high-power DC drive applications can cause commutation failures, overcurrent trips, or asymmetric thyristor conduction. The SDCS-PIN-48 ensures that the control layer and the power layer remain electrically decoupled while maintaining sub-microsecond pulse fidelity across the full speed range.

The power supply architecture supporting the SDCS-PIN-48 is provided by the SDCS-POW-4 power supply board, which generates the regulated auxiliary voltages required by the control and interface boards within the SDCS rack. The SDCS-POW-4 must be correctly commissioned and verified before the SDCS-PIN-48 can operate reliably, as voltage deviations at the auxiliary supply rail directly affect pulse amplitude and transformer saturation margins. Engineers commissioning SDCS systems should always verify SDCS-POW-4 output rails against ABB’s specified tolerances before energizing the firing circuit.

At the I/O layer, the SDCS-IOB-3 and SDCS-IOB-21 I/O extension boards provide the analog and digital signal interfaces that feed process variables — motor speed feedback, armature current, field current — back to the SDCS-CON-4 for closed-loop regulation. The accuracy of these feedback signals directly influences the firing angle computed by the control board and, by extension, the pulse timing delivered through the SDCS-PIN-48. A miscalibrated tachometer input on the SDCS-IOB-3 will manifest as speed regulation instability that appears to originate in the firing circuit but is actually a feedback chain issue — a diagnostic nuance that experienced SDCS engineers must account for during commissioning and fault analysis.

For applications requiring field current control, the SDCS-FEX-2 field excitation board works in parallel with the armature firing circuit managed through the SDCS-PIN-48. In four-quadrant drive configurations, the coordination between armature firing angle and field current level is essential for smooth torque reversal and regenerative braking performance. The SDCS-PIN-48’s pulse isolation quality directly affects the armature current waveform symmetry, which in turn influences the field-to-armature current ratio during dynamic operating conditions.

From a network and communications perspective, SDCS drives are typically integrated into plant-level automation via the SDCS-COM-8 or compatible fieldbus adapter boards, which connect the drive to PROFIBUS-DP, Modbus RTU, or DeviceNet networks depending on the plant architecture. The SDCS-PIN-48 itself does not participate in fieldbus communication, but its reliable operation is a prerequisite for the drive’s ability to respond correctly to speed and torque references issued by the PLC or DCS over the fieldbus. In Siemens S7-300 or S7-400 PLC environments, for example, the drive’s fieldbus response latency is only as deterministic as the firing circuit’s timing accuracy — making the SDCS-PIN-48’s pulse fidelity a system-level performance factor, not merely a component-level specification.

At the human-machine interface layer, ABB’s Panel Builder or third-party HMI systems connected via the drive’s serial interface display drive status, fault codes, and operating parameters. Fault code 7 (firing circuit fault) and fault code 9 (pulse transformer fault) in the SDCS fault register are directly associated with the SDCS-PIN-48’s operating condition. Maintenance engineers should treat these fault codes as indicators for SDCS-PIN-48 inspection, including visual examination of the transformer windings, continuity testing of the pulse output circuits, and verification of the board’s connector seating in the SDCS rack backplane.

In terms of system redundancy and long-term maintenance strategy, stocking a spare SDCS-PIN-48 (3BSE004939R2) is a standard recommendation for facilities operating SDCS-based DC drives in continuous-process industries such as paper mills, steel rolling lines, mine hoists, and large pump stations. The SDCS-PIN-48 is not a field-repairable component — its transformer windings and PCB traces are manufactured to tight tolerances that cannot be replicated with field repair techniques. A like-for-like replacement with a tested, verified 3BSE004939R2 board is the only reliable corrective action when the firing circuit develops a fault attributable to this module.

Architecture Specification Table

Coordinated Control System Design

A complete SDCS-based DC drive system integrating the SDCS-PIN-48 typically includes the following coordinated components: the SDCS-CON-4 control board as the central regulation processor; the SDCS-POW-4 auxiliary power supply board; the SDCS-IOB-3 and SDCS-IOB-21 I/O extension boards for analog and digital signal interfacing; the SDCS-FEX-2 field excitation board for motor field current control; the SDCS-COM-8 fieldbus adapter for PROFIBUS-DP or Modbus integration; and the SDCS-PIN-48 itself as the firing pulse isolation stage. Together, these modules form a tightly integrated control architecture where the SDCS-PIN-48 serves as the critical bridge between the digital control domain and the high-power thyristor switching domain. The backplane interconnect between these boards must be inspected for connector oxidation and mechanical seating integrity during any maintenance intervention involving the SDCS-PIN-48, as backplane contact resistance can introduce pulse timing errors that are difficult to diagnose without oscilloscope measurement at the thyristor gate terminals.

Application in Layered Automation Systems

The SDCS-PIN-48 (3BSE004939R2) finds application across a wide range of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, wide-speed-range motor control. In steel rolling mills, SDCS drives with SDCS-PIN-48 firing boards control main roll drive motors ranging from hundreds to thousands of kilowatts, where firing angle precision directly determines strip thickness consistency and surface quality. In paper and pulp mills, the SDCS platform manages section drives on paper machines, where speed synchronization between sections — coordinated through the plant DCS and communicated to each drive via PROFIBUS — depends on the firing circuit’s timing accuracy. In mine hoist applications, the SDCS drive’s four-quadrant capability — enabled by precise firing angle control through the SDCS-PIN-48 — provides the controlled deceleration and regenerative braking required for safe personnel and material transport. In water treatment and pump stations, SDCS drives provide variable-speed control of large DC pump motors, where the firing circuit’s reliability directly affects process continuity and energy efficiency. In petrochemical and refinery environments, SDCS drives operate in hazardous-area-adjacent control rooms, where the SDCS-PIN-48’s transformer isolation provides an additional layer of electrical separation between the control system and the process equipment. Across all these applications, the 12-Month Warranty on the SDCS-PIN-48 provides procurement and maintenance teams with the assurance needed to justify spare-part investment and planned maintenance scheduling.

Architecture Engineering FAQ

Q1: Is the SDCS-PIN-48 (3BSE004939R2) compatible with all variants of the ABB SDCS DC drive series, including DCS400, DCS500, and DCS600 platforms?
The SDCS-PIN-48 is designed for use within the SDCS modular rack architecture that underpins the DCS400, DCS500, and DCS600 drive families. Compatibility depends on the specific rack configuration and firmware version of the SDCS-CON-4 control board. Engineers should verify the board revision and firmware compatibility matrix in ABB’s SDCS hardware documentation (document 3ADW000379) before installing a replacement SDCS-PIN-48. Our supplied 3BSE004939R2 boards are tested against standard SDCS rack configurations and include a 12-Month Warranty covering functional performance in compatible systems.

Q2: What diagnostic steps should be taken before concluding that the SDCS-PIN-48 is the root cause of a firing circuit fault?
Before replacing the SDCS-PIN-48, engineers should verify the SDCS-POW-4 auxiliary supply voltages at the rack backplane, inspect the SDCS-CON-4 for active fault codes related to the firing reference output, check the backplane connector seating for all boards in the SDCS rack, and use an oscilloscope to measure gate pulse waveforms at the thyristor gate-cathode terminals. If gate pulses are absent or distorted while the SDCS-CON-4 shows no internal faults, the SDCS-PIN-48 is the most probable fault source. Contextual Integration of the replacement board requires no parameter changes — the SDCS-PIN-48 is a hardware-only module with no software configuration.

Q3: What is covered under the 12-Month Warranty, and what are the long-term spare-part supply considerations for SDCS-PIN-48?
The 12-Month Warranty covers functional defects in the SDCS-PIN-48 (3BSE004939R2) under normal operating conditions consistent with ABB’s specified environmental and electrical parameters. Warranty claims are processed through direct contact with our technical team. For long-term supply planning, facilities operating multiple SDCS drives should consider maintaining at least one spare SDCS-PIN-48 per drive system, given that ABB’s original production of SDCS-series boards has been subject to availability constraints as the platform matures. We maintain verified stock of 3BSE004939R2 boards to support ongoing maintenance requirements for installed SDCS drive fleets.

—
