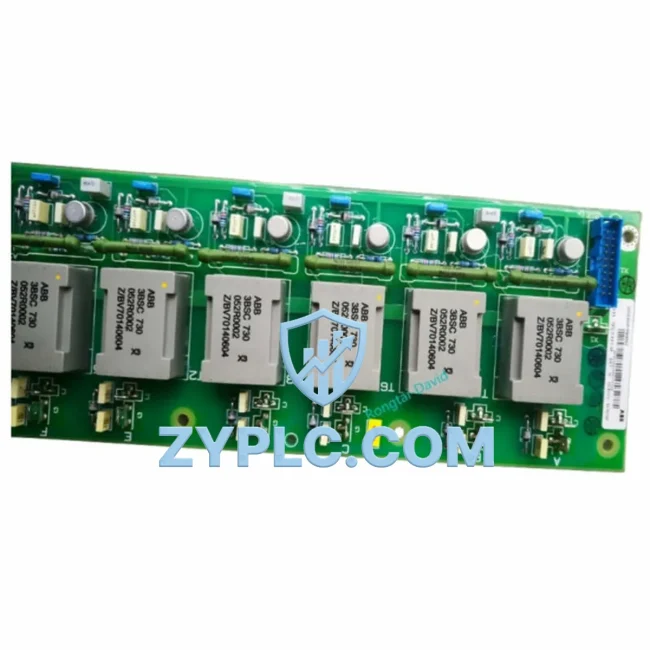

ABB SDCS-PIN-48-SD System-Ready Pulse Interface for SDCS Architecture

ABB SDCS-PIN-48-SD System-Ready Pulse Interface for SDCS Architecture

The ABB SDCS-PIN-48-SD is a precision pulse transformer interface board engineered for seamless integration within ABB’s SDCS DC drive control architecture. Rather than functioning as a standalone component, this board occupies a critical position in the layered automation hierarchy — bridging the firing pulse signals generated by the SDCS-CON-4 control board and the thyristor power bridge, ensuring accurate, noise-immune gate triggering across the full speed and torque operating range of the drive system. In industrial environments where DC motor control demands both precision and resilience, the SDCS-PIN-48-SD delivers the galvanic isolation and signal fidelity that define reliable drive performance.

Within a complete SDCS-based DC drive system, the SDCS-PIN-48-SD does not operate in isolation. It is part of a tightly coordinated control stack that typically includes the SDCS-CON-4 main control board, the SDCS-POW-4 power supply board, and the SDCS-FEX-2 field excitation module. The pulse interface board receives firing angle commands from the control layer and translates them into isolated gate pulses for the thyristor bridge, maintaining synchronization with the AC supply frequency and the motor’s electrical characteristics. This architecture ensures that the control layer remains electrically isolated from the high-voltage power section, protecting sensitive digital circuitry and improving system EMC performance.

From a system architecture perspective, the SDCS-PIN-48-SD supports both single-quadrant and four-quadrant drive configurations, making it applicable across a wide range of industrial motor control scenarios. In regenerative drive setups — common in steel rolling mills, paper machines, and large crane systems — the board’s pulse distribution accuracy is essential for coordinating forward and reverse thyristor bridges without commutation overlap. The board interfaces directly with the SDCS-CON-4’s pulse output section and is designed to match the electrical characteristics of ABB’s standard SDCS power modules, ensuring plug-compatible replacement and minimal commissioning time during maintenance or system upgrades.

The layered automation architecture in which the SDCS-PIN-48-SD operates typically spans multiple functional levels. At the field level, DC motors and their associated sensors — tachogenerators, encoders, or armature voltage feedback circuits — provide real-time speed and current signals to the SDCS-CON-4. The control board processes these signals through its closed-loop speed and current regulators, generating precise firing angle commands that are passed to the SDCS-PIN-48-SD for pulse generation and isolation. Above the drive level, a supervisory PLC or DCS — such as an ABB AC500 series controller or a third-party Modbus RTU master — communicates setpoints and operational commands via the SDCS-COM-8 or SDCS-COM-81 fieldbus adapter boards, enabling coordinated multi-drive operation across production lines.

For facilities managing multiple DC drive systems, the SDCS-PIN-48-SD’s standardized form factor and connector layout simplify spare parts management and reduce mean time to repair. Maintenance engineers familiar with the SDCS platform can replace the board without recalibration of the control parameters stored in the SDCS-CON-4, as the pulse interface board does not hold drive-specific configuration data. This design philosophy supports long-term maintainability in industries such as mining, petrochemical processing, water treatment, and metal fabrication, where unplanned downtime carries significant operational and financial consequences.

The board is also compatible with ABB’s broader DCS800 and DCS550 DC drive families in retrofit and upgrade scenarios, where legacy SDCS control hardware is being integrated with newer power sections or communication infrastructure. In such projects, the SDCS-PIN-48-SD serves as a continuity component, preserving the proven control logic of the SDCS platform while accommodating updated power electronics. This compatibility reduces the scope and cost of drive modernization projects, allowing facilities to upgrade incrementally rather than replacing entire drive cabinets.

All units supplied by ZYPLC are covered by a 12-Month Warranty, with pre-shipment functional verification and full documentation support. Our inventory of SDCS-PIN-48-SD boards is maintained to support urgent replacement requirements, with global logistics capability to minimize drive downtime. Whether you are commissioning a new SDCS-based system, replacing a failed pulse interface board, or building a spare parts inventory for a multi-drive installation, ZYPLC provides the technical expertise and supply chain reliability that industrial operations demand.

Architecture Specification Table

Coordinated Control System Design

The SDCS-PIN-48-SD achieves its full performance potential when deployed within a complete, coordinated SDCS control system. A typical architecture integrating this board includes the following components working in concert:

The SDCS-CON-4 main control board serves as the intelligence center of the drive, executing speed and current control algorithms and generating the firing angle commands consumed by the SDCS-PIN-48-SD. Power to the control electronics is supplied by the SDCS-POW-4 power supply board, which provides regulated 24 VDC and 5 VDC rails to both the control and pulse interface boards. Field excitation for separately excited DC motors is managed by the SDCS-FEX-2 field excitation module, which coordinates with the SDCS-CON-4 to optimize flux levels across the operating speed range.

Fieldbus connectivity is provided by the SDCS-COM-8 or SDCS-COM-81 communication adapter boards, enabling Profibus DP, Modbus RTU, or DeviceNet integration with plant-level PLCs and DCS systems. For human-machine interface requirements, ABB’s CDP312R control panel or compatible HMI terminals provide local parameter access and drive status monitoring. At the motor terminal, SDCS-MUL-2 measurement boards handle armature current and voltage feedback, closing the control loop through the SDCS-CON-4. In multi-drive installations, SDCS-DSL-4 drive-to-drive link boards enable coordinated speed reference distribution across tandem or sectional drive systems, with the SDCS-PIN-48-SD in each drive ensuring synchronized thyristor firing across the production line.

Application in Layered Automation Systems

The SDCS-PIN-48-SD finds application across a broad spectrum of heavy industrial and process automation environments. In steel and metals processing, the board supports regenerative DC drive systems used in rolling mill main drives, coiler/uncoiler drives, and edger drives, where precise speed control and rapid torque reversal are essential for product quality and equipment protection. In paper and pulp manufacturing, SDCS-based drives controlled through the SDCS-PIN-48-SD regulate section drives on paper machines, where speed synchronization across multiple drive points is critical for web tension control.

In mining and mineral processing, the board supports large DC hoist drives, conveyor drives, and crusher drives, where the combination of high starting torque and controlled acceleration protects mechanical equipment and reduces energy consumption. Petrochemical and refinery applications utilize SDCS drives for pump and compressor control in hazardous area installations, with the SDCS-PIN-48-SD’s galvanic isolation contributing to system safety by preventing ground loop interference between the control and power sections. In water and wastewater treatment, the board supports variable-speed pump drives that optimize energy consumption across varying flow demand profiles. Packaging and material handling lines use SDCS drives for precise tension and speed control in winding, unwinding, and conveying applications, with the SDCS-PIN-48-SD ensuring consistent pulse delivery even under rapidly changing load conditions.

Architecture Engineering FAQ

Q1: Is the SDCS-PIN-48-SD directly interchangeable with earlier ABB SDCS pulse interface boards, and does replacement require drive reconfiguration?
The SDCS-PIN-48-SD is designed as a form-fit-function replacement within the SDCS drive family. Because drive-specific parameters — speed regulator gains, current limits, field weakening curves — are stored in the SDCS-CON-4 control board’s non-volatile memory, replacing the pulse interface board does not require parameter re-entry. After physical installation, a standard commissioning check of firing angle symmetry and pulse output integrity is recommended to confirm correct operation before returning the drive to service.

Q2: Can the SDCS-PIN-48-SD support 12-pulse drive configurations for harmonic reduction in sensitive power networks?
Yes. The SDCS-PIN-48-SD supports 12-pulse thyristor bridge configurations when used with appropriately configured SDCS-CON-4 firmware and dual power bridge hardware. In 12-pulse arrangements, two six-pulse bridges fed from phase-shifted transformer secondaries are controlled by a single SDCS-CON-4, with the SDCS-PIN-48-SD distributing isolated gate pulses to both bridges. This configuration significantly reduces low-order harmonic injection into the supply network, making it suitable for installations with strict power quality requirements or sensitive co-located equipment.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for SDCS systems?
ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions, with replacement or repair support provided from the date of shipment. For long-term SDCS system support, ZYPLC maintains a dedicated inventory of SDCS series boards — including SDCS-CON-4, SDCS-POW-4, SDCS-FEX-2, and SDCS-PIN-48-SD — to support both planned maintenance programs and emergency replacement requirements. Our technical team provides pre-sales compatibility verification and post-sales commissioning guidance to ensure correct board selection and system integration.
