ABB SDCS-PIN-H51 System-Ready Power Supply for DCS800 Architecture

ABB SDCS-PIN-H51 System-Ready Power Supply for DCS800 Architecture: Control System Coordination and Upstream-Downstream Synergy

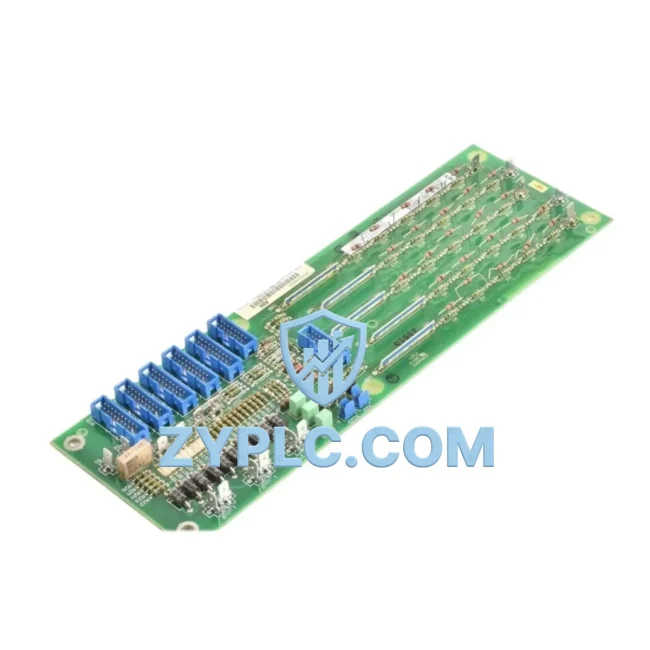

The ABB SDCS-PIN-H51 (part number 3ADT320700R1501) is a dedicated power supply interface board engineered for the DCS800 series of DC drives, one of ABB’s most widely deployed platforms in industrial automation. Rather than functioning as a standalone component, the SDCS-PIN-H51 occupies a critical position within the layered control architecture of DC drive systems — bridging the power conversion layer with the control and signal processing layers to ensure stable, regulated energy delivery across the entire drive unit.

In modern industrial automation, the reliability of a DC drive system is not determined by any single module in isolation. It is the result of precise coordination between the control layer, the power layer, the I/O interface layer, the communication network, and the human-machine interface. The SDCS-PIN-H51 serves as the foundational power conditioning element that enables all other layers to operate within their specified electrical parameters. Without a properly functioning power supply board, even the most sophisticated CPU module or fieldbus gateway cannot maintain system stability under dynamic load conditions.

Architecture Specification Table

Coordinated Control System Design

The SDCS-PIN-H51 is most accurately understood as a system-level component rather than a discrete spare part. Within the DCS800 drive architecture, it works in direct coordination with the SDCS-CON-4 control board, which handles speed regulation, current loop control, and digital I/O processing. The power supply board ensures that the SDCS-CON-4 receives clean, stable auxiliary voltage, preventing logic errors caused by voltage ripple or transient spikes during motor acceleration and deceleration cycles.

At the power conversion layer, the SDCS-PIN-H51 interfaces with the thyristor firing circuit and the SDCS-POW-4 power board, which manages the main DC bus voltage. This coordination is essential in applications where the drive must respond to rapid load changes — such as in rolling mills, winding machines, or large pump systems — where power supply instability can cause nuisance trips or, in severe cases, damage to the gate firing electronics.

For systems requiring fieldbus connectivity, the SDCS-PIN-H51 supports the installation of communication adapter boards such as the SDCS-COM-8 (PROFIBUS-DP) or SDCS-COM-81 (DeviceNet), enabling the DCS800 drive to integrate seamlessly into plant-wide SCADA or DCS networks. This communication layer is critical for facilities operating under IEC 61511 or ISA-99 cybersecurity frameworks, where drive-level data must be continuously monitored by the supervisory control system.

At the human-machine interface layer, operators interacting with ABB’s Panel Builder or third-party HMI terminals rely on the drive’s internal power architecture to maintain consistent data exchange. The SDCS-PIN-H51 contributes to this stability by ensuring that the drive’s internal communication bus remains energized even during partial load conditions or standby states.

In redundant drive configurations — common in critical process industries such as petrochemical refining, offshore platforms, and power generation — the SDCS-PIN-H51 is often stocked as a direct replacement module to minimize mean time to repair (MTTR). Facilities operating ABB DCS800 drives alongside SDCS-FEX-2 field excitation units or SDCS-FEX-4 excitation controllers benefit from maintaining a verified inventory of power supply boards, as excitation system faults frequently originate at the auxiliary power level.

Terminal modules, surge protection devices, and shielded cable assemblies within the control cabinet also depend on the stable auxiliary power output of the SDCS-PIN-H51 to maintain signal integrity across analog and digital I/O channels. In high-noise industrial environments — such as steel plants, cement factories, or mining operations — even minor fluctuations in auxiliary power can introduce measurement errors in encoder feedback or thermocouple inputs, leading to suboptimal process control.

Application in Layered Automation Systems

Manufacturing and Discrete Production Lines: In automotive assembly plants and metal fabrication facilities, DCS800 drives equipped with properly functioning SDCS-PIN-H51 boards maintain precise torque control across multi-axis conveyor and transfer systems. The power supply board’s role in sustaining the control electronics ensures that speed references from the PLC layer are executed with minimal latency and maximum repeatability.

Power Generation and Utilities: In coal-fired and hydroelectric power plants, DC drives are used to control induced draft fans, boiler feed pumps, and exciter systems. The SDCS-PIN-H51 supports continuous operation in these high-availability environments, where unplanned downtime carries significant financial and safety consequences. Its compatibility with the DCS800 platform’s built-in diagnostics allows maintenance teams to perform predictive maintenance without removing the drive from service.

Petrochemical and Refinery Applications: Process control systems in oil refineries and chemical plants demand drives that can operate reliably in high-temperature, high-humidity environments with exposure to corrosive atmospheres. The DCS800 platform, supported by the SDCS-PIN-H51, is designed to meet these demands, with the power supply board providing stable auxiliary power even under thermally stressed conditions.

Water and Wastewater Treatment: Municipal water treatment facilities use DC drives to control large centrifugal pumps and aeration blowers. The SDCS-PIN-H51 ensures that the drive’s control electronics remain operational during variable-speed pump operation, supporting energy-efficient flow control and reducing wear on mechanical components.

Mining and Mineral Processing: In underground mining and surface extraction operations, DCS800 drives power conveyor belts, crushers, and hoists. The SDCS-PIN-H51’s role in maintaining internal drive power integrity is critical in these applications, where vibration, dust, and temperature extremes place additional stress on electronic components.

Architecture Engineering FAQ

Q1: Is the SDCS-PIN-H51 (3ADT320700R1501) compatible with all DCS800 drive variants, and does it require any firmware configuration after installation?
The SDCS-PIN-H51 is designed for use within the ABB DCS800 series DC drive platform and is compatible with the standard drive chassis configurations that accept the SDCS-PIN board format. After physical installation, the drive’s parameter set — particularly the auxiliary power monitoring thresholds — should be verified using ABB’s DriveWindow or DriveSPC commissioning software to ensure that the new board is recognized correctly by the SDCS-CON-4 control board. No firmware flashing is typically required for a direct replacement, but parameter backup and restore is recommended as a best practice. All units supplied by ZYPLC are covered by a 12-Month Warranty and have been functionally tested prior to dispatch.

Q2: Can the SDCS-PIN-H51 be used in a redundant drive architecture, and what is the recommended spare parts strategy for long-term system maintenance?
Yes. In critical process applications where drive redundancy is implemented — such as parallel drive configurations or hot-standby arrangements — the SDCS-PIN-H51 should be included in the site’s critical spare parts inventory. ABB recommends maintaining at least one spare power supply board per drive cabinet for DCS800 installations in high-availability environments. ZYPLC supports long-term maintenance planning by offering verified OEM-equivalent boards with full 12-Month Warranty coverage, enabling facilities to maintain system uptime without dependency on extended lead times from primary distribution channels.

Q3: What are the key installation and commissioning considerations when replacing the SDCS-PIN-H51 in an operational DCS800 system?
Before replacing the SDCS-PIN-H51, the drive must be fully de-energized and isolated in accordance with IEC 60204-1 lockout/tagout procedures. The DC bus capacitors must be fully discharged — typically verified by measuring the DC bus voltage with a calibrated multimeter and confirming it is below 50V. The replacement board should be handled using ESD-safe procedures. After installation, the drive should be powered up in a controlled sequence, with auxiliary power verified before enabling the main thyristor firing circuit. Commissioning engineers should log all parameter values before and after the replacement to confirm system continuity. ZYPLC’s technical support team is available to assist with pre-installation verification and post-commissioning confirmation for all boards supplied under the 12-Month Warranty program.
