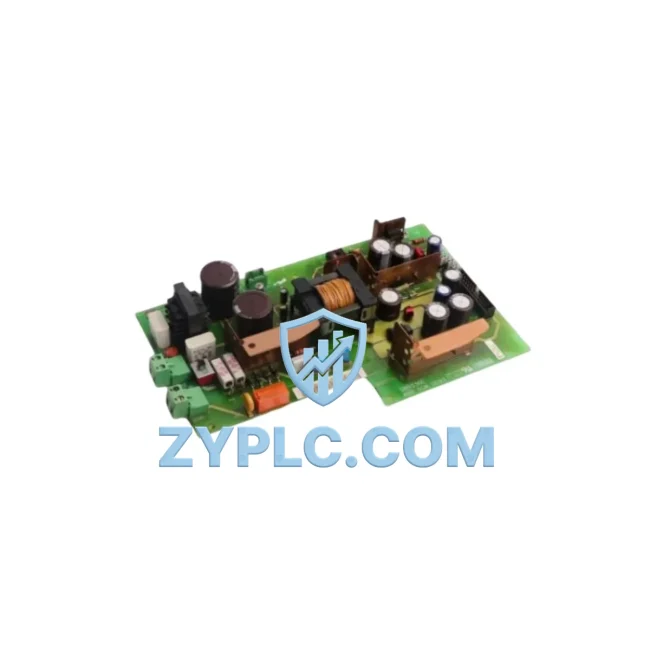

In a fully integrated industrial automation environment, every layer of the control architecture depends on the reliability and precision of its power infrastructure. The ABB SDCS-POW-4 3ADT315100R10001 is a dedicated power supply board engineered specifically for ABB’s DCS800 and DCS400 series DC drive platforms. Far from being a standalone component, this board occupies a critical position within the drive’s internal power hierarchy — supplying regulated voltages to the control electronics, gate driver circuits, and feedback signal processing units that govern motor torque, speed, and protection responses across the entire drive system.

Understanding the SDCS-POW-4’s role requires viewing it within the broader context of a layered automation system. At the control layer, a supervisory PLC or DCS controller — such as an ABB AC500 series PLC or an ABB System 800xA distributed control system — issues setpoint commands via fieldbus communication. These commands travel through the drive’s communication interface, often supported by modules such as the RDCO-03 DDCS communication option board or the RPBA-01 PROFIBUS adapter, before reaching the drive’s main control board. The SDCS-POW-4 ensures that the control board, including the SDCS-CON-4 main control board, receives stable, noise-free power at all times — a prerequisite for deterministic signal processing and accurate motor control.

At the I/O and signal layer, the SDCS-POW-4 supports the integrity of analog and digital I/O circuits that interface with field instruments, encoders, and tachometers. Encoder feedback boards such as the SDCS-IOB-3 and the SDCS-IOB-41 rely on clean power rails to deliver accurate speed and position feedback to the control loop. Any voltage ripple or transient on the internal power supply can introduce measurement errors that degrade closed-loop performance, increase motor heating, or trigger nuisance faults. The SDCS-POW-4’s regulated output design directly mitigates these risks, contributing to system-wide signal fidelity.

From a network and communication stability perspective, the drive’s fieldbus interface modules — whether PROFIBUS, DeviceNet, or Modbus RTU — require consistent logic-level power to maintain cyclic communication with the host controller. Interruptions at the power supply level can cause communication timeouts, drive faults, and unplanned process shutdowns. In continuous process industries such as petrochemical refining, pulp and paper production, or steel rolling mills, such interruptions translate directly into production losses and equipment stress. The SDCS-POW-4 is designed to sustain communication module power even during transient load changes on the main DC bus, ensuring that the drive remains responsive to supervisory commands throughout dynamic operating cycles.

At the power layer, the SDCS-POW-4 works in conjunction with the drive’s main power stack, which includes the thyristor bridge assembly and the SDCS-PIN-205 power interface board. The power interface board manages the gate firing signals for the thyristor bridge, and the accuracy of these signals depends directly on the quality of the supply voltage provided by the SDCS-POW-4. In regenerative drive configurations — common in winding, unwinding, and hoisting applications — the power supply board must maintain stable output across both motoring and regenerating quadrants of operation, supporting seamless energy flow reversal without disrupting the control electronics.

For human-machine interface integration, operators monitoring drive status through an ABB Panel 800 operator terminal or a third-party SCADA system receive real-time data — current, voltage, speed, fault codes — that originates from the drive’s internal measurement circuits. These circuits are powered by the SDCS-POW-4. Accurate HMI data is essential for process optimization, predictive maintenance scheduling, and regulatory compliance reporting. A degraded power supply board can introduce measurement offsets that mislead operators and maintenance engineers, potentially masking developing faults until they escalate into catastrophic failures.

In redundant drive architectures, where a standby drive is maintained in hot-standby or warm-standby mode alongside the primary drive, the SDCS-POW-4 must be available as a verified spare to minimize switchover time. Facilities that maintain a stocked SDCS-POW-4 alongside spares such as the SDCS-CON-4 control board, SDCS-FEX-2 field excitation board, and SDCS-DSL-4 diagnostic board can restore drive functionality within hours rather than days, dramatically reducing mean time to repair (MTTR) and protecting production continuity agreements.

Architecture Specification Table

Coordinated Control System Design

The SDCS-POW-4 3ADT315100R10001 achieves its full value when considered as part of a coordinated drive system rather than an isolated component. In a typical DCS800-based DC motor drive system, the following components work in close coordination:

The SDCS-CON-4 main control board serves as the computational core of the drive, executing the speed and current control algorithms. It depends entirely on the SDCS-POW-4 for its operating power. The SDCS-FEX-2 field excitation board manages the DC motor’s field winding current, and its analog measurement circuits share the same regulated power infrastructure. The SDCS-IOB-3 I/O extension board and SDCS-IOB-41 analog I/O board handle field signal conditioning, while the SDCS-PIN-205 power interface board bridges the control electronics to the thyristor power stack. Communication with the plant-level control system is handled by the RDCO-03 DDCS fiber optic communication board or the RPBA-01 PROFIBUS adapter module, both of which require stable logic power from the SDCS-POW-4. Together, these components form a tightly integrated drive system capable of precise four-quadrant DC motor control across demanding industrial applications.

Application in Layered Automation Systems

The ABB SDCS-POW-4 3ADT315100R10001 finds application across a wide range of process and discrete manufacturing industries where DC drive technology remains the preferred solution for high-torque, variable-speed motor control. In steel rolling mills and metal processing lines, DCS800 drives equipped with SDCS-POW-4 boards control main roll drives, coiler drives, and tension reel systems, where precise torque control and rapid speed response are critical to product quality. In paper and pulp production, the board supports winder and unwinder drives that must maintain constant web tension across varying roll diameters. In mining and mineral processing, DCS800 drives power conveyor systems, crushers, and hoisting equipment in environments characterized by heavy electrical noise and wide ambient temperature ranges — conditions that demand robust internal power supply design. In water and wastewater treatment, DC drives control pump and blower motors in applications where energy efficiency and long service life are prioritized. In chemical and petrochemical plants, the drive’s ability to operate reliably in hazardous area adjacent installations — supported by stable internal power from the SDCS-POW-4 — makes it a preferred choice for agitator, extruder, and compressor drive applications. Across all these sectors, the availability of a verified SDCS-POW-4 spare directly supports plant uptime commitments and maintenance budget control.

Architecture Engineering FAQ

Q1: Is the SDCS-POW-4 3ADT315100R10001 compatible with both DCS800 and DCS400 drive series?
The SDCS-POW-4 is primarily designed for the ABB DCS800 DC drive platform. Compatibility with DCS400 variants depends on the specific drive frame size and hardware revision. We recommend verifying the drive’s hardware documentation or contacting our technical team with your drive’s nameplate data before ordering. Our 12-Month Warranty covers verified compatible installations.

Q2: How does replacing the SDCS-POW-4 affect the overall drive system calibration and parameter settings?
The SDCS-POW-4 is a power supply board and does not store drive parameters or calibration data. Drive parameters are retained in the SDCS-CON-4 control board’s non-volatile memory. Replacing the SDCS-POW-4 does not require parameter re-entry, provided the control board remains installed and undamaged. Standard commissioning checks — including supply voltage verification and functional testing of I/O and communication boards — are recommended after any internal board replacement.

Q3: What does the 12-Month Warranty cover for the SDCS-POW-4 3ADT315100R10001?
Our 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions consistent with ABB’s published specifications for the DCS800 drive platform. The warranty includes technical support for installation and commissioning questions, replacement or repair of confirmed defective units, and Contextual Integration guidance to ensure the board operates correctly within your specific drive system architecture. Warranty claims are processed through our dedicated after-sales support team.
