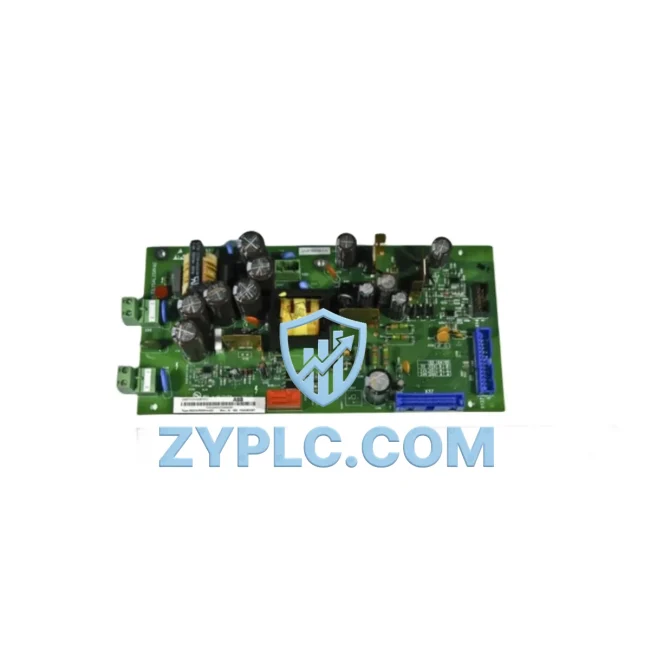

ABB SDCS-POW-4 3ADT315100R1012 System-Ready Power Supply for SDCS Architecture

ABB SDCS-POW-4 3ADT315100R1012 System-Ready Power Supply for SDCS Drive Control Architecture

The ABB SDCS-POW-4 (part number 3ADT315100R1012) is a dedicated power supply board engineered for seamless integration within ABB’s SDCS DC drive control architecture. Rather than functioning as a standalone component, this board occupies a critical position in the layered automation hierarchy — bridging the control layer and the power conversion layer to ensure stable, regulated voltage delivery across the entire drive system. In multi-drive installations, consistent power supply performance is the foundation upon which all higher-level control logic, communication integrity, and motion precision depend. The SDCS-POW-4 is designed to meet these demands with precision, reliability, and long-term serviceability in mind.

Within a complete SDCS-based DC drive system, the SDCS-POW-4 works in close coordination with the SDCS-CON-4 control board, which handles the core regulation algorithms, speed and current control loops, and fieldbus communication. The power supply board provides the internal auxiliary voltages required for the control electronics, gate drive circuits, and measurement circuits to operate correctly. Any instability at this layer propagates directly to the control layer, making the SDCS-POW-4 a high-priority component in both commissioning and long-term maintenance planning. Engineers specifying replacement or spare boards for SDCS-based systems should treat this board as a critical infrastructure element rather than a peripheral accessory.

The SDCS drive platform is widely deployed in heavy industrial environments including steel mills, paper machines, extruders, winding systems, and large pump and fan applications. In these contexts, the power supply board must withstand continuous thermal cycling, vibration, and electrical noise. The 3ADT315100R1012 variant is factory-tested and verified against ABB’s original design specifications, ensuring drop-in compatibility with existing SDCS drive cabinets without requiring firmware changes or hardware modifications to adjacent boards.

Architecture Specification Table

Coordinated Control System Design

The SDCS-POW-4 does not operate in isolation. Its value is fully realized only when considered within the broader SDCS drive system architecture. At the control layer, the SDCS-CON-4 control board relies on the stable auxiliary voltages delivered by the SDCS-POW-4 to execute its closed-loop regulation functions. The two boards form an inseparable functional pair — replacing one without verifying the condition of the other is a common commissioning oversight that leads to recurring faults.

At the I/O layer, the SDCS-IOB-3 and SDCS-IOB-4 I/O extension boards interface with field sensors, encoders, and actuator feedback signals. These boards draw their logic supply from the same internal power distribution network that the SDCS-POW-4 feeds, meaning that a degraded power supply board can manifest as intermittent I/O faults rather than a clear power failure — a diagnostic pattern that experienced drive engineers will recognize immediately.

For communication and network integration, the SDCS platform supports optional fieldbus adapter modules such as the RDCO-02 (DDCS fiber optic link) and RPBA-01 (PROFIBUS-DP adapter), both of which depend on stable internal power to maintain network synchronization. In distributed drive systems where multiple SDCS drives are coordinated via a master PLC — such as an ABB AC500 or Siemens S7-300/400 — any power instability at the drive level can disrupt the entire motion sequence, causing production stoppages that are disproportionately costly relative to the cost of the power supply board itself.

At the human-machine interface layer, operator panels such as the ABB CDP312R control panel connect to the SDCS drive and display real-time drive status, fault codes, and parameter values. Maintaining a healthy SDCS-POW-4 ensures that the drive’s internal diagnostics remain accurate and that fault logging is not corrupted by power rail fluctuations. In redundant drive architectures — common in critical process applications such as paper machine drives or mine hoist systems — a spare SDCS-POW-4 board should be held in the local spare parts inventory to minimize mean time to repair (MTTR) in the event of a board-level failure.

Terminal modules, surge protection components, and DC bus capacitor banks within the drive cabinet also interact with the power distribution architecture managed by the SDCS-POW-4. Engineers performing cabinet-level maintenance should always verify the output voltage rails of the power supply board as part of their standard preventive maintenance checklist, alongside inspection of the SDCS-FEX-2 field excitation board and the gate drive circuits of the main thyristor stack.

Application in Layered Automation Systems

The SDCS-POW-4 3ADT315100R1012 finds its primary application in industries where DC drive technology remains the preferred solution for high-torque, wide speed-range motion control. In steel and metals processing, SDCS-based drives control rolling mill main drives, coiler and uncoiler drives, and leveler drives, where the power supply board must maintain performance under heavy cyclic loading and frequent regenerative braking events.

In paper and pulp manufacturing, multi-section paper machines use coordinated SDCS drives to maintain precise draw ratios between machine sections. The integrity of each drive’s internal power supply is essential to maintaining the synchronization accuracy required for consistent paper quality. A single degraded power supply board in a multi-drive line can introduce speed deviations that result in web breaks and significant production losses.

In petrochemical and refinery applications, SDCS drives control large extruder motors, compressor drives, and pump drives in hazardous area installations. The power supply board’s reliability directly affects process continuity in environments where unplanned shutdowns carry significant safety and financial consequences. Facilities in this sector typically maintain a minimum of one spare SDCS-POW-4 per drive type in their site spare parts inventory.

In mining and mineral processing, SDCS drives are used in conveyor drives, crusher drives, and hoist systems. The demanding duty cycles and remote installation locations make board-level reliability and the availability of genuine spare parts critical factors in total cost of ownership calculations. The 12-Month Warranty provided with this board supports procurement teams in justifying the use of verified replacement parts over unverified alternatives.

In water and wastewater treatment facilities, SDCS drives control large pump motors in applications where variable speed operation delivers significant energy savings. The power supply board’s long-term stability contributes to the overall reliability of the drive system in these continuous-duty applications.

Architecture Engineering FAQ

Q1: Is the SDCS-POW-4 3ADT315100R1012 directly interchangeable with earlier SDCS power supply board variants?
The 3ADT315100R1012 is the current production part number for the SDCS-POW-4 and is designed for direct board-level replacement within SDCS drive cabinets. Compatibility should be verified against the drive’s hardware revision and the existing SDCS-CON-4 firmware version before installation. In most cases, no parameter changes are required after board replacement, but a full drive commissioning check — including verification of all voltage rails and a test run under load — is recommended as standard practice.

Q2: Can the SDCS-POW-4 be used in a redundant power supply configuration?
The standard SDCS architecture does not support hot-standby redundancy at the power supply board level within a single drive unit. However, system-level redundancy can be achieved through drive-level redundancy — using two complete SDCS drive units in a duty/standby configuration with automatic changeover logic implemented at the PLC or DCS level. For applications requiring the highest availability, this architecture is recommended, and maintaining a spare SDCS-POW-4 board at the site level is the standard approach to minimizing repair time in the event of a board failure.

Q3: What does the 12-Month Warranty cover, and what support is available during the warranty period?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions as defined by ABB’s SDCS installation and operating guidelines. It does not cover damage resulting from incorrect installation, operation outside specified electrical parameters, or physical damage. During the warranty period, technical support for installation, commissioning, and fault diagnosis is available through our sales and technical team. Customers are encouraged to contact us with the drive’s fault log and a description of the failure mode to expedite the support process.
