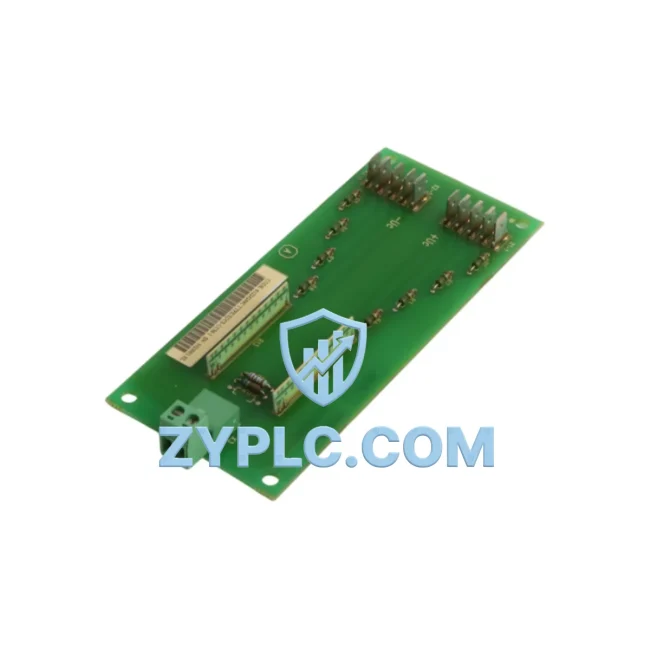

ABB SDCS-UCM-1 3ADT220090R0008 System-Ready Excitation Board for DCS800 Architecture

ABB SDCS-UCM-1 3ADT220090R0008 System-Ready Excitation Board for DCS800 Control Architecture

The ABB SDCS-UCM-1 (part number 3ADT220090R0008) is a precision-engineered excitation control board designed as an integral component within the ABB DCS800 and DCS600 series DC drive architecture. Rather than functioning as a standalone module, the SDCS-UCM-1 operates at the intersection of the control layer and the power conversion layer, managing field excitation signals that are fundamental to the stable, high-performance operation of DC motor drive systems across demanding industrial environments.

In a fully integrated DCS800 drive system, the SDCS-UCM-1 excitation board coordinates with the main control unit (SDCS-CON-4 or SDCS-CON-2B) to regulate armature and field current with precision. The excitation signal generated by this board directly influences motor torque response, speed stability, and energy efficiency — parameters that are critical in applications such as rolling mills, winding machines, extruders, hoists, and large-scale pump or fan drives. Its role within the system architecture is not peripheral; it is a foundational element that determines the quality of the drive’s closed-loop control performance.

From a system architecture perspective, the SDCS-UCM-1 interfaces with the SDCS-PIN-51 or SDCS-PIN-48 power interface boards, which manage the gate firing signals for the thyristor bridge. The excitation board receives reference signals from the control board and translates them into precise field current commands, ensuring that the motor’s magnetic flux is maintained at the correct level across the full speed range. This tight integration between the excitation board, the control board, and the power interface layer is what enables the DCS800 platform to deliver the dynamic performance expected in high-demand industrial processes.

The SDCS-UCM-1 also plays a key role in redundancy and fault-tolerance design. In critical applications where unplanned downtime carries significant operational cost — such as in steel processing lines, paper mills, or offshore platform drives — having a verified, tested spare SDCS-UCM-1 board on hand is a standard engineering practice. The board’s modular design allows for rapid field replacement without requiring full drive reconfiguration, minimizing mean time to repair (MTTR) and supporting the overall system availability targets defined in the plant’s maintenance strategy.

Communication and diagnostic integration is another dimension of the SDCS-UCM-1’s value within the DCS800 architecture. The board’s status and fault signals are accessible through the drive’s DDCS (Distributed Drive Control System) fiber-optic communication network, allowing integration with ABB’s AC800M or AC500 PLC platforms via RDCO-02 or RDCO-03 communication option boards. This enables centralized monitoring of excitation health from the SCADA or DCS level, supporting predictive maintenance workflows and reducing the need for manual inspection cycles.

For system engineers specifying spare parts or replacement components, the SDCS-UCM-1 3ADT220090R0008 is compatible with the full DCS800 product family, including the DCS800-S01, DCS800-S02, and DCS800-S04 drive variants, as well as legacy DCS600 installations where the excitation architecture is equivalent. Compatibility with the SDCS-FEX-2 field excitation unit and the SDCS-DSL-4 digital speed and load board further extends the integration scope of this component within mixed-generation drive systems.

Every SDCS-UCM-1 3ADT220090R0008 supplied by ZYPLC is fully tested under load conditions prior to dispatch, with functional verification of excitation output, signal integrity, and communication interface. All units are covered by a 12-Month Warranty and supported by Contextual Integration guidance to assist engineers with installation, parameter configuration, and system commissioning within the DCS800 control architecture.

Architecture Specification Table

Coordinated Control System Design

The SDCS-UCM-1 3ADT220090R0008 achieves its full performance potential only when correctly integrated within a coordinated DCS800 drive system. At the control layer, the SDCS-CON-4 main control board provides the closed-loop speed and current regulation algorithms that generate the excitation reference signals consumed by the SDCS-UCM-1. The SDCS-PIN-51 power interface board bridges the excitation board’s output to the thyristor firing circuit, ensuring that field current ramp-up and ramp-down are synchronized with armature current control.

At the I/O layer, the SDCS-IOB-3 or SDCS-IOB-21 I/O extension boards provide the analog and digital signal interfaces required for encoder feedback, external reference inputs, and relay output signals. These boards work in conjunction with the SDCS-UCM-1 to ensure that the drive’s control loop has access to accurate real-time process data. The SDCS-DSL-4 digital speed and load board further enhances the system’s ability to manage complex multi-motor coordination scenarios.

For network integration, the RDCO-02 DDCS communication option board enables the DCS800 drive — including the SDCS-UCM-1’s excitation status — to communicate over ABB’s fiber-optic DDCS network with upstream controllers such as the AC800M or AC500 PLC platforms. In Profibus or PROFINET environments, the RPBA-01 or RETA-01 fieldbus adapter modules provide the protocol translation layer. At the HMI layer, the CDP312R control panel or a PC-based DriveWindow Light tool provides local parameter access and fault diagnostics. The SDCS-FEX-2 field excitation unit completes the excitation circuit for applications requiring separate field supply management, making the SDCS-UCM-1 the logical control counterpart to this hardware excitation unit.

Application in Layered Automation Systems

The SDCS-UCM-1 3ADT220090R0008 is deployed across a wide range of heavy industrial automation environments where precise DC motor control is a process requirement. In steel and metals processing, the board supports rolling mill main drives and coiler/uncoiler tension control systems, where field weakening and rapid torque response are essential for product quality. In paper and pulp manufacturing, it is used in winder and rewinder drive systems where web tension consistency depends on accurate field current regulation across speed transitions.

In petrochemical and refinery applications, the SDCS-UCM-1 supports large compressor and pump drives where continuous operation and fault-tolerant design are mandatory. Mining and mineral processing operations use DCS800 drives with SDCS-UCM-1 boards in conveyor, crusher, and hoist applications, where the mechanical load profile demands robust excitation control under variable torque conditions. In water and wastewater treatment plants, the board supports variable-speed pump drives that must maintain precise flow control across wide operating ranges. Packaging and converting lines benefit from the SDCS-UCM-1’s ability to support high-dynamic speed regulation in register control and tension management applications.

Architecture Engineering FAQ

Q1: Is the SDCS-UCM-1 3ADT220090R0008 compatible with both DCS800 and DCS600 drive platforms?
Yes. The SDCS-UCM-1 excitation board is designed for use within the DCS800 series and is also compatible with DCS600 installations that share the same modular control architecture. Engineers should verify the firmware version of the SDCS-CON-4 control board to confirm parameter set compatibility before installation. ZYPLC provides Contextual Integration support to assist with cross-generation compatibility verification.

Q2: What is the recommended procedure for replacing the SDCS-UCM-1 in a live production environment?
The recommended procedure involves a controlled drive shutdown, isolation of the field supply circuit, and careful documentation of the existing parameter set via DriveWindow or the CDP312R panel before board removal. The replacement SDCS-UCM-1 should be installed with the drive de-energized, followed by a parameter restore and a no-load excitation test before returning the drive to production. ZYPLC’s 12-Month Warranty covers the replacement unit, and our technical team can provide commissioning guidance as part of our Contextual Integration service.

Q3: How does the 12-Month Warranty apply to the SDCS-UCM-1 3ADT220090R0008, and what does it cover?
All SDCS-UCM-1 3ADT220090R0008 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of dispatch. The warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance verified through our pre-shipment testing protocol. Units that fail within the warranty period are replaced or repaired at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters.
